Information fuel-injection pump
BOSCH
9 410 618 053
9410618053
ZEXEL
104268-3041
1042683041
NIIGATA-TEKKOU
7BA47012B
7ba47012b
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104268-3041 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

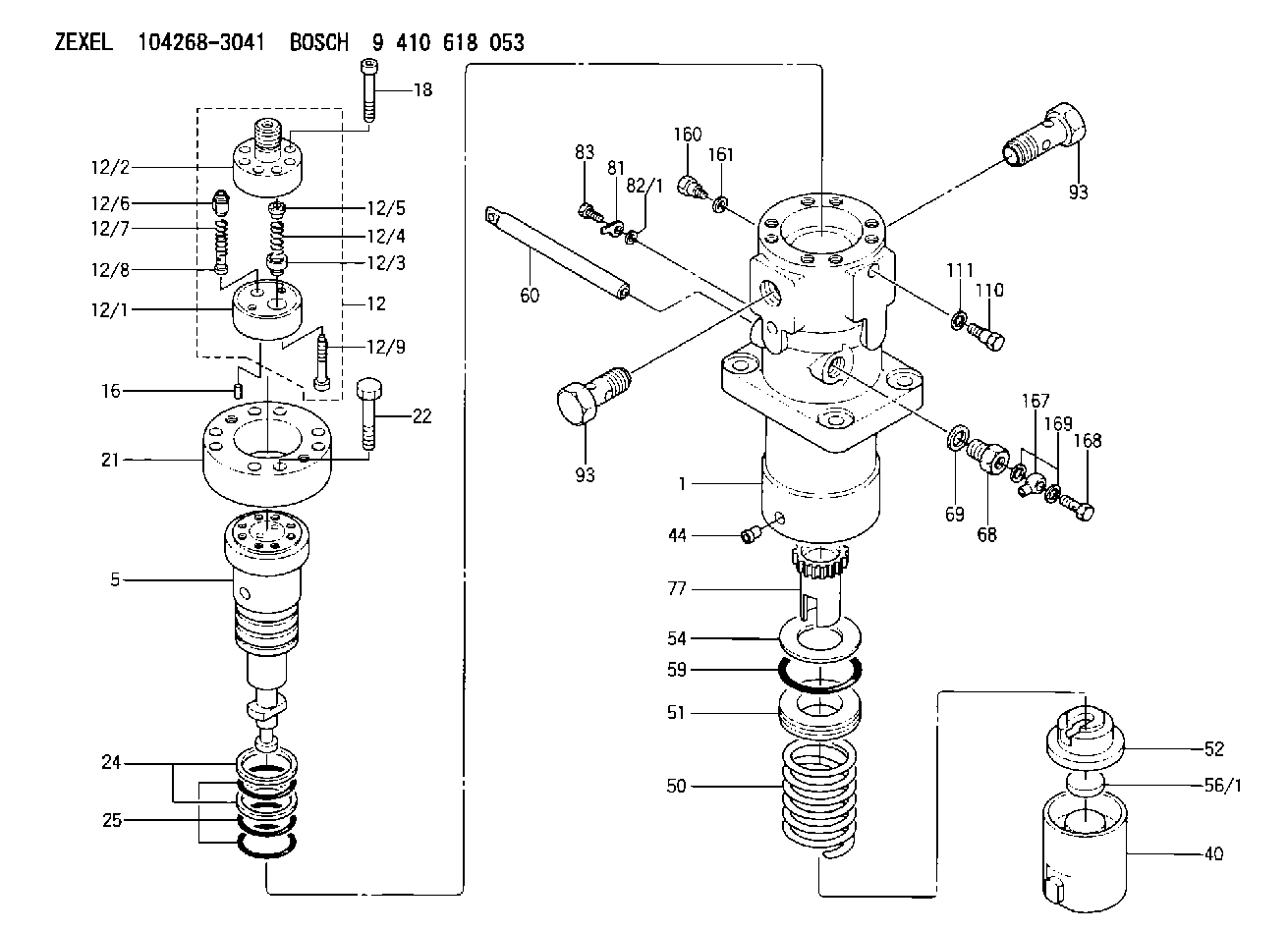

Scheme ###:
| 1. | [1] | 141055-8300 | PUMP HOUSING |
| 5. | [1] | 141189-5220 | PLUNGER-AND-BARREL ASSY |
| 12. | [1] | 141145-8520 | DELIVERY-VALVE ASSEMBLY |
| 12/1. | [1] | 141146-2300 | SEAT;D.V. |
| 12/2. | [1] | 141138-3800 | FITTING |
| 12/3. | [1] | 141142-9100 | VALVE BODY |
| 12/4. | [1] | 141144-0500 | COMPRESSION SPRING |
| 12/5. | [1] | 141113-3201 | SLOTTED WASHER |
| 12/6. | [1] | 141145-8400 | VALVE BODY |
| 12/7. | [1] | 141112-8701 | COILED SPRING |
| 12/8. | [1] | 141113-2003 | FILLER PIECE |
| 12/9. | [2] | 010235-2520 | HEX-SOCKET-HEAD CAP SCREW |
| 16. | [1] | 150508-3100 | BEARING PIN |
| 18. | [8] | 141124-5900 | HEX-SOCKET-HEAD CAP SCREW |
| 21. | [1] | 141119-4901 | FLANGE BUSHING |
| 22. | [8] | 141124-6000 | BLEEDER SCREW |
| 24. | [2] | 016421-0600 | BACKUP RING |
| 25. | [3] | 141485-1002 | O-RING |
| 40. | [1] | 141200-3621 | TAPPET |
| 44. | [1] | 141212-0300 | BEARING PIN |
| 50. | [1] | 141215-9000 | COMPRESSION SPRING |
| 51. | [1] | 141216-7120 | SLOTTED WASHER |
| 52. | [1] | 141217-9600 | SLOTTED WASHER |
| 54. | [1] | 141450-2100 | PLATE |
| 56/1. | [1] | 141209-5000 | PLATE |
| 56/1. | [1] | 141209-5100 | PLATE |
| 56/1. | [1] | 141209-5200 | PLATE |
| 56/1. | [1] | 141209-5300 | PLATE |
| 56/1. | [1] | 141209-5400 | PLATE |
| 56/1. | [1] | 141209-5500 | PLATE |
| 56/1. | [1] | 141209-5600 | PLATE |
| 59. | [1] | 141485-0602 | O-RING |
| 60. | [1] | 141291-5200 | CONTROL RACK |
| 68. | [1] | 141405-4900 | ADAPTOR |
| 69. | [1] | 026520-2440 | GASKET D23.9&20.2T1 |
| 77. | [1] | 141292-3700 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 93. | [2] | 141402-3120 | EYE BOLT |
| 93. | [2] | 141402-3120 | EYE BOLT |
| 110. | [1] | 141418-2600 | SET OF NUTS |
| 111. | [1] | 141403-2000 | GASKET |
| 160. | [1] | 141418-2600 | SET OF NUTS |
| 161. | [1] | 141403-2000 | GASKET |
| 167. | [1] | 150948-0000 | INLET UNION |
| 168. | [1] | 150949-0100 | EYE BOLT |
| 169. | [2] | 150521-0800 | GASKET |
Include in #1:
101401-9013
as _
Include in #2:
104268-3041
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104268-3041
7BA47012B NIIGATA-TEKKOU
FUEL-INJECTION PUMP
K 24FW FUEL INJECTION PUMP PF-1SV PF
K 24FW FUEL INJECTION PUMP PF-1SV PF
