Information fuel-injection pump
BOSCH
9 410 618 034
9410618034
ZEXEL
104268-1220
1042681220
DAIHATSU
E326470210ZZ
e326470210zz
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104268-1220 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

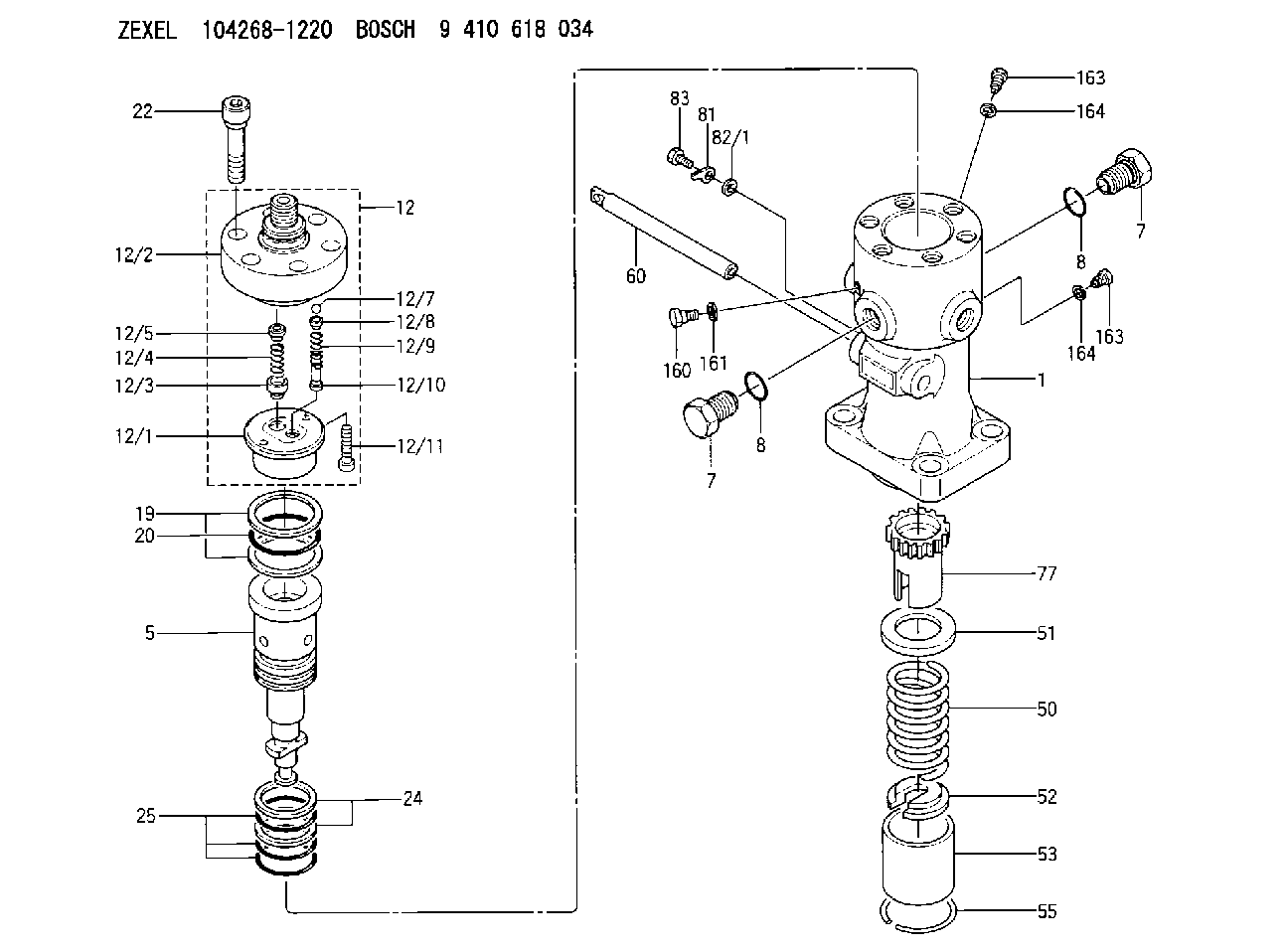

Scheme ###:
| 1. | [1] | 141055-0800 | PUMP HOUSING |
| 5. | [1] | 141187-2720 | PLUNGER-AND-BARREL ASSY |
| 7. | [2] | 141133-7001 | CAPSULE |
| 7. | [2] | 141133-7001 | CAPSULE |
| 8. | [2] | 141485-1203 | O-RING |
| 8. | [2] | 141485-1203 | O-RING |
| 12. | [1] | 141142-9520 | DELIVERY-VALVE ASSEMBLY |
| 12/1. | [1] | 141141-7800 | SEAT;D.V |
| 12/2. | [1] | 141137-7500 | FITTING |
| 12/3. | [1] | 141142-9100 | VALVE BODY |
| 12/4. | [1] | 141144-0500 | COMPRESSION SPRING |
| 12/5. | [1] | 141113-3201 | SLOTTED WASHER |
| 12/7. | [1] | 016806-0020 | BALL |
| 12/8. | [1] | 141113-0900 | SLOTTED WASHER |
| 12/9. | [1] | 141112-8701 | COILED SPRING |
| 12/10. | [1] | 141113-2003 | FILLER PIECE |
| 12/11. | [2] | 010235-1620 | HEX-SOCKET-HEAD CAP SCREW |
| 19. | [2] | 016421-0700 | BACKUP RING |
| 20. | [1] | 141118-3002 | O-RING |
| 22. | [6] | 141124-4200 | BLEEDER SCREW |
| 24. | [2] | 016421-0600 | BACKUP RING |
| 25. | [3] | 141485-1002 | O-RING |
| 50. | [1] | 141215-7401 | COMPRESSION SPRING |
| 51. | [1] | 141216-5100 | SLOTTED WASHER |
| 52. | [1] | 141217-8300 | SLOTTED WASHER |
| 53. | [1] | 141218-9000 | GUIDE |
| 55. | [1] | 141220-2900 | LOCKING WASHER |
| 60. | [1] | 141291-1500 | CONTROL RACK |
| 77. | [1] | 141292-2000 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 160. | [1] | 141418-2600 | SET OF NUTS |
| 161. | [1] | 141403-2000 | GASKET |
| 163. | [2] | 373658-1400 | CAPSULE |
| 163. | [2] | 373658-1400 | CAPSULE |
| 164. | [2] | 141403-1800 | GASKET |
| 164. | [2] | 141403-1800 | GASKET |
Include in #2:
104268-1220
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104268-1220
E326470210ZZ DAIHATSU
FUEL-INJECTION PUMP
K 24FW FUEL INJECTION PUMP PF-1SV PF
K 24FW FUEL INJECTION PUMP PF-1SV PF
