Information fuel-injection pump
BOSCH
9 410 618 456
9410618456
ZEXEL
104265-3070
1042653070
DAIHATSU
E266485010ZZ
e266485010zz
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104265-3070 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

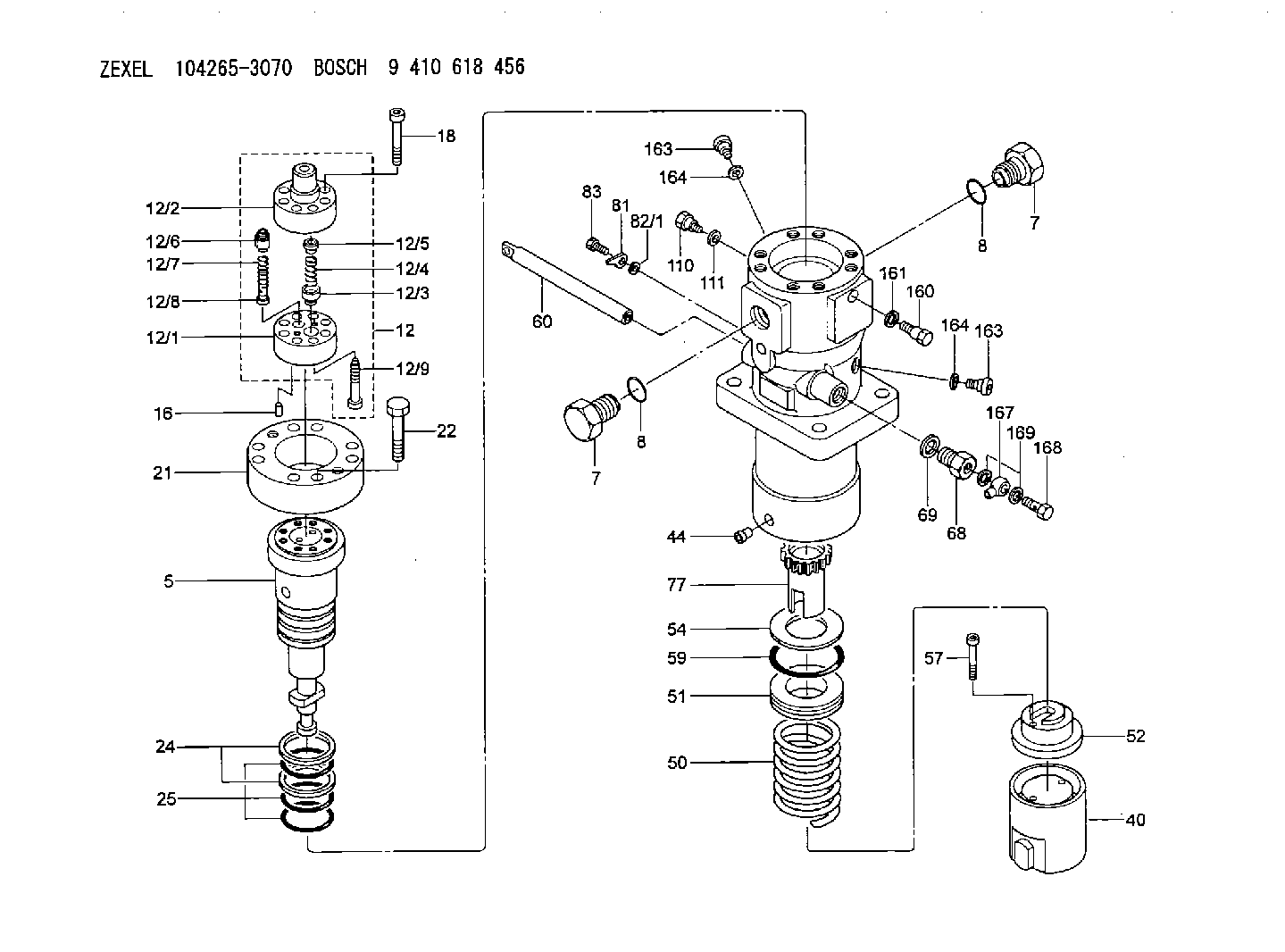

Scheme ###:
| 5. | [1] | 141189-5920 | PLUNGER-AND-BARREL ASSY |
| 7. | [2] | 141133-9200 | CAPSULE |
| 7. | [2] | 141133-9200 | CAPSULE |
| 8. | [2] | 141485-1302 | O-RING |
| 8. | [2] | 141485-1302 | O-RING |
| 12. | [1] | 141145-6521 | DELIVERY-VALVE ASSEMBLY |
| 12/1. | [1] | 141146-2300 | SEAT;D.V. |
| 12/2. | [1] | 141138-1800 | FITTING |
| 12/3. | [1] | 141142-9100 | VALVE BODY |
| 12/4. | [1] | 141144-0500 | COMPRESSION SPRING |
| 12/5. | [1] | 141113-3201 | SLOTTED WASHER |
| 12/6. | [1] | 141145-8400 | VALVE BODY |
| 12/7. | [1] | 141112-8701 | COILED SPRING |
| 12/8. | [1] | 141113-2003 | FILLER PIECE |
| 12/9. | [2] | 010235-2520 | HEX-SOCKET-HEAD CAP SCREW |
| 16. | [1] | 150508-3100 | BEARING PIN |
| 18. | [8] | 141124-5900 | HEX-SOCKET-HEAD CAP SCREW |
| 21. | [1] | 141119-4901 | FLANGE BUSHING |
| 22. | [8] | 141124-6000 | BLEEDER SCREW |
| 24. | [2] | 016421-0600 | BACKUP RING |
| 25. | [3] | 141485-1002 | O-RING |
| 40. | [1] | 141200-3720 | TAPPET |
| 44. | [1] | 141212-0300 | BEARING PIN |
| 50. | [1] | 141215-9000 | COMPRESSION SPRING |
| 51. | [1] | 141216-7120 | SLOTTED WASHER |
| 52. | [1] | 141254-3400 | SLOTTED WASHER |
| 54. | [1] | 141450-2100 | PLATE |
| 57. | [2] | 010206-3020 | HEX-SOCKET-HEAD CAP SCREW |
| 59. | [1] | 141485-0602 | O-RING |
| 60. | [1] | 141291-5200 | CONTROL RACK |
| 68. | [1] | 141405-4900 | ADAPTOR |
| 69. | [1] | 026520-2440 | GASKET D23.9&20.2T1 |
| 77. | [1] | 141292-3700 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 110. | [1] | 141418-2600 | SET OF NUTS |
| 111. | [1] | 141403-2000 | GASKET |
| 160. | [1] | 141418-2600 | SET OF NUTS |
| 161. | [1] | 141403-2000 | GASKET |
| 163. | [2] | 373658-1400 | CAPSULE |
| 163. | [2] | 373658-1400 | CAPSULE |
| 164. | [2] | 141403-1800 | GASKET |
| 164. | [2] | 141403-1800 | GASKET |
| 167. | [1] | 150948-0000 | INLET UNION |
| 168. | [1] | 150949-0100 | EYE BOLT |
| 169. | [2] | 150521-0800 | GASKET |
Include in #1:
101491-9442
as _
Include in #2:
104265-3070
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Table 1
Required Parts
Qty Part Number Part Name
1 420-0939 Sleeve(1)
1 420-0940 Sleeve(2)
1 420-0941 Sleeve(3)
1 420-0942 Sleeve(4)
(1) Red
(2) Silver
(3) Gold
(4) GreenSleeve Rework procedure
Illustration 1 g06360367
Typical example of an injector - without sleeve
(A) Adjustment screw
(B) Locknut
Remove and retain adjustment screw (A). Remove and discard locknut (B).
Illustration 2 g06360368
Typical example of an injector - with sleeve
(1) Sleeve
(A) Adjustment screw
Insert appropriate sleeve (1) onto adjustment screw (A).
