104265-3015 ZEXEL 9 410 618 267 BOSCH FUEL-INJECTION PUMP 9410618267 1042653015 e266480040bz

Information fuel-injection pump

BOSCH 9 410 618 267 9410618267

ZEXEL 104265-3015 1042653015

DAIHATSU E266480040BZ e266480040bz

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 104265-3015 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104265-3015
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

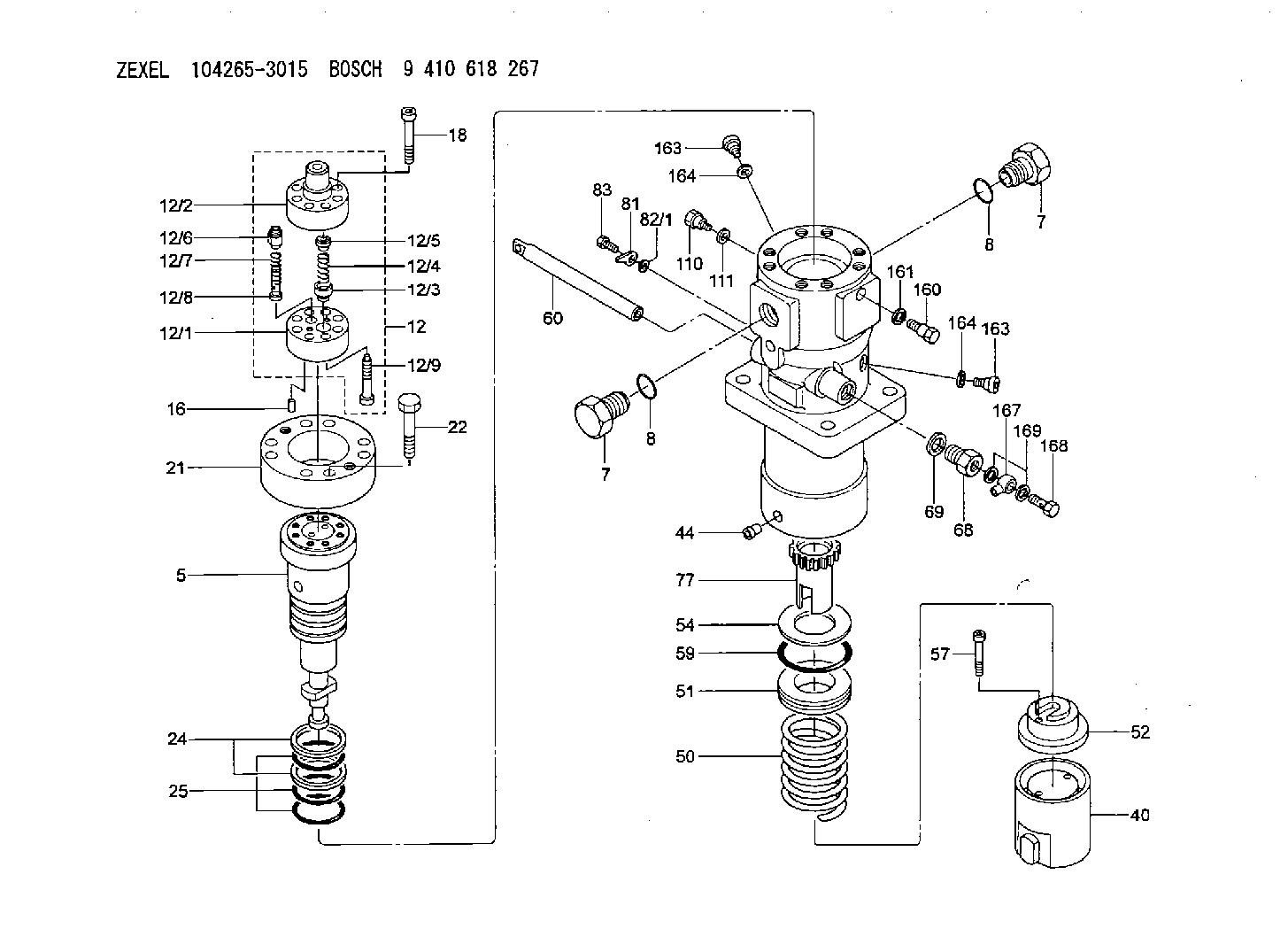

Scheme ###:

1.	[1]	141055-7201	PUMP HOUSING
5.	[1]	141189-5122	PLUNGER-AND-BARREL ASSY
7.	[2]	141133-9200	CAPSULE
7.	[2]	141133-9200	CAPSULE
8.	[2]	141485-1302	O-RING
8.	[2]	141485-1302	O-RING
12.	[1]	141145-6521	DELIVERY-VALVE ASSEMBLY
12/1.	[1]	141146-2300	SEAT;D.V.
12/2.	[1]	141138-1800	FITTING
12/3.	[1]	141142-9100	VALVE BODY
12/4.	[1]	141144-0500	COMPRESSION SPRING
12/5.	[1]	141113-3201	SLOTTED WASHER
12/6.	[1]	141145-8400	VALVE BODY
12/7.	[1]	141112-8701	COILED SPRING
12/8.	[1]	141113-2003	FILLER PIECE
12/9.	[2]	010235-2520	HEX-SOCKET-HEAD CAP SCREW
16.	[1]	150508-3100	BEARING PIN
18.	[8]	141124-5900	HEX-SOCKET-HEAD CAP SCREW
21.	[1]	141119-4901	FLANGE BUSHING
22.	[8]	141124-6000	BLEEDER SCREW
24.	[2]	016421-0600	BACKUP RING
25.	[3]	141485-1002	O-RING
40.	[1]	141200-3720	TAPPET
44.	[1]	141212-0300	BEARING PIN
50.	[1]	141215-9000	COMPRESSION SPRING
51.	[1]	141216-7120	SLOTTED WASHER
52.	[1]	141254-3400	SLOTTED WASHER
54.	[1]	141450-2100	PLATE
57.	[2]	010206-3020	HEX-SOCKET-HEAD CAP SCREW
59.	[1]	141485-0602	O-RING
60.	[1]	141291-5200	CONTROL RACK
68.	[1]	141405-4900	ADAPTOR
69.	[1]	026520-2440	GASKET D23.9&20.2T1
77.	[1]	141292-3700	CONTROL SLEEVE
81.	[1]	141245-2000	POINTER
82/1.	[0]	023500-6210	PLAIN WASHER D11&6.4T1.5
82/1.	[0]	029300-6010	PLAIN WASHER D11&6.4T0.8
82/1.	[0]	029300-6020	PLAIN WASHER D11&6.4T0.35
83.	[1]	020006-1440	BLEEDER SCREW M6P1L14
110.	[1]	141418-2600	SET OF NUTS
111.	[1]	141403-2000	GASKET
160.	[1]	141418-2600	SET OF NUTS
161.	[1]	141403-2000	GASKET
163.	[2]	373658-1400	CAPSULE
163.	[2]	373658-1400	CAPSULE
164.	[2]	141403-1800	GASKET
164.	[2]	141403-1800	GASKET
167.	[1]	150948-0000	INLET UNION
168.	[1]	150949-0100	EYE BOLT
169.	[2]	150521-0800	GASKET

Include in #1:

101491-9223 as _

Include in #2:

104265-3015 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104265-3015

9 410 618 267
NP-PFR1GS250A00N2

E266480040BZ DAIHATSU

FUEL-INJECTION PUMP
K 24FS FUEL INJECTION PUMP PF-R1GS PF
