Information fuel-injection pump
BOSCH
9 410 617 624
9410617624
ZEXEL
104258-5270
1042585270
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104258-5270 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

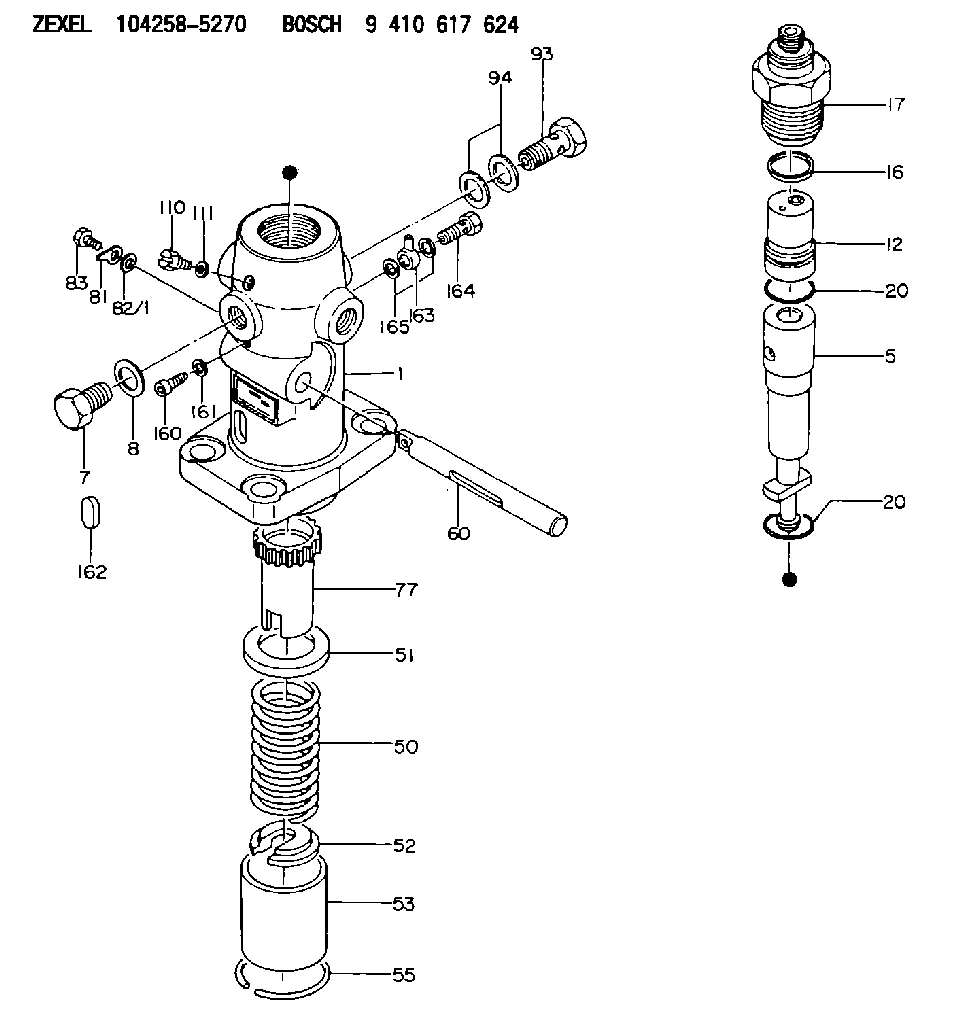

Scheme ###:
| 1. | [1] | 141053-9300 | PUMP HOUSING |
| 5. | [1] | 141175-9120 | PLUNGER-AND-BARREL ASSY |
| 7. | [1] | 141133-0200 | CAPSULE |
| 8. | [1] | 141403-1100 | GASKET |
| 12. | [1] | 141142-5821 | DELIVERY-VALVE ASSEMBLY |
| 16. | [1] | 141115-6000 | GASKET |
| 17. | [1] | 141136-7700 | FITTING |
| 20. | [2] | 141118-1900 | O-RING |
| 20. | [2] | 141118-1900 | O-RING |
| 50. | [1] | 141215-5001 | COMPRESSION SPRING |
| 51. | [1] | 141216-0100 | SLOTTED WASHER |
| 52. | [1] | 141217-5100 | SLOTTED WASHER |
| 53. | [1] | 141218-7700 | GUIDE |
| 55. | [1] | 026110-6010 | LOCKING WASHER |
| 60. | [1] | 141244-4300 | CONTROL RACK |
| 77. | [1] | 141241-6600 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 93. | [1] | 141402-3320 | EYE BOLT |
| 94. | [2] | 141403-1700 | GASKET |
| 110. | [1] | 140420-1600 | BLEEDER SCREW |
| 111. | [1] | 141403-1200 | GASKET |
| 160. | [1] | 141418-1100 | SET OF NUTS |
| 161. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
| 162. | [1] | 141480-0700 | COVER |
| 163. | [1] | 150948-0000 | INLET UNION |
| 164. | [1] | 141402-3720 | EYE BOLT |
| 165. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
Cross reference number
Zexel num
Bosch num
Firm num
Name
104258-5270
FUEL-INJECTION PUMP
K 24EX FUEL INJECTION PUMP PF-1WX PF
K 24EX FUEL INJECTION PUMP PF-1WX PF
