104258-5231 ZEXEL 9 410 618 259 BOSCH FUEL-INJECTION PUMP 9410618259 1042585231 e266450130aa

Information fuel-injection pump

BOSCH 9 410 618 259 9410618259

ZEXEL 104258-5231 1042585231

DAIHATSU E266450130AA e266450130aa

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 104258-5231 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104258-5231
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

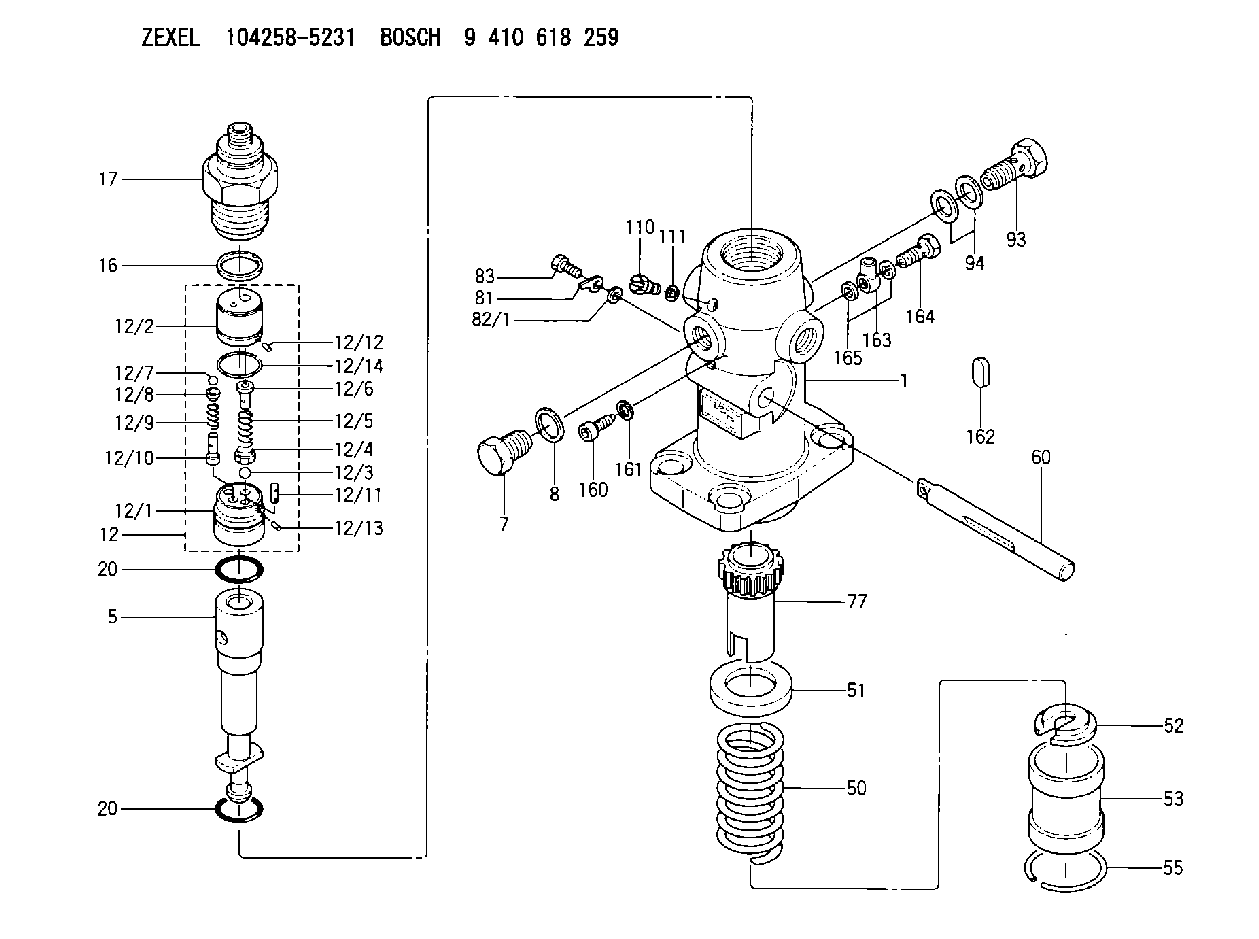

Scheme ###:

1.	[1]	141053-9300	PUMP HOUSING
5.	[1]	141175-7921	PLUNGER-AND-BARREL ASSY
7.	[1]	141133-0200	CAPSULE
8.	[1]	141403-1100	GASKET
12.	[1]	141142-5821	DELIVERY-VALVE ASSEMBLY
12/1.	[1]	141141-8500	SEAT;D.V
12/2.	[1]	141141-8400	SEAT;D.V
12/3.	[1]	016807-0030	BALL
12/4.	[1]	141113-0601	SLOTTED WASHER
12/5.	[1]	141112-7100	COILED SPRING
12/6.	[1]	141117-9201	FILLER PIECE
12/7.	[1]	016804-5030	BALL
12/8.	[1]	141113-1500	SLOTTED WASHER
12/9.	[1]	141112-8201	COMPRESSION SPRING
12/10.	[1]	141117-9302	FILLER PIECE
12/11.	[2]	141213-1400	BEARING PIN
12/12.	[2]	141271-0200	BEARING PIN
12/13.	[2]	029423-0080	BEARING PIN
12/14.	[1]	141222-0400	LOCKING WASHER
16.	[1]	141115-6000	GASKET
17.	[1]	141137-1000	FITTING
20.	[2]	141118-1900	O-RING
20.	[2]	141118-1900	O-RING
50.	[1]	141215-5001	COMPRESSION SPRING
51.	[1]	141216-0100	SLOTTED WASHER
52.	[1]	141217-5100	SLOTTED WASHER
53.	[1]	141218-7700	GUIDE
55.	[1]	026110-6010	LOCKING WASHER
60.	[1]	141244-4300	CONTROL RACK
77.	[1]	141241-6600	CONTROL SLEEVE
81.	[1]	141245-2000	POINTER
82/1.	[0]	023500-6210	PLAIN WASHER D11&6.4T1.5
82/1.	[0]	029300-6010	PLAIN WASHER D11&6.4T0.8
82/1.	[0]	029300-6020	PLAIN WASHER D11&6.4T0.35
83.	[1]	020006-1440	BLEEDER SCREW M6P1L14
93.	[1]	141402-3320	EYE BOLT
94.	[2]	141403-1700	GASKET
110.	[1]	140420-1600	BLEEDER SCREW
111.	[1]	141403-1200	GASKET
160.	[1]	141418-1101	SET OF NUTS
161.	[1]	026506-1040	GASKET D9.9&6.2T1
162.	[1]	141480-0700	COVER
163.	[1]	150948-0000	INLET UNION
164.	[1]	141402-3720	EYE BOLT
165.	[2]	026510-1340	GASKET D13.4&10.2T1

Include in #2:

104258-5231 as INJECTION-PUMP ASSEMBLY

104740-0550 as _

Cross reference number

Zexel num

Bosch num

Firm num

Name

104258-5231

9 410 618 259
NP-PF1WX220A03N35

E266450130AA DAIHATSU

FUEL-INJECTION PUMP
K 24FX FUEL INJECTION PUMP PF-1GX PF

Information:

CompactorCB68B (S/N: 496100-100)Asphalt PaverAP1055F (S/N: RLM1-105)AP555F (S/N: 5F51-101)AP600F (S/N: LR61-108)AP655F (S/N: 4801-103; P651-124; ML61-113; 4791-122,125-125)Excavator320D2 (S/N: BW21-235; CY21-192; ZBH1-975,10001-10185)323D2 (S/N: FLC1-219,10001-10004; KCE1-428; JEG1-257; PJP1-1331; YCR1-288; TDT1-560,10001-10135; KBX1-191,10001-10006)326D2 (S/N: REC1-197,199-199,202-203,205-206,208-212; MZH1-282,10001-10006; JFL1-174; XAM1-510,10001-10060; MGW1-313; NBX1-156; KGY1-323)329D2 (S/N: RGA1-309; KJB1-180; SHJ1-190; TMJ1-376; WDT145-145; THW1-506,509-554)330D2 (S/N: PTE1-211; ZBF1-514,10001-10073,10076-10088; RCK1-357; SZK1-561,10001-10143)Generator SetXQP150 (S/N: PJ71-105,107-107,109-112)Motor Grader120L (S/N: E93100-100)120N (S/N: E94100-100; E951-101)Soil Compactor815K (S/N: WCS100-100,201-201)TelehandlerTL1055D (S/N: MNT63-63,150-181,183-186,188-188,192-192)TL1255D (S/N: MYW1-157,160-161,15700-15700)Track-Type TractorD3K2 (S/N: FT31-103,2100-2115,2119-2119; LT31-113,2110-2111)D4K2 (S/N: RT3130-130,2130-2130)D5K2 (S/N: WT31-157,2140-2174; YT31-157,2150-2163,2167-2167)D5R2 (S/N: R5A150-150,152-158,161-162)D6K2 (S/N: MXK1-273; RPR1-307)D6N (S/N: P5T1-166)Vibratory Soil CompactorCS79B (S/N: CM71-101)Wheel Loader924K (S/N: KW41-395; ENC1-1566; HJF1-101,250-818; SNZ100-100,250-430)930K (S/N: DYB1-486; EYE1-127,250-789; FRK1-131,350-433; P3K1-195; TNY1-69)938K (S/N: W8K1-306; REP150-150,450-625; XXT1-137,350-962; HFW1-932)950 GC (S/N: M5K1-1212,1214-1233)950L (S/N: LXX1-228)950M (S/N: ENE1-212,215-234; LCR201-201)962L (S/N: MTN1-163; SXS1-203)962M (S/N: LSE1-208)Wheel Skidder525D (S/N: 2L51-153)535D (S/N: 3L51-136)545D (S/N: 4L51-159)555D (S/N: 5L51-111)Wheeled ExcavatorM315D2 (S/N: CA41-103,189-266)M317D2 (S/N: CA61-284)M320D2 (S/N: EN81-330; CH91-149)M322D 2 MH (S/N: EN9215-215)M322D2 (S/N: EN21-207)M324D 2 MH (S/N: EN31-179)Description Of Change: A new injector sleeve has been introduced. The new injector sleeve has improved sealing bead geometry.Adaptable To: New 517-8243 Injector Sleeve replaces 277-5067 Injector Sleeve.To remove the existing injector sleeve, refer to Disassembly and Assembly, Fuel Injection Lines - Remove for the correct procedure.To install the new injector sleeve, refer to Disassembly and Assembly, Fuel Injection Lines - Install for the correct procedure.
