Information fuel-injection pump
BOSCH
9 410 617 050
9410617050
ZEXEL
104258-5112
1042585112
DAIHATSU
E286450050BA
e286450050ba
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104258-5112 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

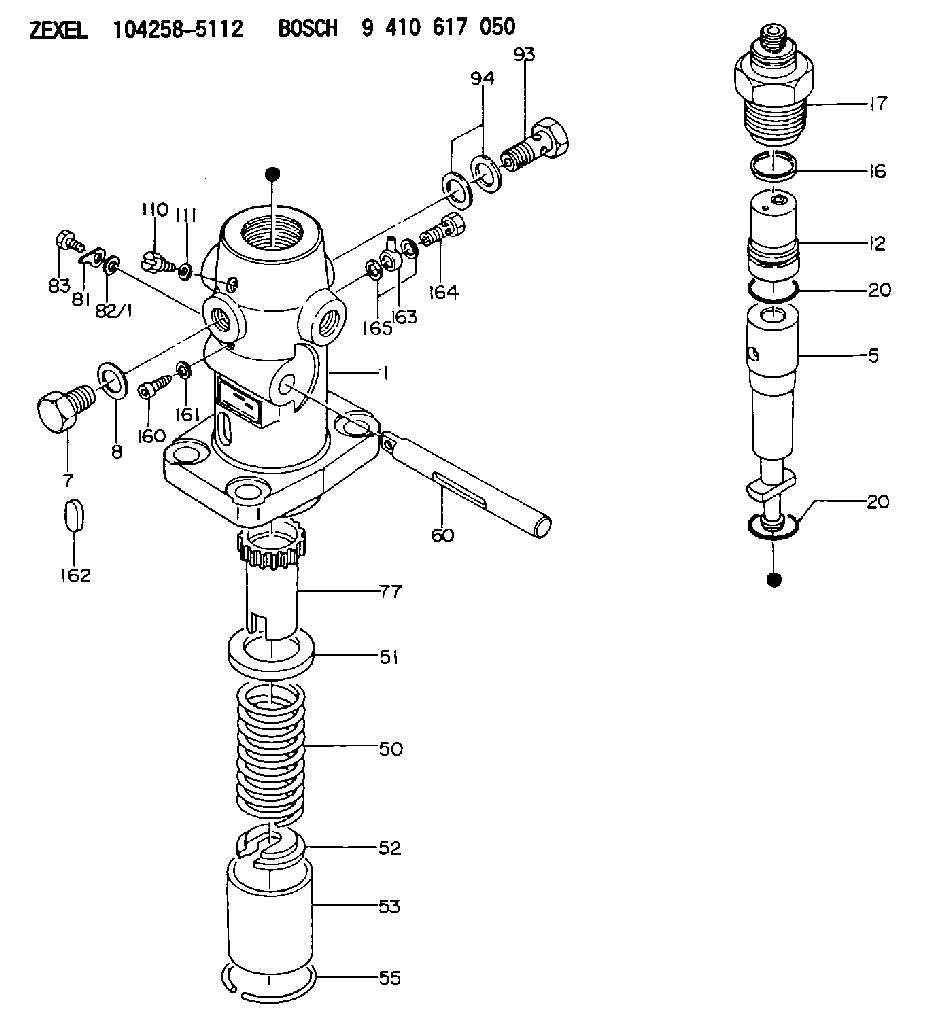

Scheme ###:
| 1. | [1] | 141053-9300 | PUMP HOUSING |
| 5. | [1] | 141175-8820 | PLUNGER-AND-BARREL ASSY |
| 7. | [1] | 141133-0200 | CAPSULE |
| 8. | [1] | 141403-1100 | GASKET |
| 12. | [1] | 141142-5821 | DELIVERY-VALVE ASSEMBLY |
| 16. | [1] | 141115-6000 | GASKET |
| 17. | [1] | 141136-7700 | FITTING |
| 20. | [2] | 141118-1900 | O-RING |
| 20. | [2] | 141118-1900 | O-RING |
| 50. | [1] | 141215-5001 | COMPRESSION SPRING |
| 51. | [1] | 141216-0100 | SLOTTED WASHER |
| 52. | [1] | 141217-5100 | SLOTTED WASHER |
| 53. | [1] | 141218-7700 | GUIDE |
| 55. | [1] | 026110-6010 | LOCKING WASHER |
| 60. | [1] | 141244-4300 | CONTROL RACK |
| 77. | [1] | 141241-6600 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 93. | [1] | 141402-3320 | EYE BOLT |
| 94. | [2] | 141403-1700 | GASKET |
| 110. | [1] | 140420-1600 | BLEEDER SCREW |
| 111. | [1] | 141403-1200 | GASKET |
| 160. | [1] | 141418-1100 | SET OF NUTS |
| 161. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
| 162. | [1] | 141480-0700 | COVER |
| 163. | [1] | 150948-0000 | INLET UNION |
| 164. | [1] | 141402-3720 | EYE BOLT |
| 165. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
Cross reference number
Zexel num
Bosch num
Firm num
Name
104258-5112
E286450050BA DAIHATSU
FUEL-INJECTION PUMP
K 24EX FUEL INJECTION PUMP PF-1WX PF
K 24EX FUEL INJECTION PUMP PF-1WX PF
Information:
Illustration 1 g06084375
(A) 364-7654 Guardrail As
(B) 8T-4139 Bolt
(C) 5P-1076 Hard Washer
(D) 8T-4183 Bolt
(E) 7X-3392 Hard WasherUse the following rework procedure to remove Guardrail assembly
Removing guardrail assembly (A) by removing two 8T-4139 Bolt (B), two 5P-1076 Hard Washer (C), four 8T-4183 Bolt (D), and four 7X-3392 Hard Washer (E). Save the parts.
Illustration 2 g06084382
(F) 206-5017 Spacer
(G) 8T-4226 Plated Washer
(H) 8T-4136 Bolt
(J) 430-4507 Flap
(K) 9X-2045 Screw
(L) 9X-6381 Washer
(M) 398-2993 Tank Filler Cap
(N) 446-0473 Adapter As
(P) 430-4518 Tank Mounting Gp
Remove 430-4518 Tank Mounting Gp (P) by removing two 206-5017 Spacer (F), two 8T-4226 Plated Washer (G), two 8T-4136 Bolt (H), and 430-4507 Flap (J). Discard the parts.
Remove six 9X-2045 Screw (K), six 9X-6381 Washer (L), 398-2993 Tank Filler Cap (M), and 446-0473 Adapter As (N). Discard the parts.
Illustration 3 g06084449
(H) 8T-4136 Bolt
(R) 8T-4121 Hard Washer
(S) 430-4504 Plate
(T) 430-4510 Plate As
Remove two 8T-4136 Bolt (H), two 8T-4121 Hard Washer (R), and 430-4504 Plate (S) and discard the parts.
Remove two 8T-4136 Bolt (H), two 8T-4121 Hard Washer (R), and 430-4510 Plate As (T). Discard the parts.
Illustration 4 g06084463
(H) 8T-4136 Bolt
(R) 8T-4121 Hard Washer
(U) 365-0333 Hose
(V) 430-4505 Plate As
(W) 2J-6540 Hose Clamp
Remove Four 8T-4136 Bolt (H), four 8T-4121 Hard Washer (R), and 430-4505 Plate As (V). Discard the parts.
Remove 2J-6540 Hose Clamp (W), and 365-0333 Hose (U). Discard the parts.
Illustration 5 g06084515
(X) 451-2035 Tread
(1) 481-4103 Hose
(2) 2J-6540 Hose Clamp
Remove 451-2035 Tread (X) and save the part.
Install new 481-4103 Hose (1), 2J-6540 Hose Clamp (2), and 451-2035 Tread (X) that were saved in Step 8.
Illustration 6 g06084542
(3) 481-4102 Plate As
(4) 446-0473 Adapter As
(5) 9X-2045 Screw
(6) 9X-8256 Washer
(7) 8T-4136 Bolt
(8) 8T-4121 Hard Washer
(9) 481-4106 Angle As
Install new 481-4102 Plate As (3) by using 481-4106 Angle As (9), two 8T-4136 Bolt (7), and two 8T-4121 Hard Washer (8).
Install new 446-0473 Adapter As (4) by using six 9X-2045 Screw (5), and six 9X-8256 Washer (6).
Install new 2J-6540 Hose Clamp (2) to hose and adapter.
Illustration 7 g06084606
(7) 8T-4121 Hard Washer
(8) 8T-4136 Bolt
(10) 481-4104 Plate As
(11) 126-8472 Seal
(12) 205-3743 Hinge As
(13) 481-4108 Plate As
Install new 481-4108 Plate As (13) by using two 8T-4121 Hard Washer, and two 8T-4136 Bolt (8).
Install new 126-8472 Seal (11) on 481-4104 Plate As (10).
Install new 205-3743 Hinge As (12) by using four 8T-4121 Hard Washer, and four 8T-4136 Bolt (8) with 481-4104 Plate As (10), and 481-4108 Plate As (13) .
Illustration 8 g06084883
(14) 398-2993 Tank Filler Cap
(15) 387-5472 Lanyard
Install new 398-2993 Tank Filler Cap (14), and 387-5472 Lanyard (15).
Illustration 9 g06084916
(7) 8T-4121 Hard Washer
(8) 8T-4136 Bolt
(16) 481-4105 Plate
(17) 331-4030 Latch As
(18) 7Y-7389 Screw
Install new 331-4030 Latch As (17) by using three 7Y-7389 Screw (18).
Install new 481-4105 Plate (16) by using two 8T-4121 Hard Washer (7) and two 8T-4136 Bolt (8).
Illustration 10 g06084953
(19) 487-0512 Guardrail As
(B) 8T-4139 Bolt
(C) 5P-1076 Hard Washer
(D) 8T-4183
