104258-5111 ZEXEL FUEL-INJECTION PUMP Cross 1042585111 e286450050az

Information fuel-injection pump

ZEXEL 104258-5111 1042585111

DAIHATSU E286450050AZ e286450050az

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 104258-5111 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104258-5111
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

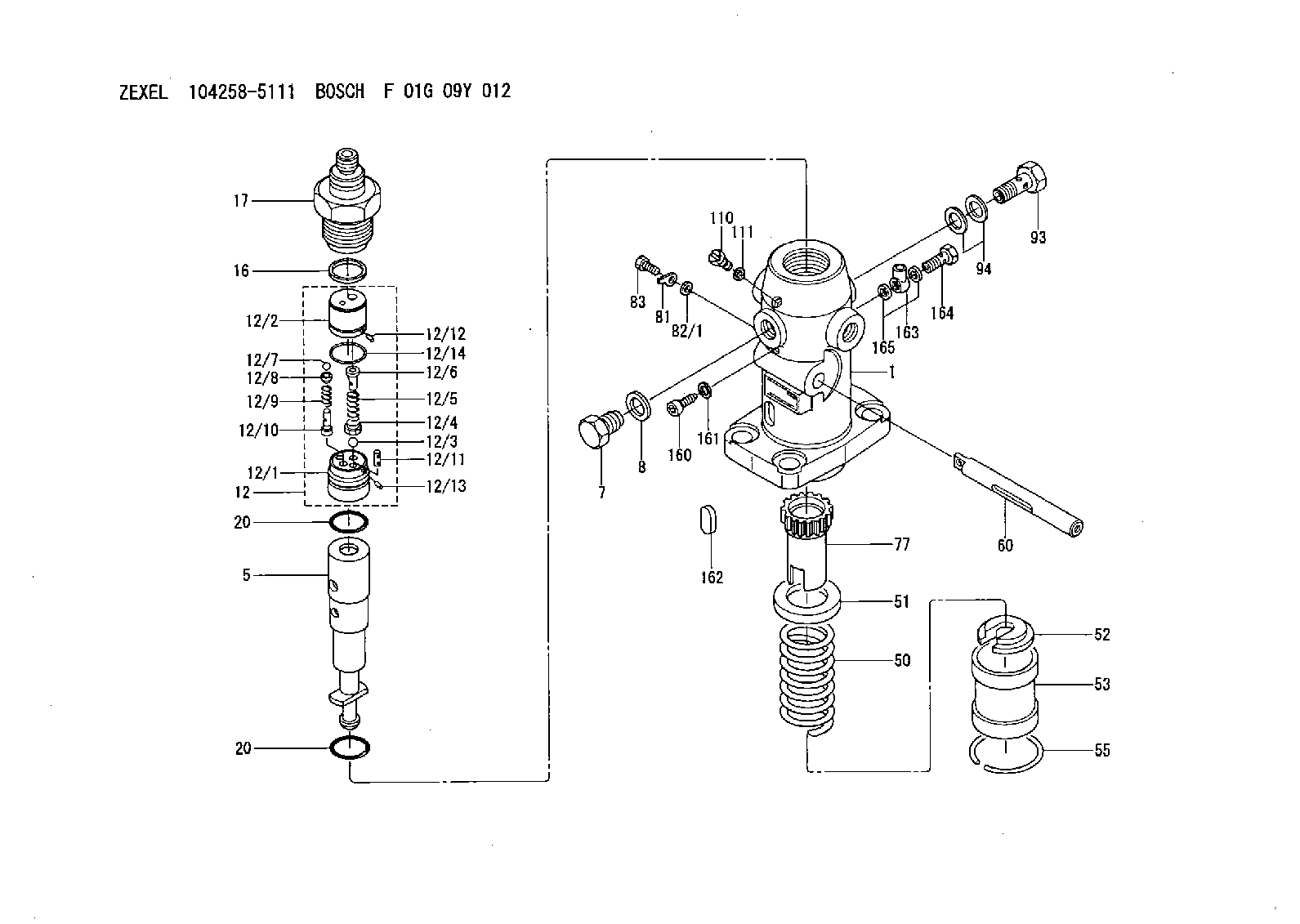

Scheme ###:

1.	[1]	141053-9300	PUMP HOUSING
5.	[1]	141175-7420	PLUNGER-AND-BARREL ASSY W104
7.	[1]	141133-0200	CAPSULE
8.	[1]	141403-1100	GASKET
12.	[1]	141142-5821	DELIVERY-VALVE ASSEMBLY W37
12/1.	[1]	141141-8500	SEAT;D.V
12/2.	[1]	141141-8400	SEAT;D.V
12/3.	[1]	016807-0030	BALL
12/4.	[1]	141113-0601	SLOTTED WASHER
12/5.	[1]	141112-7100	COILED SPRING
12/6.	[1]	141117-9201	FILLER PIECE
12/7.	[1]	016804-5030	BALL
12/8.	[1]	141113-1500	SLOTTED WASHER
12/9.	[1]	141112-8201	COMPRESSION SPRING
12/10.	[1]	141117-9302	FILLER PIECE
12/11.	[2]	141213-1400	BEARING PIN
12/12.	[2]	141271-0200	BEARING PIN
12/13.	[2]	029423-0080	BEARING PIN
12/14.	[1]	141222-0400	LOCKING WASHER
16.	[1]	141115-6000	GASKET
17.	[1]	141136-7700	FITTING
20.	[2]	141118-1900	O-RING
20.	[2]	141118-1900	O-RING
50.	[1]	141215-5001	COMPRESSION SPRING
51.	[1]	141216-0100	SLOTTED WASHER
52.	[1]	141217-5100	SLOTTED WASHER
53.	[1]	141218-7700	GUIDE
55.	[1]	026110-6010	LOCKING WASHER
60.	[1]	141244-4300	CONTROL RACK
77.	[1]	141241-6600	CONTROL SLEEVE
81.	[1]	141245-2000	POINTER
82/1.	[0]	023500-6210	PLAIN WASHER D11&6.4T1.5
82/1.	[0]	029300-6010	PLAIN WASHER D11&6.4T0.8
82/1.	[0]	029300-6020	PLAIN WASHER D11&6.4T0.35
83.	[1]	020006-1440	BLEEDER SCREW
93.	[1]	141402-3320	EYE BOLT
94.	[2]	141403-1700	GASKET
110.	[1]	140420-1600	BLEEDER SCREW
111.	[1]	141403-1200	GASKET
160.	[1]	141418-1101	SET OF NUTS
161.	[1]	026506-1040	GASKET
162.	[1]	141480-0700	COVER
163.	[1]	150948-0000	INLET UNION
164.	[1]	141402-3720	EYE BOLT
165.	[2]	026510-1340	GASKET

Include in #2:

104258-5111 as INJECTION-PUMP ASSEMBLY

104740-0495 as _

Cross reference number

Zexel num

Bosch num

Firm num

Name

104258-5111
104258-5112

NP-PF1WX220A03N19

E286450050AZ DAIHATSU

FUEL-INJECTION PUMP
* 24EX PF-1WX PF

104258-5111
104258-5112

NP-PF1WX220A03N19

E286450050BZ DAIHATSU

FUEL-INJECTION PUMP
A * 24EX PF-1WX PF

104258-5111

F 01G 09Y 012
NP-PF1WX220A03N19

E286450050BA DAIHATSU

FUEL-INJECTION PUMP
* 24EX PF-1WX PF

Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
The DOC/DPF can become plugged if an NRS cooler failure occurs and coolant passes out the exhaust. Solution
If an engine has an NRS cooler failure, the DPF and DOC will need inspected for calcium deposits. In some cases calcium has partially filled the DPF and caused frequent regeneration issues, and erratic high soot loading readings.
Illustration 1 g03374496
Example of calcium deposits on DPF face
Illustration 2 g03374497
Example of calcium deposits on DPF faceThe calcium deposits will be a white and black powdery mixture on the face of the DPF and the DOC. Refer to Illustrations 1 and 2 for examples of a DPF with calcium plugging on the DPF face.Refer to Reuse And Salvage Guidelines, SEBF9223, "Inspection of Diesel Particulate Filters and Diesel Oxidation Catalysts for Tier 4 Machine and Industrial Engines" for further assistance.
