104257-3030 ZEXEL 9 410 617 998 BOSCH FUEL-INJECTION PUMP 9410617998 1042573030 e206450070zz




Information fuel-injection pump

BOSCH 9 410 617 998 9410617998
ZEXEL 104257-3030 1042573030
DAIHATSU E206450070ZZ e206450070zz
104257-3030 FUEL-INJECTION PUMP
Rating:
23
Buy FUEL-INJECTION PUMP 104257-3030 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104257-3030
1. _
2. FUEL INJECTION PUMP
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2)
10. NOZZLE-HOLDER
11. NOZZLE

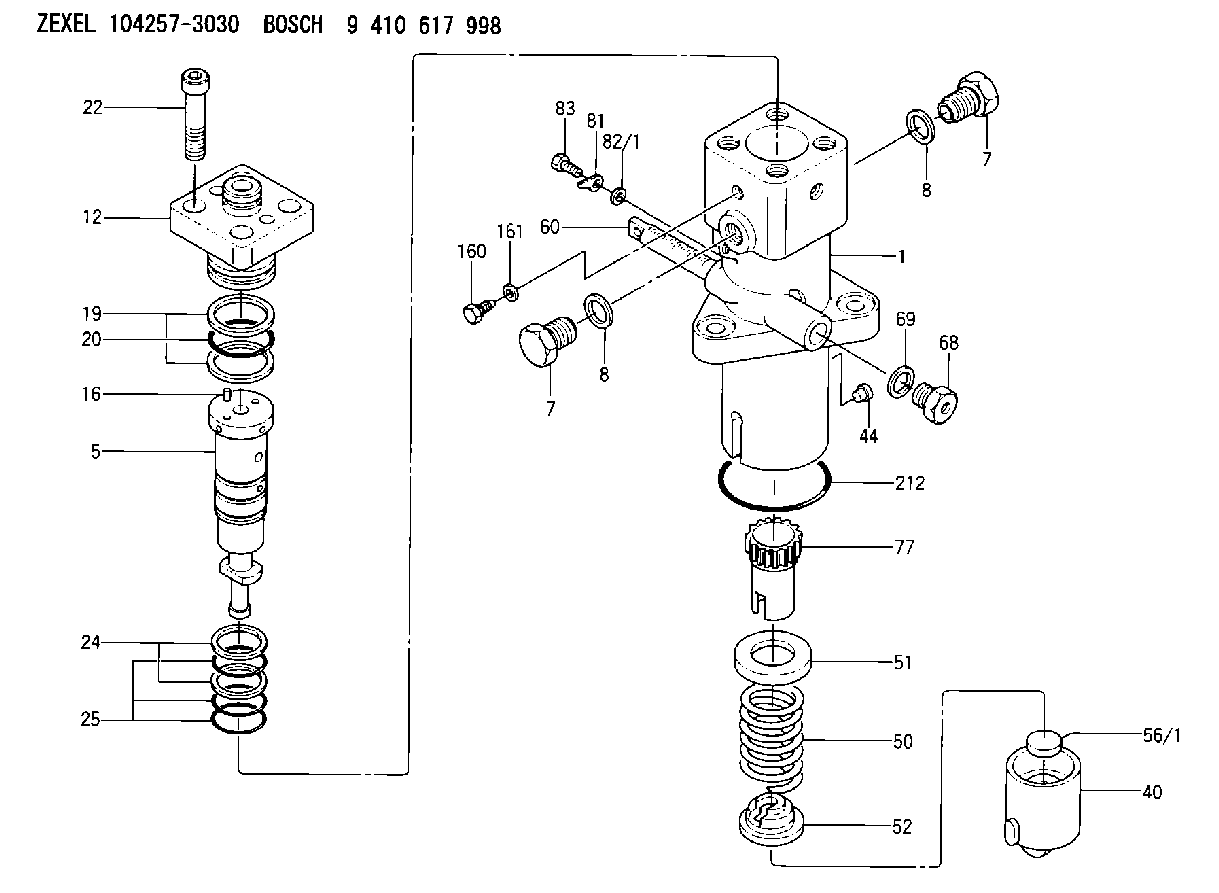

Scheme ###:

1. [1] 141055-3401 PUMP HOUSING
5. [1] 141189-0920 PLUNGER-AND-BARREL ASSY
7. [2] 141133-8501 CAPSULE
7. [2] 141133-8501 CAPSULE
8. [2] 141485-7000 O-RING
8. [2] 141485-7000 O-RING
12. [1] 141145-4422 DELIVERY-VALVE ASSEMBLY
16. [1] 015204-0100 SPRING PIN
19. [2] 016420-0500 BACKUP RING
20. [1] 141485-6900 O-RING
22. [4] 141269-1200 BLEEDER SCREW
24. [2] 016420-0400 BACKUP RING
25. [3] 141485-6800 O-RING
40. [1] 141200-3120 TAPPET
44. [1] 141212-0500 BEARING PIN
50. [1] 141215-8500 COMPRESSION SPRING
51. [1] 141216-6800 SLOTTED WASHER
52. [1] 141217-9100 SLOTTED WASHER
56/1. [1] 141209-2400 PLATE T7.6
56/1. [1] 141209-2500 PLATE T7.7
56/1. [1] 141209-2600 PLATE T7.8
56/1. [1] 141209-2700 PLATE T7.9
56/1. [1] 141209-2800 PLATE T8.0
56/1. [1] 141209-2900 PLATE T8.1
56/1. [1] 141209-3000 PLATE T8.2
56/1. [1] 141209-3100 PLATE T8.3
56/1. [1] 141209-3200 PLATE T8.4
56/1. [1] 141209-3300 PLATE T8.5
56/1. [1] 141209-3400 PLATE T8.6
56/1. [1] 141209-3500 PLATE T8.7
56/1. [1] 141209-3600 PLATE T8.8
56/1. [1] 141209-3700 PLATE T8.9
56/1. [1] 141209-3800 PLATE T9.0
60. [1] 141291-4500 CONTROL RACK
68. [1] 141405-2100 CAPSULE
69. [1] 026522-2740 GASKET D26.9&22.2T1
77. [1] 141241-8900 CONTROL SLEEVE
81. [1] 141245-2000 POINTER
82/1. [0] 023500-6210 PLAIN WASHER D11&6.4T1.5
82/1. [0] 029300-6010 PLAIN WASHER D11&6.4T0.8
82/1. [0] 029300-6020 PLAIN WASHER D11&6.4T0.35
83. [1] 020006-1440 BLEEDER SCREW M6P1L14
160. [1] 141418-2200 SET OF NUTS
161. [1] 141403-1400 GASKET
212. [1] 016510-8550 O-RING

Include in #2:

104257-3030 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104257-3030
104257-3031
9 410 617 998
E206450070ZZ  DAIHATSU
FUEL-INJECTION PUMP
* K 24ES PF-R1WS PF
104257-3030
104257-3031
9 410 617 998
E206450070ZA  DAIHATSU
FUEL-INJECTION PUMP
A * K 24ES PF-R1WS PF




Information:

Batteries
Install batteries that will provide adequate cold cranking amps (CCA) in order to start the engine and operate the engine at the coldest expected temperatures. Maintain proper battery electrolyte level. Keep all batteries fully charged to a corrected specific gravity of 1.250 or above and keep the batteries warm. Heating of the battery compartment or storage in a warm location will maximize the cranking power of the battery. The temperature of the batteries has a considerable effect on the available power. The batteries will not have enough power for cranking the engine and starting the engine if the batteries are too cold, even with a warm engine. Batteries typically have only fifty percent of the capability at −10 °C (14 °F) versus 27 °C (81 °F). Only ten percent of the original power is available at a temperature of −35 °C (−31 °F). Check the condition of the batteries and the electrolyte level in each battery cell except for maintenance free batteries. Remove the battery filler caps. Maintain the electrolyte level to the bottom of the openings for the battery filler caps with distilled water. If distilled water is not available, use clean water, that is low in minerals. Do not use artificially softened water or drinking water. The salt in artificially softened water will damage the efficiency of your batteries. At the proper charging rate in a moderate climate, a battery should not require more than 30 cc (1 oz) of water per cell per week. Check the cells weekly in arctic temperatures. The cell water usage could be higher.Block Heaters
A cylinder block coolant heater can improve the startability and a cylinder block coolant heater can reduce the warm-up time by heating the coolant that surrounds the combustion chambers. A cylinder block coolant heater that is powered by electricity can be activated immediately after the engine is stopped. A cylinder block coolant heater will reduce the temperature that will require ether for starting the engine. An effective block heater is a 1250 watt to 1500 watt unit. Contact your truck dealer for more information.Air Inlet Heaters and Ether Starting Systems
If equipped with an air inlet heater (AIH) for cold weather starting, do not use types of starting aids such as ether. Such use could result in an explosion and injury.
When starting the engine with ether, follow these starting procedure instructions carefully. Use ether sparingly and spray it ONLY WHILE CRANKING THE ENGINE. Excessive ether use can cause piston and ring damage. Ether should be used only for cold weather starting.
As temperatures drop below 0 °C (32 °F), starting a cold engine may require assistance in the form of ether starting aids or air inlet heaters. An automatic metered ether injection system is preferred over a manual system. An automatic system reduces the risk of engine damage by minimizing the operator's responsibility in order to correctly determine the quantity of ether that is required. Excessive ether will damage the engine and excessive ether will void the manufacturer's

Have questions with 104257-3030?





Group cross 104257-3030 ZEXEL

Daihatsu

104257-3030

104257-3031
9 410 617 998
E206450070ZZ
FUEL-INJECTION PUMP
104257-3030

104257-3031
9 410 617 998
E206450070ZA
FUEL-INJECTION PUMP
9 410 618 253
E206450070AZ
FUEL-INJECTION PUMP
9 410 618 253
E206450070AA
FUEL-INJECTION PUMP
9 410 618 357
NP-PFR1WS210A03N8
E206450070CZ
FUEL-INJECTION PUMP
