104257-3011 ZEXEL 9 410 617 611 BOSCH FUEL-INJECTION PUMP 9410617611 1042573011

Information fuel-injection pump

BOSCH 9 410 617 611 9410617611

ZEXEL 104257-3011 1042573011

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 104257-3011 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104257-3011
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105103-3490
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)	27.5{280}
10.	NOZZLE-HOLDER	105033-6380
11.	NOZZLE	105011-2250

Scheme ###:

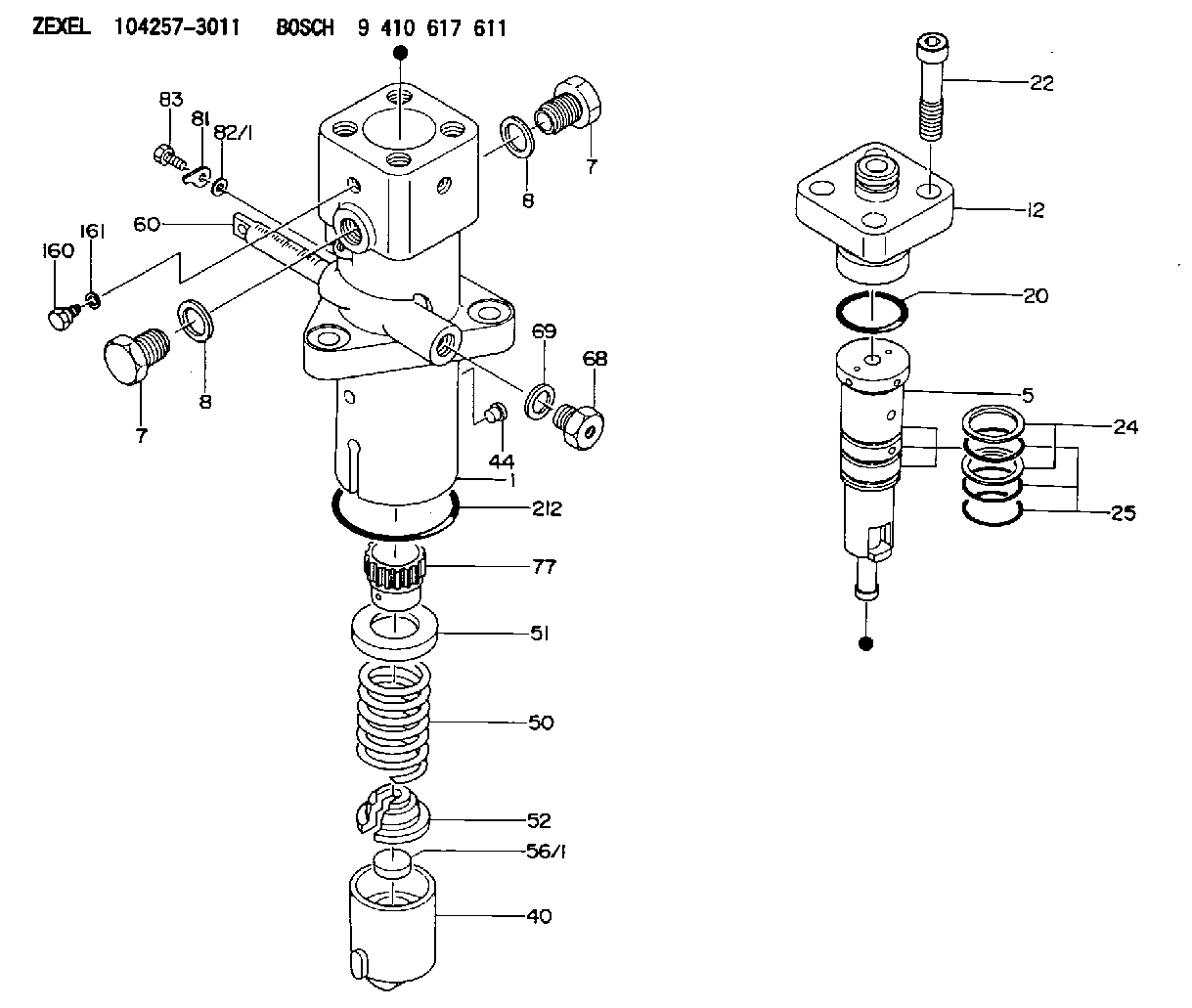

1.	[1]	141055-3401	PUMP HOUSING
5.	[1]	141189-0421	PLUNGER-AND-BARREL ASSY
7.	[2]	141133-8500	CAPSULE
7.	[2]	141133-8500	CAPSULE
8.	[2]	141485-4900	O-RING
8.	[2]	141485-4900	O-RING
12.	[1]	141145-4220	DELIVERY-VALVE ASSEMBLY
20.	[1]	141485-4800	O-RING
22.	[4]	141269-1200	BLEEDER SCREW
24.	[2]	016420-0400	BACKUP RING
25.	[3]	141485-4500	O-RING
40.	[1]	141200-3120	TAPPET
44.	[1]	141212-0500	BEARING PIN
50.	[1]	141215-8500	COMPRESSION SPRING
51.	[1]	141216-6800	SLOTTED WASHER
52.	[1]	141217-9100	SLOTTED WASHER
56/1.	[1]	141209-2400	PLATE T7.6
56/1.	[1]	141209-2500	PLATE T7.7
56/1.	[1]	141209-2600	PLATE T7.8
56/1.	[1]	141209-2700	PLATE T7.9
56/1.	[1]	141209-2800	PLATE T8.0
56/1.	[1]	141209-2900	PLATE T8.1
56/1.	[1]	141209-3000	PLATE T8.2
56/1.	[1]	141209-3100	PLATE T8.3
56/1.	[1]	141209-3200	PLATE T8.4
56/1.	[1]	141209-3300	PLATE T8.5
56/1.	[1]	141209-3400	PLATE T8.6
56/1.	[1]	141209-3500	PLATE T8.7
56/1.	[1]	141209-3600	PLATE T8.8
56/1.	[1]	141209-3700	PLATE T8.9
56/1.	[1]	141209-3800	PLATE T9.0
60.	[1]	141291-4500	CONTROL RACK
68.	[1]	141405-2100	CAPSULE
69.	[1]	026522-2740	GASKET D26.9&22.2T1
77.	[1]	141241-8900	CONTROL SLEEVE
81.	[1]	141245-2000	POINTER
82/1.	[0]	023500-6210	PLAIN WASHER D11&6.4T1.5
82/1.	[0]	029300-6010	PLAIN WASHER D11&6.4T0.8
82/1.	[0]	029300-6020	PLAIN WASHER D11&6.4T0.35
83.	[1]	020006-1440	BLEEDER SCREW M6P1L14
160.	[1]	141418-2200	SET OF NUTS
161.	[1]	141403-1400	GASKET
212.	[1]	016510-8550	O-RING

Include in #2:

104257-3011 as INJECTION-PUMP ASSEMBLY

104748-0032 as _

104748-0033

Cross reference number

Zexel num

Bosch num

Firm num

Name

104257-3011
104257-3012

9 410 617 611

FUEL-INJECTION PUMP
* K 24ES PF-R1WS PF

Information:

Table 2
Specifications for Pressure Loss
Direct Injection Fuel Systems
Nozzle pressure must not drop below a gauge reading of
3450 kPa (500 psi) during a 5 second time interval.
Nozzle pressure must drop below a gauge reading of
1380 kPa (200 psi) after an additional 25 second time interval. (1)
( 1 ) A gauge reading of 0 kPa (0 psi) is acceptable after the first 5 second time interval has elapsed.
Illustration 3 g00923167
If the fuel nozzle is not within specifications, stop the test and do not use the fuel nozzle.Valve Opening Pressure Test
Slowly increase the pressure until fluid begins to flow from the tip of the fuel nozzle. Record this pressure as the VOP of the fuel nozzle.
Compare the test results to the specifications for the type of fuel nozzle that is being tested. Refer to Table 3, or Table 4.For precombustion chamber fuel systems, use these specifications:
Table 3
Specifications for Valve Opening Pressure
Precombustion Chamber Fuel Systems
2760 to 5170 kPa (400 to 750 psi)
Illustration 4 g00934108
If the VOP is not within specifications, stop the test and do not use the fuel nozzle.For direct injection fuel systems, use these specifications:
Table 4
Specifications for Valve Opening Pressure
Direct Injection Fuel Systems
16500 to 21400 kPa (2400 to 3100 psi)
Illustration 5 g00923174
If the VOP is not within specifications, stop the test and do not use the fuel nozzle.Tip Leakage Test (Direct Injection Fuel Systems)
Note: Fuel nozzles for precombustion chamber fuel systems can not be tested for tip leakage accurately. Do not perform this test on fuel nozzles for a precombustion
