Rating:
Information fuel-injection pump
BOSCH
9 410 617 600
9410617600
ZEXEL
104257-1000
1042571000
DAIHATSU
E226450040ZZ
e226450040zz
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104257-1000 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | 105113-5041 |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | 29.4{300} |
| 10. | NOZZLE-HOLDER | 105043-5023 |
| 11. | NOZZLE | 105011-7930 |

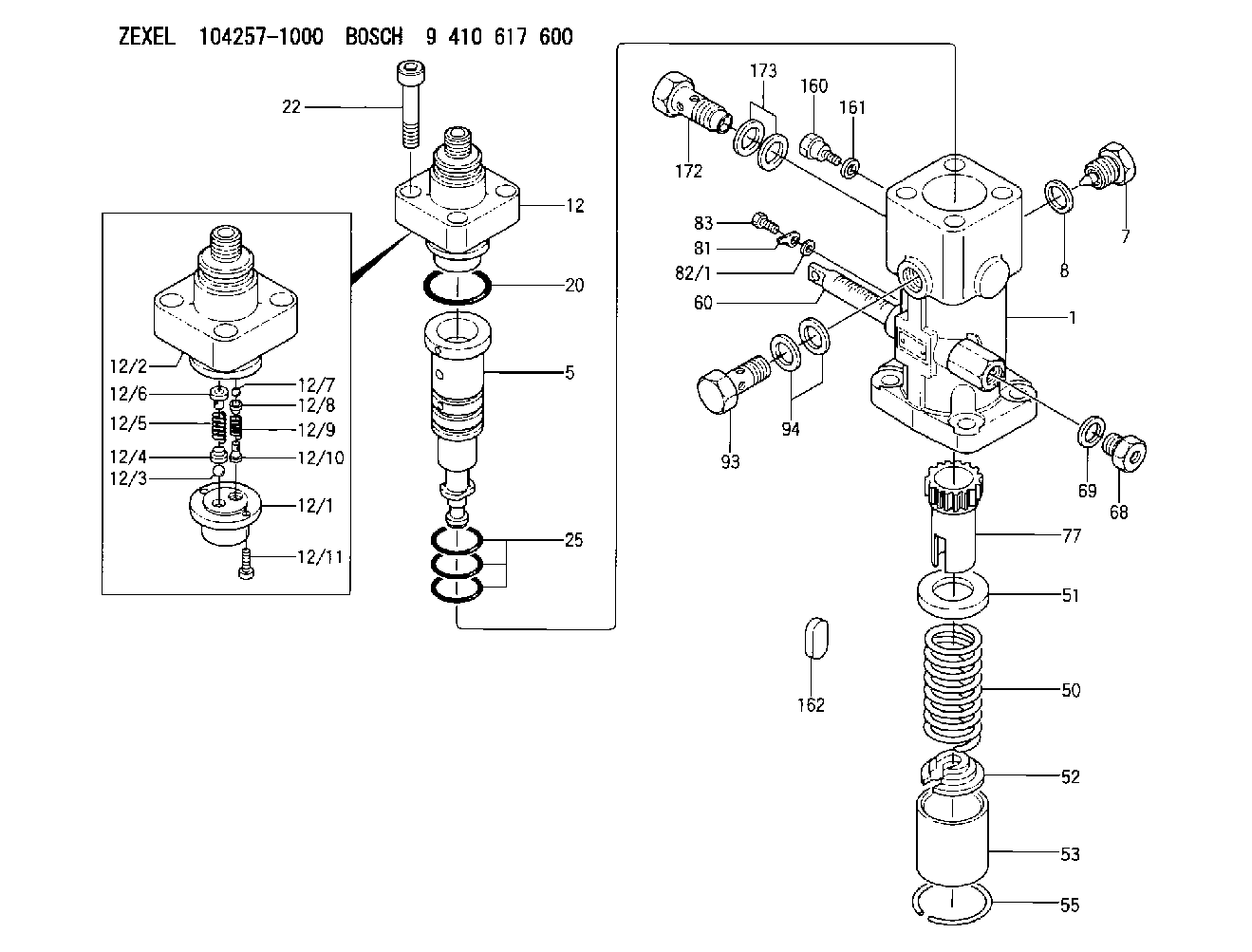

Scheme ###:
| 1. | [1] | 141053-9120 | PUMP HOUSING |
| 5. | [1] | 141185-0220 | PLUNGER-AND-BARREL ASSY |
| 7. | [1] | 141133-5401 | CAPSULE |
| 8. | [1] | 141403-1700 | GASKET |
| 12. | [1] | 141142-1121 | DELIVERY-VALVE ASSEMBLY |
| 12/1. | [1] | 141141-4200 | SEAT;D.V |
| 12/2. | [1] | 141136-9302 | FITTING |
| 12/3. | [1] | 016807-0030 | BALL |
| 12/4. | [1] | 141113-0601 | SLOTTED WASHER |
| 12/5. | [1] | 141112-7100 | COILED SPRING |
| 12/6. | [1] | 141117-9201 | FILLER PIECE |
| 12/7. | [1] | 016804-5030 | BALL |
| 12/8. | [1] | 141113-1500 | SLOTTED WASHER |
| 12/9. | [1] | 141112-8201 | COMPRESSION SPRING |
| 12/10. | [1] | 141117-9302 | FILLER PIECE |
| 12/11. | [2] | 010234-1220 | HEX-SOCKET-HEAD CAP SCREW |
| 20. | [1] | 141482-4902 | O-RING |
| 22. | [4] | 141269-1500 | BLEEDER SCREW |
| 25. | [3] | 141482-5001 | O-RING |
| 50. | [1] | 141215-6301 | COMPRESSION SPRING |
| 51. | [1] | 141216-0100 | SLOTTED WASHER |
| 52. | [1] | 141217-5100 | SLOTTED WASHER |
| 53. | [1] | 141218-8500 | GUIDE |
| 55. | [1] | 026110-6010 | LOCKING WASHER |
| 60. | [1] | 141244-9100 | CONTROL RACK |
| 68. | [1] | 141405-2100 | CAPSULE |
| 69. | [1] | 026522-2740 | GASKET D26.9&22.2T1 |
| 77. | [1] | 141241-8900 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 93. | [1] | 141402-6020 | EYE BOLT |
| 94. | [2] | 141403-1700 | GASKET |
| 160. | [1] | 141418-2200 | SET OF NUTS |
| 161. | [1] | 141403-1400 | GASKET |
| 162. | [1] | 141480-1100 | COVER |
| 172. | [1] | 141402-3320 | EYE BOLT |
| 173. | [2] | 141403-1700 | GASKET |
Cross reference number
Zexel num
Bosch num
Firm num
Name
104257-1000
E226450040ZZ DAIHATSU
FUEL-INJECTION PUMP
K 24EV FUEL INJECTION PUMP PF-1WV PF
K 24EV FUEL INJECTION PUMP PF-1WV PF
104257-1000
E226450040AB DAIHATSU
FUEL-INJECTION PUMP
A K 24EV FUEL INJECTION PUMP PF-1WV PF
A K 24EV FUEL INJECTION PUMP PF-1WV PF
104257-1000
E226450040AC DAIHATSU
FUEL-INJECTION PUMP
B K 24EV FUEL INJECTION PUMP PF-1WV PF
B K 24EV FUEL INJECTION PUMP PF-1WV PF
