104256-3011 ZEXEL 9 410 617 597 BOSCH FUEL-INJECTION PUMP 9410617597 1042563011

Information fuel-injection pump

BOSCH 9 410 617 597 9410617597

ZEXEL 104256-3011 1042563011

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 104256-3011 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104256-3011
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105103-3490
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)	27.5{280}
10.	NOZZLE-HOLDER	105033-6380
11.	NOZZLE	105011-2250

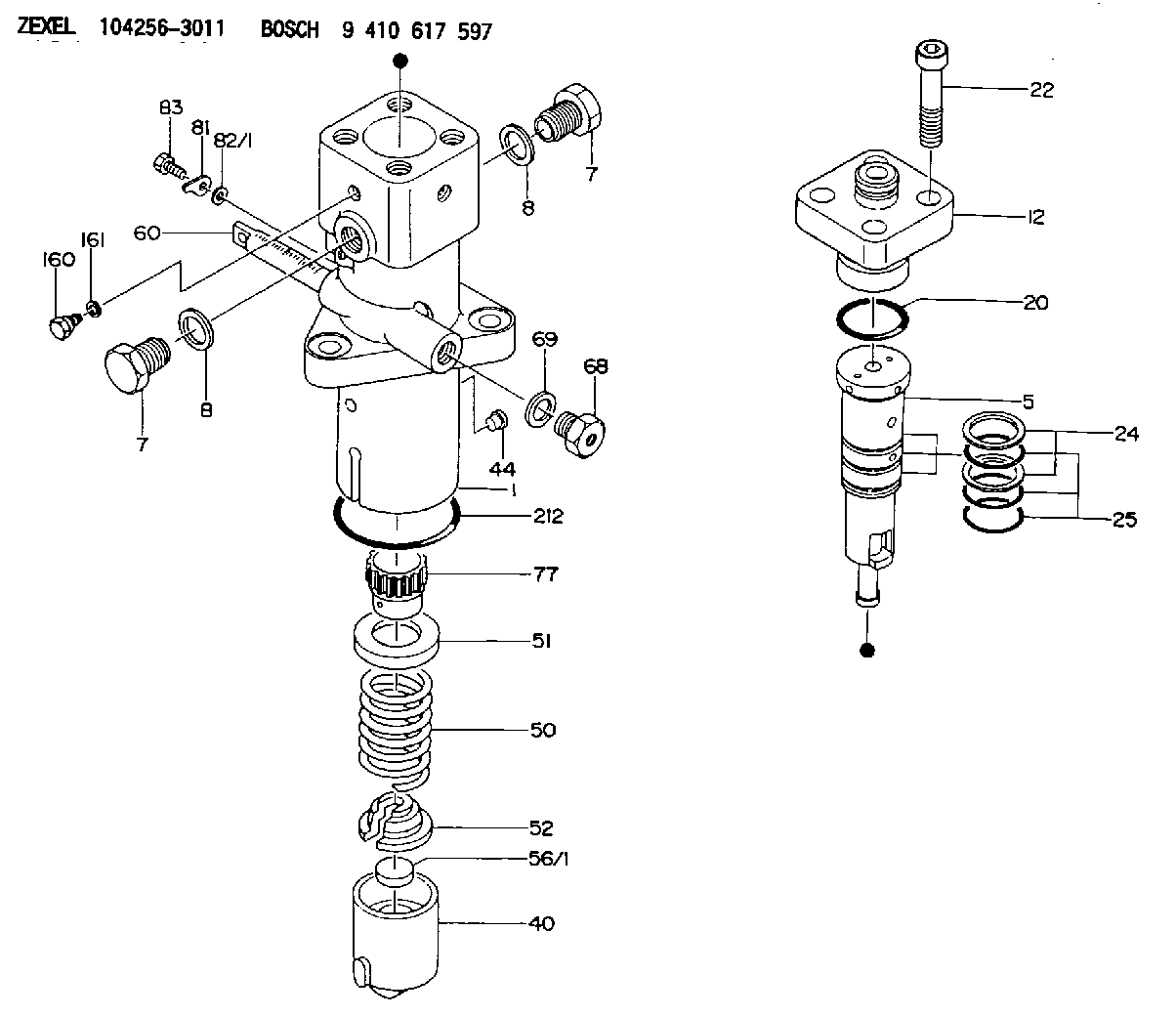

Scheme ###:

1.	[1]	141055-3401	PUMP HOUSING
5.	[1]	141189-0521	PLUNGER-AND-BARREL ASSY
7.	[2]	141133-8500	CAPSULE
7.	[2]	141133-8500	CAPSULE
8.	[2]	141485-4900	O-RING
8.	[2]	141485-4900	O-RING
12.	[1]	141145-4420	DELIVERY-VALVE ASSEMBLY
20.	[1]	141485-4800	O-RING
22.	[4]	141269-1200	BLEEDER SCREW
24.	[2]	016420-0400	BACKUP RING
25.	[3]	141485-4500	O-RING
40.	[1]	141200-3120	TAPPET
44.	[1]	141212-0500	BEARING PIN
50.	[1]	141215-8500	COMPRESSION SPRING
51.	[1]	141216-6800	SLOTTED WASHER
52.	[1]	141217-9100	SLOTTED WASHER
56/1.	[1]	141209-2400	PLATE T7.6
56/1.	[1]	141209-2500	PLATE T7.7
56/1.	[1]	141209-2600	PLATE T7.8
56/1.	[1]	141209-2700	PLATE T7.9
56/1.	[1]	141209-2800	PLATE T8.0
56/1.	[1]	141209-2900	PLATE T8.1
56/1.	[1]	141209-3000	PLATE T8.2
56/1.	[1]	141209-3100	PLATE T8.3
56/1.	[1]	141209-3200	PLATE T8.4
56/1.	[1]	141209-3300	PLATE T8.5
56/1.	[1]	141209-3400	PLATE T8.6
56/1.	[1]	141209-3500	PLATE T8.7
56/1.	[1]	141209-3600	PLATE T8.8
56/1.	[1]	141209-3700	PLATE T8.9
56/1.	[1]	141209-3800	PLATE T9.0
60.	[1]	141291-4500	CONTROL RACK
68.	[1]	141405-2100	CAPSULE
69.	[1]	026522-2740	GASKET D26.9&22.2T1
77.	[1]	141241-8900	CONTROL SLEEVE
81.	[1]	141245-2000	POINTER
82/1.	[0]	023500-6210	PLAIN WASHER D11&6.4T1.5
82/1.	[0]	029300-6010	PLAIN WASHER D11&6.4T0.8
82/1.	[0]	029300-6020	PLAIN WASHER D11&6.4T0.35
83.	[1]	020006-1440	BLEEDER SCREW M6P1L14
160.	[1]	141418-2200	SET OF NUTS
161.	[1]	141403-1400	GASKET
212.	[1]	016510-8550	O-RING

Include in #2:

104256-3011 as INJECTION-PUMP ASSEMBLY

104749-0663 as _

Cross reference number

Zexel num

Bosch num

Firm num

Name

104256-3011
104256-3012

9 410 617 597

FUEL-INJECTION PUMP
* K
