Information fuel-injection pump
BOSCH
9 410 617 240
9410617240
ZEXEL
104244-1041
1042441041
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104244-1041 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

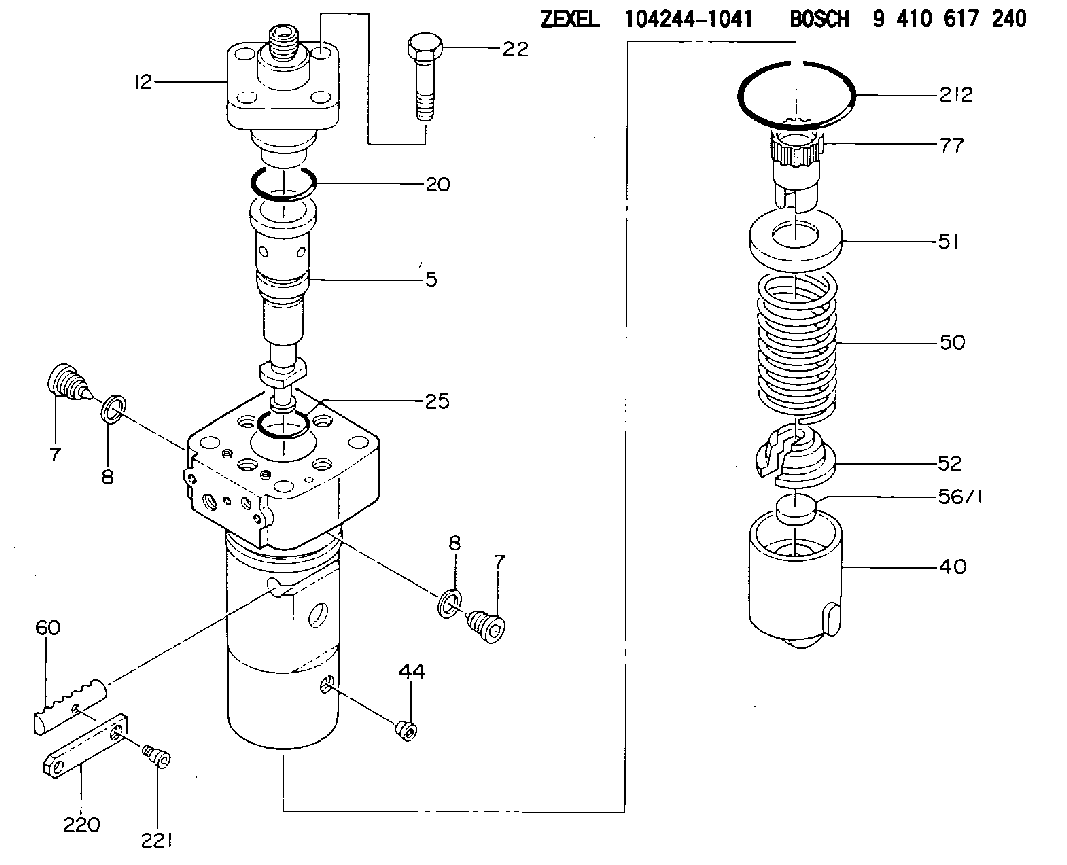

Scheme ###:
| 1. | [1] | 141054-9223 | PUMP HOUSING |
| 5. | [1] | 141185-5520 | PLUNGER-AND-BARREL ASSY |
| 7. | [2] | 141133-4701 | CAPSULE |
| 7. | [2] | 141133-4701 | CAPSULE |
| 8. | [2] | 150934-1100 | GASKET |
| 8. | [2] | 150934-1100 | GASKET |
| 12. | [1] | 141142-9720 | DELIVERY-VALVE ASSEMBLY |
| 20. | [1] | 141482-4901 | O-RING |
| 22. | [4] | 141124-1300 | BLEEDER SCREW |
| 25. | [1] | 141485-5000 | O-RING |
| 40. | [1] | 141200-2620 | TAPPET |
| 44. | [1] | 141212-0500 | BEARING PIN |
| 50. | [1] | 141215-6801 | COMPRESSION SPRING |
| 51. | [1] | 141216-4600 | SLOTTED WASHER |
| 52. | [1] | 141217-7100 | SLOTTED WASHER |
| 56/1. | [1] | 141254-1200 | PLATE T9.7 |
| 56/1. | [1] | 141254-1300 | PLATE T10.0 |
| 56/1. | [1] | 141254-1400 | PLATE T10.3 |
| 56/1. | [1] | 141254-1500 | PLATE T10.6 |
| 56/1. | [1] | 141254-1600 | PLATE T10.9 |
| 56/1. | [1] | 141254-1700 | PLATE T11.2 |
| 56/1. | [1] | 141254-1800 | PLATE T11.5 |
| 56/1. | [1] | 141254-1900 | PLATE T11.8 |
| 60. | [1] | 141244-9901 | CONTROL RACK |
| 77. | [1] | 141241-8400 | CONTROL SLEEVE |
| 212. | [1] | 141482-2400 | O-RING |
| 220. | [1] | 141260-1900 | CONTROL LEVER |
| 221. | [1] | 141282-0300 | FLAT-HEAD SCREW |
Cross reference number
Zexel num
Bosch num
Firm num
Name
