104234-2002 ZEXEL 9 410 617 171 BOSCH FUEL-INJECTION PUMP 9410617171 1042342002 76s47001c

Information fuel-injection pump

BOSCH 9 410 617 171 9410617171

ZEXEL 104234-2002 1042342002

NIIGATA-TEKKOU 76S47001C 76s47001c

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 104234-2002 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104234-2002
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)	34.3{350}
10.	NOZZLE-HOLDER
11.	NOZZLE

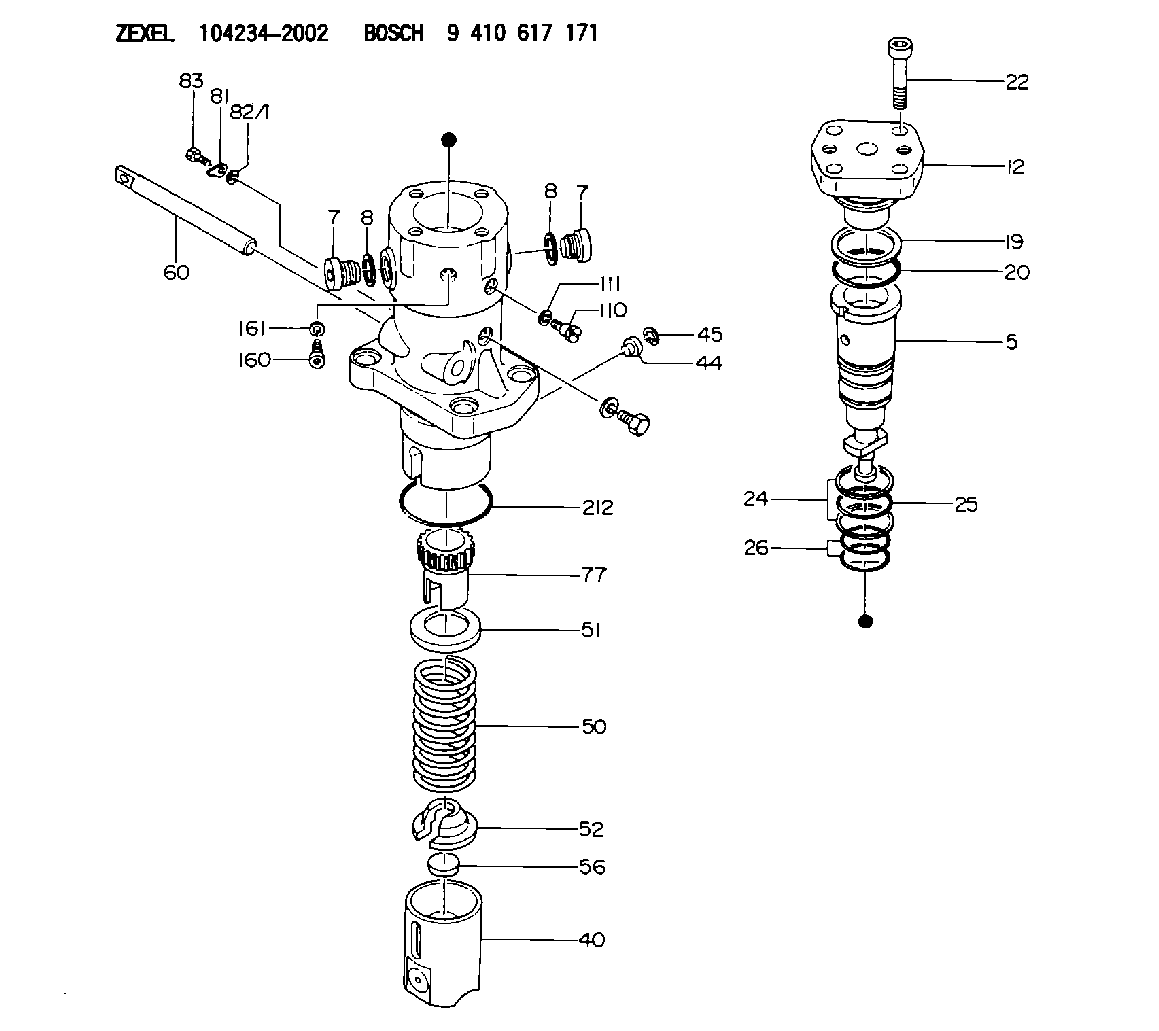

Scheme ###:

5.	[1]	141188-5021	PLUNGER-AND-BARREL ASSY
7.	[2]	141133-8100	CAPSULE
7.	[2]	141133-8100	CAPSULE
8.	[2]	026516-2040	GASKET D19.9&16.2T1
8.	[2]	026516-2040	GASKET D19.9&16.2T1
12.	[1]	141145-2520	DELIVERY-VALVE ASSEMBLY
19.	[1]	016420-0400	BACKUP RING
20.	[1]	141485-4500	O-RING
22.	[4]	141124-5600	HEX-SOCKET-HEAD CAP SCREW
24.	[2]	016421-0350	BACKUP RING
25.	[1]	141485-4300	O-RING
26.	[2]	141485-4200	O-RING
40.	[1]	141200-3020	TAPPET
44.	[1]	141212-0800	BEARING PIN
45.	[1]	016110-1220	LOCKING WASHER
50.	[1]	141215-8400	COMPRESSION SPRING
51.	[1]	141216-6700	SLOTTED WASHER
52.	[1]	141217-9000	SLOTTED WASHER
56.	[1]	141254-2000	PLATE T4.5
56B.	[1]	141254-2100	PLATE T4.6
56C.	[1]	141254-2200	PLATE T4.7
56D.	[1]	141254-2300	PLATE T4.8
56E.	[1]	141254-2400	PLATE T4.9
56F.	[1]	141254-2500	PLATE T5.0
56G.	[1]	141254-2600	PLATE T5.1
56H.	[1]	141254-2700	PLATE T5.2
56I.	[1]	141254-2800	PLATE T5.3
56J.	[1]	141254-2900	PLATE T5.4
56K.	[1]	141254-3000	PLATE T5.5
60.	[1]	141291-4201	CONTROL RACK
77.	[1]	141292-3000	CONTROL SLEEVE
81.	[1]	141245-2000	POINTER
82/1.	[0]	023500-6210	PLAIN WASHER D11&6.4T1.5
82/1.	[0]	029300-6010	PLAIN WASHER D11&6.4T0.8
82/1.	[0]	029300-6020	PLAIN WASHER D11&6.4T0.35
83.	[1]	020006-1440	BLEEDER SCREW M6P1L14
110.	[1]	140420-1600	BLEEDER SCREW
111.	[1]	141403-1200	GASKET
160.	[1]	141418-3900	SET OF NUTS
161.	[1]	026506-1040	GASKET D9.9&6.2T1
212.	[1]	141485-4400	O-RING

Include in #2:

104234-2002 as INJECTION-PUMP ASSEMBLY

104748-0254 as _

Cross reference number

Zexel num

Bosch num

Firm num

Name

104234-2002
104234-2003

9 410 617 171

76S47001C NIIGATA-TEKKOU

FUEL-INJECTION PUMP
* K 24CQ PF-1QV PF

104234-2002
104234-2003

9 410 617 171

76S47001E NIIGATA-TEKKOU

FUEL-INJECTION PUMP
A * K 24CQ PF-1QV PF
