Information fuel-injection pump
BOSCH
9 410 617 502
9410617502
ZEXEL
104233-1020
1042331020
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104233-1020 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

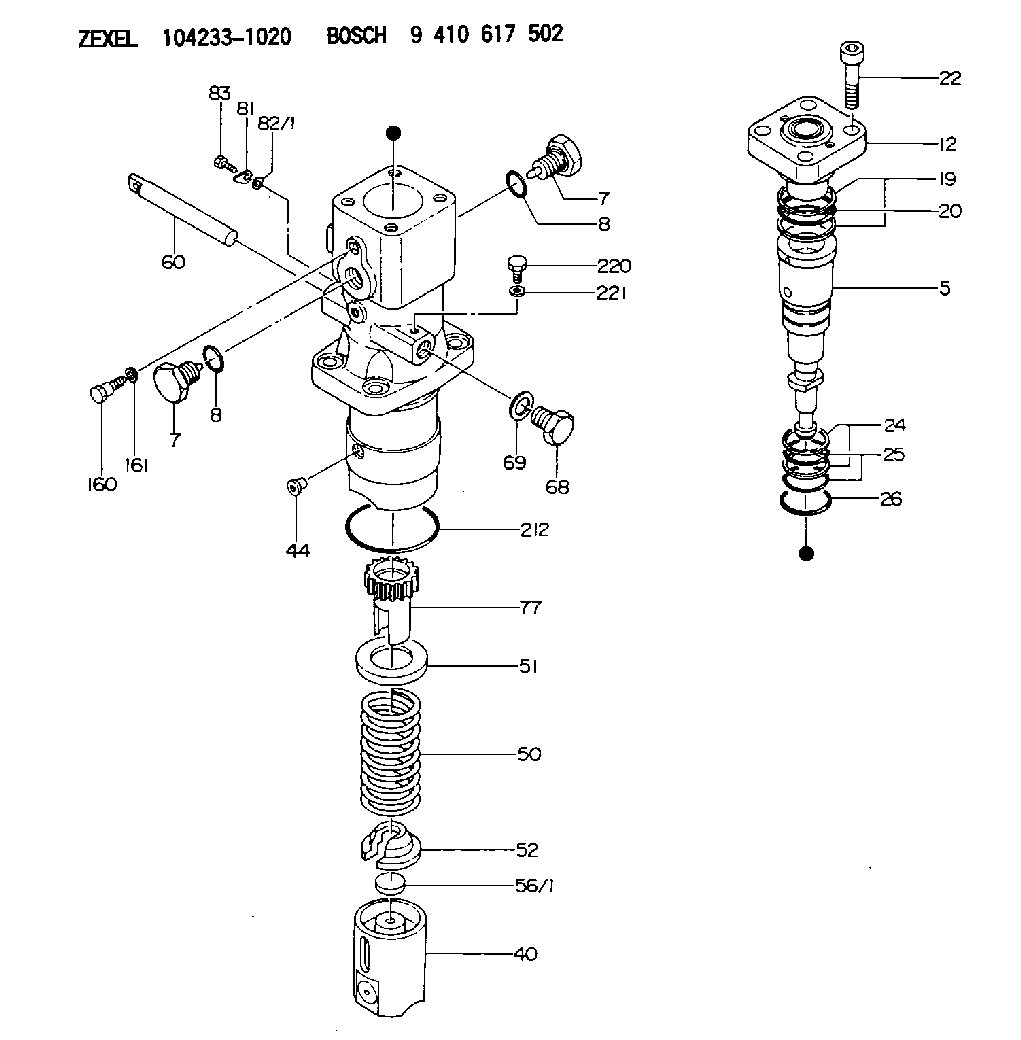

Scheme ###:
| 5. | [1] | 141186-5121 | PLUNGER-AND-BARREL ASSY |
| 7. | [2] | 141133-5300 | CAPSULE |
| 7. | [2] | 141133-5300 | CAPSULE |
| 8. | [2] | 141485-0500 | O-RING |
| 8. | [2] | 141485-0500 | O-RING |
| 12. | [1] | 141145-0321 | DELIVERY-VALVE ASSEMBLY |
| 19. | [2] | 016421-0600 | BACKUP RING |
| 20. | [1] | 141482-8600 | O-RING |
| 22. | [4] | 029021-6000 | HEX-SOCKET-HEAD CAP SCREW |
| 24. | [2] | 016421-0500 | BACKUP RING |
| 25. | [2] | 141482-9900 | O-RING |
| 26. | [1] | 141403-0001 | O-RING |
| 40. | [1] | 141200-2920 | TAPPET |
| 44. | [1] | 141212-0700 | BEARING PIN |
| 50. | [1] | 141215-7900 | COMPRESSION SPRING |
| 51. | [1] | 141216-5900 | SLOTTED WASHER |
| 52. | [1] | 141217-8000 | SLOTTED WASHER |
| 56/1. | [1] | 141209-2400 | PLATE T7.6 |
| 56/1. | [1] | 141209-2500 | PLATE T7.7 |
| 56/1. | [1] | 141209-2600 | PLATE T7.8 |
| 56/1. | [1] | 141209-2700 | PLATE T7.9 |
| 56/1. | [1] | 141209-2800 | PLATE T8.0 |
| 56/1. | [1] | 141209-2900 | PLATE T8.1 |
| 56/1. | [1] | 141209-3000 | PLATE T8.2 |
| 56/1. | [1] | 141209-3100 | PLATE T8.3 |
| 56/1. | [1] | 141209-3200 | PLATE T8.4 |
| 56/1. | [1] | 141209-3300 | PLATE T8.5 |
| 56/1. | [1] | 141209-3400 | PLATE T8.6 |
| 56/1. | [1] | 141209-3500 | PLATE T8.7 |
| 56/1. | [1] | 141209-3600 | PLATE T8.8 |
| 56/1. | [1] | 141209-3700 | PLATE T8.9 |
| 56/1. | [1] | 141209-3800 | PLATE T9.0 |
| 60. | [1] | 141291-2200 | CONTROL RACK |
| 68. | [1] | 141405-3900 | CAPSULE |
| 69. | [1] | 026524-2940 | GASKET D28.9&24.3T2 |
| 77. | [1] | 141292-1300 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 160. | [1] | 141418-3100 | SET OF NUTS |
| 161. | [1] | 141403-1400 | GASKET |
| 212. | [1] | 016511-0050 | O-RING |
| 220. | [1] | 141405-4000 | CAPSULE |
| 221. | [1] | 026510-1340 | GASKET D13.4&10.2T1 |
