104216-3060 ZEXEL 9 410 617 772 BOSCH FUEL-INJECTION PUMP 9410617772 1042163060




Information fuel-injection pump

BOSCH 9 410 617 772 9410617772
ZEXEL 104216-3060 1042163060
104216-3060 FUEL-INJECTION PUMP
Rating:
38
Buy FUEL-INJECTION PUMP 104216-3060 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104216-3060
1. _
2. FUEL INJECTION PUMP
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2)
10. NOZZLE-HOLDER
11. NOZZLE

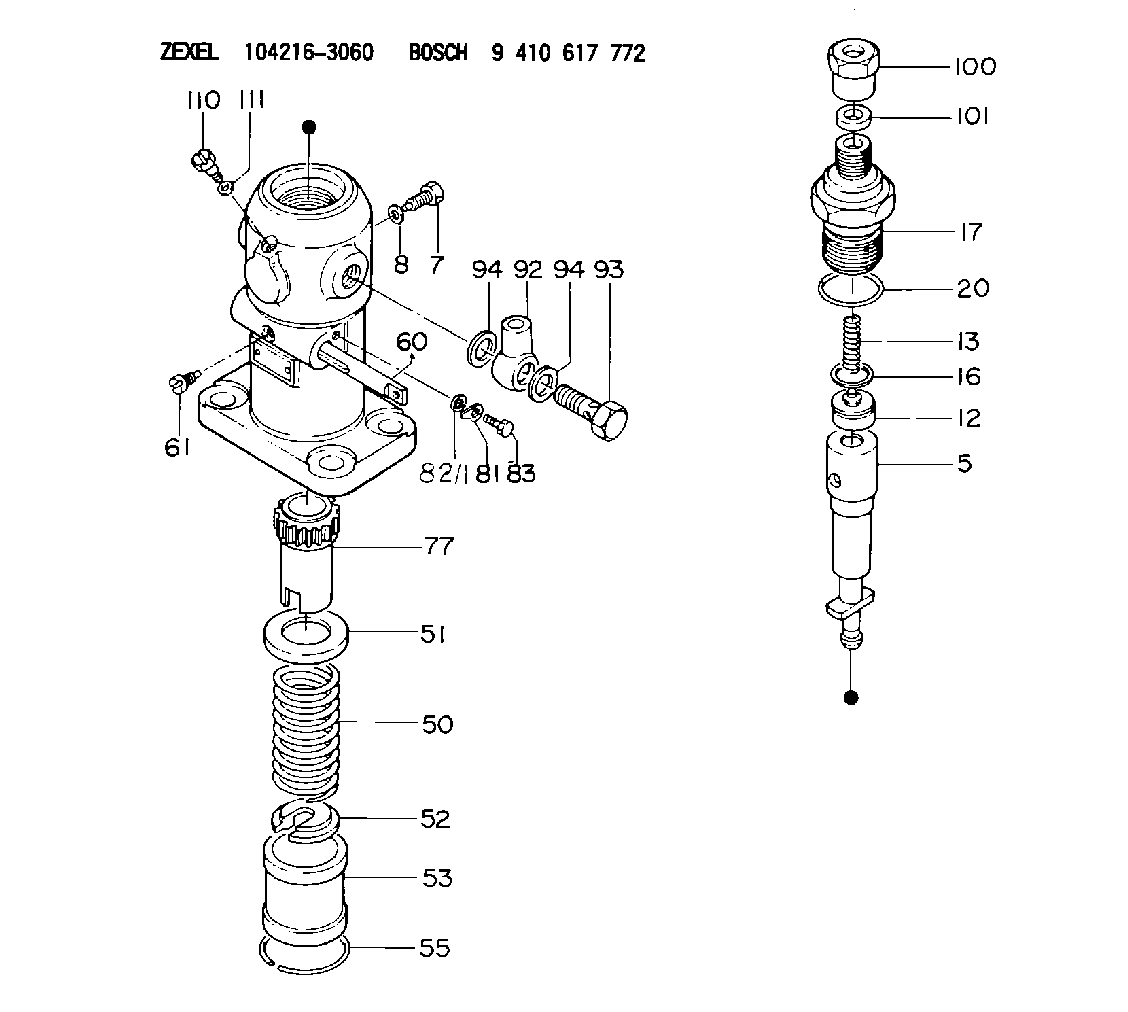

Scheme ###:

5. [1] 141171-0620 PLUNGER-AND-BARREL ASSY
7. [1] 141106-8300 CAPSULE
8. [1] 029331-2130 GASKET
12. [1] 141110-8820 DELIVERY-VALVE ASSEMBLY
13. [1] 141112-2000 COMPRESSION SPRING
16. [1] 141115-4600 GASKET
17. [1] 141126-5320 FITTING
20. [1] 029635-0020 O-RING
50. [1] 141215-2601 COMPRESSION SPRING
51. [1] 141216-1800 SLOTTED WASHER
52. [1] 141217-3000 SLOTTED WASHER
53. [1] 141218-5120 GUIDE
55. [1] 141220-1200 LOCKING WASHER
60. [1] 141243-3800 CONTROL RACK
61. [1] 141226-3200 BLEEDER SCREW
77. [1] 141241-2700 CONTROL SLEEVE
81. [1] 141245-2000 POINTER
82/1. [0] 023500-6210 PLAIN WASHER D11&6.4T1.5
82/1. [0] 029300-6010 PLAIN WASHER D11&6.4T0.8
82/1. [0] 029300-6020 PLAIN WASHER D11&6.4T0.35
83. [1] 020006-1440 BLEEDER SCREW M6P1L14
92. [1] 029702-6020 INLET UNION
93. [1] 029732-6010 EYE BOLT
94. [2] 026526-3440 GASKET
94. [2] 026526-3440 GASKET
100. [1] 029762-2020 UNION NUT
101. [1] 029351-2050 PLAIN WASHER
110. [1] 140420-0600 BLEEDER SCREW
111. [1] 026506-1040 GASKET D9.9&6.2T1

Include in #2:

104216-3060 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104216-3060
9 410 617 772

FUEL-INJECTION PUMP
* K 24FA PF-1GD(V) PF




Information:


At operating temperature, the engine coolant is hot and under pressure. Steam can cause personal injury. Check the coolant level only after the engine has been stopped and the fill cap is cool enough to touch with your bare hand. Remove the fill cap slowly to relieve pressure in the cooling system. Cooling system conditioner contains alkali. Avoid contact with skin and eyes to prevent personal injury.
1. Drain the coolant from the cooling system into a suitable container for storage or disposal. 2. Loosen bolts (1) and (2) on water pump drive (3).3. Remove V-belt (4) from the drive pulley on the water pump and the pulley on the water pump drive.4. Remove two hose clamps (5). Disconnect the hose used between the water pump and the water temperature regulator housing at the water pump.5. Remove four bolts (6) that hold the water pump to the front of the engine. Carefully remove the water pump and two O-ring seals from the front of the engine. The following steps are for the installation of the water pump.6. Check the condition of the two O-ring seals used between the water pump and the cylinder block. If the seals are damaged, use new parts for replacement.7. Install the two O-ring seals in the cover of the water pump. Put the water pump in position on the front of the engine, and install four bolts (6) that hold it.8. Connect the short hose used between the water pump and the water temperature regulator housing to the water pump. Install two clamps (5) that hold the hose in position.9. Put V-belt (4) in position on the water pump drive pulley and the pulley on water pump drive.10. Adjust the tension of water pump drive V-belt (4). Bolt (7) or square hole (8) are used to apply and hold V-belt tension. See the topic "Alternator And Fan Drive Belts, Inspect/Adjust/Replace" in the 3114 & 3116 ATAAC Diesel Truck Engine Operation & Maintenance Manual, Form No. SEBU6723. Also, refer to the "Belt Tension Chart" in the 3114 & 3116 Diesel Truck Engines Specifications module, Form No. SENR6436.11. Fill the cooling system with coolant to the correct level. See the topic "Cooling System" in the 3114 & 3116 ATAAC Diesel Truck Engine Operation & Maintenance Manual, Form No. SEBU6723.Disassemble & Assemble Water Pump
Start By:a. remove water pump 1. Remove two O-ring seals (1) from the rear cover of the water pump. Remove four bolts (2) and the washers. Remove the rear cover and gasket. 2. Put the water pump in a press. Use spacer plates to level the water pump as shown.3. Using a suitable size drive plate from Tool (A) and a press, push the
