104215-0052 ZEXEL 9 410 618 033 BOSCH FUEL-INJECTION PUMP 9410618033 1042150052




Information fuel-injection pump

BOSCH 9 410 618 033 9410618033
ZEXEL 104215-0052 1042150052
104215-0052 FUEL-INJECTION PUMP
Rating:
15
Buy FUEL-INJECTION PUMP 104215-0052 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104215-0052
1. _
2. FUEL INJECTION PUMP
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2)
10. NOZZLE-HOLDER
11. NOZZLE

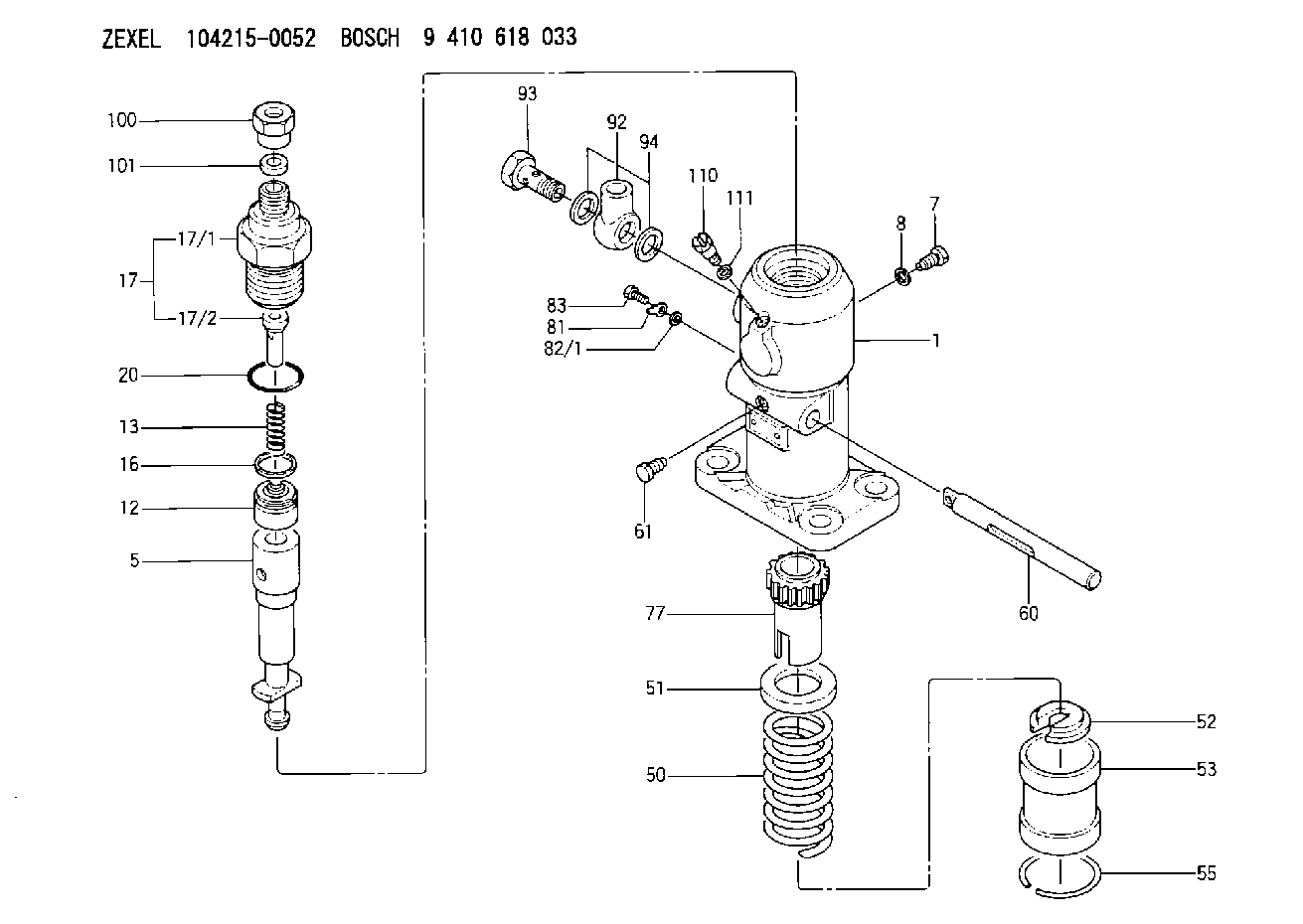

Scheme ###:

1. [1] 141050-9620 PUMP HOUSING
5. [1] 141171-0520 PLUNGER-AND-BARREL ASSY
7. [1] 141106-8300 CAPSULE
8. [1] 029331-2130 GASKET
12. [1] 141140-6521 DELIVERY-VALVE ASSEMBLY
13. [1] 141112-2000 COMPRESSION SPRING
16. [1] 141115-4600 GASKET
17. [1] 141126-2420 FITTING
17/1. [1] 141126-2400 FITTING
17/2. [1] 141117-3100 FILLER PIECE
20. [1] 029635-0020 O-RING
50. [1] 141215-5402 COMPRESSION SPRING
51. [1] 141216-1800 SLOTTED WASHER
52. [1] 141217-3000 SLOTTED WASHER
53. [1] 141218-5020 GUIDE
55. [1] 141220-1200 LOCKING WASHER
60. [1] 141244-1500 CONTROL RACK
61. [1] 141226-3200 BLEEDER SCREW
77. [1] 141241-2700 CONTROL SLEEVE
81. [1] 141245-2900 POINTER
82/1. [0] 023500-6210 PLAIN WASHER D11&6.4T1.5
82/1. [0] 029300-6010 PLAIN WASHER D11&6.4T0.8
82/1. [0] 029300-6020 PLAIN WASHER D11&6.4T0.35
83. [1] 020006-1440 BLEEDER SCREW M6P1L14
92. [1] 029702-6060 INLET UNION
93. [1] 029732-6010 EYE BOLT
94. [2] 026526-3440 GASKET
100. [1] 029762-6130 UNION NUT
101. [1] 029351-7010 PLAIN WASHER
110. [1] 141420-1600 BLEEDER SCREW
111. [1] 026506-1040 GASKET D9.9&6.2T1

Include in #2:

104215-0052 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104215-0052
9 410 618 033
NP-PF1GD250A00N92

FUEL-INJECTION PUMP
K 24FA FUEL INJECTION PUMP PF-1GD(V) PF




Information:


6V7070 Heavy-Duty Digital MultimeterThe 6V7070 Heavy-Duty Digital Multimeter is a completely portable, hand held instrument with a digital display. This multimeter is built with extra protection against damage in field applications, and is equipped with seven functions and 29 ranges. The 6V7070 Multimeter has an instant ohms indicator that permits continuity checking for fast circuit inspection. It also can be used for troubleshooting small value capacitors.The 6V7800 Regular-Duty Digital Multimeter (a low cost option to the Heavy-Duty Multimeter) is also available; however, the 6V7800 Multimeter does not have the 10A range or the instant ohms feature of the 6V7070 Multimeter. Make reference to Special Instruction, Form No. SEHS7734 for complete information for use of the 6V7070 and 6V7800 Multimeters.Battery
Never disconnect any charging unit circuit or battery circuit cable from the battery when the charging unit is operated. A spark can cause an explosion from the flammable vapor mixture of hydrogen and oxygen that is released from the electrolyte through the battery outlets. Injury to personnel can be the result.
The battery circuit is an electrical load on the charging unit. The load is variable because of the condition of the charge in the battery. Damage to the charging unit will result if the connections (either positive or negative) between the battery and charging unit are broken while the charging unit is in operation. This is because the battery load is lost and there is an increase in charging voltage. High voltage will damage, not only the charging unit, but also the regulator and other electrical components.Use the 4C4911 Battery Load Tester to load test a battery that does not hold a charge when in use. Refer to Operating Manual, Form No. SEHS9249 for more detailed instructions on use of the 4C4911 Battery Load Tester. See Special Instruction, Form No. SEHS7633, Battery Test Procedure, for the correct procedure and specifications to use when testing batteries.Charging System
The condition of charge in the battery at each regular inspection will show if the charging system operates correctly. An adjustment is necessary when the battery is constantly in a low condition of charge or a large amount of water is needed (more than one ounce of water per cell per week or per every 100 service hours).When it is possible, make a test of the charging unit and voltage regulator on the engine, and use wiring and components that are a permanent part of the system. Off-engine (bench) testing will give a test of the charging unit and voltage regulator operation. This testing will give an indication of needed repair. After repairs are made, again make a test to give proof that the units are repaired to their original condition of operation.To check for correct output of the alternator, see the Specifications module.For complete service information, refer to Service Manual Module, Form No. SENR3862. This module is part of REG00636 Service Manual.Before the start of on-engine testing, the charging system and battery must be checked as shown in the Steps that follow:1. Battery must

Have questions with 104215-0052?





Group cross 104215-0052 ZEXEL

9 410 617 684
NP-PF1GD250A00N1

FUEL-INJECTION PUMP
9 410 617 814
NP-PF1GD250A00N58

FUEL-INJECTION PUMP


FUEL-INJECTION PUMP
104215-0052
9 410 618 033
NP-PF1GD250A00N92

FUEL-INJECTION PUMP
9 410 617 685
NP-PF1GD250A00N93

FUEL-INJECTION PUMP
