104214-3140 ZEXEL 9 410 617 962 BOSCH FUEL-INJECTION PUMP 9410617962 1042143140 14262251530

Information fuel-injection pump

BOSCH 9 410 617 962 9410617962

ZEXEL 104214-3140 1042143140

YANMAR 14262251530 14262251530

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 104214-3140 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104214-3140
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

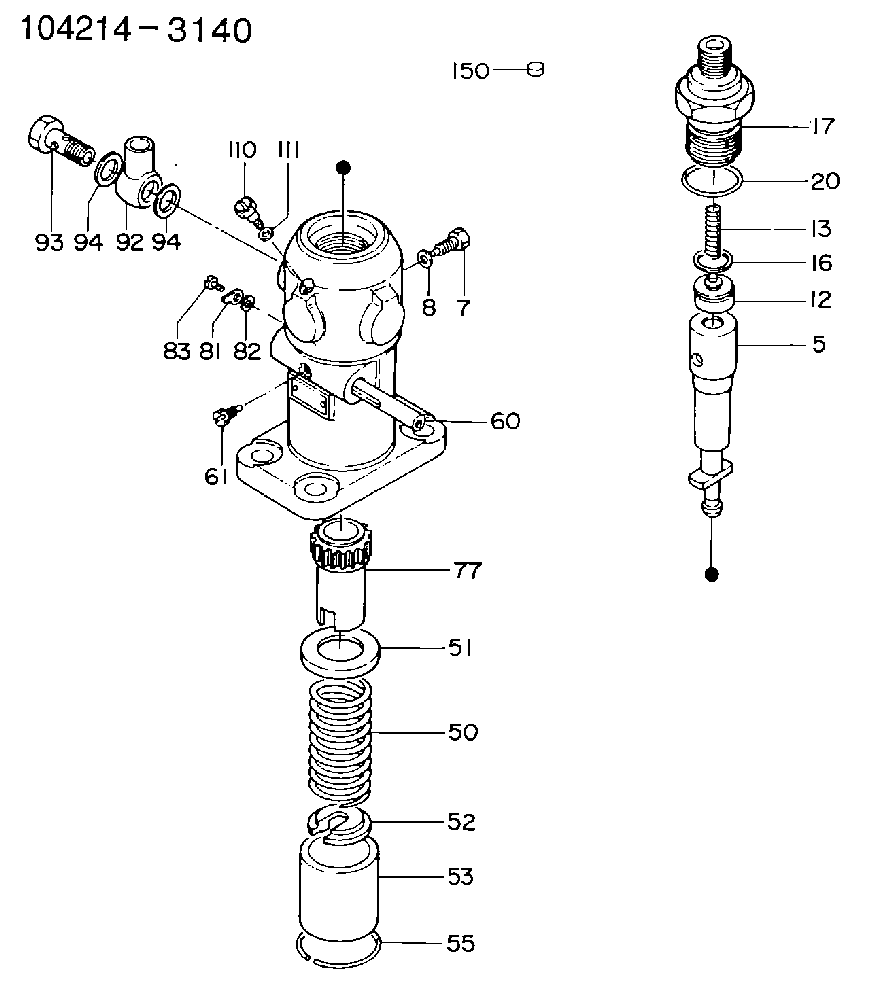

Scheme ###:

1.	[1]	141052-1920	PUMP HOUSING
5.	[1]	141171-2520	PLUNGER-AND-BARREL ASSY
7.	[1]	141106-8300	CAPSULE
8.	[1]	141107-0600	GASKET
12.	[1]	141110-5820	DELIVERY-VALVE ASSEMBLY
13.	[1]	141112-2000	COMPRESSION SPRING
16.	[1]	141115-4600	GASKET
17.	[1]	141126-2620	FITTING
20.	[1]	029635-0020	O-RING
50.	[1]	141215-2601	COMPRESSION SPRING
51.	[1]	141216-1800	SLOTTED WASHER
52.	[1]	141217-3000	SLOTTED WASHER
53.	[1]	141218-5120	GUIDE
55.	[1]	141220-1200	LOCKING WASHER
60.	[1]	141243-7700	CONTROL RACK
61.	[1]	141226-3200	BLEEDER SCREW
77.	[1]	141241-6100	CONTROL SLEEVE
81.	[1]	141245-2000	POINTER
82/1.	[0]	023500-6210	PLAIN WASHER D11&6.4T1.5
82/1.	[0]	029300-6010	PLAIN WASHER D11&6.4T0.8
82/1.	[0]	029300-6020	PLAIN WASHER D11&6.4T0.35
83.	[1]	020006-1440	BLEEDER SCREW M6P1L14
92.	[1]	029702-6020	INLET UNION
93.	[1]	029732-6010	EYE BOLT
94.	[1]	141403-0600	GASKET
94.	[1]	141403-0600	GASKET
110.	[1]	140420-0600	BLEEDER SCREW
111.	[1]	141421-0000	GASKET
150.	[1]	375160-2400	CAPSULE

Include in #2:

104214-3140 as INJECTION-PUMP ASSEMBLY

105856-4770 as _

Cross reference number

Zexel num

Bosch num

Firm num

Name

104214-3140

9 410 617 962

14262251530 YANMAR

FUEL-INJECTION PUMP
* K

Information:

Marks For Tightening Connecting Rod Bolts-7E5996 Connecting Rod Assembly(1) Bore in connecting rod for piston pin bearing ... 55.436 0.013 mm (2.1825 .0005 in) The connecting rod must be heated for installation of piston pin bearing. Do not use a torch.(2) Distance rod may be heated to 175 to 260°C (347 to 500°F) to install the piston pin bearing ... 85.0 mm (3.35 in)(3) Bore in bearing for piston pin (new) ... 50.830 0.008 mm (2.0012 .0003 in) Diameter of piston pin (new) ... 50.795 0.005 mm (1.9998 .0002 in)Thoroughly lubricate piston pin with clean engine oil prior to inserting into piston group and rod assembly.Maximum permissible clearance between bearing and piston pin (worn) ... 0.25 mm (.010 in)(4) Bearing joint must be assembled at either location on centerline through the connecting rod bore ... 5°Make reference to Special Instruction, Form No. SMHS7295 for use of pin bearing removal and installation tools and procedures.(5) Distance between center of bearings ... 261.62 0.05 mm (10.300 .002 in)(6) Bore in connecting rod for bearing with nuts tightened to specifications (8) ... 96.200 0.013 mm (3.7874 .0005 in)(7) Location for etching cylinder number on connecting rod and cap. Rods and caps are to be marked with numbers 1 through 6 on the same side of the rod as the bearing tab slots.(8) Tighten connecting rod bolts as follows: a. Before installing bolts, lubricate bolt threads and seating faces of the caps with 2P2506 Thread Lubricant.b. Tighten each bolt to ... 90 8 N m (66 6 lb ft)c. Put an alignment mark on each cap and bolt.d. Tighten each bolt an additional ... 90 5° (1/4 turn)(9) Bore in bearing for crankshaft rod journal ... 90.112 0.028 mm (3.5477 .0011 in) Clearance between bearing and crankshaft (new) ... 0.062 to 0.160 mm (.0024 to .0063 in)Maximum permissible clearance between bearing and crankshaft (worn) ... 0.20 mm (.008 in) Bearings are available in 0.63 mm (.025 in) and 1.27 mm (.050 in) smaller than original size.
