104214-0062 ZEXEL 9 410 617 127 BOSCH FUEL-INJECTION PUMP 9410617127 1042140062 10247000c




Information fuel-injection pump

BOSCH 9 410 617 127 9410617127
ZEXEL 104214-0062 1042140062
NIIGATA-URAWA 10247000C 10247000c
104214-0062 FUEL-INJECTION PUMP
Rating:
77
Buy FUEL-INJECTION PUMP 104214-0062 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104214-0062
1. _
2. FUEL INJECTION PUMP
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2)
10. NOZZLE-HOLDER
11. NOZZLE

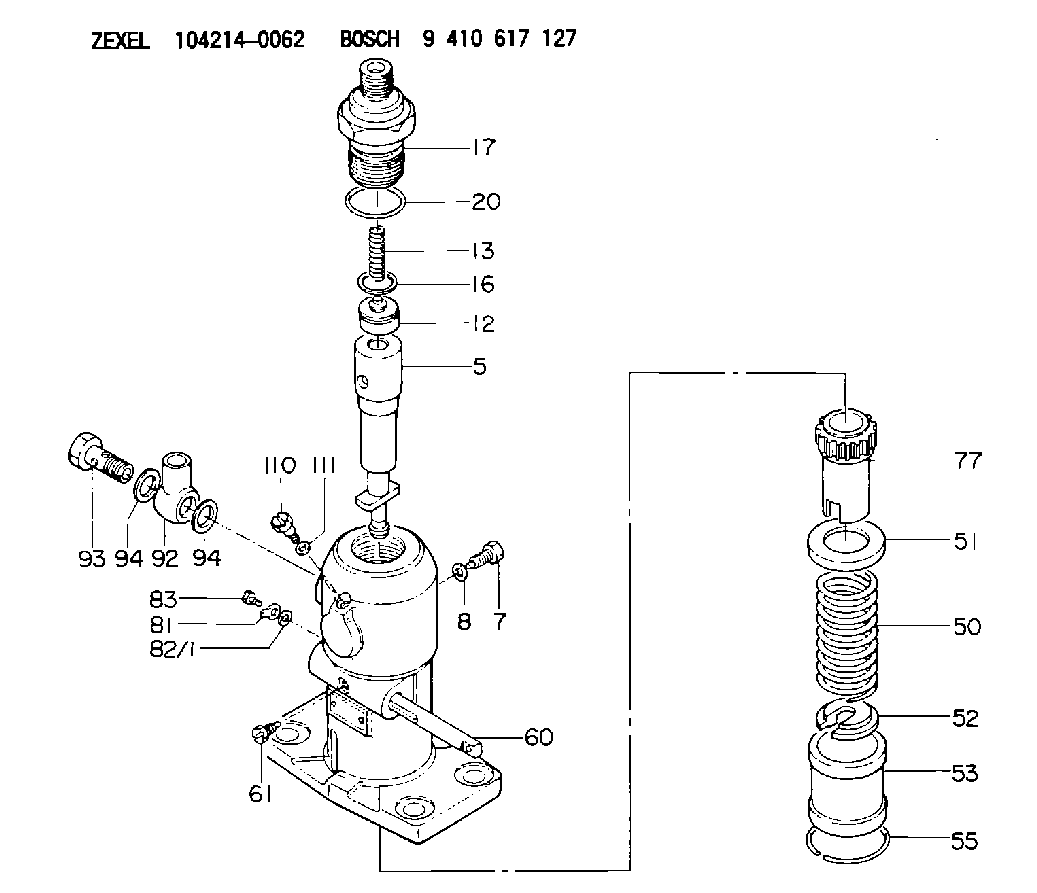

Scheme ###:

5. [1] 141171-1820 PLUNGER-AND-BARREL ASSY
7. [1] 141106-8300 CAPSULE
8. [1] 029331-2130 GASKET
12. [1] 141110-6420 DELIVERY-VALVE ASSEMBLY
13. [1] 141112-2000 COMPRESSION SPRING
16. [1] 141115-4600 GASKET
17. [1] 141126-2420 FITTING
20. [1] 029635-0020 O-RING
50. [1] 141215-2601 COMPRESSION SPRING
51. [1] 141216-1800 SLOTTED WASHER
52. [1] 141217-3000 SLOTTED WASHER
53. [1] 141218-5020 GUIDE
55. [1] 141220-1200 LOCKING WASHER
60. [1] 141243-3900 CONTROL RACK
61. [1] 141226-3200 BLEEDER SCREW
77. [1] 141241-2700 CONTROL SLEEVE
81. [1] 140245-0200 POINTER
82/1. [0] 023500-6210 PLAIN WASHER D11&6.4T1.5
82/1. [0] 029300-6010 PLAIN WASHER D11&6.4T0.8
82/1. [0] 029300-6020 PLAIN WASHER D11&6.4T0.35
83. [1] 021006-1420 FLAT-HEAD SCREW
92. [1] 029702-6020 INLET UNION
93. [1] 029732-6010 EYE BOLT
94. [2] 026526-3440 GASKET
94. [2] 026526-3440 GASKET
110. [1] 141420-1600 BLEEDER SCREW
111. [1] 026506-1040 GASKET D9.9&6.2T1

Include in #2:

104214-0062 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104214-0062
9 410 617 127
NP-PF1GD240A00N25
10247000C  NIIGATA-URAWA
FUEL-INJECTION PUMP
K 24FA FUEL INJECTION PUMP PF-1GD(V) PF




Information:

Start By:a. remove timing gear coverb. remove flywheel housingc. remove pistons and connecting rod assembliesd. remove crankshaft rear seal and wear sleevee. remove crankshaft front seal and wear sleeve Check the bearing caps for a number as to their location. If a number can not be seen, put a number on the left side of cylinder block and bearing cap. 1. Remove bolts (1) that hold main bearing caps (2) to the block, and remove main bearing caps (2). 2. Install one of the bolts from the front pulley in each end of the crankshaft.3. Fasten a hoist to crankshaft (3), and remove crankshaft (3) from the block. The weight is 159 kg (350 lb.). If new main bearings are not to be installed, keep old bearings with identification as to their location in cylinder block. 4. Use tooling (A) to remove the crankshaft gear.5. Use tooling (B) if necessary to remove the dowel and the pin.Install Crankshaft
If the crankshaft journals and bores for the block and rods were measured at disassembly and found to be within specifications, no further checks are necessary. However, if the serviceman still wants to measure the bearing clearances, Plastigage is recommended. Lead wire, shim stock or use of a dial bore gauge can damage the bearing surface.The serviceman must be very careful to use Plastigage, tool (B) correctly. The following points must be remembered:... Make sure that the backs of the bearings and the bores are clean and dry.... Make sure that the bearing locking tabs are properly seated in their slots.... The crankshaft must be free of oil where the Plastigage touches it.... If the main bearing clearances are checked with the engine upright or on its side, the crankshaft must be supported. Use a jack under an adjacent crankshaft counterweight and hold the crankshaft against the crown of the bearing. If the crankshaft is not supported, the weight of the crankshaft will cause incorrect readings.... Put a piece of Plastigage on the crown of the bearing half that is in the cap. Do not allow the Plastigage to extend over the edge of the bearing.... Install the bearing cap using the correct torque-turn specifications. Do not use an impact wrench. Be careful not to dislodge the bearing when the cap is installed.... Do not turn the crankshaft with the Plastigage installed.... Carefully remove the cap but do not remove the Plastigage. Measure the width of the Plastigage while it is in the bearing cap or on the crankshaft journal. Do this by using the correct scale on the package. Record the measurements.... Remove the Plastigage before reinstalling the cap.When using Plastigage, the readings can sometimes be unclear. For example, all parts of the Plastigage are not the same width. Measure the major widths to make sure that they are within the specification range. Also, experience has shown that when checking clearances tighter than 0.10 mm (.004") the readings may be low by 0.013 to 0.025 mm (.0005 to .0010"). Out-of-round

Have questions with 104214-0062?





Group cross 104214-0062 ZEXEL

9 410 617 682

FUEL-INJECTION PUMP
9 410 617 492
NP-PF1GD240A00N25
10247000B
FUEL-INJECTION PUMP

Niigata-Tekkou

9 410 617 493
10247000C
FUEL-INJECTION PUMP

Niigata-Urawa

104214-0062
9 410 617 127
NP-PF1GD240A00N25
10247000C
FUEL-INJECTION PUMP
9 410 617 573
NP-PF1GD240A00N47

FUEL-INJECTION PUMP
