Information fuel-injection pump
BOSCH
9 410 617 334
9410617334
ZEXEL
104206-3030
1042063030
KUBOTA
1602751011
1602751011
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

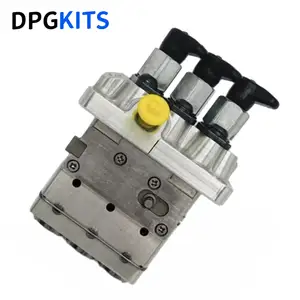

16027-51011 104206-3030 9410617334 New Fuel Injection Pump Fits for Kubota D722 Engine B21 B2100D B2100E B7500D B7510D B7510DN B7510HSD F2260 L4400DT L4400F L4400H L4600DT L4600F L4600H
Sgaorcpas If you are unsure whether this product is suitable for your machine, please send a message to Sgaorcpas before purchasing and provide detailed information. Sgaorcpas will determine whether it meets your needs ahead of time. || For any questions about the product, including but not limited to pre-sale and after-sale issues, you can contact Sgaorcpas, and we will reply to your email as soon as possible.
Sgaorcpas If you are unsure whether this product is suitable for your machine, please send a message to Sgaorcpas before purchasing and provide detailed information. Sgaorcpas will determine whether it meets your needs ahead of time. || For any questions about the product, including but not limited to pre-sale and after-sale issues, you can contact Sgaorcpas, and we will reply to your email as soon as possible.
Fuel Injection Pump TypeFits Model 16027-51011 104206-3030 9410617334 for Kubota D722 Engine B21 B2100D B2100E B7500D B7510D B7510DN B7510HSD F2260 L4400DT L4400F L4400H L4600DT L4600F L4600H
Podafu Part Name: Fuel Injection Pump || Part Number: 16027-51011 || Applicable: Compatible with Kubota D722 Engine B21 B2100D B2100E B7500D B7510D B7510DN B7510HSD F2260 L4400DT L4400F L4400H L4600DT L4600F L4600H || The fuel injection pump has a long service life, low maintenance frequency, and high reliability || Before purchasing, please carefully check if the product is suitable for your vehicle by reviewing the part number and photos.
Podafu Part Name: Fuel Injection Pump || Part Number: 16027-51011 || Applicable: Compatible with Kubota D722 Engine B21 B2100D B2100E B7500D B7510D B7510DN B7510HSD F2260 L4400DT L4400F L4400H L4600DT L4600F L4600H || The fuel injection pump has a long service life, low maintenance frequency, and high reliability || Before purchasing, please carefully check if the product is suitable for your vehicle by reviewing the part number and photos.
Components :
0. | INJECTION-PUMP ASSEMBLY | 104206-3030 |
1. | _ | |
2. | FUEL INJECTION PUMP | |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105148-1350 |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | 13.2{135} |
10. | NOZZLE-HOLDER | 105078-0200 |
11. | NOZZLE | 105007-1330 |
Scheme ###:
5. | [3] | 140154-9520 | PLUNGER-AND-BARREL ASSY |
12. | [3] | 140110-4420 | DELIVERY-VALVE ASSEMBLY |
13. | [3] | 140112-2800 | COMPRESSION SPRING |
16. | [3] | 140115-2200 | GASKET D12.8&8.6T0.5 |
17. | [3] | 140116-7220 | FITTING |
20. | [3] | 016550-1220 | O-RING |
30. | [3] | 140131-0021 | FLANGE BUSHING |
31. | [3] | 140271-0000 | BEARING PIN |
32. | [6] | 016550-1620 | O-RING |
37. | [6] | 140124-0100 | FLAT-HEAD SCREW |
40. | [3] | 140200-2320 | TAPPET |
44. | [3] | 140212-0300 | BEARING PIN |
45. | [1] | 140213-0900 | LOCKING WASHER |
50. | [3] | 140215-2000 | COMPRESSION SPRING |
51. | [3] | 140216-1300 | SLOTTED WASHER |
52. | [3] | 140254-2900 | SLOTTED WASHER |
53/1. | [1] | 140254-1400 | PLATE T1.80 |
53/1. | [1] | 140254-1500 | PLATE T1.85 |
53/1. | [1] | 140254-1600 | PLATE T1.90 |
53/1. | [1] | 140254-1700 | PLATE T1.95 |
53/1. | [1] | 140254-1800 | PLATE T2.00 |
53/1. | [1] | 140254-1900 | PLATE T2.05 |
53/1. | [1] | 140254-2000 | PLATE T2.10 |
53/1. | [1] | 140254-2100 | PLATE T2.15 |
53/1. | [1] | 140254-2200 | PLATE T2.20 |
53/1. | [1] | 140254-2300 | PLATE T2.25 |
53/1. | [1] | 140254-2400 | PLATE T2.30 |
53/1. | [1] | 140254-2500 | PLATE T2.35 |
53/1. | [1] | 140254-2600 | PLATE T2.40 |
53/1. | [1] | 140254-2700 | PLATE T2.45 |
53/1. | [1] | 140254-2800 | PLATE T2.50 |
53/1. | [1] | 140254-3100 | PLATE T1.825 |
53/1. | [1] | 140254-3200 | PLATE T1.875 |
53/1. | [1] | 140254-3300 | PLATE T1.925 |
53/1. | [1] | 140254-3400 | PLATE T1.975 |
53/1. | [1] | 140254-3500 | PLATE T2.025 |
53/1. | [1] | 140254-3600 | PLATE T2.075 |
53/1. | [1] | 140254-3700 | PLATE T2.125 |
53/1. | [1] | 140254-3800 | PLATE T2.175 |
53/1. | [1] | 140254-3900 | PLATE T2.225 |
53/1. | [1] | 140254-4000 | PLATE T2.275 |
53/1. | [1] | 140254-4100 | PLATE T2.325 |
53/1. | [1] | 140254-4200 | PLATE T2.375 |
53/1. | [1] | 140254-4300 | PLATE T2.425 |
53/1. | [1] | 140254-4400 | PLATE T2.475 |
53/1. | [1] | 140254-4500 | PLATE T2.525 |
60. | [1] | 140243-6720 | CONTROL ROD |
65. | [1] | 140262-1201 | PLATE |
66. | [4] | 140252-0000 | FLAT-HEAD SCREW |
77. | [3] | 140241-4021 | CONTROL SLEEVE |
93. | [1] | 140402-2921 | EYE BOLT |
170. | [1] | 140405-0100 | CAPSULE |
171. | [1] | 026510-1340 | GASKET D13.4&10.2T1 |
Cross reference number
Zexel num
Bosch num
Firm num
Name
104206-3030
1602751011 KUBOTA
FUEL-INJECTION PUMP
K 23MC FUEL INJECTION PUMP PFR-3MD PFR
K 23MC FUEL INJECTION PUMP PFR-3MD PFR
104206-3030
1602751011 KUBOTA
FUEL-INJECTION PUMP
K 23MC FUEL INJECTION PUMP PFR-3MD PFR
K 23MC FUEL INJECTION PUMP PFR-3MD PFR
