104198-0300 ZEXEL 9 410 617 789 BOSCH FUEL-INJECTION PUMP 9410617789 1041980300




Information fuel-injection pump

BOSCH 9 410 617 789 9410617789
ZEXEL 104198-0300 1041980300
104198-0300 FUEL-INJECTION PUMP
Rating:
39
Buy FUEL-INJECTION PUMP 104198-0300 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104198-0300
1. _
2. FUEL INJECTION PUMP
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2)
10. NOZZLE-HOLDER
11. NOZZLE

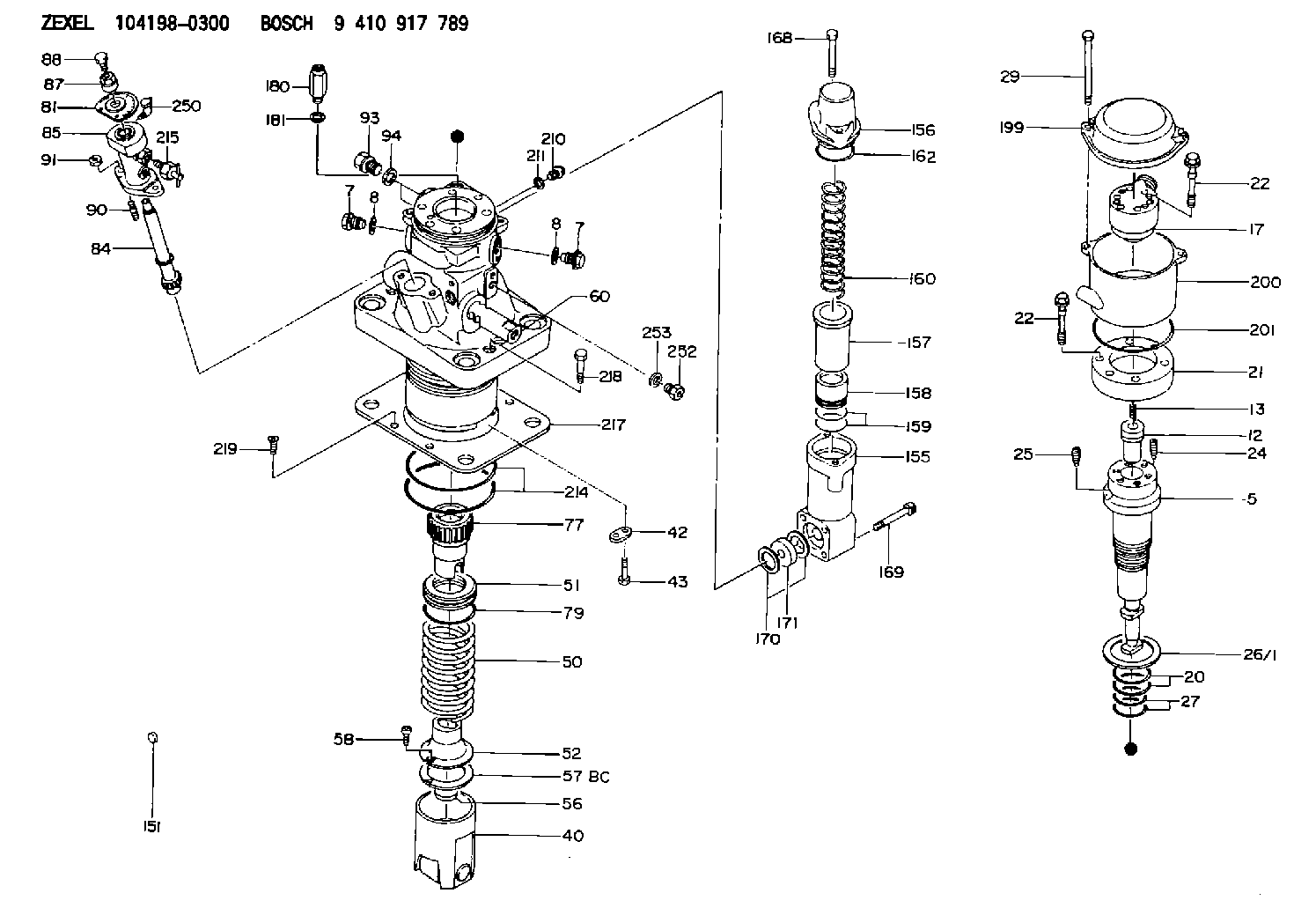

Scheme ###:

5. [1] 141157-0320 PLUNGER-AND-BARREL ASSY
7. [2] 141133-3800 CAPSULE
7. [2] 141133-3800 CAPSULE
8. [2] 141107-0300 GASKET
8. [2] 141107-0300 GASKET
12. [1] 141145-5420 DELIVERY-VALVE ASSEMBLY
13. [1] 141112-6600 COMPRESSION SPRING
17. [1] 141137-0920 FITTING
20. [2] 141482-2800 O-RING
21. [1] 141119-3900 FLANGE BUSHING
22. [12] 141124-2300 BLEEDER SCREW
22. [12] 141124-2300 BLEEDER SCREW
24. [1] 011012-2520 SET OF NUTS
25. [1] 011112-3020 SET OF NUTS
26/1. [2] 141161-3000 SPACER BUSHING
26/1. [2] 141161-3100 SPACER BUSHING
26/1. [2] 141161-3200 SPACER BUSHING
26/1. [2] 141161-3300 SPACER BUSHING
26/1. [2] 141161-3400 SPACER BUSHING
26/1. [2] 141161-3500 SPACER BUSHING
26/1. [2] 141161-3600 SPACER BUSHING
26/1. [2] 141161-3700 SPACER BUSHING
26/1. [2] 141161-3800 SPACER BUSHING
26/1. [2] 141161-3900 SPACER BUSHING
26/1. [2] 141161-4000 SPACER BUSHING
27. [2] 141482-2900 O-RING
29. [2] 141124-2600 BLEEDER SCREW
40. [1] 141200-3220 TAPPET
42. [1] 141213-1800 PLATE
43. [2] 020508-1610 BLEEDER SCREW
50. [1] 141215-3700 COMPRESSION SPRING
51. [1] 141216-6920 SLOTTED WASHER
52. [1] 141217-5800 SLOTTED WASHER
56. [1] 141254-0100 SPACER BUSHING
57. [1] 141209-0100 SHIM
57B. [1] 141209-0200 SHIM
57C. [1] 141209-0700 SHIM
58. [2] 010208-2020 HEX-SOCKET-HEAD CAP SCREW
60. [1] 141244-3900 CONTROL RACK
77. [1] 141241-7520 CONTROL SLEEVE
79. [1] 141482-0500 O-RING
81. [1] 141245-3600 POINTER
84. [1] 141240-0300 PINION
85. [1] 141440-1220 FLANGE BUSHING
87. [1] 141439-1400 BUSHING
88. [1] 141418-0100 BLEEDER SCREW
90. [2] 141438-1700 STUD
91. [2] 141439-1900 UNION NUT
93. [2] 141416-0500 CONNECTOR
94. [2] 141403-0300 GASKET
151. [1] 029926-0000 CAP
155. [1] 141454-1200 HOUSING;ACCUMULATOR
156. [1] 141455-0701 COVER;ACCUMULATOR
157. [1] 141456-0200 CYLINDER
158. [1] 141276-0900 PUMP PLUNGER
159. [2] 141457-0000 PISTON RING
160. [1] 141258-0900 COILED SPRING
162. [1] 141482-0400 O-RING
168. [2] 141269-0100 HEX-SOCKET-HEAD CAP SCREW
169. [4] 141263-1400 BLEEDER SCREW
170. [2] 141485-5600 O-RING
171. [1] 141450-2000 ORIFICE
180. [1] 141124-2700 CONNECTOR
181. [1] 141406-0900 GASKET D35&27.4T1.0
199. [1] 141130-1200 COVER
200. [1] 141130-1300 COVER
201. [1] 141482-0600 O-RING
210. [1] 141405-0600 CAPSULE
211. [1] 141406-0300 GASKET
214. [2] 141482-0700 O-RING
215. [1] 141239-0620 FILLER PIECE
217. [1] 141209-4900 PLATE
218. [2] 141418-4200 BLEEDER SCREW
219. [4] 010708-2520 FLAT-HEAD SCREW
250. [1] 141270-0300 HINGED LID
252. [1] 141405-3100 CONNECTOR
253. [1] 141406-0300 GASKET

Include in #1:

Include in #2:

104198-0300 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104198-0300
9 410 617 789

FUEL-INJECTION PUMP
K 24LF FUEL INJECTION PUMP PF-PC4-2 PF




Information:


Connect the wiring harness to a voltage source of 12 VOLTS maximum with a negative ground only. Install the additive tank on the outside of the engine compartment.
Connect the wiring to 8L5000 Switch (1) so that the system can be activated with the starting motor switch in the OFF position. Keep the additive tank full when not in use. This will prevent damage to the system and components by corrosion when not used for long periods of time.Operation: Just before the engine is started, push the switch to activate the system; this will let the additive flow for approximately two minutes, through an orifice connected to the fuel supply line of the Sleeve Metering Fuel System. The fuel transfer pump then pulls the additive into the system along with the Diesel fuel. The system can be again activated if necessary. The engine can be started approximately three to four times per liter (fifteen to twenty times per gallon) of additive.Maintenance: Keep the additive tank full when not in use. This will prevent damage to the system and components by corrosion when not used for long periods of time. Install a new injection group filter (9N3778) at six month intervals or when the filter becomes plugged (full of foreign material) so additive will not flow through it. ADDITIVE RECOMMENDATION: Ethyl D112 Diesel Ignition Improver AVAILABLE SOURCE:U.S.A.
Ethyl Corporation
Distribution Service
Petroleum Chemical Division
451 Florida Boulevard
Baton Rouge, Lousiana 70801
CANADA
Ethyl Corporation of Canada, Ltd.
48 St. Clair Avenue West
Toronto, Ontario, Canada M4V1M7
Order Department
Ethyl D11-2 Diesel Ignition Improver is highly flammable; do not install the additive tank near a source of heat or sparks. If there is a leak in the tank or an accident causes a loss of additive, a fire could be the result.
1 - 9N3334 Tank Assembly2 - 1P4022 Fitting3 - 9N3778 Filter Assembly4 - 8L6557 Connector5 - 317224 Hose Assembly6 - 306984 Connector7 - 9L8791 Solenoid8 - 7W1539 Orifice9 - 8T2543 Tee10 - 5P5009 Reducer11 - 9N3828 Harness Assembly12 - 7G1018 Relay13 - 8L5000 Switch14 - 9N3335 Strap 533567 Bracket15 - 5P0733 Hose 200 (8.0")16 - 1P4278 Clamp17 - 7D1553 Clip18 - 8J1256 Clip19 - 4B1248 Screw 4B2051 Nut 4B4674 Washer20 - 3J7354 Seal21 - 1J9671 Seal1 Install items (12) and (13) inside the operator's compartment; fasten switch (13) on the dash and install relay (12) under the dash. Install additive tank (1) on the outside of the engine compartment in an acceptable location for easy access and away from any source of heat.2 Install 9N3620 Fuel Additive Injection Instruction Film on the dash next to 8L5000 Switch (13). Install 9N3621 CAUTION Film on tank (1) at a location that can be seen from the side of the vehicle.3 Install the remainder of the parts as shown in the above illustration. Fasten filter (3), and hoses (5) and (15) with the clips shown.4 Check the system for leaks after the installation is complete; use air at a maximum pressure of 70 to 105 kPa (10 to 15 psi).
