104194-3053 ZEXEL 9 410 617 084 BOSCH FUEL-INJECTION PUMP 9410617084 1041943053 w3k47220e




Information fuel-injection pump

BOSCH 9 410 617 084 9410617084
ZEXEL 104194-3053 1041943053
NIIGATA-TEKKOU W3K47220E w3k47220e
104194-3053 FUEL-INJECTION PUMP
Rating:
24
Buy FUEL-INJECTION PUMP 104194-3053 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104194-3053
1. _
2. FUEL INJECTION PUMP
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2)
10. NOZZLE-HOLDER
11. NOZZLE

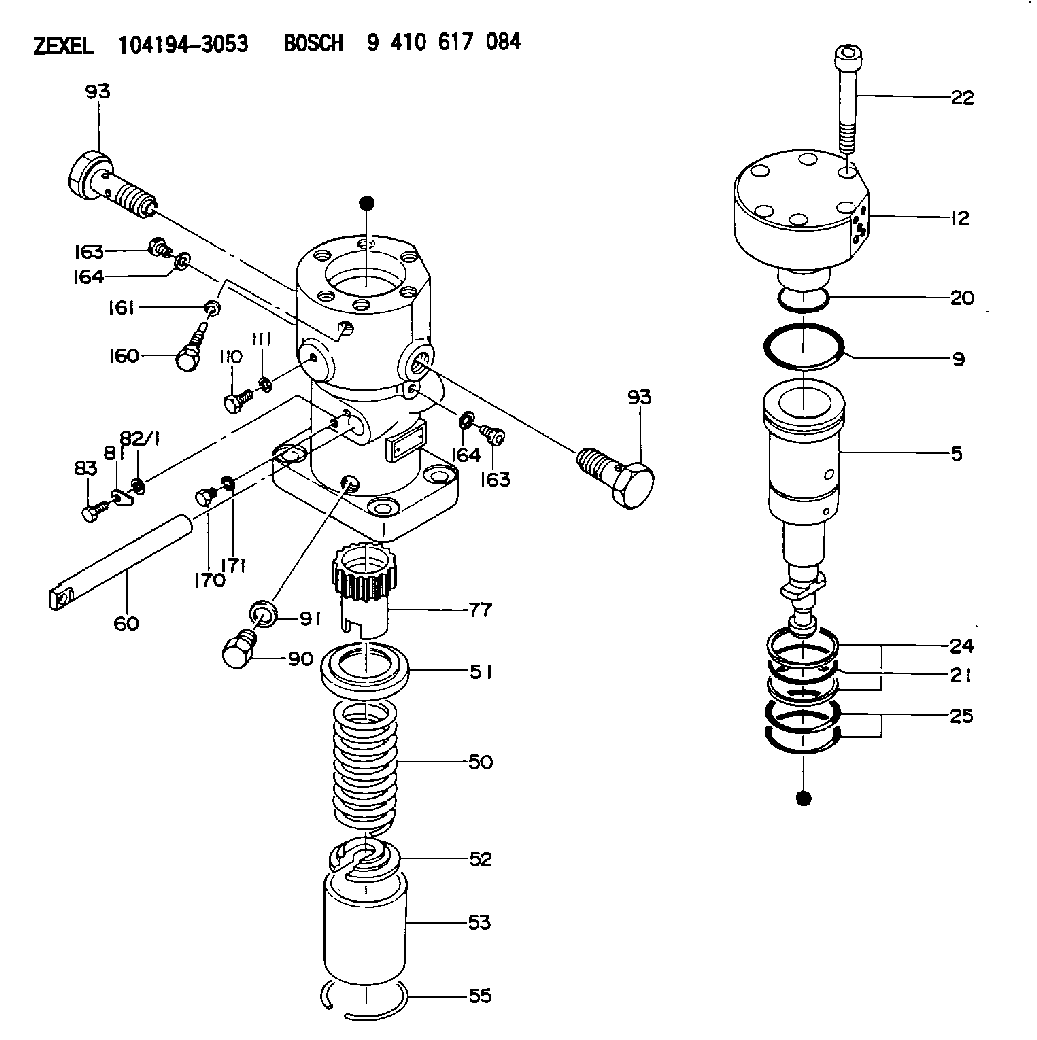

Scheme ###:

5. [1] 141156-7420 PLUNGER-AND-BARREL ASSY
9. [1] 141118-2900 O-RING
12. [1] 141145-1121 DELIVERY-VALVE ASSEMBLY
20. [1] 141485-0800 O-RING
21. [1] 141482-9800 O-RING
22. [6] 141124-5000 BLEEDER SCREW
24. [2] 016421-0750 BACKUP RING
25. [2] 141485-0900 O-RING
50. [1] 141215-8700 COMPRESSION SPRING
51. [1] 141216-1200 SLOTTED WASHER
52. [1] 141217-8400 SLOTTED WASHER
53. [1] 141294-0002 GUIDE
55. [1] 141220-0700 LOCKING WASHER
60. [1] 141291-2601 CONTROL RACK
77. [1] 141292-3201 CONTROL SLEEVE
81. [1] 141245-2300 POINTER
82/1. [0] 023500-6210 PLAIN WASHER D11&6.4T1.5
82/1. [0] 029300-6010 PLAIN WASHER D11&6.4T0.8
82/1. [0] 029300-6020 PLAIN WASHER D11&6.4T0.35
83. [1] 020006-1440 BLEEDER SCREW M6P1L14
90. [1] 029112-2020 CAPSULE
91. [1] 026522-2740 GASKET D26.9&22.2T1
93. [2] 141402-5021 EYE BOLT
93. [2] 141402-5021 EYE BOLT
110. [1] 141420-1500 BLEEDER SCREW
111. [1] 141403-1800 GASKET
160. [1] 141418-2600 SET OF NUTS
161. [1] 141403-2000 GASKET
163. [2] 029111-0140 CAPSULE
163. [2] 029111-0140 CAPSULE
164. [2] 026510-1340 GASKET D13.4&10.2T1
164. [2] 026510-1340 GASKET D13.4&10.2T1
170. [1] 029111-0140 CAPSULE
171. [1] 026510-1340 GASKET D13.4&10.2T1

Include in #1:

Include in #2:

104194-3053 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104194-3053
104194-3054
9 410 617 084
W3K47220E  NIIGATA-TEKKOU
FUEL-INJECTION PUMP
A * K
104194-3053
104194-3054
9 410 617 084
V3K47220E  NIIGATA-TEKKOU
FUEL-INJECTION PUMP
B * K




Information:

Coolant
To prevent personal injury, do not step up on engine to remove the filler cap, if applicable. Use an adequate ladder.At operating temperature, the engine coolant is hot and under pressure. The radiator and all lines to heaters or the engine contain hot water. When pressure is relieved rapidly, this hot water can turn into steam.Allow cooling system components to cool before draining.Any contact with hot water or steam can cause severe burns.Check the coolant level only after the engine has been stopped and the filler cap is cool enough to remove with your bare hand.Remove the cooling system filler cap slowly to relieve pressure.Cooling system supplemental additive contains alkali. To prevent personal injury, avoid contact with the skin and eyes and do not drink.Oils
Hot oil and components can cause personal injury. Do not allow hot oil or components to contact the skin.Batteries
Battery electrolyte contains acid and can cause injury. Avoid contact with the skin and eyes.Wash hands after touching batteries and connectors. Use of gloves is recommended.Batteries give off flammable fumes which can explode.Always thaw a frozen battery before jump starting. Frozen batteries can explode.Do not smoke when observing the battery electrolyte levels.Always wear protective glasses when working with batteries.Fire or Explosion Prevention
Determine whether the engine will be operated in an environment in which combustible gases could be drawn through the air inlet system. These gases could cause the engine to overspeed, which in turn could seriously damage the engine and result in bodily injury or property damage.If your application involves the presence of combustible gases, consult your Caterpillar dealer to obtain additional information concerning protection devices suitable for the application involved.Inhaling freon gas through a lit cigarette or other smoking method, or inhaling fumes released from a flame contacting freon could cause bodily harm or death. Do not smoke when servicing, charging or working around air conditioners or where freon gas may be present.All fuels, most lubricants and some coolant mixtures are flammable.Diesel fuel is flammable. Gasoline is flammable. The mixture of diesel and gasoline fumes are extremely explosive.Do not smoke while refueling or in a refueling area.Always thaw a frozen battery before jump starting. Frozen batteries can explode.Do not smoke in areas where batteries are charged, or where flammable materials are stored.Batteries give off flammable fumes which can explode.Keep all fuels and lubricants stored in properly marked containers and away from all unauthorized persons.Store all oily rags or other flammable material in a protective container, in a safe place.Do not weld or flame cut on pipes or tubes that contain flammable fluids. Clean them thoroughly with nonflammable solvent before welding or flame cutting on them.Remove all flammable materials such as fuel, oil and other debris before they accumulate on the truck engine.Do not expose the engine to flames, burning brush, etc., if at all possible.Exhaust shields (if equipped), which protect hot exhaust components from oil or fuel spray in the event of a line, tube or seal failure, must be installed correctly.Never disconnect any charging

Have questions with 104194-3053?





Group cross 104194-3053 ZEXEL

9 410 617 467

FUEL-INJECTION PUMP
9 410 617 468

FUEL-INJECTION PUMP
9 410 618 018

FUEL-INJECTION PUMP

Niigata-Tekkou

104194-3053

104194-3054
9 410 617 084
W3K47220E
FUEL-INJECTION PUMP
104194-3053

104194-3054
9 410 617 084
V3K47220E
FUEL-INJECTION PUMP
9 410 618 443

FUEL-INJECTION PUMP

Niigata-Tekkou

9 410 618 190
NP-PF1DV300A03N9
W3K47221A
FUEL-INJECTION PUMP
