Information fuel-injection pump
BOSCH
9 410 617 465
9410617465
ZEXEL
104194-3041
1041943041
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104194-3041 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

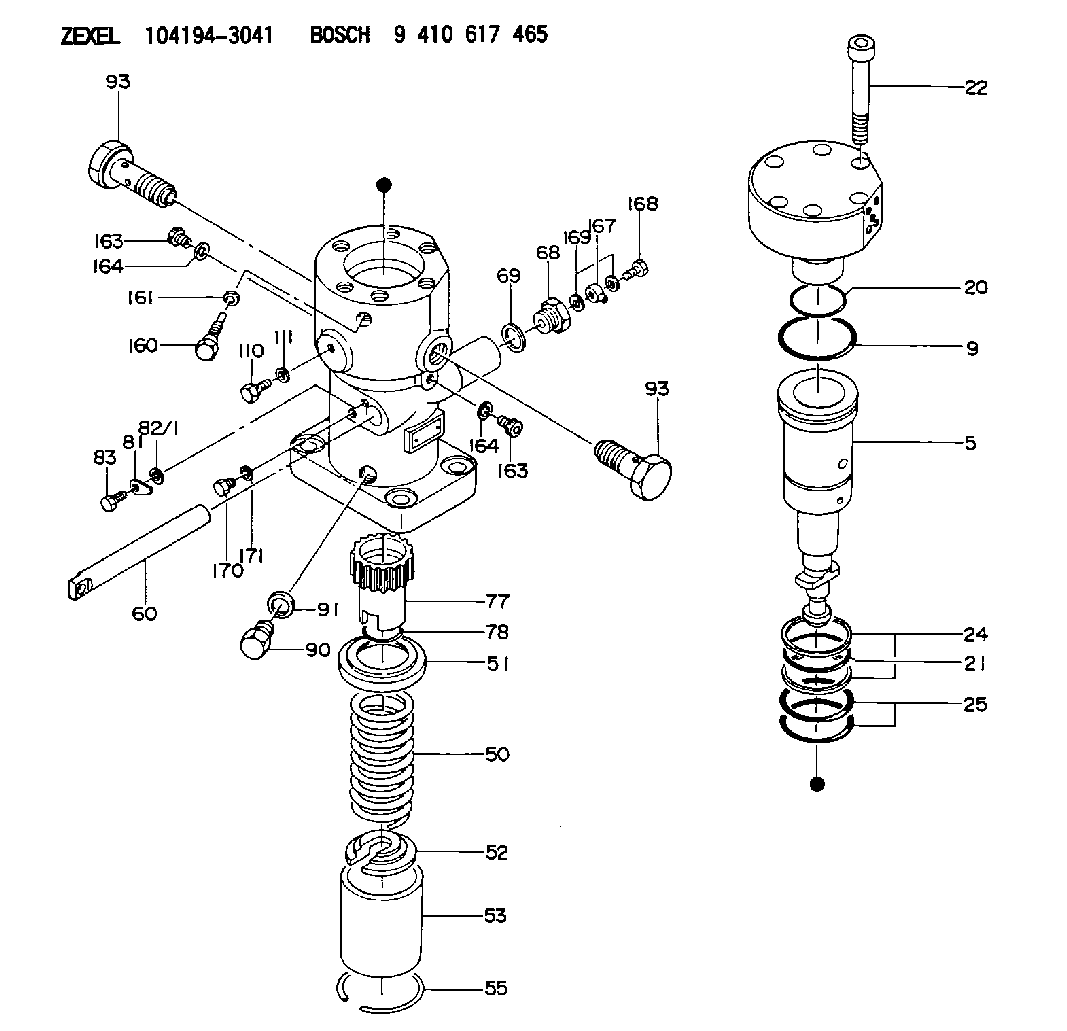

Scheme ###:
| 5. | [1] | 141156-7420 | PLUNGER-AND-BARREL ASSY |
| 9. | [1] | 141118-2900 | O-RING |
| 20. | [1] | 141485-0800 | O-RING |
| 21. | [1] | 141482-9800 | O-RING |
| 22. | [6] | 141124-5000 | BLEEDER SCREW |
| 24. | [2] | 016421-0750 | BACKUP RING |
| 25. | [2] | 141485-0900 | O-RING |
| 50. | [1] | 141215-5501 | COMPRESSION SPRING |
| 51. | [1] | 141216-6100 | SLOTTED WASHER |
| 52. | [1] | 141217-8400 | SLOTTED WASHER |
| 53. | [1] | 141294-0001 | GUIDE |
| 55. | [1] | 141220-0700 | LOCKING WASHER |
| 60. | [1] | 141291-2601 | CONTROL RACK |
| 68. | [1] | 141405-3800 | CAPSULE |
| 69. | [1] | 141403-2100 | GASKET |
| 77. | [1] | 141292-1921 | CONTROL SLEEVE |
| 78. | [1] | 141482-9900 | O-RING |
| 81. | [1] | 141245-2300 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 90. | [1] | 029112-2020 | CAPSULE |
| 90. | [1] | 029112-2020 | CAPSULE |
| 91. | [1] | 026522-2740 | GASKET D26.9&22.2T1 |
| 93. | [2] | 141402-5021 | EYE BOLT |
| 110. | [1] | 141420-0600 | BLEEDER SCREW |
| 111. | [1] | 141403-1800 | GASKET |
| 160. | [1] | 141418-2600 | SET OF NUTS |
| 161. | [1] | 141403-2000 | GASKET |
| 163. | [2] | 029111-0140 | CAPSULE |
| 163. | [2] | 029111-0140 | CAPSULE |
| 164. | [2] | 026510-1350 | GASKET |
| 164. | [2] | 026510-1350 | GASKET |
| 167. | [1] | 150948-0000 | INLET UNION |
| 168. | [1] | 150949-0100 | EYE BOLT |
| 169. | [2] | 150521-0800 | GASKET |
| 170. | [1] | 029111-0140 | CAPSULE |
| 171. | [1] | 026510-1350 | GASKET |
Include in #1:
108821-2071
as _
Include in #2:
104194-3041
as INJECTION-PUMP ASSEMBLY
