Information fuel-injection pump
BOSCH
9 410 617 388
9410617388
ZEXEL
104147-0080
1041470080
MITSUBISHI-HEAV
8706502000
8706502000
Rating:
Components :
0. | INJECTION-PUMP ASSEMBLY | 104147-0080 |
1. | _ | |
2. | FUEL INJECTION PUMP | |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105193-3044 |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | 34.3{350} |
10. | NOZZLE-HOLDER | 105093-6005 |
11. | NOZZLE | 105011-9630 |

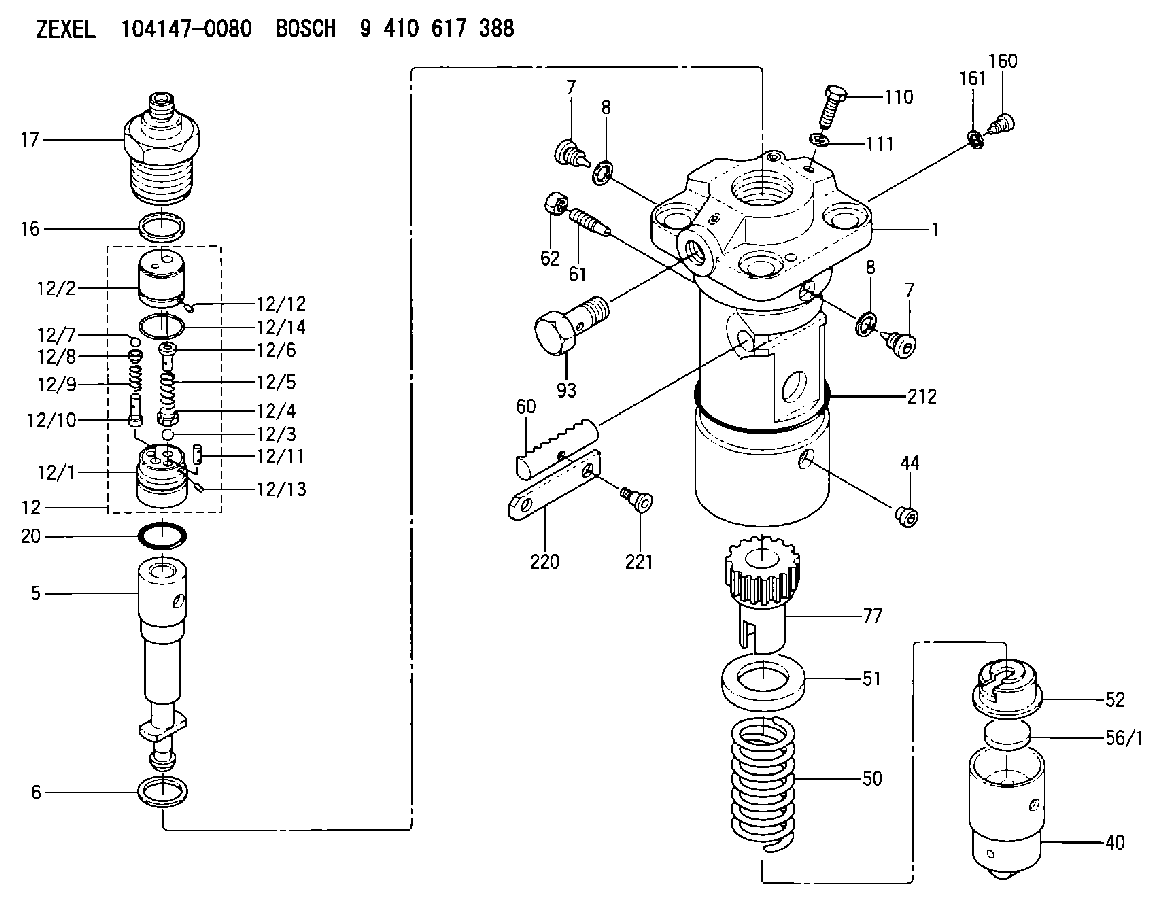

Scheme ###:
1. | [1] | 141054-8720 | PUMP HOUSING |
5. | [1] | 141175-4221 | PLUNGER-AND-BARREL ASSY |
6. | [1] | 141162-0000 | GASKET |
7. | [2] | 141133-4701 | CAPSULE |
7. | [2] | 141133-4701 | CAPSULE |
8. | [2] | 026514-1840 | GASKET D17.9&14.2T1 |
8. | [2] | 026514-1840 | GASKET D17.9&14.2T1 |
12. | [1] | 141142-6221 | DELIVERY-VALVE ASSEMBLY |
12/1. | [1] | 141141-8200 | SEAT;D.V. |
12/2. | [1] | 141141-8400 | SEAT;D.V |
12/3. | [1] | 016807-0030 | BALL |
12/4. | [1] | 141113-0601 | SLOTTED WASHER |
12/5. | [1] | 141112-7100 | COILED SPRING |
12/6. | [1] | 141117-9201 | FILLER PIECE |
12/7. | [1] | 016804-5030 | BALL |
12/8. | [1] | 141113-1500 | SLOTTED WASHER |
12/9. | [1] | 141112-8201 | COMPRESSION SPRING |
12/10. | [1] | 141117-9302 | FILLER PIECE |
12/11. | [2] | 141213-1400 | BEARING PIN |
12/12. | [2] | 141271-0200 | BEARING PIN |
12/13. | [2] | 029423-0080 | BEARING PIN |
12/14. | [1] | 141222-0400 | LOCKING WASHER |
16. | [1] | 141115-5700 | GASKET |
17. | [1] | 141137-1500 | FITTING |
20. | [1] | 029633-2040 | O-RING |
40. | [1] | 141200-2820 | TAPPET |
44. | [1] | 141212-0300 | BEARING PIN |
50. | [1] | 141215-5100 | COMPRESSION SPRING |
51. | [1] | 141216-3400 | SLOTTED WASHER |
52. | [1] | 141217-5200 | SLOTTED WASHER |
56/1. | [1] | 141254-0700 | PLATE T7.3 |
56/1. | [1] | 141254-0800 | PLATE T7.6 |
56/1. | [1] | 141254-0900 | PLATE T7.9 |
56/1. | [1] | 141254-1000 | PLATE T8.2 |
56/1. | [1] | 141254-1100 | PLATE T8.5 |
60. | [1] | 141244-4501 | CONTROL RACK |
61. | [1] | 141267-0500 | FLAT-HEAD SCREW |
62. | [1] | 013020-8140 | UNION NUT M8P1.25H6.5 |
77. | [1] | 141241-6800 | CONTROL SLEEVE |
93. | [1] | 141402-2100 | EYE BOLT |
110. | [1] | 141420-0700 | BLEEDER SCREW |
111. | [1] | 141403-1400 | GASKET |
160. | [1] | 141133-0300 | CAPSULE |
161. | [1] | 029331-0020 | GASKET |
212. | [1] | 141482-2400 | O-RING |
220. | [1] | 141260-1600 | CONTROL LEVER |
221. | [1] | 141282-0300 | FLAT-HEAD SCREW |
Cross reference number
Zexel num
Bosch num
Firm num
Name
104147-0080
8706502000 MITSUBISHI-HEAV
FUEL-INJECTION PUMP
K 24DA FUEL INJECTION PUMP PF-1C(D) PF
K 24DA FUEL INJECTION PUMP PF-1C(D) PF
104147-0080
4106502000 MITSUBISHI-HEAV
FUEL-INJECTION PUMP
A K 24DA FUEL INJECTION PUMP PF-1C(D) PF
A K 24DA FUEL INJECTION PUMP PF-1C(D) PF
