Information fuel-injection pump
BOSCH
9 410 617 386
9410617386
ZEXEL
104147-0060
1041470060
MITSUBISHI-HEAV
410653400
410653400
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104147-0060 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | 105193-3043 |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | 34.3{350} |
| 10. | NOZZLE-HOLDER | 105093-6004 |
| 11. | NOZZLE | 105011-9630 |

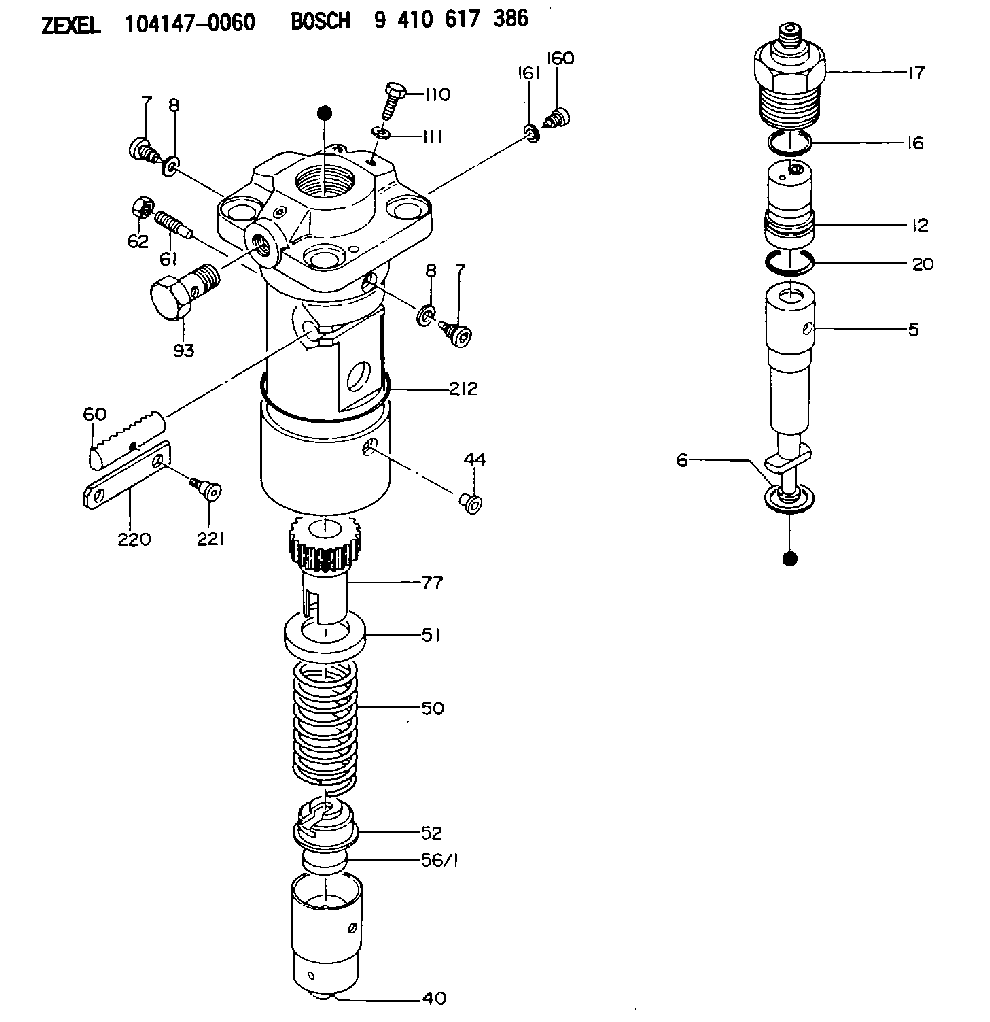

Scheme ###:
| 5. | [1] | 141175-4221 | PLUNGER-AND-BARREL ASSY |
| 6. | [1] | 141162-0000 | GASKET |
| 7. | [2] | 141133-4701 | CAPSULE |
| 7. | [2] | 141133-4701 | CAPSULE |
| 8. | [2] | 026514-1840 | GASKET D17.9&14.2T1 |
| 8. | [2] | 026514-1840 | GASKET D17.9&14.2T1 |
| 12. | [1] | 141142-6221 | DELIVERY-VALVE ASSEMBLY |
| 16. | [1] | 141115-5700 | GASKET |
| 17. | [1] | 141137-1500 | FITTING |
| 20. | [1] | 029633-2040 | O-RING |
| 40. | [1] | 141200-2520 | TAPPET |
| 44. | [1] | 141212-0300 | BEARING PIN |
| 50. | [1] | 141215-5100 | COMPRESSION SPRING |
| 51. | [1] | 141216-3400 | SLOTTED WASHER |
| 52. | [1] | 141217-5200 | SLOTTED WASHER |
| 56/1. | [1] | 141254-0700 | PLATE T7.3 |
| 56/1. | [1] | 141254-0800 | PLATE T7.6 |
| 56/1. | [1] | 141254-0900 | PLATE T7.9 |
| 56/1. | [1] | 141254-1000 | PLATE T8.2 |
| 56/1. | [1] | 141254-1100 | PLATE T8.5 |
| 60. | [1] | 141244-4501 | CONTROL RACK |
| 61. | [1] | 141267-0500 | FLAT-HEAD SCREW |
| 62. | [1] | 013020-8140 | UNION NUT M8P1.25H6.5 |
| 77. | [1] | 141241-6800 | CONTROL SLEEVE |
| 93. | [1] | 141402-2100 | EYE BOLT |
| 110. | [1] | 141420-0700 | BLEEDER SCREW |
| 111. | [1] | 141403-1400 | GASKET |
| 160. | [1] | 141133-0300 | CAPSULE |
| 161. | [1] | 029331-0020 | GASKET |
| 212. | [1] | 141482-2400 | O-RING |
| 220. | [1] | 141260-1600 | CONTROL LEVER |
| 221. | [1] | 141282-0300 | FLAT-HEAD SCREW |
Cross reference number
Zexel num
Bosch num
Firm num
Name
104147-0060
410653400 MITSUBISHI-HEAV
FUEL-INJECTION PUMP
K 24DW FUEL INJECTION PUMP PF-R1CD PF
K 24DW FUEL INJECTION PUMP PF-R1CD PF
Information:
START BY:a. remove valve covers
Do not let the tops of the fuel nozzles turn when the fuel lines are loosened. The nozzles will be damaged if the top of the nozzles turn in the body.
1. Use tooling (A), and remove inner fuel injection lines (1). Install caps and plugs on all fuel injection line openings to keep dirt out of the fuel system. 2. Remove seal (2) from fuel injection line (1) if necessary. 3. Remove screw (3) from clamp (4) that holds fuel injection nozzle (5) in position. Clamp (4) cannot be removed until the fuel injection nozzle is lifted approximately 25.0 mm (1.00 in.). 4. Remove the fuel injection nozzles with tooling (B) as follows:a. Install 6V6983 Adapter (6) and 6V4152 Screw (7) into nozzle assembly (5). b. Install 6V6982 Tube Assembly (8) over the 6V4152 Screw. Use 2S5658 Washer (9) and 1B2406 Nut (10) on the 6V4152 Screw to pull the fuel injection nozzle from the adapter.
A replacement of compression seal washer (11) and of carbon dam seal (12) must be made each time the fuel nozzle is removed. Be sure that the replacement compression seal washer (11) is the same color code and part number as the original compression seal washer. If the wrong thickness washer is used, engine damage could occur. See Specifications For 3406B Diesel Truck Engines for more information.
5. Remove compression seal washer (11) and carbon dam seal (12) from fuel injection nozzle (5).Install Fuel Injection Nozzles (Earlier)
1. Install compression seal washer (1), and use tool (A) to install carbon dam seal (2) on the fuel injection nozzle.2. Make reference to Special Instruction SEHS7292 for the use of tooling (C). 3. Use tool (D) to clean adapter bore (3) for the fuel injection nozzle. Use an open end wrench or a tap driver to turn tool (D). 4. Install fuel injection nozzle (4) and clamp (5) as a unit. Install the bolt in the clamp to hold it in place. 5. Install O-ring seal (6) on the inner fuel injection line.
Do not let the tops of the fuel nozzles turn when the fuel lines are tightened. The nozzles will be damaged if the top of the nozzles turn in the body.
6. Install inner fuel injection line (7). Use tooling (B) to tighten the inner fuel line nuts to a torque of 40 7 N m (30 5 lb.ft.).END BY:a. install valve covers
Do not let the tops of the fuel nozzles turn when the fuel lines are loosened. The nozzles will be damaged if the top of the nozzles turn in the body.
1. Use tooling (A), and remove inner fuel injection lines (1). Install caps and plugs on all fuel injection line openings to keep dirt out of the fuel system. 2. Remove seal (2) from fuel injection line (1) if necessary. 3. Remove screw (3) from clamp (4) that holds fuel injection nozzle (5) in position. Clamp (4) cannot be removed until the fuel injection nozzle is lifted approximately 25.0 mm (1.00 in.). 4. Remove the fuel injection nozzles with tooling (B) as follows:a. Install 6V6983 Adapter (6) and 6V4152 Screw (7) into nozzle assembly (5). b. Install 6V6982 Tube Assembly (8) over the 6V4152 Screw. Use 2S5658 Washer (9) and 1B2406 Nut (10) on the 6V4152 Screw to pull the fuel injection nozzle from the adapter.
A replacement of compression seal washer (11) and of carbon dam seal (12) must be made each time the fuel nozzle is removed. Be sure that the replacement compression seal washer (11) is the same color code and part number as the original compression seal washer. If the wrong thickness washer is used, engine damage could occur. See Specifications For 3406B Diesel Truck Engines for more information.
5. Remove compression seal washer (11) and carbon dam seal (12) from fuel injection nozzle (5).Install Fuel Injection Nozzles (Earlier)
1. Install compression seal washer (1), and use tool (A) to install carbon dam seal (2) on the fuel injection nozzle.2. Make reference to Special Instruction SEHS7292 for the use of tooling (C). 3. Use tool (D) to clean adapter bore (3) for the fuel injection nozzle. Use an open end wrench or a tap driver to turn tool (D). 4. Install fuel injection nozzle (4) and clamp (5) as a unit. Install the bolt in the clamp to hold it in place. 5. Install O-ring seal (6) on the inner fuel injection line.
Do not let the tops of the fuel nozzles turn when the fuel lines are tightened. The nozzles will be damaged if the top of the nozzles turn in the body.
6. Install inner fuel injection line (7). Use tooling (B) to tighten the inner fuel line nuts to a torque of 40 7 N m (30 5 lb.ft.).END BY:a. install valve covers
