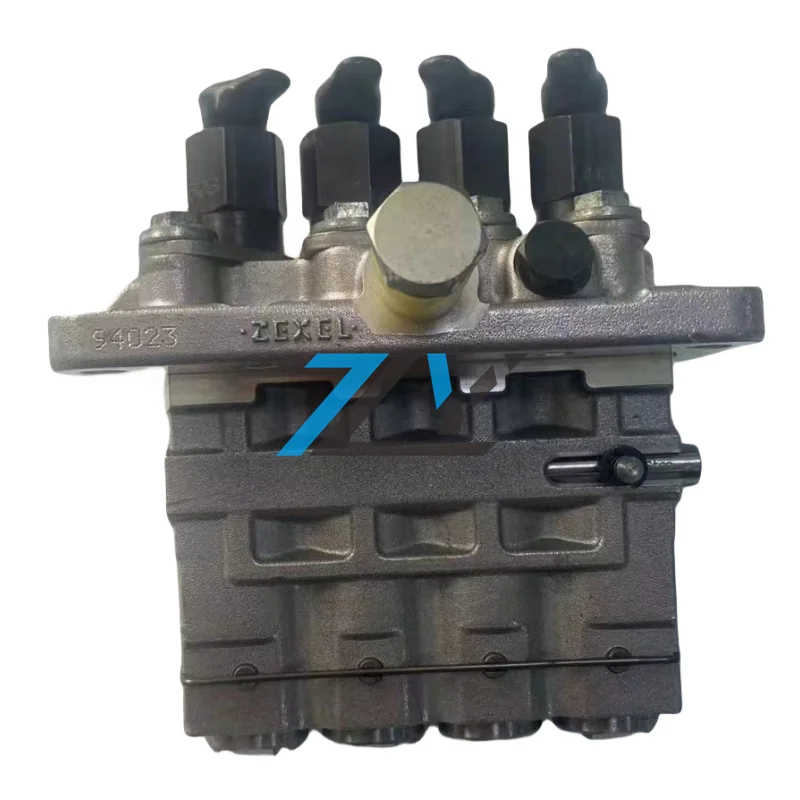

Information fuel-injection pump
BOSCH
9 410 617 923
9410617923
ZEXEL
104139-4023
1041394023
ISEKI
62156001122G
62156001122g

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below
JEENDA Fuel Injection Pump 2644D054 104139-4023 164-7610 Compatible With 700 Series 704-30 Hyundai DX20 DX25 DX30 Engine
JEENDA Part Name: Fuel Injection Pump || Part Number: 104139-4023,2644D054,62156001122E,62156001122G,164-7610,U2644D051,U2644D054 || Compatible With Hyundai 700 Series 704-30 DX20 DX25 DX30 Engine || Made of high quality material, durable and practical to use. || If you are dissatisfied with your purchase for any reason, you can contact us through your order, we are always there
JEENDA Part Name: Fuel Injection Pump || Part Number: 104139-4023,2644D054,62156001122E,62156001122G,164-7610,U2644D051,U2644D054 || Compatible With Hyundai 700 Series 704-30 DX20 DX25 DX30 Engine || Made of high quality material, durable and practical to use. || If you are dissatisfied with your purchase for any reason, you can contact us through your order, we are always there
$745.00
19 Sep 2024
CN: Bluesun Solar
Solarhome Fuel Injection Pump 2644D054 104139-4023 164-7610 Compatible With 700 Series 704-30 Hyundai DX20 DX25 DX30 Engine
Solarhome Product Name: Fuel Injection Pump || Part Number: 104139-4023,2644D054,62156001122E,62156001122G,164-7610,U2644D051,U2644D054 || Application Models: 700 Series 704-30 Hyundai DX20 DX25 DX30 164-7610 || Package Include: 1X Fuel Injection Pump,104139-4023
Solarhome Product Name: Fuel Injection Pump || Part Number: 104139-4023,2644D054,62156001122E,62156001122G,164-7610,U2644D051,U2644D054 || Application Models: 700 Series 704-30 Hyundai DX20 DX25 DX30 164-7610 || Package Include: 1X Fuel Injection Pump,104139-4023
Components :
0. | INJECTION-PUMP ASSEMBLY | 104139-4023 |
1. | _ | |
2. | FUEL INJECTION PUMP | |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | 18.6{190}/22.6{230} |
10. | NOZZLE-HOLDER | 105048-2170 |
11. | NOZZLE | 105019-1100 |
Scheme ###:
5. | [4] | 140163-0520 | PLUNGER-AND-BARREL ASSY |
12. | [4] | 140110-6020 | DELIVERY-VALVE ASSEMBLY |
13. | [4] | 140112-1700 | COMPRESSION SPRING |
16. | [4] | 140115-1400 | GASKET |
17. | [4] | 140116-7720 | FITTING |
18. | [4] | 140117-1700 | FILLER PIECE |
20. | [4] | 016500-1520 | O-RING |
30. | [3] | 140131-0521 | FLANGE BUSHING |
31. | [1] | 140131-1021 | FLANGE BUSHING |
32. | [8] | 016550-1920 | O-RING |
32. | [8] | 016550-1920 | O-RING |
37. | [8] | 140124-0200 | BLEEDER SCREW |
37. | [8] | 140124-0200 | BLEEDER SCREW |
40. | [4] | 140200-1620 | TAPPET |
44. | [4] | 140212-0300 | BEARING PIN |
45. | [1] | 140213-1500 | LOCKING WASHER |
50. | [4] | 140215-1900 | COMPRESSION SPRING |
51. | [4] | 140216-0800 | SLOTTED WASHER |
52. | [4] | 140217-2200 | SLOTTED WASHER |
53/1. | [1] | 140217-5000 | PLATE D19T2.60 |
53/1. | [1] | 140217-5100 | PLATE D19T2.65 |
53/1. | [1] | 140217-5200 | PLATE D19T2.70 |
53/1. | [1] | 140217-5300 | PLATE D19T2.75 |
53/1. | [1] | 140217-5400 | PLATE D19T2.80 |
53/1. | [1] | 140217-5500 | PLATE D19T2.85 |
53/1. | [1] | 140217-5600 | PLATE D19T2.90 |
53/1. | [1] | 140217-5700 | PLATE D19T2.95 |
53/1. | [1] | 140217-5800 | PLATE D19T3.00 |
53/1. | [1] | 140217-5900 | PLATE D19T3.05 |
53/1. | [1] | 140217-6000 | PLATE D19T3.10 |
53/1. | [1] | 140217-6100 | PLATE D19T3.15 |
53/1. | [1] | 140217-6200 | PLATE D19T3.20 |
53/1. | [1] | 140217-6300 | PLATE D19T3.25 |
53/1. | [1] | 140217-6400 | PLATE D19T3.30 |
53/1. | [1] | 140217-6500 | PLATE D19T3.35 |
53/1. | [1] | 140217-6600 | PLATE D19T3.40 |
53/1. | [1] | 140217-6700 | PLATE D19T3.45 |
53/1. | [1] | 140217-6800 | PLATE D19T3.50 |
53/1. | [1] | 140217-6900 | PLATE D19T3.55 |
53/1. | [1] | 140217-7000 | PLATE D19T3.60 |
53/1. | [1] | 140217-7100 | PLATE D19T3.65 |
53/1. | [1] | 140217-7200 | PLATE D19T3.70 |
53/1. | [1] | 140217-7300 | PLATE D19T3.75 |
53/1. | [1] | 140217-7400 | PLATE D19T3.80 |
53/1. | [1] | 140217-7500 | PLATE D19T3.85 |
53/1. | [1] | 140217-7600 | PLATE D19T3.90 |
53/1. | [1] | 140217-7700 | PLATE D19T3.95 |
53/1. | [1] | 140217-7800 | PLATE D19T4.00 |
53/1. | [1] | 140217-7900 | PLATE D19T4.05 |
53/1. | [1] | 140217-8000 | PLATE D19T4.10 |
53/1. | [1] | 140253-2000 | PLATE |
53/1. | [1] | 140253-2100 | PLATE |
53/1. | [1] | 140253-2200 | PLATE |
53/1. | [1] | 140253-2300 | PLATE |
53/1. | [1] | 140253-2400 | PLATE |
53/1. | [1] | 140253-2500 | PLATE |
53/1. | [1] | 140253-2600 | PLATE |
53/1. | [1] | 140253-2700 | PLATE |
53/1. | [1] | 140253-2800 | PLATE |
53/1. | [1] | 140253-2900 | PLATE |
53/1. | [1] | 140253-3000 | PLATE |
53/1. | [1] | 140253-3100 | PLATE |
53/1. | [1] | 140253-3200 | PLATE |
53/1. | [1] | 140253-3300 | PLATE |
53/1. | [1] | 140253-3400 | PLATE |
53/1. | [1] | 140253-3500 | PLATE |
53/1. | [1] | 140253-3600 | PLATE |
53/1. | [1] | 140253-3700 | PLATE |
53/1. | [1] | 140253-3800 | PLATE |
53/1. | [1] | 140253-3900 | PLATE |
53/1. | [1] | 140253-4000 | PLATE |
53/1. | [1] | 140253-4100 | PLATE |
53/1. | [1] | 140253-4200 | PLATE |
53/1. | [1] | 140253-4300 | PLATE |
53/1. | [1] | 140253-4400 | PLATE |
53/1. | [1] | 140253-4500 | PLATE |
53/1. | [1] | 140253-4600 | PLATE |
53/1. | [1] | 140253-4700 | PLATE |
53/1. | [1] | 140253-4800 | PLATE |
53/1. | [1] | 140253-4900 | PLATE |
60. | [1] | 140243-7520 | CONTROL RACK |
77. | [4] | 140241-2700 | CONTROL SLEEVE |
93. | [1] | 027412-2440 | EYE BOLT |
94. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
112. | [1] | 140420-1400 | BLEEDER SCREW |
113. | [1] | 026508-1240 | GASKET D11.9&8.2T1 |
155. | [0] | 150630-3100 | SPACER RING |
Include in #2:
104139-4023
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104139-4023
62156001122G ISEKI
FUEL-INJECTION PUMP
K 23AD FUEL INJECTION PUMP PFR-4KX PFR
K 23AD FUEL INJECTION PUMP PFR-4KX PFR
Information:
1. Remove suction bell (3) and tubes, oil supply tube (2) and BrakeSaver oil supply tube (1) from the engine block and oil pump. 2. Remove three bolts (5) and oil pump (4) from the engine. The following steps are for installation of the oil pump.3. Put oil pump (4) in position on the engine. Make sure the oil pump gear is engaged with the crankshaft gear and install three bolts (5) that hold the oil pump.4. Put clean oil on the O-ring seals on the oil tubes.5. Install suction bell (3) and tubes, oil supply tube (2) and BrakeSaver oil supply tube (1).end by:a) install oil pan (BrakeSaver)Disassemble Oil Pump (Brakesaver)
start by:a) remove oil pump (BrakeSaver) 1. Remove the bolt and washer that hold drive gear (1) on the shaft.2. Use tooling (A) to remove drive gear (1) from the shaft. Remove the key from the shaft. Put marks on the pump bodies so they can be assembled in the correct position. 3. Remove retainer (3) for the bypass valve. Remove the spring and bypass valve.4. Remove bolts (4) that hold pump body (2) to the main pump body. Remove pump body (2).5. Use tooling (B) to remove the bearings from pump body (2). 6. Remove gears (7). Put marks on the gears so they can be assembled in the same position.7. Remove spacer (6) from main oil pump body (5). Use tooling (B) to remove the bearings from spacer (6).8. Remove the gears from main oil pump body (5). 9. Use tooling (B) to remove the bearings from the main oil pump body.Assemble Oil Pump (Brakesaver)
1. Use tooling (A) to install bearings (2) until they are even with the outside surface of main oil pump body (1). Install bearings (2) so the junctions in the bearings are 30° 15° from the center line of the bearing bores and toward the oil pump outlet passage as shown. 2. Use tooling (A) to install bearings (3) in the spacer. Install the bearings until they are in position an equal distance in from each side of the spacer. Install the bearings with the oil holes in the bearings in alignment with the oil holes in the spacer and the junctions in the bearings in alignment with the cavity in the spacer as shown. 3. Put clean engine oil on all the gears and bearings before they are assembled in the oil pump. Install idler and drive gears (5) in the main oil pump body.4. Install spacer (4) on the gear shafts with the smaller cavity out and the oil holes in the spacer toward the pump outlet passage as shown. 5. Use tooling (A) to install bearings (6) in pump body (7) until they are .060 .010 in. (1.52 0.25 mm) from the inside edge of the bearing bores. Install the bearings so the junctions in the bearings are 30° 15° from the center line of the bearing bores and toward the outlet passage. The
