Information fuel-injection pump
BOSCH
9 410 618 014
9410618014
ZEXEL
104136-1021
1041361021
ISUZU
8971475801
8971475801

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

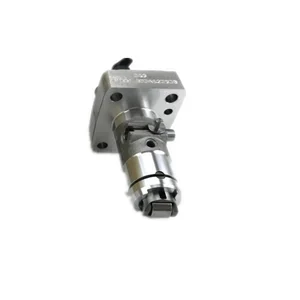

CARTEX Fuel Injection Pump 8971475801 for FITS Isuzu Engine 3LD1 3LD2 4LB1 4LC1 4LE1 FITS HITACHI EX40U EX50U EX50UNA EX55UR-3
CARTEX Whether you're a professional mechanic or a DIY enthusiast,We've got you covered with a wide range of parts that meet the highest standards of quality and performance. || Order your High Quality Part with peace of mind, knowing we prioritize your satisfaction. Quality Parts, Superior Performance - it's not just a promise, it's our standard || QUESTIONS? : We at CARTEX - High Quality Parts USA has more than 40 years of experience in industry and has in-house technicians, If you are not sure if this part fits your machine or tractor, just send us an email before you make the purchase and our in house technicians will revert back to you, right away.
CARTEX Whether you're a professional mechanic or a DIY enthusiast,We've got you covered with a wide range of parts that meet the highest standards of quality and performance. || Order your High Quality Part with peace of mind, knowing we prioritize your satisfaction. Quality Parts, Superior Performance - it's not just a promise, it's our standard || QUESTIONS? : We at CARTEX - High Quality Parts USA has more than 40 years of experience in industry and has in-house technicians, If you are not sure if this part fits your machine or tractor, just send us an email before you make the purchase and our in house technicians will revert back to you, right away.
Fuel Injection Pump 8971475801 for Isuzu Engine 3LD1 3LD2 4LB1 4LC1 4LE1 John Deere Excavator 50ZTS 35ZTS 27ZTS
ADPelcote Part number:8971475801 || Applications:for Isuzu Engine 3LD1 3LD2 4LB1 4LC1 4LE1 John Deere Excavator 50ZTS 35ZTS 27ZTS
ADPelcote Part number:8971475801 || Applications:for Isuzu Engine 3LD1 3LD2 4LB1 4LC1 4LE1 John Deere Excavator 50ZTS 35ZTS 27ZTS
Components :
0. | INJECTION-PUMP ASSEMBLY | 104136-1021 |
1. | _ | |
2. | FUEL INJECTION PUMP | |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105148-1271 |
8. | Nozzle and Holder | 8-97079-976-1 |
9. | Open Pre:MPa(Kqf/cm2) | 13.2{135} |
10. | NOZZLE-HOLDER | 105078-0171 |
11. | NOZZLE | 105007-1010 |
Scheme ###:
5. | [1] | 140163-0320 | PLUNGER-AND-BARREL ASSY |
12. | [1] | 140110-3720 | DELIVERY-VALVE ASSEMBLY |
13. | [1] | 140112-1700 | COMPRESSION SPRING |
16. | [1] | 140115-1400 | GASKET |
17. | [1] | 140116-7600 | FITTING |
18. | [1] | 140117-1800 | SLOTTED WASHER |
20. | [1] | 016500-1520 | O-RING |
30. | [1] | 140131-0421 | FLANGE BUSHING |
32. | [2] | 016550-1920 | O-RING |
37. | [2] | 140124-0200 | BLEEDER SCREW |
40. | [1] | 140200-1620 | TAPPET |
44. | [1] | 140212-0500 | BEARING PIN |
45. | [1] | 140213-1800 | LOCKING WASHER |
50. | [1] | 140215-1900 | COMPRESSION SPRING |
51. | [1] | 140216-0800 | SLOTTED WASHER |
52. | [1] | 140217-2200 | SLOTTED WASHER |
53/1. | [1] | 140217-5000 | PLATE D19T2.60 |
53/1. | [1] | 140217-5100 | PLATE D19T2.65 |
53/1. | [1] | 140217-5200 | PLATE D19T2.70 |
53/1. | [1] | 140217-5300 | PLATE D19T2.75 |
53/1. | [1] | 140217-5400 | PLATE D19T2.80 |
53/1. | [1] | 140217-5500 | PLATE D19T2.85 |
53/1. | [1] | 140217-5600 | PLATE D19T2.90 |
53/1. | [1] | 140217-5700 | PLATE D19T2.95 |
53/1. | [1] | 140217-5800 | PLATE D19T3.00 |
53/1. | [1] | 140217-5900 | PLATE D19T3.05 |
53/1. | [1] | 140217-6000 | PLATE D19T3.10 |
53/1. | [1] | 140217-6100 | PLATE D19T3.15 |
53/1. | [1] | 140217-6200 | PLATE D19T3.20 |
53/1. | [1] | 140217-6300 | PLATE D19T3.25 |
53/1. | [1] | 140217-6400 | PLATE D19T3.30 |
53/1. | [1] | 140217-6500 | PLATE D19T3.35 |
53/1. | [1] | 140217-6600 | PLATE D19T3.40 |
53/1. | [1] | 140217-6700 | PLATE D19T3.45 |
53/1. | [1] | 140217-6800 | PLATE D19T3.50 |
53/1. | [1] | 140217-6900 | PLATE D19T3.55 |
53/1. | [1] | 140217-7000 | PLATE D19T3.60 |
53/1. | [1] | 140217-7100 | PLATE D19T3.65 |
53/1. | [1] | 140217-7200 | PLATE D19T3.70 |
53/1. | [1] | 140217-7300 | PLATE D19T3.75 |
53/1. | [1] | 140217-7400 | PLATE D19T3.80 |
53/1. | [1] | 140217-7500 | PLATE D19T3.85 |
53/1. | [1] | 140217-7600 | PLATE D19T3.90 |
53/1. | [1] | 140217-7700 | PLATE D19T3.95 |
53/1. | [1] | 140217-7800 | PLATE D19T4.00 |
53/1. | [1] | 140217-7900 | PLATE D19T4.05 |
53/1. | [1] | 140217-8000 | PLATE D19T4.10 |
53/1. | [1] | 140253-2000 | PLATE |
53/1. | [1] | 140253-2100 | PLATE |
53/1. | [1] | 140253-2200 | PLATE |
53/1. | [1] | 140253-2300 | PLATE |
53/1. | [1] | 140253-2400 | PLATE |
53/1. | [1] | 140253-2500 | PLATE |
53/1. | [1] | 140253-2600 | PLATE |
53/1. | [1] | 140253-2700 | PLATE |
53/1. | [1] | 140253-2800 | PLATE |
53/1. | [1] | 140253-2900 | PLATE |
53/1. | [1] | 140253-3000 | PLATE |
53/1. | [1] | 140253-3100 | PLATE |
53/1. | [1] | 140253-3200 | PLATE |
53/1. | [1] | 140253-3300 | PLATE |
53/1. | [1] | 140253-3400 | PLATE |
53/1. | [1] | 140253-3500 | PLATE |
53/1. | [1] | 140253-3600 | PLATE |
53/1. | [1] | 140253-3700 | PLATE |
53/1. | [1] | 140253-3800 | PLATE |
53/1. | [1] | 140253-3900 | PLATE |
53/1. | [1] | 140253-4000 | PLATE |
53/1. | [1] | 140253-4100 | PLATE |
53/1. | [1] | 140253-4200 | PLATE |
53/1. | [1] | 140253-4300 | PLATE |
53/1. | [1] | 140253-4400 | PLATE |
53/1. | [1] | 140253-4500 | PLATE |
53/1. | [1] | 140253-4600 | PLATE |
53/1. | [1] | 140253-4700 | PLATE |
53/1. | [1] | 140253-4800 | PLATE |
53/1. | [1] | 140253-4900 | PLATE |
60. | [1] | 140243-6423 | CONTROL RACK |
77. | [1] | 140241-2700 | CONTROL SLEEVE |
155. | [1] | 150630-2700 | SPACER RING |
Include in #1:
106676-2061
as _
Include in #2:
104136-1021
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
8971475801 ISUZU
FUEL-INJECTION PUMP
A * K 23AA FUEL INJECTION PUMP PFR-1KX PFR
A * K 23AA FUEL INJECTION PUMP PFR-1KX PFR
Information:
3. Remove the water outlet elbow (1) from the cooler and the block.4. Remove the oil line (2) from the oil cooler. Disconnect oil inlet line (3) at the cooler.5. Remove the bolts (4) that hold the oil cooler to the water pump housing. Remove bolts (5) that hold the cooler to the block. Remove the oil cooler.Install Oil Cooler (Standard Engine)
1. Put oil cooler (1) in position on the engine. Install bolts at flanges (2) and (3) that hold oil cooler to the engine.2. Install the oil lines to the oil cooler.3. Install the water outlet elbow from the cooler to the engine.4. Fill the engine with oil and coolant to the correct levels.Remove And Install Oil Cooler (With BrakeSaver)
The oil cooler on an engine with a BrakeSaver is not always in the same location on all trucks.1. Drain the coolant from the engine.2. Drain the oil from the oil cooler. 3. Remove oil filler pipe (1) and the gasket from the engine.4. Remove the bolts that hold oil level gauge assembly (3) in position and remove it from the engine.5. Remove elbow (6) and disconnect tube assembly (5) from oil cooler (4).6. Fasten a hoist to oil cooler (4). Remove the bolts that hold the oil cooler to the water pump. Remove the bolts that hold bonnet (2) to the engine and remove the oil cooler. The weight of the oil cooler is 70 lb. (32 kg). 7. Fasten a hoist and put the bonnet and oil cooler (4) and gaskets in position on the engine. Install the bolts that hold the bonnet and oil cooler in position.8. Make sure the seal is in position in tube assembly (5) and connect it to oil cooler (4).9. Install elbow (6) and the seals.10. Install oil filler pipe (1) and oil level gauge assembly (3) on the engine.11. Fill the engine with oil and coolant to the correct levels.
1. Put oil cooler (1) in position on the engine. Install bolts at flanges (2) and (3) that hold oil cooler to the engine.2. Install the oil lines to the oil cooler.3. Install the water outlet elbow from the cooler to the engine.4. Fill the engine with oil and coolant to the correct levels.Remove And Install Oil Cooler (With BrakeSaver)
The oil cooler on an engine with a BrakeSaver is not always in the same location on all trucks.1. Drain the coolant from the engine.2. Drain the oil from the oil cooler. 3. Remove oil filler pipe (1) and the gasket from the engine.4. Remove the bolts that hold oil level gauge assembly (3) in position and remove it from the engine.5. Remove elbow (6) and disconnect tube assembly (5) from oil cooler (4).6. Fasten a hoist to oil cooler (4). Remove the bolts that hold the oil cooler to the water pump. Remove the bolts that hold bonnet (2) to the engine and remove the oil cooler. The weight of the oil cooler is 70 lb. (32 kg). 7. Fasten a hoist and put the bonnet and oil cooler (4) and gaskets in position on the engine. Install the bolts that hold the bonnet and oil cooler in position.8. Make sure the seal is in position in tube assembly (5) and connect it to oil cooler (4).9. Install elbow (6) and the seals.10. Install oil filler pipe (1) and oil level gauge assembly (3) on the engine.11. Fill the engine with oil and coolant to the correct levels.
