Buy 104135-4021 ZEXEL 9 410 618 363 BOSCH FUEL-INJECTION PUMP 9410618363 1041354021 131017740

Information fuel-injection pump

BOSCH 9 410 618 363 9410618363

ZEXEL 104135-4021 1041354021

ISHIKAWAJIMA-S 131017740 131017740

Price: query

Buy now
Add to cart Go to cart

Rating:

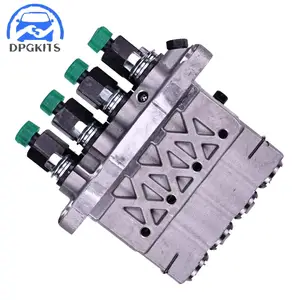

Buy FUEL-INJECTION PUMP 104135-4021 zexel genuine, new aftermarket engine parts with delivery

Compare Prices: .

As an associate, we earn commssions on qualifying purchases through the links below

C for Perkins 404D-22 404C-22 Shibaura N844 Engine Ford-New Holland 3415 TC35 TC45 TC48DA TC55DA L160 L170 L175 L215

$619.90

11 Jan 2025

HK: HIRINTOL-shop

C for Perkins 404D-22 404C-22 Shibaura N844 Engine Ford-New Holland 3415 TC35 TC45 TC48DA TC55DA L160 L170 L175 L215
HIRINTOL 🔸Replace Part Number: 131017740 104135-4021 9410618363 || 🔸Engine Model: for Perkins Engine 404D-22 404D-22T 404D-22TA 404C-22 404C-22T; for Shibaura Engine: N844, ISM N844 || 🔸Compatible Model: for Ford-New Holland Tractor: 3415, TC35D, TC45A, TC40, TC45D, TC40A, TC45DA, TC40D, TC35, TC40DA, TC35A, 2120, TC45, TC35DA, TC55DA, TC48DA, TT50A || 🔸Compatible Model: for Ford-New Holland Loader: L160, C175, L170, L175, TT45A, LS160, LS170, L215 || 🔸Efficient And Stable: Using advanced technology, it can provide efficient and stable fuel supply to ensure the normal operation of the vehicle.

IMELBUFF 131017740 104135-4021 9410618363 Fuel Injection Pump for Perkins Engine 404C-22 404D-22 Shibaura N844 Engine Ford New Holland 3415 TC35 TC45 TC45DA TC48DA TC55DA Tractors

$599.90

11 Jan 2025

CN: IMELBUFF Excavator P

IMELBUFF 131017740 104135-4021 9410618363 Fuel Injection Pump for Perkins Engine 404C-22 404D-22 Shibaura N844 Engine Ford New Holland 3415 TC35 TC45 TC45DA TC48DA TC55DA Tractors
IMELBUFF 🚜Part Number: 131017740 104135-4021 9410618363 || 🚜Engine Model: for Perkins Engine 404C-22 404D-22; for Shibaura N844 Engine || 🚜Vehicle Application: for Ford New Holland 3415 TC35 TC45 TC45DA TC48DA TC55DA Tractor || 🚜Warm Tips: Please check your part numbers before placing an order. If you are not sure, you can send us your engine model or fuel pump part number || 🚜Service: 5-months warranty and 24 hour support for customer service. Please feel free to contact us by email if you have any question with the product

Components :

0.	INJECTION-PUMP ASSEMBLY	104135-4021
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105148-1170
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)	14.7(150)
10.	NOZZLE-HOLDER	105078-0100
11.	NOZZLE	105007-1170

Scheme ###:

5.	[4]	140163-1520	PLUNGER-AND-BARREL ASSY
12.	[4]	140110-3620	DELIVERY-VALVE ASSEMBLY
13.	[4]	140112-2900	COMPRESSION SPRING
16.	[4]	140115-1400	GASKET
17.	[4]	140116-7520	FITTING
20.	[4]	016500-1520	O-RING
30.	[3]	140131-0521	FLANGE BUSHING
31.	[1]	140131-1021	FLANGE BUSHING
32.	[8]	016550-1920	O-RING
32.	[8]	016550-1920	O-RING
37.	[8]	140124-0200	BLEEDER SCREW
37.	[8]	140124-0200	BLEEDER SCREW
40.	[4]	140200-2620	TAPPET
44.	[4]	140212-0300	BEARING PIN
45.	[1]	140213-1500	LOCKING WASHER
50.	[4]	140215-1900	COMPRESSION SPRING
51.	[4]	140216-0800	SLOTTED WASHER
52.	[4]	140217-2200	SLOTTED WASHER
53/1.	[1]	140217-5000	PLATE D19T2.60
53/1.	[1]	140217-5100	PLATE D19T2.65
53/1.	[1]	140217-5200	PLATE D19T2.70
53/1.	[1]	140217-5300	PLATE D19T2.75
53/1.	[1]	140217-5400	PLATE D19T2.80
53/1.	[1]	140217-5500	PLATE D19T2.85
53/1.	[1]	140217-5600	PLATE D19T2.90
53/1.	[1]	140217-5700	PLATE D19T2.95
53/1.	[1]	140217-5800	PLATE D19T3.00
53/1.	[1]	140217-5900	PLATE D19T3.05
53/1.	[1]	140217-6000	PLATE D19T3.10
53/1.	[1]	140217-6100	PLATE D19T3.15
53/1.	[1]	140217-6200	PLATE D19T3.20
53/1.	[1]	140217-6300	PLATE D19T3.25
53/1.	[1]	140217-6400	PLATE D19T3.30
53/1.	[1]	140217-6500	PLATE D19T3.35
53/1.	[1]	140217-6600	PLATE D19T3.40
53/1.	[1]	140217-6700	PLATE D19T3.45
53/1.	[1]	140217-6800	PLATE D19T3.50
53/1.	[1]	140217-6900	PLATE D19T3.55
53/1.	[1]	140217-7000	PLATE D19T3.60
53/1.	[1]	140217-7100	PLATE D19T3.65
53/1.	[1]	140217-7200	PLATE D19T3.70
53/1.	[1]	140217-7300	PLATE D19T3.75
53/1.	[1]	140217-7400	PLATE D19T3.80
53/1.	[1]	140217-7500	PLATE D19T3.85
53/1.	[1]	140217-7600	PLATE D19T3.90
53/1.	[1]	140217-7700	PLATE D19T3.95
53/1.	[1]	140217-7800	PLATE D19T4.00
53/1.	[1]	140217-7900	PLATE D19T4.05
53/1.	[1]	140217-8000	PLATE D19T4.10
53/1.	[1]	140253-2000	PLATE
53/1.	[1]	140253-2100	PLATE
53/1.	[1]	140253-2200	PLATE
53/1.	[1]	140253-2300	PLATE
53/1.	[1]	140253-2400	PLATE
53/1.	[1]	140253-2500	PLATE
53/1.	[1]	140253-2600	PLATE
53/1.	[1]	140253-2700	PLATE
53/1.	[1]	140253-2800	PLATE
53/1.	[1]	140253-2900	PLATE
53/1.	[1]	140253-3000	PLATE
53/1.	[1]	140253-3100	PLATE
53/1.	[1]	140253-3200	PLATE
53/1.	[1]	140253-3300	PLATE
53/1.	[1]	140253-3400	PLATE
53/1.	[1]	140253-3500	PLATE
53/1.	[1]	140253-3600	PLATE
53/1.	[1]	140253-3700	PLATE
53/1.	[1]	140253-3800	PLATE
53/1.	[1]	140253-3900	PLATE
53/1.	[1]	140253-4000	PLATE
53/1.	[1]	140253-4100	PLATE
53/1.	[1]	140253-4200	PLATE
53/1.	[1]	140253-4300	PLATE
53/1.	[1]	140253-4400	PLATE
53/1.	[1]	140253-4500	PLATE
53/1.	[1]	140253-4600	PLATE
53/1.	[1]	140253-4700	PLATE
53/1.	[1]	140253-4800	PLATE
53/1.	[1]	140253-4900	PLATE
60.	[1]	140243-5620	CONTROL RACK
77.	[4]	140241-2700	CONTROL SLEEVE
92.	[1]	029711-2050	INLET UNION
93.	[1]	140402-1300	EYE BOLT
94.	[2]	026512-1540	GASKET D15.4&12.2T1.50
113.	[1]	026508-1240	GASKET D11.9&8.2T1
114.	[1]	140420-1400	BLEEDER SCREW

Include in #1:

106673-7570 as _

Include in #2:

104135-4021 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104135-4021
104135-4022

9 410 618 363
NP-PFR4KX60/2NP9

131017740 ISHIKAWAJIMA-S

FUEL-INJECTION PUMP
* K 23AD FUEL INJECTION PUMP PFR-4KX PFR

Information:

Before any service work is to be done on the fuel system the outer surface of the injection pump housing must be clean.
1. Remove cover assembly (1) from the pump housing. Remove the spring for the bypass valve. 2. Loosen bushing (2) from the pump housing with tool (A). Do not loosen screws (3) when removing or installing the pumps. If the levers are moved, the fuel pump adjustment will be changed.3. Remove the fuel injection pump from the pump housing. The sleeve on the plunger will slide off the lever as the pump is removed.Install Fuel Injection Pumps
1. Put fuel injection pump (1) in the bore of the pump housing.2. Sleeve (2) must be engaged with lever (3) when installed correctly.
If the levers (3) have been moved on the shaft, fuel pump adjustment must be made. (See TESTING AND ADJUSTING).
3. Tighten the bushing with tool (A) to a torque of 70 5 lb.ft. (95 7 N m). 4. Put the spring and bypass valve in place. Install the cover assembly on the pump housing. Be sure spring (4) is in position in the cover.Disassemble Fuel Injection Pumps
start by: a) remove fuel injection pumps1. Remove bushing (1) from bonnet (2).2. Remove ring (3) from the bonnet and barrel (7). Remove check valve (6) and spring (4) from the bonnet.3. Remove spring (8) and washer (5). Remove plunger (9) and sleeve (10). Keep the plunger and sleeve with their respective barrel for installation. Do not use plungers, sleeves or barrels with other plungers, sleeves or barrels.Assemble Fuel Injection Pumps
1. Install sleeve (4), plunger (5), spring (2) and washer (3) on barrel (1).
Make sure the sleeve is installed with the thin edge up.
Be sure the sleeve and plunger are installed in their original barrel. Make sure the large hole in the plunger is up.2. Install the check valve and spring in the bonnet. Connect the barrel and bonnet and install the ring. Install the bushing on the bonnet.end by: a) install fuel injection pumps
