Information fuel-injection pump
BOSCH
9 410 618 081
9410618081
ZEXEL
104135-4011
1041354011
ISHIKAWAJIMA-S
131017630
131017630
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below
Fuel Injection Pump 131017630 131017801 for Perkins Engine 404D-22 404D-22T 404D-22TA 404C-22
DIGERTECH Part number:131017630 || Application: for Perkins Engine 404D-22 404D-22T 404D-22TA 404C-22
DIGERTECH Part number:131017630 || Application: for Perkins Engine 404D-22 404D-22T 404D-22TA 404C-22
Nayuank Fuel Injection Pump 131017631 131017630 104135-4012 Fits For Perkins Engine 404D-22 404D-22T 404D-22TA 404C-22 404C-22T 104-22
Nayuank Part Name: Fuel Injection Pump || Part Number: 131017631 131017630 104135-4012 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Engine Model: 404D-22T || Applicable: Fits For Perkins Engine 404D-22 404D-22T 404D-22TA 404C-22 404C-22T 104-22 || Package included: 1pcs Fuel Injection Pump 131017631 131017630 104135-4012
Nayuank Part Name: Fuel Injection Pump || Part Number: 131017631 131017630 104135-4012 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Engine Model: 404D-22T || Applicable: Fits For Perkins Engine 404D-22 404D-22T 404D-22TA 404C-22 404C-22T 104-22 || Package included: 1pcs Fuel Injection Pump 131017631 131017630 104135-4012
SBA131017630 SBA131017631 131017630 131017631 Fuel Injection Pump for Perkins 404D-22 404D-22T 404C-22 Engine New Holland 3415 TC35DA TC40DA TC48DA TC55DA L160 C175 L170 L175 Case DX40 DX45 D45 D35
HIRINTOL 🔸Replace Part Number: 131017630 SBA131017630 131017631 SBA131017631 || 🔸Engine Model: for Perkins 404D-22 404D-22T 404D-22TA 404C-22 Engine; for Shibaura N844, ISM N844 Engine || 🔸Compatible Model: for Ford-New Holland Tractor: 3415, TC35D, TC45A, TC40, TC45D, TC40A, TC45DA, TC40D, TC35, TC40DA, TC35A, 2120, TC45, TC35DA, TC55DA, TC48DA, TT50A || 🔸Compatible Model: for Ford-New Holland Loader: L160, C175, L170, L175, TT45A, LS160, LS170, L215 || 🔸Durability: Made of high strength metal and composite plastic, with the best erosion resistance and service life, providing long-lasting performance and reliability.
HIRINTOL 🔸Replace Part Number: 131017630 SBA131017630 131017631 SBA131017631 || 🔸Engine Model: for Perkins 404D-22 404D-22T 404D-22TA 404C-22 Engine; for Shibaura N844, ISM N844 Engine || 🔸Compatible Model: for Ford-New Holland Tractor: 3415, TC35D, TC45A, TC40, TC45D, TC40A, TC45DA, TC40D, TC35, TC40DA, TC35A, 2120, TC45, TC35DA, TC55DA, TC48DA, TT50A || 🔸Compatible Model: for Ford-New Holland Loader: L160, C175, L170, L175, TT45A, LS160, LS170, L215 || 🔸Durability: Made of high strength metal and composite plastic, with the best erosion resistance and service life, providing long-lasting performance and reliability.
You can express buy:
USD 632.98
14-06-2025
14-06-2025

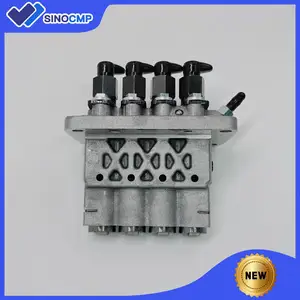

Fuel Injector Pump 131017630 SBA131017630 For Perkins 404D-22 404D-22T 404D-22TA 404C-22 Engine Fuel Supply System Accessories
USD 669.82
14-06-2025
14-06-2025

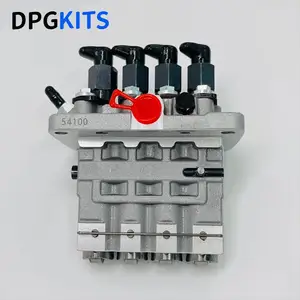

404D-22 404D-22T 404D-22TA 404C-22 Engine Injector Pump 131017630 SBA131017630 For Perkins Excavator Engine Fuel Injection Pump
USD 974.31
14-06-2025
14-06-2025

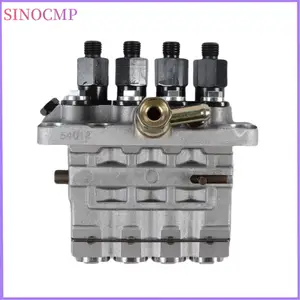

131017630 SBA131017630 104135-4011 New Injector Pump For Perkins Engine 404D-22 404D-22T 404D-22TA 404C-22
Images:
USD 974.31
[14-Jun-2025]
USD 618.97
[28-Apr-2025]
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104135-4011 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | 105141-2200 |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | 11.8{120} |
| 10. | NOZZLE-HOLDER | 105071-0640 |
| 11. | NOZZLE | 105000-1010 |
Scheme ###:
| 5. | [4] | 140163-3520 | PLUNGER-AND-BARREL ASSY |
| 12. | [4] | 140110-4320 | DELIVERY-VALVE ASSEMBLY |
| 13. | [4] | 140112-2900 | COMPRESSION SPRING |
| 16. | [4] | 140115-1400 | GASKET |
| 17. | [4] | 140116-7600 | FITTING |
| 18. | [4] | 140117-1800 | SLOTTED WASHER |
| 20. | [4] | 016500-1520 | O-RING |
| 30. | [3] | 140131-0521 | FLANGE BUSHING |
| 31. | [1] | 140131-1021 | FLANGE BUSHING |
| 32. | [8] | 016550-1920 | O-RING |
| 32. | [8] | 016550-1920 | O-RING |
| 37. | [8] | 140124-0200 | BLEEDER SCREW |
| 37. | [8] | 140124-0200 | BLEEDER SCREW |
| 40. | [4] | 140200-2620 | TAPPET |
| 44. | [4] | 140212-0300 | BEARING PIN |
| 45. | [1] | 140213-1500 | LOCKING WASHER |
| 50. | [4] | 140215-1900 | COMPRESSION SPRING |
| 51. | [4] | 140216-0800 | SLOTTED WASHER |
| 52. | [4] | 140217-2200 | SLOTTED WASHER |
| 53/1. | [1] | 140217-5000 | PLATE D19T2.60 |
| 53/1. | [1] | 140217-5100 | PLATE D19T2.65 |
| 53/1. | [1] | 140217-5200 | PLATE D19T2.70 |
| 53/1. | [1] | 140217-5300 | PLATE D19T2.75 |
| 53/1. | [1] | 140217-5400 | PLATE D19T2.80 |
| 53/1. | [1] | 140217-5500 | PLATE D19T2.85 |
| 53/1. | [1] | 140217-5600 | PLATE D19T2.90 |
| 53/1. | [1] | 140217-5700 | PLATE D19T2.95 |
| 53/1. | [1] | 140217-5800 | PLATE D19T3.00 |
| 53/1. | [1] | 140217-5900 | PLATE D19T3.05 |
| 53/1. | [1] | 140217-6000 | PLATE D19T3.10 |
| 53/1. | [1] | 140217-6100 | PLATE D19T3.15 |
| 53/1. | [1] | 140217-6200 | PLATE D19T3.20 |
| 53/1. | [1] | 140217-6300 | PLATE D19T3.25 |
| 53/1. | [1] | 140217-6400 | PLATE D19T3.30 |
| 53/1. | [1] | 140217-6500 | PLATE D19T3.35 |
| 53/1. | [1] | 140217-6600 | PLATE D19T3.40 |
| 53/1. | [1] | 140217-6700 | PLATE D19T3.45 |
| 53/1. | [1] | 140217-6800 | PLATE D19T3.50 |
| 53/1. | [1] | 140217-6900 | PLATE D19T3.55 |
| 53/1. | [1] | 140217-7000 | PLATE D19T3.60 |
| 53/1. | [1] | 140217-7100 | PLATE D19T3.65 |
| 53/1. | [1] | 140217-7200 | PLATE D19T3.70 |
| 53/1. | [1] | 140217-7300 | PLATE D19T3.75 |
| 53/1. | [1] | 140217-7400 | PLATE D19T3.80 |
| 53/1. | [1] | 140217-7500 | PLATE D19T3.85 |
| 53/1. | [1] | 140217-7600 | PLATE D19T3.90 |
| 53/1. | [1] | 140217-7700 | PLATE D19T3.95 |
| 53/1. | [1] | 140217-7800 | PLATE D19T4.00 |
| 53/1. | [1] | 140217-7900 | PLATE D19T4.05 |
| 53/1. | [1] | 140217-8000 | PLATE D19T4.10 |
| 53/1. | [1] | 140253-2000 | PLATE |
| 53/1. | [1] | 140253-2100 | PLATE |
| 53/1. | [1] | 140253-2200 | PLATE |
| 53/1. | [1] | 140253-2300 | PLATE |
| 53/1. | [1] | 140253-2400 | PLATE |
| 53/1. | [1] | 140253-2500 | PLATE |
| 53/1. | [1] | 140253-2600 | PLATE |
| 53/1. | [1] | 140253-2700 | PLATE |
| 53/1. | [1] | 140253-2800 | PLATE |
| 53/1. | [1] | 140253-2900 | PLATE |
| 53/1. | [1] | 140253-3000 | PLATE |
| 53/1. | [1] | 140253-3100 | PLATE |
| 53/1. | [1] | 140253-3200 | PLATE |
| 53/1. | [1] | 140253-3300 | PLATE |
| 53/1. | [1] | 140253-3400 | PLATE |
| 53/1. | [1] | 140253-3500 | PLATE |
| 53/1. | [1] | 140253-3600 | PLATE |
| 53/1. | [1] | 140253-3700 | PLATE |
| 53/1. | [1] | 140253-3800 | PLATE |
| 53/1. | [1] | 140253-3900 | PLATE |
| 53/1. | [1] | 140253-4000 | PLATE |
| 53/1. | [1] | 140253-4100 | PLATE |
| 53/1. | [1] | 140253-4200 | PLATE |
| 53/1. | [1] | 140253-4300 | PLATE |
| 53/1. | [1] | 140253-4400 | PLATE |
| 53/1. | [1] | 140253-4500 | PLATE |
| 53/1. | [1] | 140253-4600 | PLATE |
| 53/1. | [1] | 140253-4700 | PLATE |
| 53/1. | [1] | 140253-4800 | PLATE |
| 53/1. | [1] | 140253-4900 | PLATE |
| 60. | [1] | 140243-5620 | CONTROL RACK |
| 77. | [4] | 140241-2700 | CONTROL SLEEVE |
| 92. | [1] | 029711-2050 | INLET UNION |
| 93. | [1] | 140402-1300 | EYE BOLT |
| 94. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
| 113. | [1] | 026508-1240 | GASKET D11.9&8.2T1 |
| 114. | [1] | 140420-1400 | BLEEDER SCREW |
Include in #2:
104135-4011
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
131017630 ISHIKAWAJIMA-S
FUEL-INJECTION PUMP
* K 23AD FUEL INJECTION PUMP PFR-4KX PFR
* K 23AD FUEL INJECTION PUMP PFR-4KX PFR
Information:
start by: a) remove fuel injection pump housing and governor 1. Remove the fuel from the pump housing. Install the pump housing on tool (A).2. Remove priming pump (1). Remove the fuel filter.3. Remove fuel filter base assembly (2) from the top cover. 4. Remove elbow (3) and disc (4) from the fuel base assembly. The function of disc (4) is to keep the fuel in the pump housing from returning to the tank when the engine is not in operation. If the fuel tank is higher than the fuel pump housing, the disc is not needed. 5. Remove cover (5) and the fuel channel from the pump housing.6. Remove spring and bypass valve (6) from the housing.7. Remove check valve (7).8. Remove the fuel channel from cover (5). 9. Remove check valve (9) and spring from fuel channel (8) if so equipped. Earlier fuel systems have two check valves (7) and (9). Check valve (9) is not needed. Remove check valve (9) and the spring. Fill the hole in the fuel channel with weld, a rivet or a sheet metal drive screw that has sealant on it.Install Fuel Check Valve And Bypass Valve
1. Install fuel channel (1) on cover (2).2. Install spring and bypass valve (3) in the housing with the rounded end up. 3. Install check valve (4) evenly in the pump housing. Do not install a check valve that is bent.4. Install the cover on the pump housing. Be sure the bypass valve spring is in the cover groove. 5. Install disc (5). Install the elbow on the fuel base filter assembly. 6. Install fuel filter base assembly (6) on cover (2).7. Install priming pump (7). Install the fuel filter.8. Remove the fuel injection pump housing and governor from tool (A).end by: a) install fuel injection pump housing and governor
1. Install fuel channel (1) on cover (2).2. Install spring and bypass valve (3) in the housing with the rounded end up. 3. Install check valve (4) evenly in the pump housing. Do not install a check valve that is bent.4. Install the cover on the pump housing. Be sure the bypass valve spring is in the cover groove. 5. Install disc (5). Install the elbow on the fuel base filter assembly. 6. Install fuel filter base assembly (6) on cover (2).7. Install priming pump (7). Install the fuel filter.8. Remove the fuel injection pump housing and governor from tool (A).end by: a) install fuel injection pump housing and governor
