Information fuel-injection pump
BOSCH
9 410 618 458
9410618458
ZEXEL
104134-4060
1041344060
ISHIKAWAJIMA-S
131010080
131010080

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

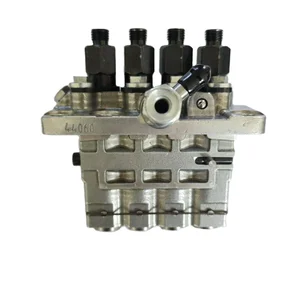

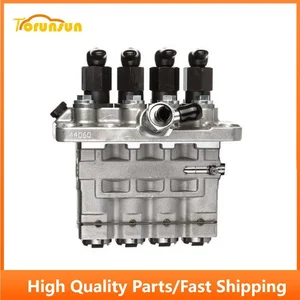

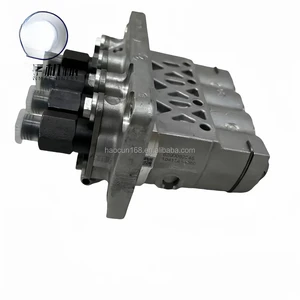

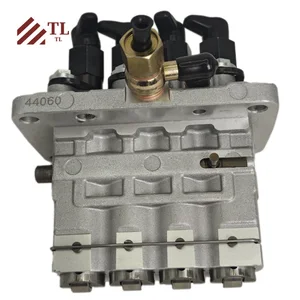

Compatible Fuel Injection Pump 131010080 1310-10080 with Perkins Engine 404A-22 404D-22 404D-22 404C-22 104-19
KoovDem Part Number:6205-71-1370 104641-7320 X313543 || Part Name: Fuel Injection Pump || Perfect for pairing with Cummins Engine B3.3 and QSB3.3, this product is specifically designed to enhance performance and efficiency. Its compatibility with these engines ensures seamless operation and optimal results. With top-notch quality and reliability, this product is an ideal choice for any project or application requiring the use of Cummins Engine B3.3 and QSB3.3. Trust in this product to deliver the power and durability needed for your specific needs. || The package includes a Fuel Injection Pump, specifically the 6205-71-1370 model with part number 104641-7320 and serial number X313543.
KoovDem Part Number:6205-71-1370 104641-7320 X313543 || Part Name: Fuel Injection Pump || Perfect for pairing with Cummins Engine B3.3 and QSB3.3, this product is specifically designed to enhance performance and efficiency. Its compatibility with these engines ensures seamless operation and optimal results. With top-notch quality and reliability, this product is an ideal choice for any project or application requiring the use of Cummins Engine B3.3 and QSB3.3. Trust in this product to deliver the power and durability needed for your specific needs. || The package includes a Fuel Injection Pump, specifically the 6205-71-1370 model with part number 104641-7320 and serial number X313543.

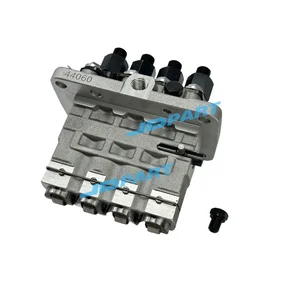

YANNAL PART 1 PC Fuel Injection Pump 131010080 Suitable for Perkins 404C-22 Engine Part
YANNAL PART Product Name: Fuel Injection Pump || Product Name: 131010080 || Application: Compatible for Perkins 404C-22 || Warranty: 1 Year || Note: Please verify your part number before ordering, any problem please feel free to contact us, thanks.
YANNAL PART Product Name: Fuel Injection Pump || Product Name: 131010080 || Application: Compatible for Perkins 404C-22 || Warranty: 1 Year || Note: Please verify your part number before ordering, any problem please feel free to contact us, thanks.
YANNAL PART 1 PC 131010080 Fuel Injection Pump Suitable for Perkins 404D-22 Engine Part
YANNAL PART Product Name: Fuel Injection Pump || Product Name: 131010080 || Application: Compatible for Perkins 404D-22 || Warranty: 1 Year || Note: Please verify your part number before ordering, any problem please feel free to contact us, thanks.
YANNAL PART Product Name: Fuel Injection Pump || Product Name: 131010080 || Application: Compatible for Perkins 404D-22 || Warranty: 1 Year || Note: Please verify your part number before ordering, any problem please feel free to contact us, thanks.
You can express buy:
Components :
0. | INJECTION-PUMP ASSEMBLY | 104134-4060 |
1. | _ | |
2. | FUEL INJECTION PUMP | |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105148-1210 |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | 11.8(120) |
10. | NOZZLE-HOLDER | 105078-0100 |
11. | NOZZLE | 105007-1170 |
Scheme ###:
5. | [4] | 140163-3720 | PLUNGER-AND-BARREL ASSY |
12. | [4] | 140110-3620 | DELIVERY-VALVE ASSEMBLY |
13. | [4] | 140112-2900 | COMPRESSION SPRING |
16. | [4] | 140115-1400 | GASKET |
17. | [4] | 140116-7520 | FITTING |
20. | [4] | 140118-0301 | O-RING |
30. | [3] | 140131-0521 | FLANGE BUSHING |
31. | [1] | 140131-1021 | FLANGE BUSHING |
32. | [8] | 140118-0201 | O-RING |
32. | [8] | 140118-0201 | O-RING |
37. | [8] | 140124-0200 | BLEEDER SCREW |
37. | [8] | 140124-0200 | BLEEDER SCREW |
40. | [4] | 140200-1620 | TAPPET |
44. | [4] | 140212-0300 | BEARING PIN |
45. | [1] | 140213-1500 | LOCKING WASHER |
50. | [4] | 140215-1900 | COMPRESSION SPRING |
51. | [4] | 140216-0800 | SLOTTED WASHER |
52. | [4] | 140217-2200 | SLOTTED WASHER |
53/1. | [1] | 140217-5000 | PLATE D19T2.60 |
53/1. | [1] | 140217-5100 | PLATE D19T2.65 |
53/1. | [1] | 140217-5200 | PLATE D19T2.70 |
53/1. | [1] | 140217-5300 | PLATE D19T2.75 |
53/1. | [1] | 140217-5400 | PLATE D19T2.80 |
53/1. | [1] | 140217-5500 | PLATE D19T2.85 |
53/1. | [1] | 140217-5600 | PLATE D19T2.90 |
53/1. | [1] | 140217-5700 | PLATE D19T2.95 |
53/1. | [1] | 140217-5800 | PLATE D19T3.00 |
53/1. | [1] | 140217-5900 | PLATE D19T3.05 |
53/1. | [1] | 140217-6000 | PLATE D19T3.10 |
53/1. | [1] | 140217-6100 | PLATE D19T3.15 |
53/1. | [1] | 140217-6200 | PLATE D19T3.20 |
53/1. | [1] | 140217-6300 | PLATE D19T3.25 |
53/1. | [1] | 140217-6400 | PLATE D19T3.30 |
53/1. | [1] | 140217-6500 | PLATE D19T3.35 |
53/1. | [1] | 140217-6600 | PLATE D19T3.40 |
53/1. | [1] | 140217-6700 | PLATE D19T3.45 |
53/1. | [1] | 140217-6800 | PLATE D19T3.50 |
53/1. | [1] | 140217-6900 | PLATE D19T3.55 |
53/1. | [1] | 140217-7000 | PLATE D19T3.60 |
53/1. | [1] | 140217-7100 | PLATE D19T3.65 |
53/1. | [1] | 140217-7200 | PLATE D19T3.70 |
53/1. | [1] | 140217-7300 | PLATE D19T3.75 |
53/1. | [1] | 140217-7400 | PLATE D19T3.80 |
53/1. | [1] | 140217-7500 | PLATE D19T3.85 |
53/1. | [1] | 140217-7600 | PLATE D19T3.90 |
53/1. | [1] | 140217-7700 | PLATE D19T3.95 |
53/1. | [1] | 140217-7800 | PLATE D19T4.00 |
53/1. | [1] | 140217-7900 | PLATE D19T4.05 |
53/1. | [1] | 140217-8000 | PLATE D19T4.10 |
53/1. | [1] | 140253-2000 | PLATE |
53/1. | [1] | 140253-2100 | PLATE |
53/1. | [1] | 140253-2200 | PLATE |
53/1. | [1] | 140253-2300 | PLATE |
53/1. | [1] | 140253-2400 | PLATE |
53/1. | [1] | 140253-2500 | PLATE |
53/1. | [1] | 140253-2600 | PLATE |
53/1. | [1] | 140253-2700 | PLATE |
53/1. | [1] | 140253-2800 | PLATE |
53/1. | [1] | 140253-2900 | PLATE |
53/1. | [1] | 140253-3000 | PLATE |
53/1. | [1] | 140253-3100 | PLATE |
53/1. | [1] | 140253-3200 | PLATE |
53/1. | [1] | 140253-3300 | PLATE |
53/1. | [1] | 140253-3400 | PLATE |
53/1. | [1] | 140253-3500 | PLATE |
53/1. | [1] | 140253-3600 | PLATE |
53/1. | [1] | 140253-3700 | PLATE |
53/1. | [1] | 140253-3800 | PLATE |
53/1. | [1] | 140253-3900 | PLATE |
53/1. | [1] | 140253-4000 | PLATE |
53/1. | [1] | 140253-4100 | PLATE |
53/1. | [1] | 140253-4200 | PLATE |
53/1. | [1] | 140253-4300 | PLATE |
53/1. | [1] | 140253-4400 | PLATE |
53/1. | [1] | 140253-4500 | PLATE |
53/1. | [1] | 140253-4600 | PLATE |
53/1. | [1] | 140253-4700 | PLATE |
53/1. | [1] | 140253-4800 | PLATE |
53/1. | [1] | 140253-4900 | PLATE |
60. | [1] | 140243-8020 | CONTROL RACK |
77. | [4] | 140241-4200 | CONTROL SLEEVE |
92. | [1] | 029711-2050 | INLET UNION |
93. | [1] | 140402-1300 | EYE BOLT |
94. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
113. | [1] | 026508-1240 | GASKET D11.9&8.2T1 |
114. | [1] | 140420-1400 | BLEEDER SCREW |
Include in #1:
106673-2580
as _
Include in #2:
104134-4060
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104134-4060
131010080 ISHIKAWAJIMA-S
FUEL-INJECTION PUMP
A K 23AD FUEL INJECTION PUMP PFR-4KX PFR
A K 23AD FUEL INJECTION PUMP PFR-4KX PFR
Information:
start by:a) remove automatic timing advanceb) remove vibration damper and pulleyc) remove water pumpd) remove belt tightener idler pulleye) remove water temperature regulator (left cylinder head)1. Remove the tube assembly from the oil cooler elbow to the oil pan.2. Loosen the bolts that hold the oil pan to the cylinder block approximately 1/4" (6.4 mm). Remove the bolts that hold the oil pan to the timing gear cover.3. Fasten a hoist to the engine and lift it off tool (A). Weight of the engine is 3200 lb. (1452 kg). Make a separation of the oil pan from the cylinder block and timing gear cover. Do not damage the pan gasket.4. Put 1/4" (6.4 mm) pieces of bar stock between the pan and cylinder block at the positions the oil pan makes contact with tool (A). Lower the engine on tool (A).5. Remove the bolts from the belt tightener bracket. Remove the block and gasket. 6. Remove fumes disposal tube (1).7. Remove the bolts (4) that hold the timing gear cover to the cylinder block.8. Remove water bonnet (2).9. Remove timing gear cover (3).
Do not cause damage to the crankshaft front seal when the cover is removed.
10. Check the condition of the O-ring seal on the fuel injection pump housing.Install Timing Gear Cover
1. Put clean engine oil on the O-ring seal for the fuel injection pump housing, the crankshaft front seal and wear sleeve.2. Install tool (B) in the crankshaft front seal.3. Install a new gasket on the timing gear cover. Put timing gear cover (1) in position on the dowels in the cylinder block. Make sure it is against the cylinder block all around.4. Install the bolts that hold the cover in position. Remove tool (B) from the crankshaft front seal.5. Install the water bonnet, the fumes disposal tube and the block for the belt tightener bracket.6. Fasten a hoist to the engine and lift it off tool (A). Remove the bar stock from between the cylinder block and oil pan. Tighten the bolts that hold the oil pan to the cylinder block.7. Install the bolts that hold the oil pan to the timing gear cover. Put the engine back on tool (A).8. Install the tube assembly between the oil pan and oil cooler.end by:a) install water temperature regulator (left cylinder head)b) install belt tightener idler pulleyc) install water pumpd) install vibration damper and pulleye) install automatic timing advance
Do not cause damage to the crankshaft front seal when the cover is removed.
10. Check the condition of the O-ring seal on the fuel injection pump housing.Install Timing Gear Cover
1. Put clean engine oil on the O-ring seal for the fuel injection pump housing, the crankshaft front seal and wear sleeve.2. Install tool (B) in the crankshaft front seal.3. Install a new gasket on the timing gear cover. Put timing gear cover (1) in position on the dowels in the cylinder block. Make sure it is against the cylinder block all around.4. Install the bolts that hold the cover in position. Remove tool (B) from the crankshaft front seal.5. Install the water bonnet, the fumes disposal tube and the block for the belt tightener bracket.6. Fasten a hoist to the engine and lift it off tool (A). Remove the bar stock from between the cylinder block and oil pan. Tighten the bolts that hold the oil pan to the cylinder block.7. Install the bolts that hold the oil pan to the timing gear cover. Put the engine back on tool (A).8. Install the tube assembly between the oil pan and oil cooler.end by:a) install water temperature regulator (left cylinder head)b) install belt tightener idler pulleyc) install water pumpd) install vibration damper and pulleye) install automatic timing advance
