Information fuel-injection pump
BOSCH
9 410 618 462
9410618462
ZEXEL
104134-4014
1041344014
ISHIKAWAJIMA-S
131017602
131017602

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

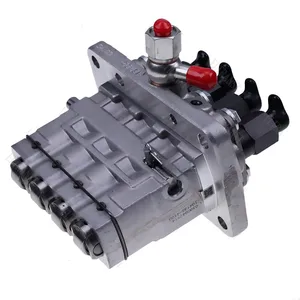

Haiyazhma Fuel Injection Pump 104134-4011 104134-4014 1041344011 Compatible with New Holland Tractor 1920 TC45A TC40 TT50A TC40A TC45D TC45DA TC40D TC45 TC35 TC40DA TC35A TC35D
Haiyazhma Part Name: Fuel Injection Pump || Part Number: 104134-4011 104134-4014 1041344011 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Applicable: Compatible with Case Tractor DX40 D40 DX45 DX35 D45 D35 || Compatible with New Holland Tractor 1920 TC45A TC40 TT50A TC40A TC45D TC45DA TC40D TC45 TC35 TC40DA TC35A TC35D TT45A TC35DA CASE DX35 DX40 || Package included: 1pcs Fuel Injection Pump 104134-4011 104134-4014 1041344011
Haiyazhma Part Name: Fuel Injection Pump || Part Number: 104134-4011 104134-4014 1041344011 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Applicable: Compatible with Case Tractor DX40 D40 DX45 DX35 D45 D35 || Compatible with New Holland Tractor 1920 TC45A TC40 TT50A TC40A TC45D TC45DA TC40D TC45 TC35 TC40DA TC35A TC35D TT45A TC35DA CASE DX35 DX40 || Package included: 1pcs Fuel Injection Pump 104134-4011 104134-4014 1041344011
OCTOT Fuel Injection Pump 104134-4011 104134-4014 1041344011 Fits For New Holland Tractor 1920 TC45A TC40 TT50A TC40A TC45D TC45DA TC40D TC45 TC35 TC40DA TC35A TC35D
OCTOT Part Name: Fuel Injection Pump || Part Number: 104134-4011 104134-4014 1041344011 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Applicable: Fits For Case Tractor DX40 D40 DX45 DX35 D45 D35 || Fits For New Holland Tractor 1920 TC45A TC40 TT50A TC40A TC45D TC45DA TC40D TC45 TC35 TC40DA TC35A TC35D TT45A TC35DA CASE DX35 DX40 || Package included: 1pcs Fuel Injection Pump 104134-4011 104134-4014 1041344011
OCTOT Part Name: Fuel Injection Pump || Part Number: 104134-4011 104134-4014 1041344011 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Applicable: Fits For Case Tractor DX40 D40 DX45 DX35 D45 D35 || Fits For New Holland Tractor 1920 TC45A TC40 TT50A TC40A TC45D TC45DA TC40D TC45 TC35 TC40DA TC35A TC35D TT45A TC35DA CASE DX35 DX40 || Package included: 1pcs Fuel Injection Pump 104134-4011 104134-4014 1041344011
131017602 104134-4014 9410618462 Fuel Injection Pump for Perkins 104-19 404A-22 404D-22 404C-22 Engine New Holland TC35D TC40A TC45D TT50A Case D40 DX40 DX45
HIRINTOL 🔸Replace Part Number: 131017602 104134-4014 9410618462 || 🔸Engine Model: for Perkins Engine 104.19, 104-19, 404A-22, 404D-22, 404C-22 || 🔸Compatible Model: for New Holland Tractor: 1920, TC45A, TC40, TT50A, TC40A, TC45D, TC45DA, TC40D, TC45, TC35, TC40DA, TC35A, TC35D, TT45A, TC35DA || 🔸Compatible Model: for CASE Tractor: DX40, D40, DX45, DX35, D45, D35 || 🔸Efficient And Stable: Using advanced technology, it can provide efficient and stable fuel supply to ensure the normal operation of the vehicle.
HIRINTOL 🔸Replace Part Number: 131017602 104134-4014 9410618462 || 🔸Engine Model: for Perkins Engine 104.19, 104-19, 404A-22, 404D-22, 404C-22 || 🔸Compatible Model: for New Holland Tractor: 1920, TC45A, TC40, TT50A, TC40A, TC45D, TC45DA, TC40D, TC45, TC35, TC40DA, TC35A, TC35D, TT45A, TC35DA || 🔸Compatible Model: for CASE Tractor: DX40, D40, DX45, DX35, D45, D35 || 🔸Efficient And Stable: Using advanced technology, it can provide efficient and stable fuel supply to ensure the normal operation of the vehicle.
Components :
0. | INJECTION-PUMP ASSEMBLY | 104134-4014 |
1. | _ | |
2. | FUEL INJECTION PUMP | |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105148-1170 |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | 14.7(150) |
10. | NOZZLE-HOLDER | 105078-0100 |
11. | NOZZLE | 105007-1170 |
Scheme ###:
5. | [4] | 140163-3720 | PLUNGER-AND-BARREL ASSY |
12. | [4] | 140110-3620 | DELIVERY-VALVE ASSEMBLY |
13. | [4] | 140112-2900 | COMPRESSION SPRING |
16. | [4] | 140115-1400 | GASKET |
17. | [4] | 140116-7520 | FITTING |
20. | [4] | 140118-0301 | O-RING |
30. | [3] | 140131-0521 | FLANGE BUSHING |
31. | [1] | 140131-1021 | FLANGE BUSHING |
32. | [8] | 140118-0201 | O-RING |
32. | [8] | 140118-0201 | O-RING |
37. | [8] | 140124-0200 | BLEEDER SCREW |
37. | [8] | 140124-0200 | BLEEDER SCREW |
40. | [4] | 140200-1620 | TAPPET |
44. | [4] | 140212-0300 | BEARING PIN |
45. | [1] | 140213-1500 | LOCKING WASHER |
50. | [4] | 140215-1900 | COMPRESSION SPRING |
51. | [4] | 140216-0800 | SLOTTED WASHER |
52. | [4] | 140217-2200 | SLOTTED WASHER |
53/1. | [1] | 140217-5000 | PLATE D19T2.60 |
53/1. | [1] | 140217-5100 | PLATE D19T2.65 |
53/1. | [1] | 140217-5200 | PLATE D19T2.70 |
53/1. | [1] | 140217-5300 | PLATE D19T2.75 |
53/1. | [1] | 140217-5400 | PLATE D19T2.80 |
53/1. | [1] | 140217-5500 | PLATE D19T2.85 |
53/1. | [1] | 140217-5600 | PLATE D19T2.90 |
53/1. | [1] | 140217-5700 | PLATE D19T2.95 |
53/1. | [1] | 140217-5800 | PLATE D19T3.00 |
53/1. | [1] | 140217-5900 | PLATE D19T3.05 |
53/1. | [1] | 140217-6000 | PLATE D19T3.10 |
53/1. | [1] | 140217-6100 | PLATE D19T3.15 |
53/1. | [1] | 140217-6200 | PLATE D19T3.20 |
53/1. | [1] | 140217-6300 | PLATE D19T3.25 |
53/1. | [1] | 140217-6400 | PLATE D19T3.30 |
53/1. | [1] | 140217-6500 | PLATE D19T3.35 |
53/1. | [1] | 140217-6600 | PLATE D19T3.40 |
53/1. | [1] | 140217-6700 | PLATE D19T3.45 |
53/1. | [1] | 140217-6800 | PLATE D19T3.50 |
53/1. | [1] | 140217-6900 | PLATE D19T3.55 |
53/1. | [1] | 140217-7000 | PLATE D19T3.60 |
53/1. | [1] | 140217-7100 | PLATE D19T3.65 |
53/1. | [1] | 140217-7200 | PLATE D19T3.70 |
53/1. | [1] | 140217-7300 | PLATE D19T3.75 |
53/1. | [1] | 140217-7400 | PLATE D19T3.80 |
53/1. | [1] | 140217-7500 | PLATE D19T3.85 |
53/1. | [1] | 140217-7600 | PLATE D19T3.90 |
53/1. | [1] | 140217-7700 | PLATE D19T3.95 |
53/1. | [1] | 140217-7800 | PLATE D19T4.00 |
53/1. | [1] | 140217-7900 | PLATE D19T4.05 |
53/1. | [1] | 140217-8000 | PLATE D19T4.10 |
53/1. | [1] | 140253-2000 | PLATE |
53/1. | [1] | 140253-2100 | PLATE |
53/1. | [1] | 140253-2200 | PLATE |
53/1. | [1] | 140253-2300 | PLATE |
53/1. | [1] | 140253-2400 | PLATE |
53/1. | [1] | 140253-2500 | PLATE |
53/1. | [1] | 140253-2600 | PLATE |
53/1. | [1] | 140253-2700 | PLATE |
53/1. | [1] | 140253-2800 | PLATE |
53/1. | [1] | 140253-2900 | PLATE |
53/1. | [1] | 140253-3000 | PLATE |
53/1. | [1] | 140253-3100 | PLATE |
53/1. | [1] | 140253-3200 | PLATE |
53/1. | [1] | 140253-3300 | PLATE |
53/1. | [1] | 140253-3400 | PLATE |
53/1. | [1] | 140253-3500 | PLATE |
53/1. | [1] | 140253-3600 | PLATE |
53/1. | [1] | 140253-3700 | PLATE |
53/1. | [1] | 140253-3800 | PLATE |
53/1. | [1] | 140253-3900 | PLATE |
53/1. | [1] | 140253-4000 | PLATE |
53/1. | [1] | 140253-4100 | PLATE |
53/1. | [1] | 140253-4200 | PLATE |
53/1. | [1] | 140253-4300 | PLATE |
53/1. | [1] | 140253-4400 | PLATE |
53/1. | [1] | 140253-4500 | PLATE |
53/1. | [1] | 140253-4600 | PLATE |
53/1. | [1] | 140253-4700 | PLATE |
53/1. | [1] | 140253-4800 | PLATE |
53/1. | [1] | 140253-4900 | PLATE |
60. | [1] | 140243-5620 | CONTROL RACK |
77. | [4] | 140241-4200 | CONTROL SLEEVE |
92. | [1] | 029711-2050 | INLET UNION |
93. | [1] | 140402-1300 | EYE BOLT |
94. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
113. | [1] | 026508-1240 | GASKET D11.9&8.2T1 |
114. | [1] | 140420-1400 | BLEEDER SCREW |
Include in #1:
106673-2470
as _
Include in #2:
104134-4014
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104134-4014
131017602 ISHIKAWAJIMA-S
FUEL-INJECTION PUMP
A K 23AD FUEL INJECTION PUMP PFR-4KX PFR
A K 23AD FUEL INJECTION PUMP PFR-4KX PFR
Information:
Before any service work is done on the fuel system, the outer surface of the injection pump housing must be clean.
1. Remove the plug from location (1). Install tool (A) in the hole with the large diameter end without the taper down. Move the governor control to the "ON" position until the rack stops against tool (A). The racks are now in center (zero) position.2. Disconnect lines (2) from the fuel injection pumps. Remove the washers. Put caps on all fuel openings. 3. Remove bushings (3) with tooling (B). 4. Install tooling (C). Hold the fuel racks in the center (zero) position and carefully remove the fuel injection pump.
When injection pumps, spacers and lifters are removed from the injection pump housing, keep the parts of each pump together so they can be installed back in their original location.
5. Remove spacers (4) from the fuel injection pump housing.
Be careful when the injection pumps are disassembled. Do not cause damage to the surface on the plunger. The plunger and barrel for each pump are made as a set. Do not put the plunger of one pump in the barrel of another pump. If one part has wear, install a complete new pump assembly. Be careful when the plunger is put into the bore of the barrel.
Do not remove gear segment (15) from plunger (10).
6. Remove plunger (10), washer (14) and spring (9) from barrel (8).7. Remove ring (12) from barrel (8) and bonnet (11).8. Remove spring (6), collar (7) and check valve assembly (13) from bonnet (11). Do not disassemble check valve assembly (13).9. Keep seal (5) with the bonnet for use at assembly.Install Fuel Injection Pumps
Make sure the fuel racks are in the center (ZERO) position before the fuel injection pumps are installed.1. Put diesel fuel on all parts to be assembled. 2. Put spring (2), collar (3) and check valve assembly (9) in position in the bonnet.
Do not slide barrel (4) against the check valve assembly when it is assembled. Scratches on the check valve can cause it to leak.
