Information fuel-injection pump
BOSCH
9 410 618 078
9410618078
ZEXEL
104134-4012
1041344012

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

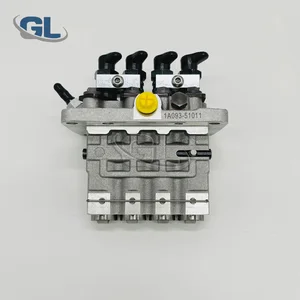

New Fuel Injection Pump Fits for Perkins Engine Parts 104134-4012 9410618078
GSHLGAO Part Name: Fuel Injection Pump || Part Number:104134-4012 9410618078 1041344012 || This application is specifically designed for Perkins engines, ensuring optimal performance and compatibility. It prioritizes quality, reliability, and efficiency, making it ideal for industrial, commercial, or residential use. Maximize the potential of Perkins engines with this high-quality and durable solution. || Notification-The application information provided is for guidance purposes only. It is recommended to verify the part number and conduct a comparison with the old parts before making a purchase. Should you have any inquiries, please do not hesitate to contact us. || Premium Selection-This item boasts consistent performance, exceptional reliability, effortless installation, and rapid response times.
GSHLGAO Part Name: Fuel Injection Pump || Part Number:104134-4012 9410618078 1041344012 || This application is specifically designed for Perkins engines, ensuring optimal performance and compatibility. It prioritizes quality, reliability, and efficiency, making it ideal for industrial, commercial, or residential use. Maximize the potential of Perkins engines with this high-quality and durable solution. || Notification-The application information provided is for guidance purposes only. It is recommended to verify the part number and conduct a comparison with the old parts before making a purchase. Should you have any inquiries, please do not hesitate to contact us. || Premium Selection-This item boasts consistent performance, exceptional reliability, effortless installation, and rapid response times.
9410618078 104134-4012 Fuel Injection Pump TypeFits for Perkins Engine Parts
Podafu Part Name: Fuel Injection Pump || Part Number: 9410618078 || Applicable: Compatible with Perkins Engine || The fuel injection pump has a long service life, low maintenance frequency, and high reliability || Before purchasing, please carefully check if the product is suitable for your vehicle by reviewing the part number and photos.
Podafu Part Name: Fuel Injection Pump || Part Number: 9410618078 || Applicable: Compatible with Perkins Engine || The fuel injection pump has a long service life, low maintenance frequency, and high reliability || Before purchasing, please carefully check if the product is suitable for your vehicle by reviewing the part number and photos.
$840.00
25 Jul 2024
CN: Nancy-Parts store
104134-4012 9410618078 New Fuel Injection Pump Fits for Perkins Engine Parts
XYohykai ◆Part Name◆: Fuel Injection Pump || ◆Part Number◆:104134-4012 9410618078 1041344012 || ◆Application◆: Fits for Perkins Engine || ◆Notice◆-Application information provided is for reference only. Please confirm the part number and compare old parts before purchase. If you have any question,pls feel free to ask us. || ◆Worth Choice◆-This product has stable performance high reliability easy installation and fast response.
XYohykai ◆Part Name◆: Fuel Injection Pump || ◆Part Number◆:104134-4012 9410618078 1041344012 || ◆Application◆: Fits for Perkins Engine || ◆Notice◆-Application information provided is for reference only. Please confirm the part number and compare old parts before purchase. If you have any question,pls feel free to ask us. || ◆Worth Choice◆-This product has stable performance high reliability easy installation and fast response.
Components :
0. | INJECTION-PUMP ASSEMBLY | 104134-4012 |
1. | _ | |
2. | FUEL INJECTION PUMP | |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105148-1170 |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | 14.7{150} |
10. | NOZZLE-HOLDER | 105078-0100 |
11. | NOZZLE | 105007-1170 |
Scheme ###:
5. | [4] | 140163-3720 | PLUNGER-AND-BARREL ASSY |
12. | [4] | 140110-3620 | DELIVERY-VALVE ASSEMBLY |
13. | [4] | 140112-2900 | COMPRESSION SPRING |
16. | [4] | 140115-1400 | GASKET |
17. | [4] | 140116-7520 | FITTING |
20. | [4] | 016500-1520 | O-RING |
30. | [3] | 140131-0521 | FLANGE BUSHING |
31. | [1] | 140131-1021 | FLANGE BUSHING |
32. | [8] | 016550-1920 | O-RING |
32. | [8] | 016550-1920 | O-RING |
37. | [8] | 140124-0200 | BLEEDER SCREW |
37. | [8] | 140124-0200 | BLEEDER SCREW |
40. | [4] | 140200-1620 | TAPPET |
44. | [4] | 140212-0300 | BEARING PIN |
45. | [1] | 140213-1500 | LOCKING WASHER |
50. | [4] | 140215-1900 | COMPRESSION SPRING |
51. | [4] | 140216-0800 | SLOTTED WASHER |
52. | [4] | 140217-2200 | SLOTTED WASHER |
53/1. | [1] | 140217-5000 | PLATE D19T2.60 |
53/1. | [1] | 140217-5100 | PLATE D19T2.65 |
53/1. | [1] | 140217-5200 | PLATE D19T2.70 |
53/1. | [1] | 140217-5300 | PLATE D19T2.75 |
53/1. | [1] | 140217-5400 | PLATE D19T2.80 |
53/1. | [1] | 140217-5500 | PLATE D19T2.85 |
53/1. | [1] | 140217-5600 | PLATE D19T2.90 |
53/1. | [1] | 140217-5700 | PLATE D19T2.95 |
53/1. | [1] | 140217-5800 | PLATE D19T3.00 |
53/1. | [1] | 140217-5900 | PLATE D19T3.05 |
53/1. | [1] | 140217-6000 | PLATE D19T3.10 |
53/1. | [1] | 140217-6100 | PLATE D19T3.15 |
53/1. | [1] | 140217-6200 | PLATE D19T3.20 |
53/1. | [1] | 140217-6300 | PLATE D19T3.25 |
53/1. | [1] | 140217-6400 | PLATE D19T3.30 |
53/1. | [1] | 140217-6500 | PLATE D19T3.35 |
53/1. | [1] | 140217-6600 | PLATE D19T3.40 |
53/1. | [1] | 140217-6700 | PLATE D19T3.45 |
53/1. | [1] | 140217-6800 | PLATE D19T3.50 |
53/1. | [1] | 140217-6900 | PLATE D19T3.55 |
53/1. | [1] | 140217-7000 | PLATE D19T3.60 |
53/1. | [1] | 140217-7100 | PLATE D19T3.65 |
53/1. | [1] | 140217-7200 | PLATE D19T3.70 |
53/1. | [1] | 140217-7300 | PLATE D19T3.75 |
53/1. | [1] | 140217-7400 | PLATE D19T3.80 |
53/1. | [1] | 140217-7500 | PLATE D19T3.85 |
53/1. | [1] | 140217-7600 | PLATE D19T3.90 |
53/1. | [1] | 140217-7700 | PLATE D19T3.95 |
53/1. | [1] | 140217-7800 | PLATE D19T4.00 |
53/1. | [1] | 140217-7900 | PLATE D19T4.05 |
53/1. | [1] | 140217-8000 | PLATE D19T4.10 |
53/1. | [1] | 140253-2000 | PLATE |
53/1. | [1] | 140253-2100 | PLATE |
53/1. | [1] | 140253-2200 | PLATE |
53/1. | [1] | 140253-2300 | PLATE |
53/1. | [1] | 140253-2400 | PLATE |
53/1. | [1] | 140253-2500 | PLATE |
53/1. | [1] | 140253-2600 | PLATE |
53/1. | [1] | 140253-2700 | PLATE |
53/1. | [1] | 140253-2800 | PLATE |
53/1. | [1] | 140253-2900 | PLATE |
53/1. | [1] | 140253-3000 | PLATE |
53/1. | [1] | 140253-3100 | PLATE |
53/1. | [1] | 140253-3200 | PLATE |
53/1. | [1] | 140253-3300 | PLATE |
53/1. | [1] | 140253-3400 | PLATE |
53/1. | [1] | 140253-3500 | PLATE |
53/1. | [1] | 140253-3600 | PLATE |
53/1. | [1] | 140253-3700 | PLATE |
53/1. | [1] | 140253-3800 | PLATE |
53/1. | [1] | 140253-3900 | PLATE |
53/1. | [1] | 140253-4000 | PLATE |
53/1. | [1] | 140253-4100 | PLATE |
53/1. | [1] | 140253-4200 | PLATE |
53/1. | [1] | 140253-4300 | PLATE |
53/1. | [1] | 140253-4400 | PLATE |
53/1. | [1] | 140253-4500 | PLATE |
53/1. | [1] | 140253-4600 | PLATE |
53/1. | [1] | 140253-4700 | PLATE |
53/1. | [1] | 140253-4800 | PLATE |
53/1. | [1] | 140253-4900 | PLATE |
60. | [1] | 140243-5620 | CONTROL RACK |
77. | [4] | 140241-4200 | CONTROL SLEEVE |
92. | [1] | 029711-2050 | INLET UNION |
93. | [1] | 140402-1300 | EYE BOLT |
94. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
113. | [1] | 026508-1240 | GASKET D11.9&8.2T1 |
114. | [1] | 140420-1400 | BLEEDER SCREW |
Include in #1:
106673-2390
as _
Include in #2:
104134-4012
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
10. Remove pin (18), spring and plunger from control lever (14). 11. Remove bearings (19) and two seals (20) from governor housing (13). 12. Remove seat (21), spring washer (22), flat washer (24), spring washer (23) and spring (25). 13. Remove washer (27) from governor bolt (26).14. Remove ring (28) from seat (29). 15. Remove dowel (30) from seat (29). Remove seat (29) and governor bolt (26) as a unit. Remove bolt (26) from seat (29). 16. Remove washer (31), spring (32), washer (33) and sleeve (34) from the servo piston valve. 17. Remove ring (38), large race (37), bearing (35) and small race (36) from sleeve (34). 18. Remove lock (40) from flyweight assembly (39). Remove flyweight assembly (40). 19. Bend the locks from bolts (41) and remove bolts (41).20. Remove bracket (42) and the servo piston assembly as a unit. 21. Remove piston (44) from pin (43). Remove pin (43) from bracket (42). 22. Remove sleeve (45) and valve (46) from piston (44). Remove O-ring seal (47) from sleeve (45). 23. Remove shaft (48) from bracket (42) with a hammer and punch.24. Remove lever (49) from bracket (42). 25. Hit (tap) lightly on cylinder (50) to remove it from the governor plate. 26. Remove O-ring seals (51) from cylinder (50). 27. Remove spiral ring (53), and then remove dowel (52) behind the spiral ring. 28. Remove drive assembly (54) and stop (55) from drive gear (56). 29. Turn the governor plate over and remove snap ring (57) from drive gear (56) with tool (B).30. Remove drive gear (56) from the governor plate. 31. If a replacement is needed, remove dowels (59), (60) and (61).32. Remove bearing (58) from the governor plate with tooling (A).Assemble Governor
1. If a replacement of the dowels in the governor plate is necessary, see illustration for correct installation dimensions. 2. Install bearing (1) for drive gear (2) in governor plate (3) with tooling (A) until it is .020 .010 in. (0.51 0.25 mm) below the top surface of the governor plate. 3. Put a small amount of clean engine oil on the inside diameter of bearing (1). Install drive gear (2) in governor plate (3). 4. Turn governor plate (3) over and install snap ring (4) that holds drive gear (2) in place. 5. Install O-ring seals (6) on cylinder (5). 6. Put a small amount of clean engine oil on the O-ring seals on cylinder (5). Install cylinder (5) in the governor plate with the notch in the cylinder in alignment with the bolt hole in the governor plate as shown.7. Install the O-ring seal on sleeve (9).8. Put a small amount of clean engine oil on piston (7), sleeve (9) and valve (8). Install sleeve (9) on piston (7) and valve (8) in piston (7) as shown.9. Install the servo piston assembly in cylinder (5). The valve (8), sleeve (9) and piston (7) are parts of the servo piston assembly. 10. Put lever (11) in position in bracket
1. If a replacement of the dowels in the governor plate is necessary, see illustration for correct installation dimensions. 2. Install bearing (1) for drive gear (2) in governor plate (3) with tooling (A) until it is .020 .010 in. (0.51 0.25 mm) below the top surface of the governor plate. 3. Put a small amount of clean engine oil on the inside diameter of bearing (1). Install drive gear (2) in governor plate (3). 4. Turn governor plate (3) over and install snap ring (4) that holds drive gear (2) in place. 5. Install O-ring seals (6) on cylinder (5). 6. Put a small amount of clean engine oil on the O-ring seals on cylinder (5). Install cylinder (5) in the governor plate with the notch in the cylinder in alignment with the bolt hole in the governor plate as shown.7. Install the O-ring seal on sleeve (9).8. Put a small amount of clean engine oil on piston (7), sleeve (9) and valve (8). Install sleeve (9) on piston (7) and valve (8) in piston (7) as shown.9. Install the servo piston assembly in cylinder (5). The valve (8), sleeve (9) and piston (7) are parts of the servo piston assembly. 10. Put lever (11) in position in bracket
