104132-6070 ZEXEL 9 410 617 381 BOSCH FUEL-INJECTION PUMP 9410617381 1041326070 ez40078

Information fuel-injection pump

BOSCH 9 410 617 381 9410617381

ZEXEL 104132-6070 1041326070

M.BISHI-HI.-NAG EZ40078 ez40078

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 104132-6070 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104132-6070
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105113-3100
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)	24.5{250}
10.	NOZZLE-HOLDER	105043-3020
11.	NOZZLE	105011-9730

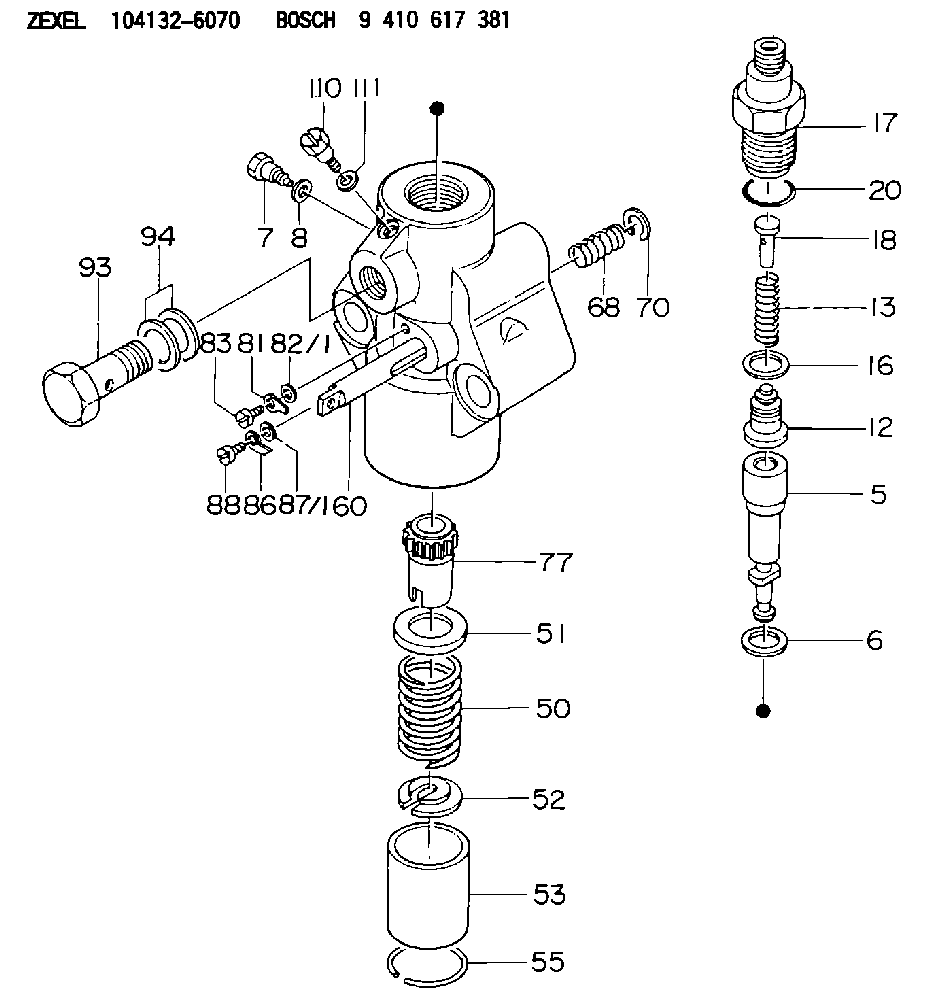

Scheme ###:

5.	[1]	140153-6520	PLUNGER-AND-BARREL ASSY
6.	[1]	029332-5040	GASKET D30&25T0.2
7.	[1]	140106-1400	CAPSULE
8.	[1]	029330-8050	GASKET
12.	[1]	141140-2720	DELIVERY-VALVE ASSEMBLY
13.	[1]	140112-2100	COMPRESSION SPRING
16.	[1]	141115-4900	GASKET
17.	[1]	140116-6820	FITTING
18.	[1]	140117-1000	FILLER PIECE
20.	[1]	140118-0000	O-RING
50.	[1]	140215-0700	COMPRESSION SPRING
51.	[1]	140216-1100	SLOTTED WASHER
52.	[1]	140254-1100	SLOTTED WASHER
53.	[1]	140218-1900	GUIDE
55.	[1]	140220-0200	LOCKING WASHER
60.	[1]	140243-1020	CONTROL RACK
68.	[1]	142233-0300	COILED SPRING
70.	[1]	029601-4000	LOCKING WASHER
77.	[1]	140241-2300	CONTROL SLEEVE
81.	[1]	141245-2000	POINTER
82/1.	[0]	023500-6210	PLAIN WASHER D11&6.4T1.5
82/1.	[0]	029300-6010	PLAIN WASHER D11&6.4T0.8
82/1.	[0]	029300-6020	PLAIN WASHER D11&6.4T0.35
83.	[1]	029050-6400	FLAT-HEAD SCREW
86.	[1]	142249-0400	FILLER PIECE
87/1.	[0]	023500-6210	PLAIN WASHER D11&6.4T1.5
87/1.	[0]	029300-6010	PLAIN WASHER D11&6.4T0.8
87/1.	[0]	029300-6020	PLAIN WASHER D11&6.4T0.35
88.	[1]	140250-0200	FLAT-HEAD SCREW
93.	[1]	140402-1700	EYE BOLT
94.	[2]	026518-2240	GASKET D21.9&18.2T1
110.	[1]	141420-0400	BLEEDER SCREW
111.	[1]	026506-1040	GASKET D9.9&6.2T1

Include in #1:

106673-7720 as _

106673-7721

Include in #2:

104132-6070 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104132-6070

9 410 617 381
NP-PF1ZD160A04N26

EZ40078 M.BISHI-HI.-NAG

FUEL-INJECTION PUMP
K 24CA FUEL INJECTION PUMP PF-1Z PF

Information:

Product smu/age whichevercomes first Caterpillar Dealer Suggested Customer Suggested
Parts (D/N) Labor Hrs (Cost) Parts Labor Hrs Parts (C/L) Labor Hrs (Sell)
0-4000 100% 2 0 0 0 0
4001-8000 0-48 mos 33.3% 1 0 0 50% 1
This is a 2-hour job.If all injectors are replaced:All 3408E Powered Machines
Product smu/age whichevercomes first Caterpillar Dealer Suggested Customer Suggested
Parts (D/N) Labor Hrs (Cost) Parts Labor Hrs Parts (C/L) Labor Hrs (Sell)
0-4000 100% 4 0 0 0 0
4001-8000 0-48 mos 33.3% 2 0 0 50% 2
This is a 4-hour job. All 3412E Powered Machines
Product smu/age whichevercomes first Caterpillar Dealer Suggested Customer Suggested
Parts (D/N) Labor Hrs (Cost) Parts Labor Hrs Parts (C/L) Labor Hrs (Sell)
0-4000 100% 6 0 0 0 0
4001-8000 0-48 mos 33.3% 3 0 0 50% 3
This is a 6-hour job.PARTS DISPOSITION
***** U.S. and Canadian Dealers *****Return Individual Injector(s) to:Caterpillar Inc.
Attn: PS5615
4-H Park Road
Pontiac, IL 61764Return Complete Injector Sets to:Caterpillar Inc.
Attn: PS5615
Service Claims Room
8201 N. University
Peoria, IL 61615***** All Other Dealers *****Handle the parts in accordance with your WarrantyBulletin on
warranty parts handling.
