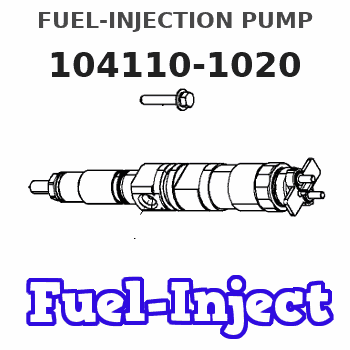

Information fuel-injection pump
BOSCH
9 410 617 307
9410617307
ZEXEL
104110-1020
1041101020
KUBOTA
1418151011
1418151011
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104110-1020 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

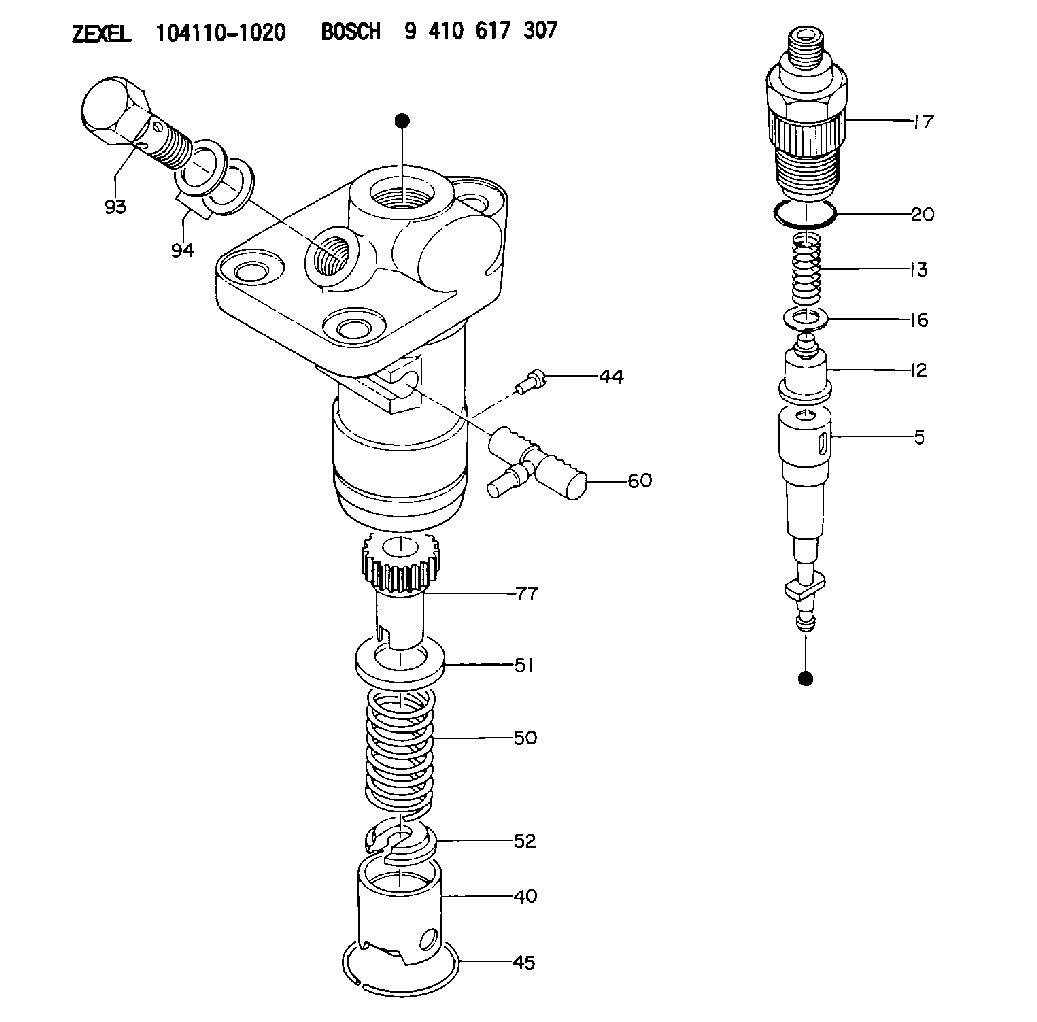

Scheme ###:
| 5. | [1] | 131151-8120 | PLUNGER-AND-BARREL ASSY |
| 12. | [1] | 131110-3020 | DELIVERY-VALVE ASSEMBLY |
| 13. | [1] | 140112-2200 | COMPRESSION SPRING |
| 16. | [1] | 140115-1800 | GASKET D16.0&10.0T0.50 |
| 17. | [1] | 140116-5700 | FITTING |
| 20. | [1] | 029632-0070 | O-RING &20W2 |
| 40. | [1] | 140200-2120 | TAPPET |
| 44. | [1] | 140212-0200 | BEARING PIN |
| 45. | [1] | 140213-0300 | LOCKING WASHER |
| 50. | [1] | 140215-1500 | COMPRESSION SPRING |
| 51. | [1] | 140216-1000 | SLOTTED WASHER |
| 52. | [1] | 140217-9400 | SLOTTED WASHER |
| 60. | [1] | 140243-0720 | CONTROL RACK |
| 77. | [1] | 140241-2900 | CONTROL SLEEVE |
| 93. | [1] | 140402-1400 | EYE BOLT |
| 94. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
Include in #1:
108622-2131
as _
Include in #2:
104110-1020
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104110-1020
1418151011 KUBOTA
FUEL-INJECTION PUMP
K 23WA FUEL INJECTION PUMP PFR-1AD PFR
K 23WA FUEL INJECTION PUMP PFR-1AD PFR
Information:
Table 1
Part Number Description
370-5513 Fuel Line
370-5516 Fuel Injection Line As
370-5517 Fuel Injection Line As
370-5518 Fuel Injection Line As
393-5467 Fuel Line
393-5468 Fuel Line
396-2606 Fuel Line
396-2607 Fuel Line
396-2608 Fuel Line
396-2609 Fuel Line Any of the part numbers listed in Table 1 may be affected.
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
If any of the fuel injection lines are leaking, Caterpillar recommends replacing all high-pressure fuel lines on the engine. Refer to Disassembly and Assembly, Fuel Injection Lines - Remove and Disassembly and Assembly, Fuel Injection Lines - Install.
