Information fuel-injection pump
BOSCH
9 410 617 018
9410617018
ZEXEL
104058-3300
1040583300

Rating:
Components :
0. | INJECTION-PUMP ASSEMBLY | 104058-3300 |
1. | _ | |
2. | FUEL INJECTION PUMP | |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | |
10. | NOZZLE-HOLDER | |
11. | NOZZLE | 105011-9200 |

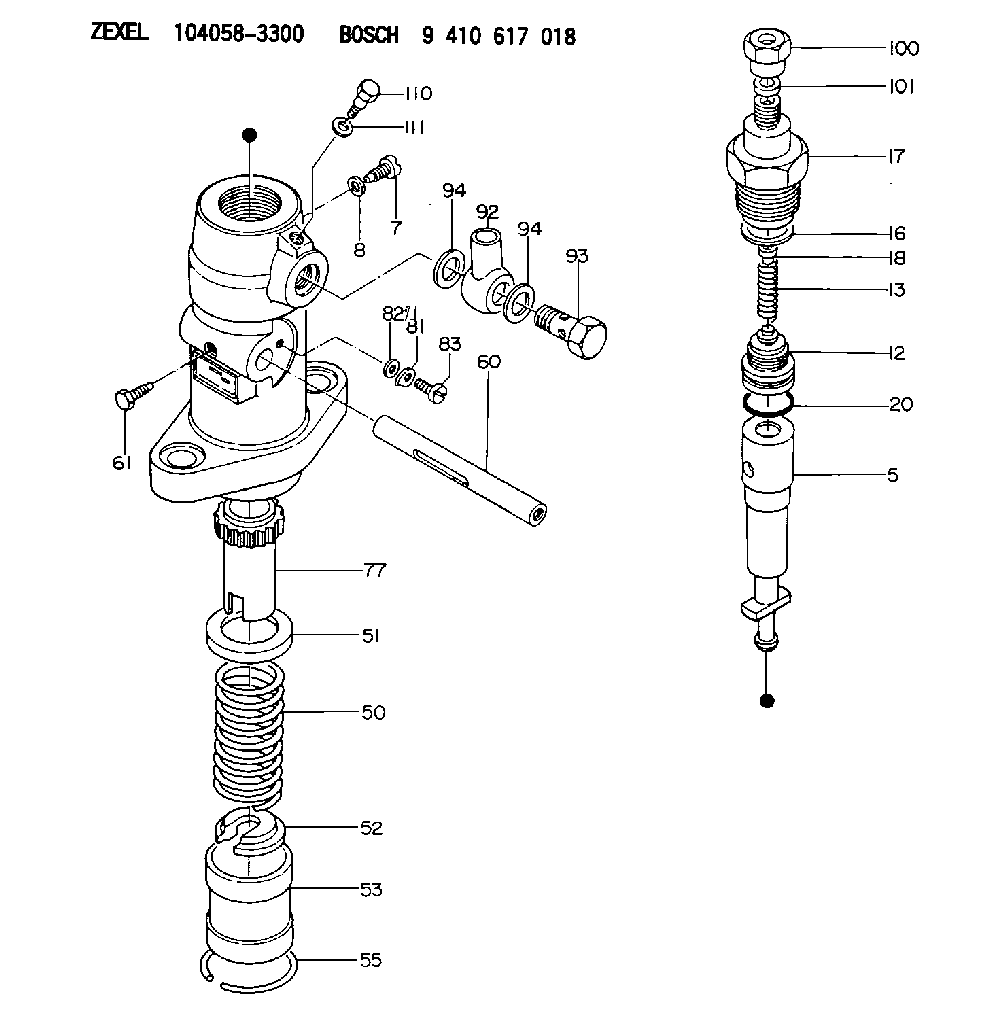

Scheme ###:
5. | [1] | 141170-9220 | PLUNGER-AND-BARREL ASSY |
7. | [1] | 141106-7500 | CAPSULE |
8. | [1] | 029331-0020 | GASKET |
12. | [1] | 141140-1120 | DELIVERY-VALVE ASSEMBLY |
13. | [1] | 141112-0600 | COMPRESSION SPRING |
16. | [1] | 141115-5400 | GASKET |
17. | [1] | 141126-1000 | FITTING |
18. | [1] | 141117-3400 | SLOTTED WASHER |
20. | [1] | 029633-2040 | O-RING |
50. | [1] | 141215-4001 | COMPRESSION SPRING |
51. | [1] | 141216-0100 | SLOTTED WASHER |
52. | [1] | 141217-2800 | SLOTTED WASHER |
53. | [1] | 141218-4600 | PLUNGER |
55. | [1] | 026110-6010 | LOCKING WASHER |
60. | [1] | 141243-5200 | CONTROL RACK |
61. | [1] | 141226-3000 | BLEEDER SCREW |
77. | [1] | 141241-0300 | CONTROL SLEEVE |
81. | [1] | 140245-0100 | POINTER |
82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
83. | [1] | 021006-1420 | FLAT-HEAD SCREW |
92. | [1] | 029702-2020 | INLET UNION |
93. | [1] | 029732-2050 | EYE BOLT |
94. | [2] | 026522-2740 | GASKET D26.9&22.2T1 |
94. | [2] | 026522-2740 | GASKET D26.9&22.2T1 |
100. | [1] | 029761-8190 | UNION NUT |
101. | [1] | 029351-0030 | PLAIN WASHER |
110. | [1] | 140420-1600 | BLEEDER SCREW |
111. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
Include in #1:
108622-2340
as _
Include in #2:
104058-3300
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104058-3300
FUEL-INJECTION PUMP
K 24EA FUEL INJECTION PUMP PF-1W(M) PF
K 24EA FUEL INJECTION PUMP PF-1W(M) PF
