Information fuel-injection pump
BOSCH
9 410 618 348
9410618348
ZEXEL
104058-0140
1040580140
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104058-0140 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

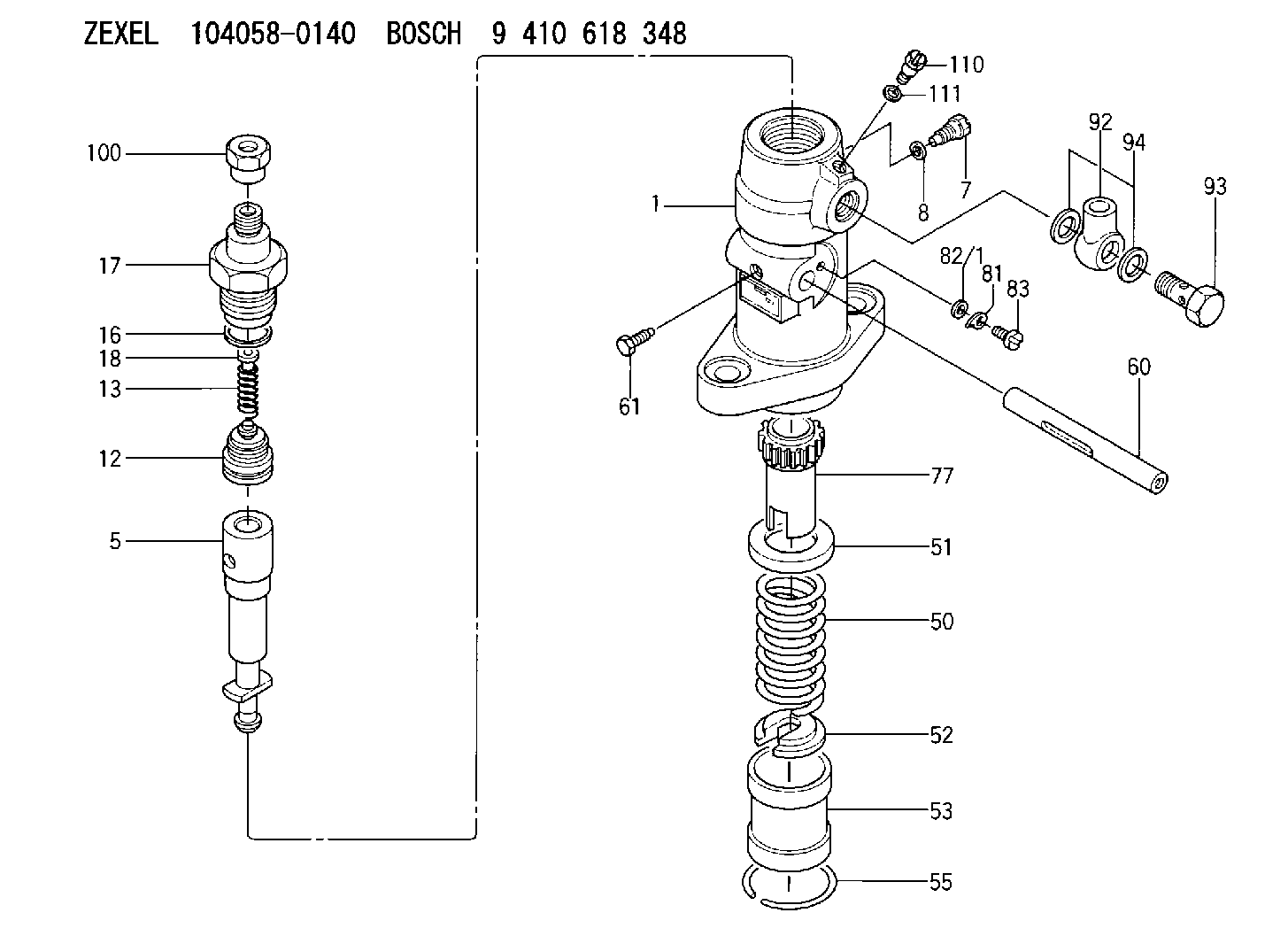

Scheme ###:
| 5. | [1] | 141170-5720 | PLUNGER-AND-BARREL ASSY |
| 7. | [1] | 141106-8100 | CAPSULE |
| 8. | [1] | 029341-0010 | GASKET |
| 12. | [1] | 141110-0420 | DELIVERY-VALVE ASSEMBLY |
| 13. | [1] | 141112-0600 | COMPRESSION SPRING |
| 16. | [1] | 141115-3500 | GASKET |
| 17. | [1] | 141116-2100 | FITTING |
| 18. | [1] | 141117-2100 | SLOTTED WASHER |
| 50. | [1] | 141215-0500 | COMPRESSION SPRING |
| 51. | [1] | 141216-0100 | SLOTTED WASHER |
| 52. | [1] | 141217-2700 | SLOTTED WASHER |
| 53. | [1] | 141218-4600 | PLUNGER |
| 55. | [1] | 026110-6010 | LOCKING WASHER |
| 60. | [1] | 141243-0600 | CONTROL RACK |
| 61. | [1] | 141226-3000 | BLEEDER SCREW |
| 77. | [1] | 141241-0300 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 92. | [1] | 029702-2050 | INLET UNION |
| 93. | [1] | 029732-2020 | EYE BOLT |
| 94. | [2] | 026522-2740 | GASKET D26.9&22.2T1 |
| 100. | [1] | 029762-2080 | UNION NUT |
| 110. | [1] | 140420-1600 | BLEEDER SCREW |
| 111. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
Include in #1:
106673-2400
as _
Include in #2:
104058-0140
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104058-0140
FUEL-INJECTION PUMP
K 24EA FUEL INJECTION PUMP PF-1W(M) PF
K 24EA FUEL INJECTION PUMP PF-1W(M) PF
