Information fuel-injection pump
BOSCH
9 410 617 791
9410617791
ZEXEL
104056-0240
1040560240
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104056-0240 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | 105103-3080 |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | 105033-6390 |
| 11. | NOZZLE |

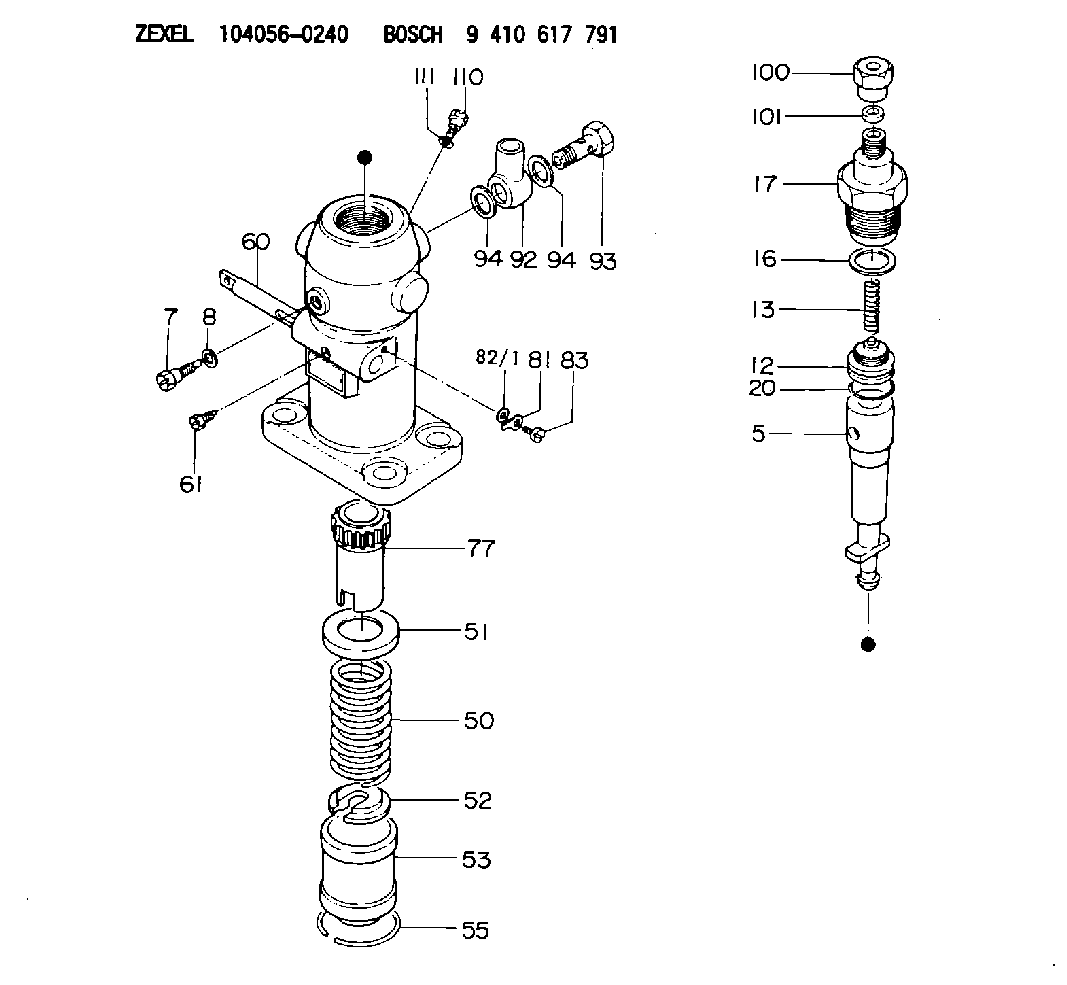

Scheme ###:
| 5. | [1] | 141170-6720 | PLUNGER-AND-BARREL ASSY |
| 7. | [1] | 141106-8100 | CAPSULE |
| 8. | [1] | 029331-0020 | GASKET |
| 12. | [1] | 141140-0420 | DELIVERY-VALVE ASSEMBLY |
| 13. | [1] | 141112-0600 | COMPRESSION SPRING |
| 16. | [1] | 141115-4400 | GASKET |
| 17. | [1] | 141126-7920 | FITTING |
| 20. | [1] | 029633-2040 | O-RING |
| 50. | [1] | 141215-1500 | COMPRESSION SPRING |
| 51. | [1] | 141216-0100 | SLOTTED WASHER |
| 52. | [1] | 141217-2800 | SLOTTED WASHER |
| 53. | [1] | 141218-4700 | GUIDE |
| 55. | [1] | 026110-6010 | LOCKING WASHER |
| 60. | [1] | 141243-7400 | CONTROL RACK |
| 61. | [1] | 141226-2200 | FLAT-HEAD SCREW |
| 77. | [1] | 141241-0200 | CONTROL SLEEVE |
| 81. | [1] | 141245-0800 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 021006-1420 | FLAT-HEAD SCREW |
| 92. | [1] | 027122-1840 | INLET UNION |
| 93. | [1] | 029732-2050 | EYE BOLT |
| 94. | [2] | 026522-2740 | GASKET D26.9&22.2T1 |
| 94. | [2] | 026522-2740 | GASKET D26.9&22.2T1 |
| 100. | [1] | 029762-2020 | UNION NUT |
| 101. | [1] | 029351-0010 | PLAIN WASHER |
| 110. | [1] | 140420-1600 | BLEEDER SCREW |
| 111. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
Include in #1:
106861-2490
as _
Include in #2:
104056-0240
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104056-0240
FUEL-INJECTION PUMP
K 24EA FUEL INJECTION PUMP PF-1W(M) PF
K 24EA FUEL INJECTION PUMP PF-1W(M) PF
