Information fuel-injection pump
BOSCH
9 410 617 287
9410617287
ZEXEL
104033-3030
1040333030
KUBOTA
1622601202
1622601202
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104033-3030 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | 105031-2220 |
| 11. | NOZZLE | 105000-1190 |
Scheme ###:

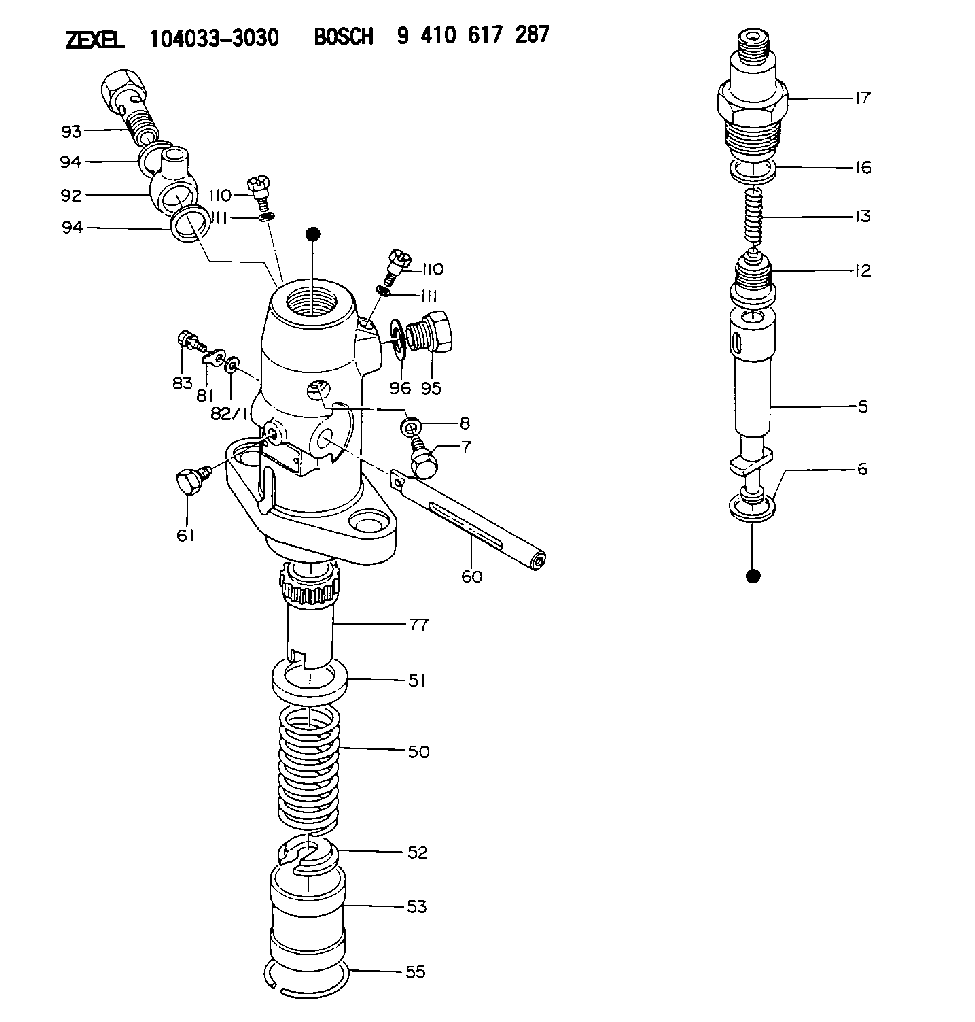

| 5. | [1] | 133101-0320 | PLUNGER-AND-BARREL ASSY |
| 6. | [1] | 029332-1010 | GASKET |
| 7. | [1] | 141106-7900 | CAPSULE |
| 8. | [1] | 029330-8050 | GASKET |
| 12. | [1] | 133110-0120 | DELIVERY-VALVE ASSEMBLY |
| 13. | [1] | 140112-1900 | COMPRESSION SPRING |
| 16. | [1] | 140115-1100 | GASKET |
| 17. | [1] | 140116-1600 | FITTING |
| 50. | [1] | 140215-1400 | COMPRESSION SPRING |
| 51. | [1] | 140216-1100 | SLOTTED WASHER |
| 52. | [1] | 140254-1100 | SLOTTED WASHER |
| 53. | [1] | 140218-0400 | GUIDE |
| 55. | [1] | 140220-0200 | LOCKING WASHER |
| 60. | [1] | 141230-6500 | CONTROL RACK |
| 61. | [1] | 141226-3000 | BLEEDER SCREW |
| 77. | [1] | 140241-1100 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 029010-6700 | BLEEDER SCREW |
| 92. | [1] | 029701-8130 | INLET UNION |
| 93. | [1] | 029731-8200 | EYE BOLT |
| 94. | [2] | 026518-2240 | GASKET D21.9&18.2T1 |
| 94. | [2] | 026518-2240 | GASKET D21.9&18.2T1 |
| 95. | [1] | 029111-8010 | CAPSULE M18P1.5L12 |
| 96. | [1] | 029331-8010 | GASKET |
| 110. | [2] | 140420-1600 | BLEEDER SCREW |
| 110. | [2] | 140420-1600 | BLEEDER SCREW |
| 111. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
| 111. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
Include in #1:
108822-2980
as _
Include in #2:
104033-3030
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104033-3030
1622601202 KUBOTA
FUEL-INJECTION PUMP
K 24CA FUEL INJECTION PUMP PF-1Z PF
K 24CA FUEL INJECTION PUMP PF-1Z PF
