103088-9220 ZEXEL 9 410 613 124 BOSCH FUEL-INJECTION PUMP 9410613124 1030889220




Information fuel-injection pump

BOSCH 9 410 613 124 9410613124
ZEXEL 103088-9220 1030889220
103088-9220 FUEL-INJECTION PUMP
Rating:
48
Buy FUEL-INJECTION PUMP 103088-9220 zexel genuine, new aftermarket engine parts with delivery

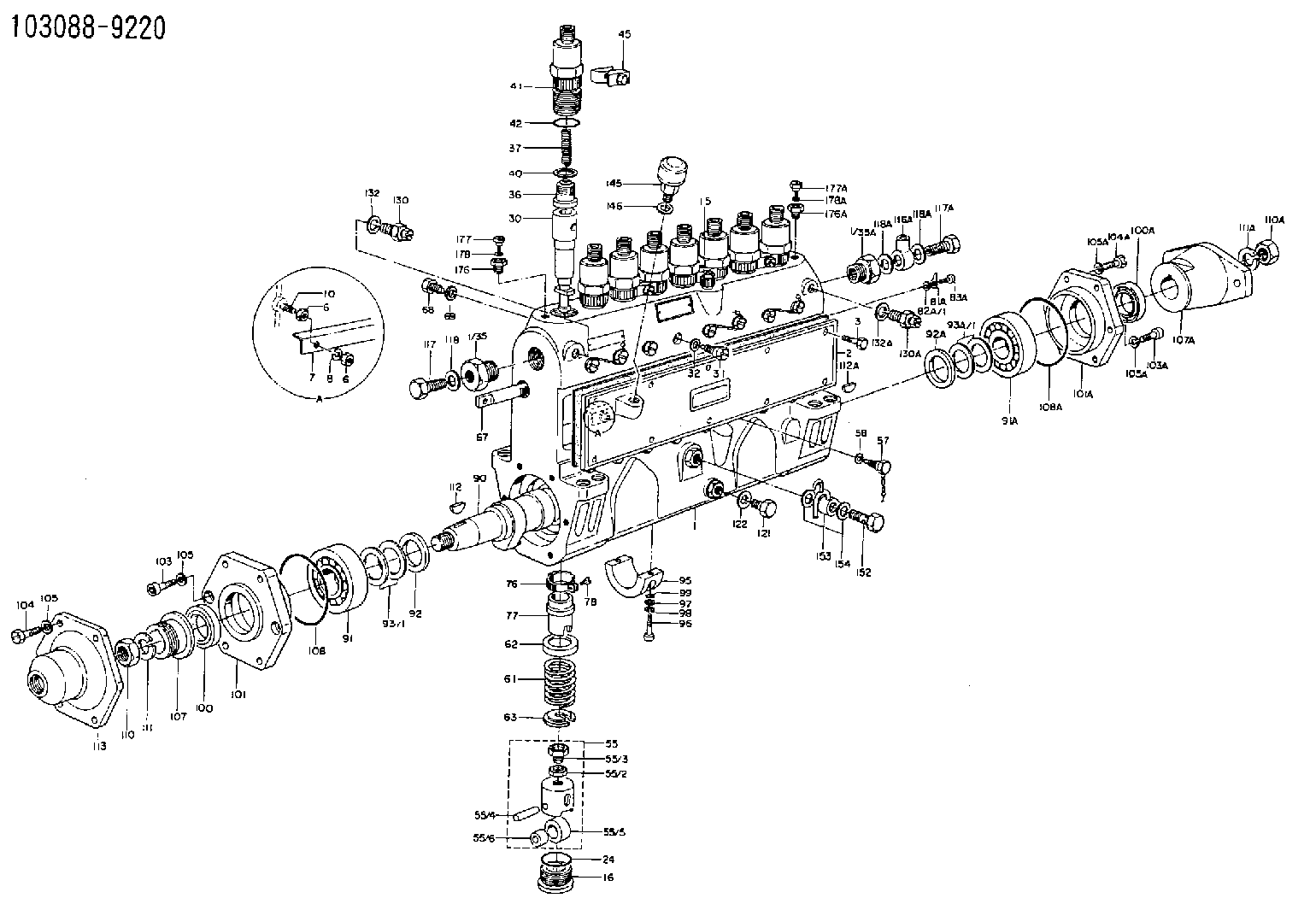

Scheme ###:

PUMP HOUSING
1. [1] 133050-5120 PUMP HOUSING
1/35. [1] 132400-1000 ADAPTOR
1/35A. [1] 132400-0900 ADAPTOR
2. [1] 133010-6220 COVER
2/2. [1] 133011-1300 GASKET
3. [10] 020106-1240 BLEEDER SCREW M6P1.0L12
6. [4] 013020-6020 UNION NUT M6P1H5
6. [4] 013020-6020 UNION NUT M6P1H5
7. [1] 133021-0500 COVER
8. [2] 014110-6410 LOCKING WASHER
10. [2] 139006-0300 STUD
15. [1] 133030-1620 LEVEL INDICATOR
16. [8] 133034-0100 CAPSULE
23. [1] 133041-0400 GASKET
24. [8] 029633-4010 O-RING
30. [8] 133151-4020 PLUNGER-AND-BARREL ASSY
31. [8] 133106-0500 CAPSULE
32. [8] 026510-1440 GASKET D13.9&10.2T1
36. [8] 133110-1320 DELIVERY-VALVE ASSEMBLY
37. [8] 133112-0100 COMPRESSION SPRING
40. [8] 133115-1000 GASKET
41. [8] 133116-2900 FITTING
42. [8] 029632-5030 O-RING
45. [4] 133122-1520 PLATE
55. [8] 133200-1120 TAPPET
55/2. [1] 133201-0101 UNION NUT
55/3. [1] 133202-0100 HEXAGON SCREW
55/4. [1] 133203-0400 BEARING PIN
55/5. [1] 133204-0300 ROLLER
55/6. [1] 133205-0300 BUSHING
57. [8] 133210-0300 FLAT-HEAD SCREW
58. [8] 026510-1340 GASKET D13.4&10.2T1
61. [8] 133215-0100 COMPRESSION SPRING
62. [8] 133216-0100 SLOTTED WASHER
63. [8] 133217-0100 SLOTTED WASHER
67. [1] 133258-0700 CONTROL RACK
68. [1] 133226-0600 FLAT-HEAD SCREW
69. [1] 023700-8120 TAB WASHER
76. [8] 133240-0100 PINION
77. [8] 133241-0200 CONTROL SLEEVE
78. [8] 131242-0100 FLAT-HEAD SCREW
81A. [1] 133245-0300 POINTER
82A/1. [0] 029300-5020 PLAIN WASHER D10&5.1T1.5
82A/1. [0] 029310-5080 SHIM D10&5T0.2
82A/1. [0] 029310-5090 SHIM D10&5.1T0.5
82A/1. [0] 029310-5110 SHIM D10&5.1T1
83A. [1] 021305-0940 FLAT-HEAD SCREW
90. [1] 133381-0601 CAMSHAFT
91. [1] 016603-3230 BEARING PLATE
91A. [1] 016603-3230 BEARING PLATE
92. [1] 133302-0200 SPACER RING
92A. [1] 133302-0200 SPACER RING
93/1. [0] 029313-0010 SHIM D45&30.2T0.1
93/1. [0] 029313-0020 SHIM D45&30.2T0.12
93/1. [0] 029313-0030 SHIM D45&30.2T0.14
93/1. [0] 029313-0040 SHIM D45&30.2T0.16
93/1. [0] 029313-0050 SHIM D45&30.2T0.18
93/1. [0] 029313-0060 SHIM D45&30.2T0.5
93/1. [0] 029313-0070 SHIM D45&30.2T1
93A/1. [0] 029313-0010 SHIM D45&30.2T0.1
93A/1. [0] 029313-0020 SHIM D45&30.2T0.12
93A/1. [0] 029313-0030 SHIM D45&30.2T0.14
93A/1. [0] 029313-0040 SHIM D45&30.2T0.16
93A/1. [0] 029313-0050 SHIM D45&30.2T0.18
93A/1. [0] 029313-0060 SHIM D45&30.2T0.5
93A/1. [0] 029313-0070 SHIM D45&30.2T1
95. [1] 133306-0200 BEARING SHELL
96. [2] 010208-4040 HEX-SOCKET-HEAD CAP SCREW
97. [2] 023500-8120 PLAIN WASHER
98. [2] 014110-8410 LOCKING WASHER
99. [2] 029630-9020 O-RING
100. [1] 029623-0010 PACKING RING
100A. [1] 029623-0010 PACKING RING
101. [1] 133316-3900 COVER
101A. [1] 133316-3900 COVER
103. [2] 010208-2020 HEX-SOCKET-HEAD CAP SCREW
103A. [2] 010208-2020 HEX-SOCKET-HEAD CAP SCREW
104. [4] 020308-3640 BLEEDER SCREW M8P1.25L36
104A. [4] 029010-8010 BLEEDER SCREW
105. [6] 014110-8410 LOCKING WASHER
105. [6] 014110-8410 LOCKING WASHER
105A. [6] 014110-8410 LOCKING WASHER
105A. [6] 014110-8410 LOCKING WASHER
107. [1] 133323-0600 BUSHING
107A. [1] 156611-6500 COUPLING PLATE
108. [1] 029637-6010 O-RING
108A. [1] 029637-6010 O-RING
110. [1] 023012-0040 UNION NUT M20P1.5H16
110A. [1] 023012-0040 UNION NUT M20P1.5H16
111. [1] 014112-0410 LOCKING WASHER
111A. [1] 014112-0410 LOCKING WASHER
112. [1] 025806-2210 WOODRUFF KEY
112A. [1] 025806-2210 WOODRUFF KEY
113. [1] 133328-1800 CAP
116A. [1] 029701-8180 INLET UNION
117. [1] 029111-4110 CAPSULE
117A. [1] 029731-8250 EYE BOLT
118. [2] 026514-1840 GASKET D17.9&14.2T1
118A. [1] 026518-2240 GASKET D21.9&18.2T1
118A. [1] 026518-2240 GASKET D21.9&18.2T1
121. [1] 133486-0200 CAPSULE
122. [1] 026510-1340 GASKET D13.4&10.2T1
130. [1] 131420-0720 BLEEDER SCREW
130A. [1] 131420-0720 BLEEDER SCREW
132. [1] 026512-1540 GASKET D15.4&12.2T1.50
132A. [1] 026512-1540 GASKET D15.4&12.2T1.50
145. [1] 155406-0220 AIR FILTER
146. [1] 026512-1540 GASKET D15.4&12.2T1.50
152. [1] 134430-1820 EYE BOLT
153. [1] 131431-5520 PIPE
154. [2] 026510-1340 GASKET D13.4&10.2T1
176. [1] 131419-0200 ADAPTOR
176A. [1] 131419-0200 ADAPTOR
177. [1] 131420-0200 BLEEDER SCREW
177A. [1] 131420-0200 BLEEDER SCREW
178. [1] 026506-1040 GASKET D9.9&6.2T1
178A. [1] 026506-1040 GASKET D9.9&6.2T1

Include in #1:

101608-1320 as _
103880-0100 as FUEL INJECTION PUMP

Cross reference number

Zexel num
Bosch num
Firm num
Name
103088-9220
9 410 613 124

FUEL-INJECTION PUMP
* Q




Information:

The regulator valve is mounted at the lower portion of the injection pump on the left side of the crankcase. It regulates pressure of engine oil that flows through the oil filter and oil cooler into the main gallery.When oil pressure in the main gallery exceeds specified level the regulator valve opens to return part of engine oil to the oil pan.(5) Lubrication of All PartsThe engine oil routed to the main oil gallery lubricates all parts as described in the following.(a) Main bearing and connecting rod bearing The oil main gallery connects to the crankshaft main bearing through oil holes for lubrication of the main bearing. Part of engine oil that has lubricated the main bearing flows through the oil

Have questions with 103088-9220?





Group cross 103088-9220 ZEXEL

103088-9200
9 410 613 122

FUEL-INJECTION PUMP
103088-9210
9 410 613 123

FUEL-INJECTION PUMP
103088-9220
9 410 613 124

FUEL-INJECTION PUMP
103088-9230
9 410 613 125
NP-PE8ZWM160/300RS80NP94

FUEL-INJECTION PUMP
103088-9240
9 410 613 126
NP-PE8ZWM160/300LS80NP95

FUEL-INJECTION PUMP
