103086-9150 ZEXEL 9 410 614 149 BOSCH FUEL-INJECTION PUMP 9410614149 1030869150




Information fuel-injection pump

BOSCH 9 410 614 149 9410614149
ZEXEL 103086-9150 1030869150
103086-9150 FUEL-INJECTION PUMP
Rating:
43
Buy FUEL-INJECTION PUMP 103086-9150 zexel genuine, new aftermarket engine parts with delivery

Scheme ###:

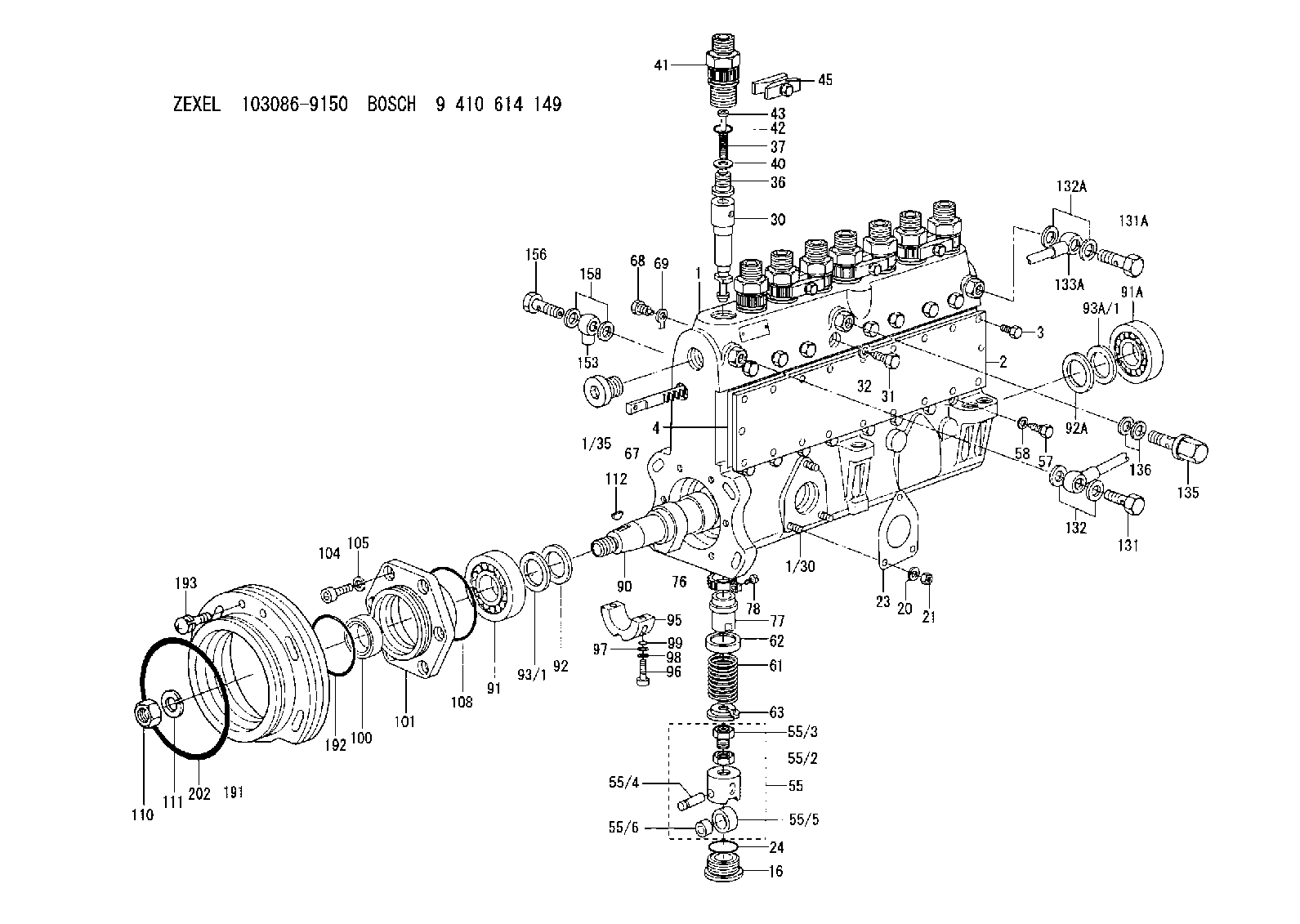

PUMP HOUSING
1. [1] 133051-4220 PUMP HOUSING
1/30. [3] 029040-6020 STUD
1/35. [1] 029112-4010 CAPSULE
2. [1] 133010-7500 COVER
3. [20] 020106-1440 BLEEDER SCREW M6P1.0L14
4. [1] 133011-1900 GASKET
16. [8] 133034-0100 CAPSULE
20. [3] 014110-6410 LOCKING WASHER
21. [3] 013020-6040 UNION NUT M6P1H5
23. [1] 133041-0400 GASKET
24. [8] 029633-4010 O-RING
30. [8] 133151-7420 PLUNGER-AND-BARREL ASSY
31. [8] 133106-0800 CAPSULE
32. [8] 026510-1440 GASKET D13.9&10.2T1
36. [8] 133110-3120 DELIVERY-VALVE ASSEMBLY
37. [8] 133112-0700 COILED SPRING
40. [8] 133115-1500 GASKET
41. [8] 133116-3520 FITTING
42. [8] 029632-5030 O-RING
43. [8] 134117-0500 FILLER PIECE
45. [4] 133122-1420 PLATE
55. [8] 133200-1920 TAPPET
55/2. [1] 133201-0300 UNION NUT
55/3. [1] 133202-0400 HEXAGON SCREW
55/4. [1] 133203-0400 BEARING PIN
55/5. [1] 133204-0600 ROLLER
55/6. [1] 133205-0300 BUSHING
57. [8] 133210-0400 FLAT-HEAD SCREW
58. [8] 026510-1340 GASKET D13.4&10.2T1
61. [8] 133215-0300 COMPRESSION SPRING
62. [8] 133216-0200 SLOTTED WASHER
63. [8] 133217-0100 SLOTTED WASHER
67. [1] 133258-1900 CONTROL RACK
68. [1] 133226-0700 FLAT-HEAD SCREW
69. [1] 133516-0400 TAB WASHER
76. [8] 133240-0100 PINION
77. [8] 133241-0200 CONTROL SLEEVE
78. [8] 131242-0100 FLAT-HEAD SCREW
90. [1] 133381-1000 CAMSHAFT
91. [1] 016603-3230 BEARING PLATE
91A. [1] 016603-3230 BEARING PLATE
92. [1] 133302-0200 SPACER RING
92A. [1] 133302-0200 SPACER RING
93/1. [0] 029313-0010 SHIM D45&30.2T0.1
93/1. [0] 029313-0020 SHIM D45&30.2T0.12
93/1. [0] 029313-0030 SHIM D45&30.2T0.14
93/1. [0] 029313-0040 SHIM D45&30.2T0.16
93/1. [0] 029313-0050 SHIM D45&30.2T0.18
93/1. [0] 029313-0060 SHIM D45&30.2T0.5
93/1. [0] 029313-0070 SHIM D45&30.2T1
93A/1. [0] 029313-0010 SHIM D45&30.2T0.1
93A/1. [0] 029313-0020 SHIM D45&30.2T0.12
93A/1. [0] 029313-0030 SHIM D45&30.2T0.14
93A/1. [0] 029313-0040 SHIM D45&30.2T0.16
93A/1. [0] 029313-0050 SHIM D45&30.2T0.18
93A/1. [0] 029313-0060 SHIM D45&30.2T0.5
93A/1. [0] 029313-0070 SHIM D45&30.2T1
95. [1] 133306-0200 BEARING SHELL
96. [2] 010208-4040 HEX-SOCKET-HEAD CAP SCREW
97. [2] 023500-8120 PLAIN WASHER
98. [2] 014110-8410 LOCKING WASHER
99. [2] 029630-9020 O-RING
100. [1] 029623-0070 PACKING RING
101. [1] 133316-5100 COVER
104. [6] 010208-2040 HEX-SOCKET-HEAD CAP SCREW
105. [6] 014110-8410 LOCKING WASHER
108. [1] 029637-6010 O-RING
110. [1] 023012-0040 UNION NUT M20P1.5H16
111. [1] 014112-0410 LOCKING WASHER
112. [1] 025806-2210 WOODRUFF KEY
131. [1] 029731-4280 EYE BOLT
131A. [1] 029731-4680 EYE BOLT
132. [3] 029341-4130 GASKET D20&13.8T2*
132A. [2] 029341-4130 GASKET D20&13.8T2*
133A. [1] 133431-1920 PIPE
135. [1] 131424-6620 OVER FLOW VALVE
136. [2] 029341-4130 GASKET D20&13.8T2*
153. [1] 027110-0640 INLET UNION
156. [1] 029731-4680 EYE BOLT
158. [2] 029341-4130 GASKET D20&13.8T2*
191. [1] 133459-0000 BRACKET
192. [1] 016520-7510 O-RING
193. [2] 020118-2020 BLEEDER SCREW
202. [1] 016511-2010 O-RING

Include in #1:

101602-1400 as _
101602-1402
103862-0430 as FUEL INJECTION PUMP
103862-0440
103862-0451

Cross reference number

Zexel num
Bosch num
Firm num
Name
103086-9150
103086-9151
9 410 614 149

FUEL-INJECTION PUMP
