Information fuel-injection pump
BOSCH
9 410 613 118
9410613118
ZEXEL
103086-9060
1030869060
Rating:

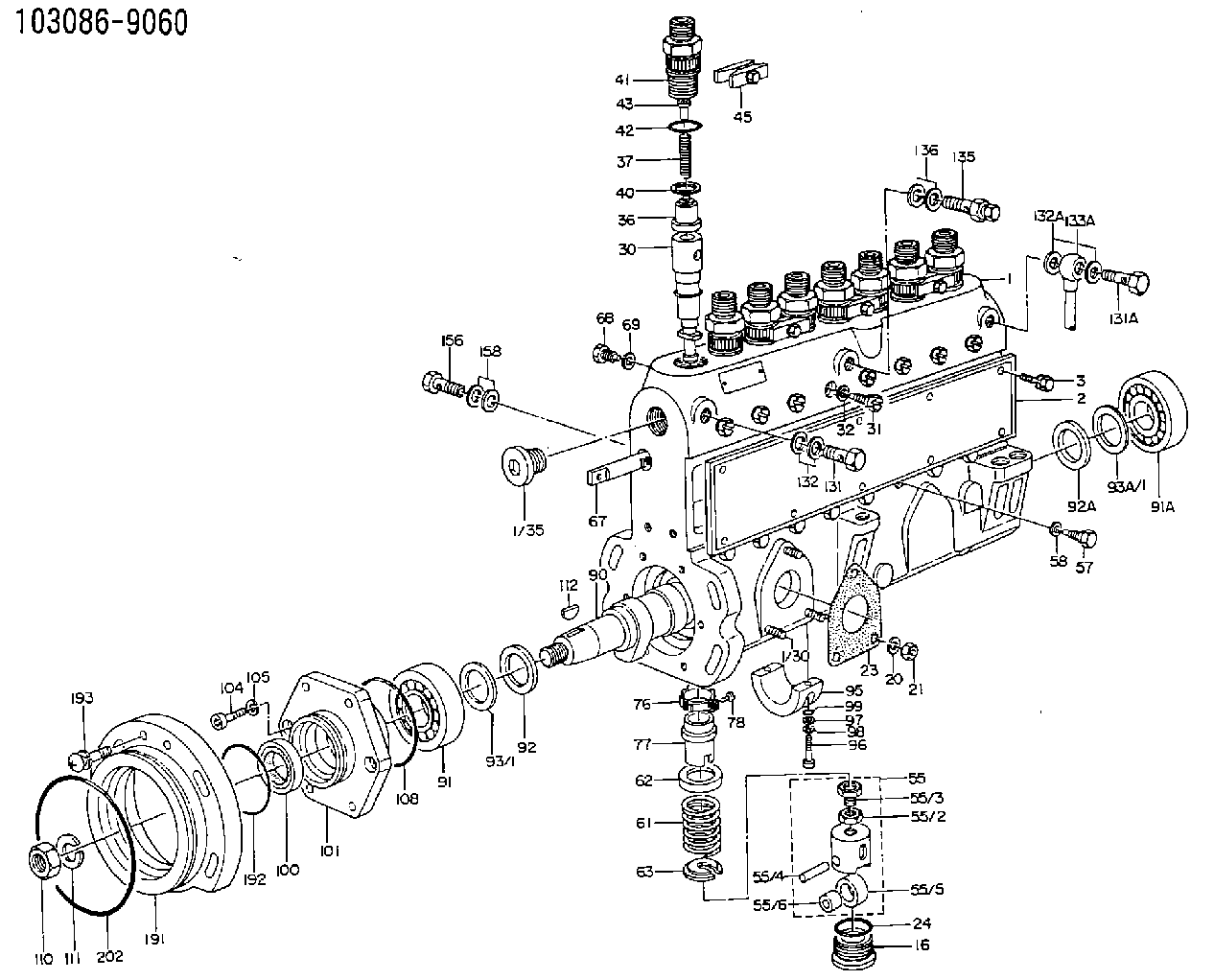

Scheme ###:
| 1. | [1] | 133051-2920 | PUMP HOUSING |
| 1/30. | [3] | 029040-6020 | STUD |
| 1/35. | [1] | 029112-4010 | CAPSULE |
| 2. | [1] | 133010-7220 | COVER |
| 2/2. | [1] | 133011-1300 | GASKET |
| 3. | [10] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
| 16. | [8] | 133034-0100 | CAPSULE |
| 20. | [3] | 014110-6410 | LOCKING WASHER |
| 21. | [3] | 013020-6040 | UNION NUT M6P1H5 |
| 23. | [1] | 133041-0400 | GASKET |
| 24. | [8] | 029633-4010 | O-RING |
| 30. | [8] | 133151-7420 | PLUNGER-AND-BARREL ASSY |
| 31. | [8] | 133106-0700 | CAPSULE |
| 32. | [8] | 026510-1440 | GASKET D13.9&10.2T1 |
| 36. | [8] | 133110-3120 | DELIVERY-VALVE ASSEMBLY |
| 37. | [8] | 133112-0700 | COILED SPRING |
| 40. | [8] | 133115-1500 | GASKET |
| 41. | [8] | 133116-3520 | FITTING |
| 42. | [8] | 029632-5030 | O-RING |
| 43. | [8] | 134117-0500 | FILLER PIECE |
| 45. | [4] | 133122-1420 | PLATE |
| 55. | [8] | 133200-1220 | TAPPET |
| 55/2. | [1] | 133201-0101 | UNION NUT |
| 55/3. | [1] | 133202-0100 | HEXAGON SCREW |
| 55/4. | [1] | 133203-0400 | BEARING PIN |
| 55/5. | [1] | 133204-0600 | ROLLER |
| 55/6. | [1] | 133205-0300 | BUSHING |
| 57. | [8] | 133210-0300 | FLAT-HEAD SCREW |
| 58. | [8] | 026510-1340 | GASKET D13.4&10.2T1 |
| 61. | [8] | 133215-0900 | COMPRESSION SPRING |
| 62. | [8] | 133216-0200 | SLOTTED WASHER |
| 63. | [8] | 133217-0100 | SLOTTED WASHER |
| 67. | [1] | 133258-1900 | CONTROL RACK |
| 68. | [1] | 133226-0700 | FLAT-HEAD SCREW |
| 69. | [1] | 133516-0400 | TAB WASHER |
| 76. | [8] | 133240-0100 | PINION |
| 77. | [8] | 133241-0200 | CONTROL SLEEVE |
| 78. | [8] | 131242-0100 | FLAT-HEAD SCREW |
| 90. | [1] | 133381-0900 | CAMSHAFT |
| 91. | [1] | 016603-3230 | BEARING PLATE |
| 91A. | [1] | 016603-3230 | BEARING PLATE |
| 92. | [1] | 133302-0200 | SPACER RING |
| 92A. | [1] | 133302-0200 | SPACER RING |
| 93/1. | [0] | 029313-0010 | SHIM D45&30.2T0.1 |
| 93/1. | [0] | 029313-0020 | SHIM D45&30.2T0.12 |
| 93/1. | [0] | 029313-0030 | SHIM D45&30.2T0.14 |
| 93/1. | [0] | 029313-0040 | SHIM D45&30.2T0.16 |
| 93/1. | [0] | 029313-0050 | SHIM D45&30.2T0.18 |
| 93/1. | [0] | 029313-0060 | SHIM D45&30.2T0.5 |
| 93/1. | [0] | 029313-0070 | SHIM D45&30.2T1 |
| 93A/1. | [0] | 029313-0010 | SHIM D45&30.2T0.1 |
| 93A/1. | [0] | 029313-0020 | SHIM D45&30.2T0.12 |
| 93A/1. | [0] | 029313-0030 | SHIM D45&30.2T0.14 |
| 93A/1. | [0] | 029313-0040 | SHIM D45&30.2T0.16 |
| 93A/1. | [0] | 029313-0050 | SHIM D45&30.2T0.18 |
| 93A/1. | [0] | 029313-0060 | SHIM D45&30.2T0.5 |
| 93A/1. | [0] | 029313-0070 | SHIM D45&30.2T1 |
| 95. | [1] | 133306-0200 | BEARING SHELL |
| 96. | [2] | 010208-4040 | HEX-SOCKET-HEAD CAP SCREW |
| 97. | [2] | 023500-8120 | PLAIN WASHER |
| 98. | [2] | 014110-8410 | LOCKING WASHER |
| 99. | [2] | 029630-9020 | O-RING |
| 100. | [1] | 029623-0010 | PACKING RING |
| 101. | [1] | 133316-5100 | COVER |
| 104. | [6] | 010208-2040 | HEX-SOCKET-HEAD CAP SCREW |
| 105. | [6] | 014110-8410 | LOCKING WASHER |
| 108. | [1] | 029637-6010 | O-RING |
| 110. | [1] | 023012-0040 | UNION NUT M20P1.5H16 |
| 111. | [1] | 014112-0410 | LOCKING WASHER |
| 112. | [1] | 025806-2210 | WOODRUFF KEY |
| 131. | [1] | 029731-4280 | EYE BOLT |
| 131A. | [1] | 029731-4680 | EYE BOLT |
| 132. | [3] | 029341-4130 | GASKET D20&13.8T2* |
| 132A. | [2] | 029341-4130 | GASKET D20&13.8T2* |
| 133A. | [1] | 133431-1920 | PIPE |
| 135. | [1] | 133424-0420 | OVER FLOW VALVE |
| 136. | [2] | 029341-4130 | GASKET D20&13.8T2* |
| 156. | [1] | 029731-4680 | EYE BOLT |
| 158. | [2] | 029341-4130 | GASKET D20&13.8T2* |
| 191. | [1] | 133459-0000 | BRACKET |
| 192. | [1] | 016520-7510 | O-RING |
| 193. | [2] | 020118-2020 | BLEEDER SCREW |
| 202. | [1] | 016511-2010 | O-RING |
