Information fuel-injection pump
BOSCH
9 410 612 935
9410612935
ZEXEL
103066-3240
1030663240
Rating:
Scheme ###:

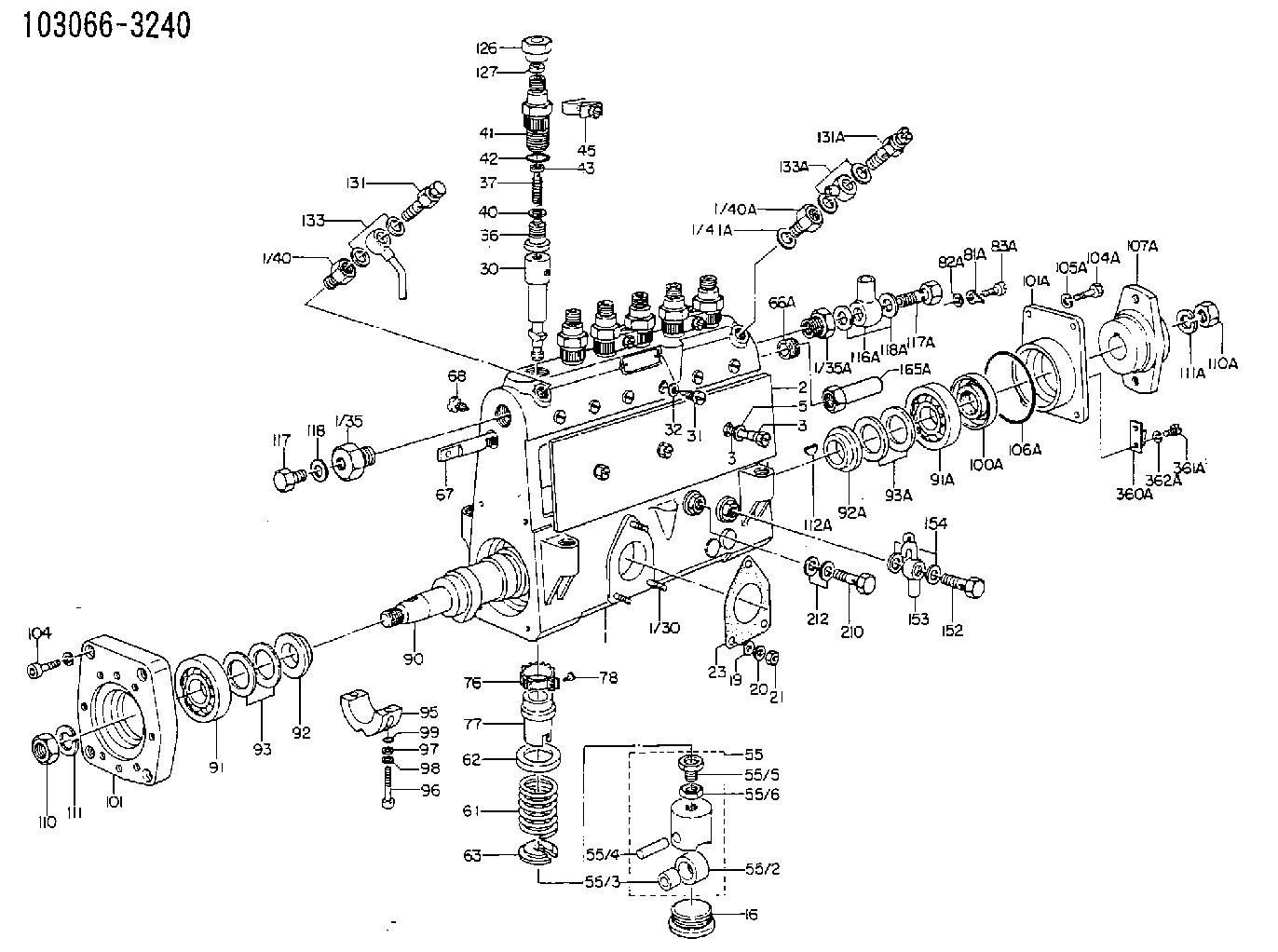

| 1. | [1] | 133050-5320 | PUMP HOUSING |
| 1/30. | [3] | 029040-6020 | STUD |
| 1/35A. | [1] | 132400-1000 | ADAPTOR |
| 1/40. | [1] | 131423-0200 | ADAPTOR |
| 1/40A. | [1] | 131420-0720 | BLEEDER SCREW |
| 2. | [1] | 133010-6920 | COVER |
| 2/2. | [1] | 133011-0100 | GASKET |
| 3. | [3] | 133017-0900 | FLAT-HEAD SCREW |
| 3. | [3] | 133017-0900 | FLAT-HEAD SCREW |
| 5. | [3] | 029340-8010 | GASKET D12&8T1.00 |
| 16. | [6] | 133034-0400 | CAPSULE |
| 19. | [3] | 029300-6030 | PLAIN WASHER D11&6.4T0.5 |
| 20. | [3] | 014110-6410 | LOCKING WASHER |
| 21. | [3] | 013020-6020 | UNION NUT M6P1H5 |
| 23. | [1] | 133041-0400 | GASKET |
| 30. | [6] | 133151-5220 | PLUNGER-AND-BARREL ASSY |
| 31. | [6] | 133106-0100 | CAPSULE |
| 32. | [6] | 029330-8110 | GASKET D13&8.2T1.5 |
| 36. | [6] | 133110-2920 | DELIVERY-VALVE ASSEMBLY |
| 37. | [6] | 134112-0100 | COILED SPRING |
| 40. | [6] | 134115-0100 | GASKET |
| 41. | [6] | 133116-2600 | FITTING |
| 42. | [6] | 029632-5030 | O-RING |
| 43. | [6] | 133117-0200 | FILLER PIECE |
| 45. | [3] | 133122-1420 | PLATE |
| 55. | [6] | 133200-1320 | TAPPET |
| 55/2. | [1] | 133204-0700 | ROLLER |
| 55/3. | [1] | 133205-0200 | BUSHING |
| 55/4. | [1] | 133203-0200 | BEARING PIN |
| 55/5. | [1] | 133202-0100 | HEXAGON SCREW |
| 55/6. | [1] | 133201-0101 | UNION NUT |
| 61. | [6] | 133215-0400 | COMPRESSION SPRING |
| 62. | [6] | 133216-0100 | SLOTTED WASHER |
| 63. | [6] | 133217-0300 | SLOTTED WASHER |
| 66. | [1] | 132222-0100 | BUSHING |
| 67. | [1] | 133256-0000 | CONTROL RACK |
| 68. | [1] | 132226-0400 | FLAT-HEAD SCREW |
| 76. | [6] | 133240-0100 | PINION |
| 77. | [6] | 133241-0200 | CONTROL SLEEVE |
| 78. | [6] | 131242-0100 | FLAT-HEAD SCREW |
| 90. | [1] | 133370-1200 | CAMSHAFT |
| 91. | [1] | 016650-3030 | BEARING PLATE |
| 91A. | [1] | 016650-3030 | BEARING PLATE |
| 92. | [1] | 133302-0100 | SPACER RING |
| 92A. | [1] | 133302-0100 | SPACER RING |
| 93/1. | [0] | 029312-6010 | SHIM D40&26T0.1 |
| 93/1. | [0] | 029312-6020 | SHIM D40&26T0.12 |
| 93/1. | [0] | 029312-6030 | SHIM D40&26T0.14 |
| 93/1. | [0] | 029312-6040 | SHIM D40&26T0.16 |
| 93/1. | [0] | 029312-6050 | SHIM D40&26T0.18 |
| 93/1. | [0] | 029312-6060 | SHIM D40&26T0.5 |
| 93A/1. | [0] | 029312-6010 | SHIM D40&26T0.1 |
| 93A/1. | [0] | 029312-6020 | SHIM D40&26T0.12 |
| 93A/1. | [0] | 029312-6030 | SHIM D40&26T0.14 |
| 93A/1. | [0] | 029312-6040 | SHIM D40&26T0.16 |
| 93A/1. | [0] | 029312-6050 | SHIM D40&26T0.18 |
| 93A/1. | [0] | 029312-6060 | SHIM D40&26T0.5 |
| 95. | [1] | 133305-0300 | BEARING SHELL |
| 96. | [2] | 010208-4040 | HEX-SOCKET-HEAD CAP SCREW |
| 97. | [2] | 023500-8120 | PLAIN WASHER |
| 98. | [2] | 023650-8310 | LOCKING WASHER |
| 99. | [2] | 029630-9020 | O-RING |
| 100A. | [1] | 029622-5010 | PACKING RING |
| 101A. | [1] | 133316-4201 | COVER |
| 104A. | [4] | 029010-8020 | BLEEDER SCREW |
| 105A. | [4] | 014110-8410 | LOCKING WASHER |
| 106A. | [1] | 029637-2000 | O-RING |
| 107A. | [1] | 156612-6300 | COUPLING PLATE |
| 110A. | [1] | 029201-8020 | UNION NUT |
| 111A. | [1] | 014111-8410 | LOCKING WASHER |
| 112A. | [1] | 025805-1910 | WOODRUFF KEY |
| 117. | [1] | 029111-8010 | CAPSULE M18P1.5L12 |
| 117A. | [1] | 029731-4570 | EYE BOLT |
| 118A. | [2] | 029341-4130 | GASKET D20&13.8T2* |
| 126. | [6] | 029761-8310 | UNION NUT |
| 127. | [6] | 029350-8020 | PLAIN WASHER |
| 131. | [1] | 133424-0221 | OVER FLOW VALVE |
| 133. | [2] | 026514-1840 | GASKET D17.9&14.2T1 |
| 152. | [1] | 029731-4680 | EYE BOLT |
| 154. | [2] | 029341-4130 | GASKET D20&13.8T2* |
| 210. | [1] | 134430-0200 | EYE BOLT |
| 212. | [2] | 029341-0110 | GASKET |
| 360A. | [1] | 133245-0500 | POINTER |
| 361A. | [2] | 010535-0840 | FLAT-HEAD SCREW M5P0.8L8 |
| 362A. | [2] | 014110-5440 | LOCKING WASHER |
Cross reference number
Zexel num
Bosch num
Firm num
Name
103066-3240
9 410 612 935
FUEL-INJECTION PUMP
* Q
* Q
