Information fuel-injection pump
BOSCH
9 410 613 085
9410613085
ZEXEL
103064-1050
1030641050

Rating:

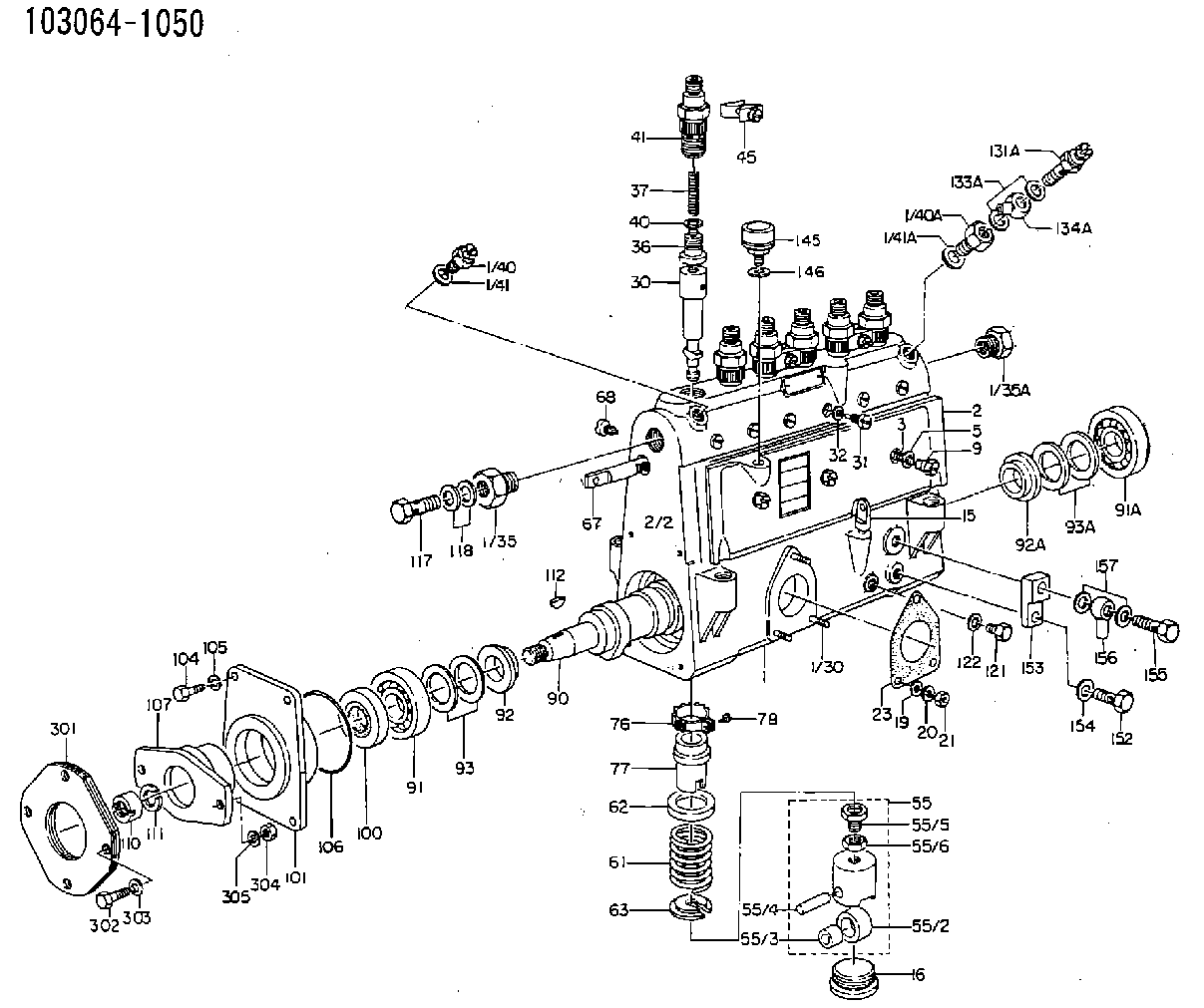

Scheme ###:
1. | [1] | 133050-0820 | PUMP HOUSING |
1/30. | [3] | 029040-6020 | STUD |
1/35. | [1] | 132400-0900 | ADAPTOR |
1/40. | [1] | 131420-0420 | BLEEDER SCREW |
1/40A. | [1] | 131423-0200 | ADAPTOR |
1/41. | [1] | 026512-1540 | GASKET D15.4&12.2T1.50 |
1/41A. | [1] | 026512-1540 | GASKET D15.4&12.2T1.50 |
2. | [1] | 133010-4620 | COVER |
2/2. | [1] | 133011-0100 | GASKET |
3. | [3] | 133017-0100 | FLAT-HEAD SCREW |
5. | [3] | 026508-1240 | GASKET D11.9&8.2T1 |
9. | [3] | 133023-0100 | CAP NUT |
15. | [1] | 133030-1220 | LEVEL INDICATOR |
16. | [6] | 133034-0400 | CAPSULE |
19. | [3] | 029300-6030 | PLAIN WASHER D11&6.4T0.5 |
20. | [3] | 014110-6410 | LOCKING WASHER |
21. | [3] | 013020-6040 | UNION NUT M6P1H5 |
23. | [1] | 133041-0400 | GASKET |
30. | [6] | 133151-1120 | PLUNGER-AND-BARREL ASSY |
31. | [6] | 133106-0600 | CAPSULE |
32. | [6] | 029330-8110 | GASKET D13&8.2T1.5 |
36. | [6] | 133110-2220 | DELIVERY-VALVE ASSEMBLY |
37. | [6] | 133112-0100 | COMPRESSION SPRING |
40. | [6] | 133115-0600 | GASKET |
41. | [6] | 133116-1600 | FITTING |
45. | [3] | 133122-1420 | PLATE |
55. | [6] | 133200-0120 | TAPPET |
55/2. | [1] | 133204-0200 | ROLLER |
55/3. | [1] | 133205-0200 | BUSHING |
55/4. | [1] | 133203-0200 | BEARING PIN |
55/5. | [1] | 133202-0100 | HEXAGON SCREW |
55/6. | [1] | 133201-0101 | UNION NUT |
61. | [6] | 133215-0100 | COMPRESSION SPRING |
62. | [6] | 133216-0100 | SLOTTED WASHER |
63. | [6] | 133217-0100 | SLOTTED WASHER |
67. | [1] | 133256-0000 | CONTROL RACK |
68. | [1] | 132226-0400 | FLAT-HEAD SCREW |
76. | [6] | 133240-0100 | PINION |
77. | [6] | 133241-0200 | CONTROL SLEEVE |
78. | [6] | 131242-0100 | FLAT-HEAD SCREW |
90. | [1] | 133370-0001 | CAMSHAFT |
91. | [1] | 016650-3030 | BEARING PLATE |
91A. | [1] | 016650-3030 | BEARING PLATE |
92. | [1] | 133302-0100 | SPACER RING |
92A. | [1] | 133302-0100 | SPACER RING |
93/1. | [0] | 029312-6010 | SHIM D40&26T0.1 |
93/1. | [0] | 029312-6020 | SHIM D40&26T0.12 |
93/1. | [0] | 029312-6030 | SHIM D40&26T0.14 |
93/1. | [0] | 029312-6040 | SHIM D40&26T0.16 |
93/1. | [0] | 029312-6050 | SHIM D40&26T0.18 |
93/1. | [0] | 029312-6060 | SHIM D40&26T0.5 |
93A/1. | [0] | 029312-6010 | SHIM D40&26T0.1 |
93A/1. | [0] | 029312-6020 | SHIM D40&26T0.12 |
93A/1. | [0] | 029312-6030 | SHIM D40&26T0.14 |
93A/1. | [0] | 029312-6040 | SHIM D40&26T0.16 |
93A/1. | [0] | 029312-6050 | SHIM D40&26T0.18 |
93A/1. | [0] | 029312-6060 | SHIM D40&26T0.5 |
100. | [1] | 029622-5010 | PACKING RING |
101. | [1] | 133316-0500 | COVER |
104. | [4] | 029010-8020 | BLEEDER SCREW |
105. | [4] | 014110-8410 | LOCKING WASHER |
106. | [1] | 029637-2000 | O-RING |
107. | [1] | 156611-0400 | COUPLING PLATE |
110. | [1] | 029231-8010 | UNION NUT |
111. | [1] | 014111-8410 | LOCKING WASHER |
112. | [1] | 025805-1910 | WOODRUFF KEY |
117. | [1] | 029731-8210 | EYE BOLT |
118. | [2] | 026518-2240 | GASKET D21.9&18.2T1 |
121. | [1] | 029111-0020 | CAPSULE |
122. | [1] | 026510-1440 | GASKET D13.9&10.2T1 |
131A. | [1] | 131424-1420 | OVER FLOW VALVE |
133A. | [2] | 029331-4230 | GASKET |
134A. | [1] | 027114-1040 | INLET UNION |
145. | [1] | 155406-0220 | AIR FILTER |
146. | [1] | 026512-1640 | GASKET D15.9&12.2T1 |
152. | [1] | 027414-2640 | EYE BOLT |
153. | [1] | 133431-0520 | CONNECTOR |
154. | [1] | 026514-1840 | GASKET D17.9&14.2T1 |
155. | [1] | 029731-2230 | EYE BOLT |
156. | [1] | 027112-0840 | INLET UNION |
157. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
301. | [6] | 156605-0200 | PLATE |
302. | [2] | 156603-1300 | BLEEDER SCREW |
303. | [2] | 156615-0100 | PLAIN WASHER |
304. | [2] | 029201-0140 | UNION NUT |
305. | [2] | 014111-0410 | LOCKING WASHER |
Cross reference number
Zexel num
Bosch num
Firm num
Name
103064-1050
9 410 613 085
FUEL-INJECTION PUMP
Q
Q
