101089-0520 ZEXEL 9 410 614 417 BOSCH FUEL-INJECTION PUMP 9410614417 1010890520




Information fuel-injection pump

BOSCH 9 410 614 417 9410614417
ZEXEL 101089-0520 1010890520
101089-0520 FUEL-INJECTION PUMP
Rating:
76
Buy FUEL-INJECTION PUMP 101089-0520 zexel genuine, new aftermarket engine parts with delivery

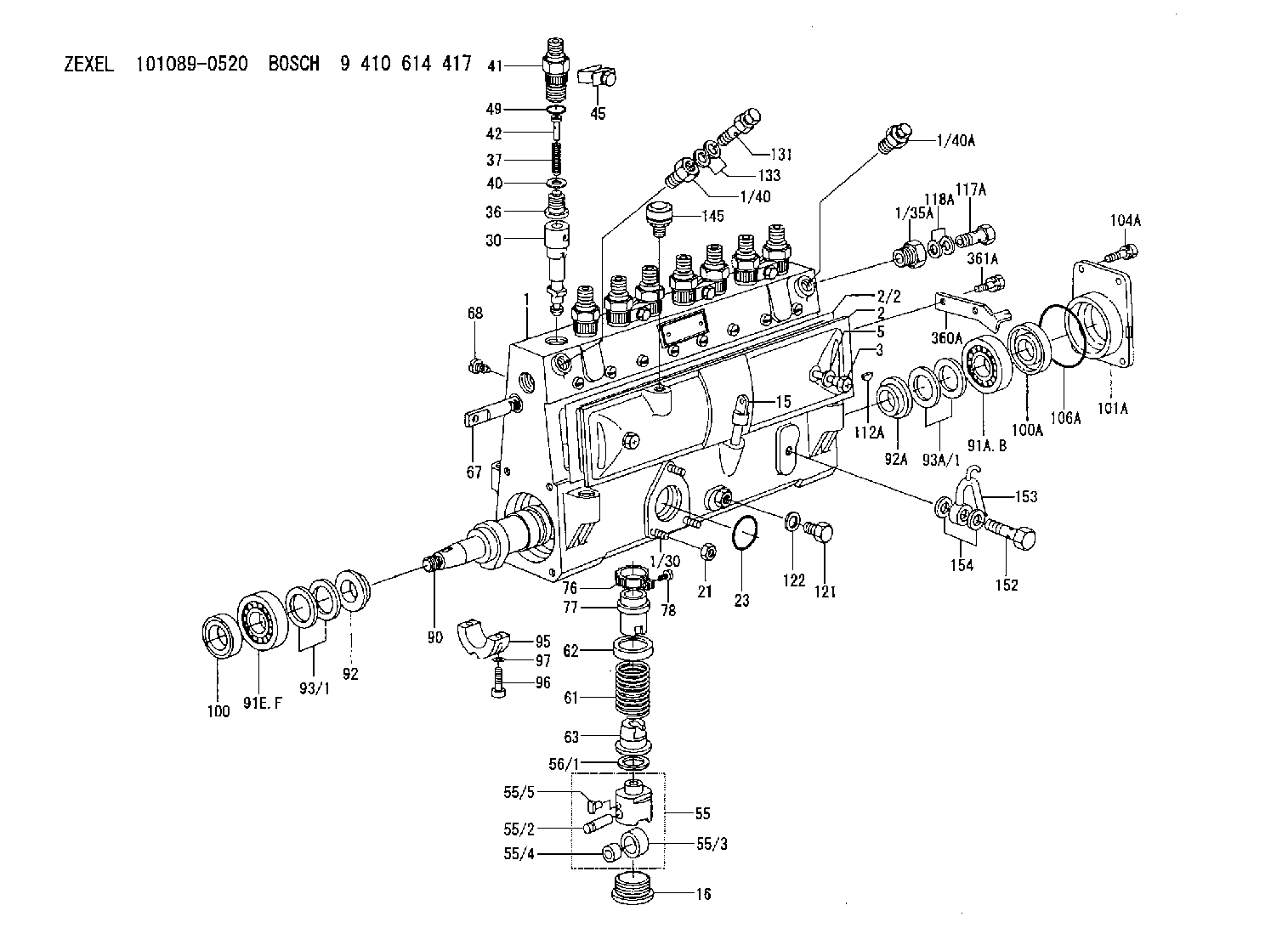

Scheme ###:

PUMP HOUSING
1. [1] 131080-0520 PUMP HOUSING
1/30. [3] 029040-6020 STUD
1/35A. [1] 131400-0100 ADAPTOR
1/40. [1] 131002-2000 ADAPTOR
1/40A. [1] 131420-0420 BLEEDER SCREW
2. [1] 131013-7920 COVER
2/2. [1] 131011-1300 GASKET
3. [3] 131017-1000 FLAT-HEAD SCREW
5. [3] 029340-6020 GASKET D10&6.5T1.00
15. [1] 131030-2020 LEVEL INDICATOR
16. [8] 131034-1401 CAPSULE
21. [3] 139206-0400 UNION NUT
23. [1] 029633-1010 O-RING
30. [8] 131152-7120 PLUNGER-AND-BARREL ASSY
36. [8] 131110-4320 DELIVERY-VALVE ASSEMBLY
37. [8] 131112-2300 COILED SPRING
40. [8] 131115-1600 GASKET
41. [8] 131116-7600 FITTING
42. [8] 131117-2300 FILLER PIECE
45. [4] 131122-0520 PLATE
49. [8] 029632-0030 O-RING
55. [8] 131200-0220 TAPPET
55/2. [1] 131203-0200 BEARING PIN
55/3. [1] 131204-1000 ROLLER
55/4. [1] 131205-0500 BUSHING
55/5. [1] 131206-0200 SLIDER
56/1. [0] 029311-0020 SHIM D19&10T0.30
56/1. [0] 029311-0030 SHIM D19&10T0.40
56/1. [0] 029311-0040 SHIM D19&10T0.50
56/1. [0] 029311-0050 SHIM D19&10T0.6
56/1. [0] 029311-0060 SHIM D19&10T0.7
56/1. [0] 029311-0070 SHIM D19&10T0.8
56/1. [0] 029311-0080 SHIM D19&10T0.9
56/1. [0] 029311-0090 SHIM D19&10T1
56/1. [0] 029311-0110 SHIM D19&10T1.1
56/1. [0] 029311-0120 SHIM D19&10T1.2
56/1. [0] 029311-0130 SHIM D19&10T1.3
56/1. [0] 029311-0140 SHIM D19&10T1.4
56/1. [0] 029311-0270 SHIM D19&10T0.55
56/1. [0] 029311-0280 SHIM D19&10T0.65
56/1. [0] 029311-0290 SHIM D19&10T0.75
56/1. [0] 029311-0310 SHIM D19&10T0.85
56/1. [0] 029311-0320 SHIM D19&10T0.95
56/1. [0] 029311-0330 SHIM D19&10T1.05
56/1. [0] 029311-0340 SHIM D19&10T1.15
56/1. [0] 029311-0350 SHIM D19&10T1.25
56/1. [0] 029311-0490 SHIM D19&10T1.5
56/1. [0] 029311-0500 SHIM D19&10T1.6
56/1. [0] 029311-0580 SHIM D19&10T0.2
56/1. [0] 029311-0590 SHIM D19&10T0.25
56/1. [0] 029311-0600 SHIM D19&10T0.35
56/1. [0] 029311-0610 SHIM D19&10T0.45
56/1. [0] 029311-0620 SHIM D19&10T1.35
56/1. [0] 029311-0630 SHIM D19&10T1.45
56/1. [0] 029311-0710 SHIM D19&10T1.55
61. [8] 131215-1200 COMPRESSION SPRING
62. [8] 131216-0100 SLOTTED WASHER
63. [8] 131217-0200 SLOTTED WASHER
67. [1] 131258-0000 CONTROL RACK
68. [1] 131226-0300 FLAT-HEAD SCREW
76. [8] 131240-0100 PINION
77. [8] 131241-0100 CONTROL SLEEVE
78. [8] 131242-0100 FLAT-HEAD SCREW
90. [1] 131380-0200 CAMSHAFT
91A. [1] 016640-2030 BEARING PLATE
91B. [1] 028202-0020 BEARING PLATE
91E. [1] 016630-2030 BEARING PLATE
91F. [1] 028201-7020 BEARING PLATE
92. [1] 131302-0300 SPACER RING
92A. [1] 131302-1301 SPACER RING
93/1. [0] 029311-7010 SHIM D22&17T0.1
93/1. [0] 029311-7020 SHIM D22&17T0.12
93/1. [0] 029311-7030 SHIM D22&17T0.14
93/1. [0] 029311-7040 SHIM D22&17T0.16
93/1. [0] 029311-7050 SHIM D22&17T0.18
93/1. [0] 029311-7060 SHIM D22&17T0.5
93/1. [0] 029311-7070 SHIM D22&17T1.0
93/1. [0] 029311-7090 SHIM D22&17T0.3
93/1. [0] 029311-7210 SHIM D22&17T0.7
93/1. [0] 029311-7220 SHIM D22&17T1.4
93/1. [0] 139417-0000 SHIM D22&17T2.4
93A/1. [0] 029312-0310 SHIM D24&20T0.10
93A/1. [0] 029312-0320 SHIM D24&20T0.12
93A/1. [0] 029312-0330 SHIM D24&20T0.14
93A/1. [0] 029312-0340 SHIM D24&20T0.16
93A/1. [0] 029312-0350 SHIM D24&20T0.18
93A/1. [0] 029312-0360 SHIM D24&20T0.3
93A/1. [0] 029312-0370 SHIM D24&20T0.5
93A/1. [0] 029312-0380 SHIM D24&20T1.0
95. [1] 131306-0800 BEARING SHELL
96. [2] 029050-5010 FLAT-HEAD SCREW M5P0.8L32
97. [2] 026505-0940 GASKET
100. [1] 029621-7020 PACKING RING
100A. [1] 029622-0190 PACKING RING
101A. [1] 131316-2000 COVER
104A. [4] 020006-1440 BLEEDER SCREW M6P1L14
106A. [1] 029635-0050 O-RING
112A. [1] 029470-4030 WOODRUFF KEY
117A. [1] 029731-4680 EYE BOLT
118A. [2] 026514-1840 GASKET D17.9&14.2T1
121. [1] 029111-0010 CAPSULE
122. [1] 029341-0020 GASKET
131. [1] 131424-1520 OVER FLOW VALVE
133. [2] 026514-1840 GASKET D17.9&14.2T1
145. [1] 155406-0220 AIR FILTER
152. [1] 029731-0170 EYE BOLT
153. [1] 131431-5820 PIPE
154. [2] 026510-1340 GASKET D13.4&10.2T1
360A. [1] 131496-1000 POINTER
361A. [2] 029010-6680 BLEEDER SCREW

Include in #1:

101891-9001 as FUEL INJECTION PUMP
108622-3114 as _

Cross reference number

Zexel num
Bosch num
Firm num
Name
101089-0520
9 410 614 417
NP-PE8A90C412RS2000

FUEL-INJECTION PUMP
* Q




Information:

Introduction
Do not perform any procedure in this Special Instruction until you have read the information and you understand the information.The actuator and pump groups of these fuel injectors are sensitive to debris in the oil. The injector may malfunction due to debris in the oil, causing seizure, or high leaks in components.
Table 1
Revision Table
Revision Summary of Changes
3 Added serial numbers. Improvement Procedure
Clean oil rail after pump failure.Reference: Refer to Special Instruction, REHS3819 for the procedure to clean the oil rail after engine failure to avoid debris in the oil system.
Use clean oil and clean filters.The life of the injector depends on the oil quality. It can be increased if good cleaning practices are performed before installing the injectors.Reference: Refer to Operation and Maintenance Manual, SEBU6250 and Operation and Maintenance Manual, SEBU6251 for direction on oil sampling intervals and optimizing engine oil life.
Illustration 1 g06207717
(1) Actuator
(2) Pump Group
(3) Valve Seat Damage Due to Debris in the Oil SystemInjector Failure Due To Damage From Debris In The Oil May Not Be A Warrantable Failure
Illustration 2 g06244961

Have questions with 101089-0520?





Group cross 101089-0520 ZEXEL

101089-0520
9 410 614 417
NP-PE8A90C412RS2000

FUEL-INJECTION PUMP
