Information fuel-injection pump
BOSCH
9 410 612 801
9410612801
ZEXEL
101089-0440
1010890440
MITSUBISHI
ME717182
me717182
Rating:

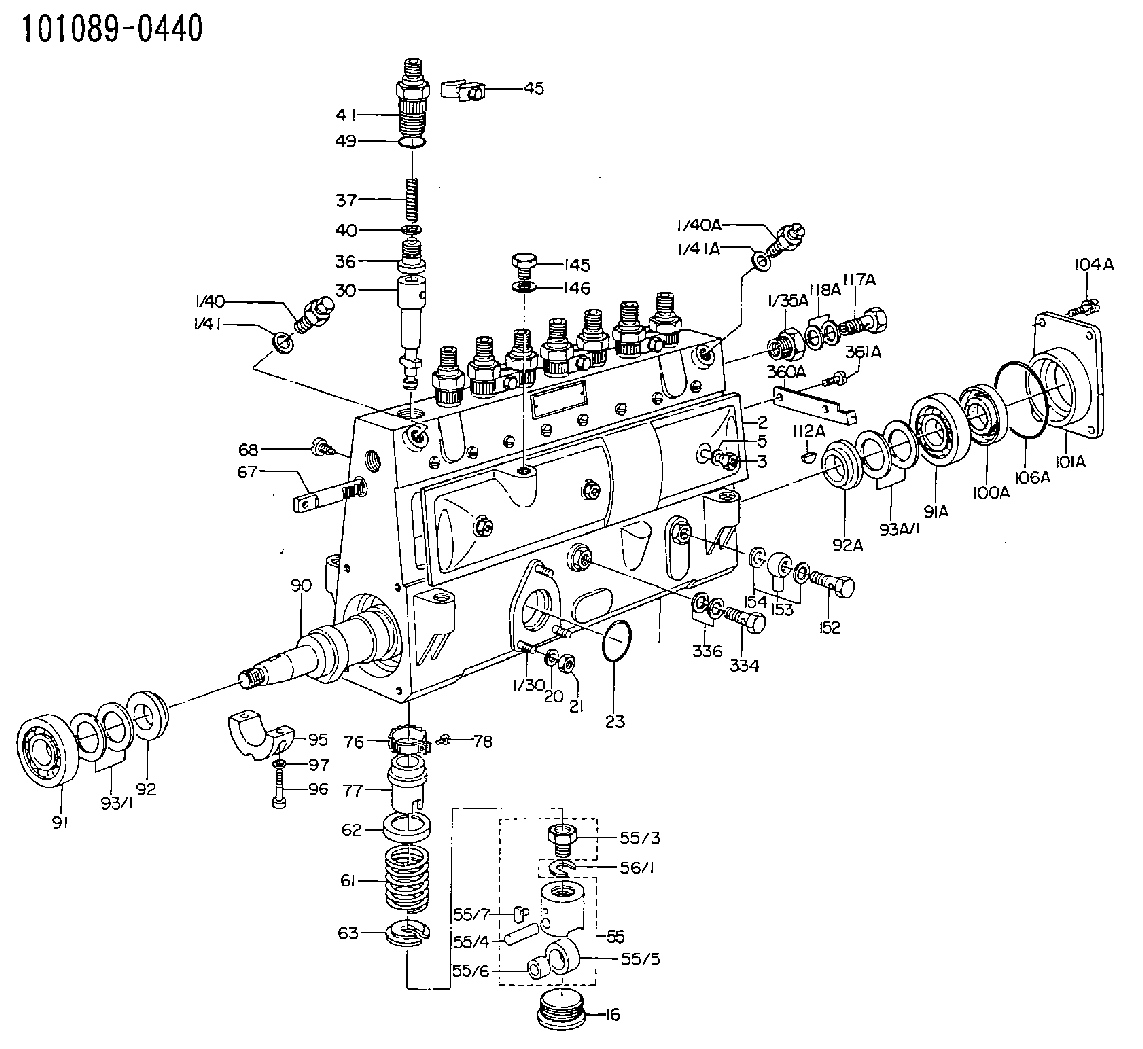

Scheme ###:
| 1. | [1] | 131085-6620 | PUMP HOUSING |
| 1/30. | [3] | 029040-6020 | STUD |
| 1/35A. | [1] | 131400-0100 | ADAPTOR |
| 1/40. | [1] | 131420-3120 | BLEEDER SCREW |
| 1/40A. | [1] | 131420-3120 | BLEEDER SCREW |
| 1/41. | [1] | 026512-1540 | GASKET D15.4&12.2T1.50 |
| 1/41A. | [1] | 026512-1540 | GASKET D15.4&12.2T1.50 |
| 2. | [1] | 131028-3020 | COVER |
| 2/2. | [1] | 131011-1300 | GASKET |
| 3. | [3] | 131017-1000 | FLAT-HEAD SCREW |
| 5. | [3] | 026506-1040 | GASKET D9.9&6.2T1 |
| 16. | [8] | 131034-1501 | CAPSULE |
| 21. | [3] | 139206-0400 | UNION NUT |
| 23. | [1] | 029633-1010 | O-RING |
| 30. | [8] | 131101-9020 | PLUNGER-AND-BARREL ASSY |
| 36. | [8] | 131110-8420 | DELIVERY-VALVE ASSEMBLY |
| 37. | [8] | 131112-0700 | COILED SPRING |
| 40. | [8] | 131115-0800 | GASKET |
| 41. | [8] | 131116-6100 | FITTING |
| 45. | [4] | 131122-0520 | PLATE |
| 49. | [8] | 029632-0070 | O-RING &20W2 |
| 55. | [8] | 131200-2220 | TAPPET |
| 55/3. | [1] | 131202-0200 | HEXAGON SCREW |
| 55/4. | [1] | 131203-0500 | BEARING PIN |
| 55/5. | [1] | 131204-0800 | ROLLER |
| 55/6. | [1] | 131205-0400 | BUSHING |
| 55/7. | [1] | 131206-0700 | SLIDER |
| 56/1. | [0] | 131209-0000 | SHIM D17&9.2T0.65 |
| 56/1. | [0] | 131209-0100 | SHIM D17&9.2T0.7 |
| 56/1. | [0] | 131209-0200 | SHIM D17&9.2T0.75 |
| 56/1. | [0] | 131209-0300 | SHIM D17&9.2T0.8 |
| 56/1. | [0] | 131209-0400 | SHIM D17&9.2T0.85 |
| 56/1. | [0] | 131209-0500 | SHIM D17&9.2T0.9 |
| 56/1. | [0] | 131209-0600 | SHIM D17&9.2T0.95 |
| 56/1. | [0] | 131209-0700 | SHIM D17&9.2T1.0 |
| 56/1. | [0] | 131209-0800 | SHIM D17&9.2T1.05 |
| 56/1. | [0] | 131209-0900 | SHIM D17&9.2T1.1 |
| 56/1. | [0] | 131209-1000 | SHIM D17&9.2T1.15 |
| 56/1. | [0] | 131209-1100 | SHIM D17&9.2T1.2 |
| 56/1. | [0] | 131209-1200 | SHIM D17&9.2T1.25 |
| 56/1. | [0] | 131209-1300 | SHIM D17&9.2T1.3 |
| 56/1. | [0] | 131209-1400 | SHIM D17&9.2T1.35 |
| 56/1. | [0] | 131209-1500 | SHIM D17&9.2T1.4 |
| 56/1. | [0] | 131209-1600 | SHIM D17&9.2T1.45 |
| 56/1. | [0] | 131209-1700 | SHIM D17&9.2T1.5 |
| 56/1. | [0] | 131209-1800 | SHIM D17&9.2T1.55 |
| 56/1. | [0] | 131209-1900 | SHIM D17&9.2T1.6 |
| 56/1. | [0] | 131209-2000 | SHIM D17&9.2T1.65 |
| 56/1. | [0] | 131209-2100 | SHIM D17&9.2T1.7 |
| 56/1. | [0] | 131209-2200 | SHIM D17&9.2T1.75 |
| 56/1. | [0] | 131209-2300 | SHIM D17&9.2T1.8 |
| 56/1. | [0] | 131209-2400 | SHIM D17&9.2T1.85 |
| 56/1. | [0] | 131209-2500 | SHIM D17&9.2T1.9 |
| 56/1. | [0] | 131209-2600 | SHIM D17&9.2T1.95 |
| 56/1. | [0] | 131209-2700 | SHIM D17&9.2T2.0 |
| 56/1. | [0] | 131209-2800 | SHIM D17&9.2T2.05 |
| 56/1. | [0] | 131209-2900 | SHIM D17&9.2T2.1 |
| 61. | [8] | 131215-2200 | COMPRESSION SPRING |
| 62. | [8] | 131216-0100 | SLOTTED WASHER |
| 63. | [8] | 131217-0100 | SLOTTED WASHER |
| 67. | [1] | 131258-0000 | CONTROL RACK |
| 68. | [1] | 131226-0300 | FLAT-HEAD SCREW |
| 76. | [8] | 131240-0100 | PINION |
| 77. | [8] | 131241-0500 | CONTROL SLEEVE |
| 78. | [8] | 131242-0100 | FLAT-HEAD SCREW |
| 90. | [1] | 131385-0000 | CAMSHAFT |
| 91. | [1] | 016630-2030 | BEARING PLATE |
| 91A. | [1] | 016640-2030 | BEARING PLATE |
| 92. | [1] | 131302-0400 | SPACER RING |
| 92A. | [1] | 131302-1000 | SPACER RING |
| 93/1. | [0] | 029311-7010 | SHIM D22&17T0.1 |
| 93/1. | [0] | 029311-7020 | SHIM D22&17T0.12 |
| 93/1. | [0] | 029311-7030 | SHIM D22&17T0.14 |
| 93/1. | [0] | 029311-7040 | SHIM D22&17T0.16 |
| 93/1. | [0] | 029311-7050 | SHIM D22&17T0.18 |
| 93/1. | [0] | 029311-7060 | SHIM D22&17T0.5 |
| 93/1. | [0] | 029311-7070 | SHIM D22&17T1.0 |
| 93/1. | [0] | 029311-7090 | SHIM D22&17T0.3 |
| 93/1. | [0] | 029311-7210 | SHIM D22&17T0.7 |
| 93/1. | [0] | 029311-7220 | SHIM D22&17T1.4 |
| 93/1. | [0] | 139417-0000 | SHIM D22&17T2.4 |
| 93A/1. | [0] | 029312-0220 | SHIM D27&20T0.1 |
| 93A/1. | [0] | 029312-0230 | SHIM D27&20T0.12 |
| 93A/1. | [0] | 029312-0240 | SHIM D27&20T0.14 |
| 93A/1. | [0] | 029312-0250 | SHIM D27&20T0.16 |
| 93A/1. | [0] | 029312-0260 | SHIM D27&20T0.18 |
| 93A/1. | [0] | 029312-0270 | SHIM D27&20T0.5 |
| 93A/1. | [0] | 029312-0290 | SHIM D27&20T0.3 |
| 93A/1. | [0] | 029312-0300 | SHIM D27&20T1.0 |
| 93A/1. | [0] | 139420-0400 | SHIM D27&20T0.7 |
| 95. | [1] | 131305-0300 | BEARING SHELL |
| 96. | [2] | 029050-5010 | FLAT-HEAD SCREW M5P0.8L32 |
| 97. | [2] | 026505-0940 | GASKET |
| 100A. | [1] | 029622-0240 | PACKING RING |
| 101A. | [1] | 131316-2000 | COVER |
| 104A. | [4] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 106A. | [1] | 029635-0050 | O-RING |
| 112A. | [1] | 025804-1610 | WOODRUFF KEY |
| 117A. | [1] | 029731-4570 | EYE BOLT |
| 118A. | [2] | 026514-1840 | GASKET D17.9&14.2T1 |
| 145. | [1] | 029111-2070 | CAPSULE M12P1.5L10 |
| 146. | [1] | 026512-1540 | GASKET D15.4&12.2T1.50 |
| 152. | [1] | 131456-4300 | EYE BOLT |
| 153. | [1] | 029711-2180 | INLET UNION |
| 154. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
| 334. | [1] | 029731-0120 | EYE BOLT |
| 336. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
| 360A. | [1] | 131496-0300 | POINTER |
| 361A. | [2] | 029010-6680 | BLEEDER SCREW |
