101069-8020 ZEXEL 9 410 613 077 BOSCH FUEL-INJECTION PUMP 9410613077 1010698020




Information fuel-injection pump

BOSCH 9 410 613 077 9410613077
ZEXEL 101069-8020 1010698020
101069-8020 FUEL-INJECTION PUMP
Rating:
52
Buy FUEL-INJECTION PUMP 101069-8020 zexel genuine, new aftermarket engine parts with delivery

Scheme ###:

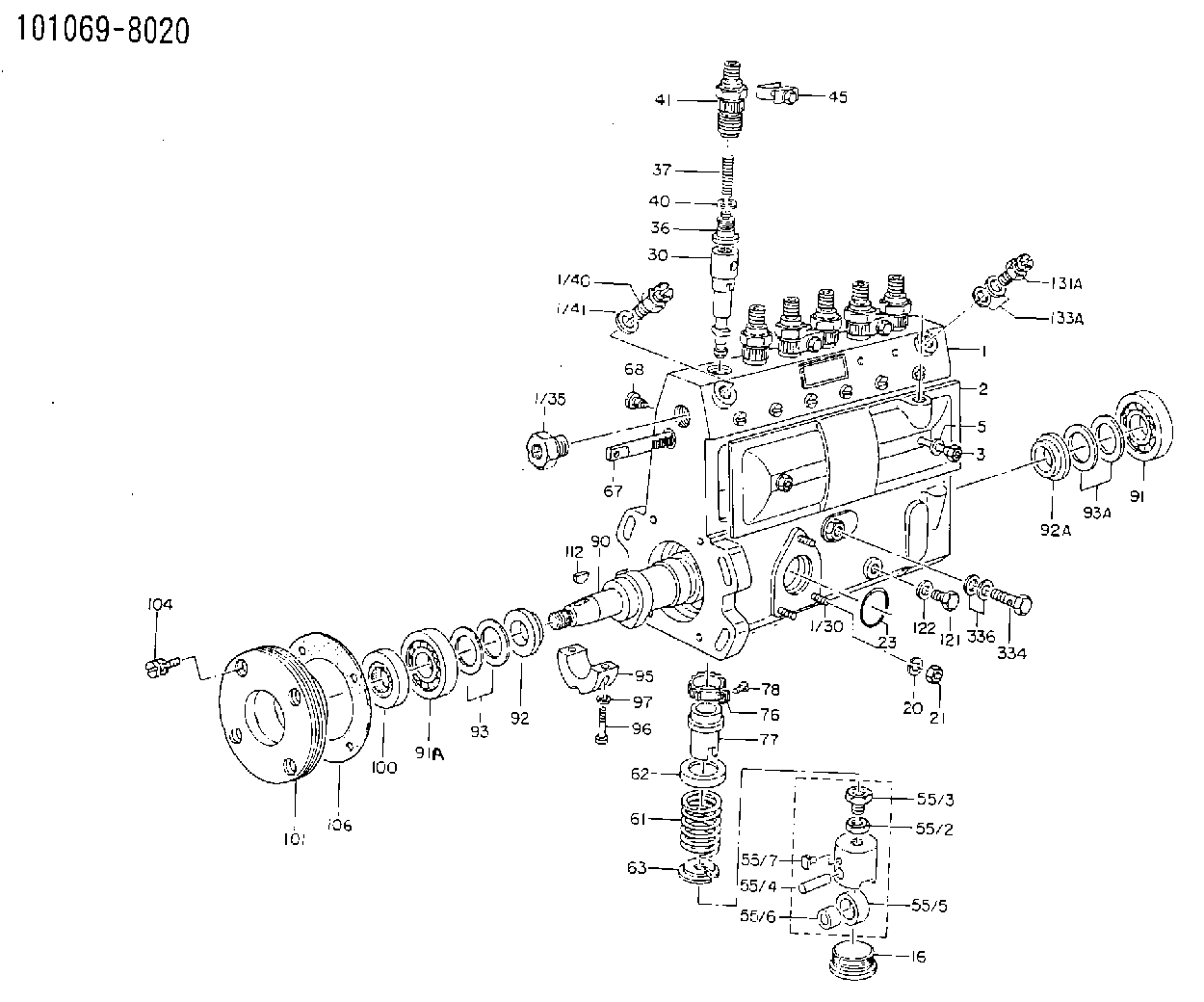

PUMP HOUSING
1. [1] 131073-5520 PUMP HOUSING
1/30. [3] 029040-6020 STUD
1/35. [1] 154007-0200 ADAPTOR
1/40. [1] 131002-2700 ADAPTOR
1/40A. [1] 131002-2700 ADAPTOR
2. [1] 131028-6020 COVER
2/2. [1] 131011-0800 GASKET
3. [2] 131017-1000 FLAT-HEAD SCREW
5. [2] 029340-6020 GASKET D10&6.5T1.00
16. [6] 131034-1401 CAPSULE
21. [3] 139206-0400 UNION NUT
23. [1] 029633-1010 O-RING
30. [6] 131101-8520 PLUNGER-AND-BARREL ASSY
36. [6] 131110-4020 DELIVERY-VALVE ASSEMBLY
37. [6] 131112-0600 COILED SPRING
40. [6] 131115-0200 GASKET
41. [6] 131116-0500 FITTING
45. [3] 131122-0520 PLATE
55. [6] 131200-0620 TAPPET
55/2. [1] 131201-0100 UNION NUT
55/3. [1] 131202-0100 HEXAGON SCREW
55/4. [1] 131203-0200 BEARING PIN
55/5. [1] 131204-1000 ROLLER
55/6. [1] 131205-0500 BUSHING
55/7. [1] 131206-0200 SLIDER
61. [6] 131215-0600 COMPRESSION SPRING
62. [6] 131216-0100 SLOTTED WASHER
63. [6] 131217-0100 SLOTTED WASHER
67. [1] 131256-0800 CONTROL RACK
68. [1] 131226-0300 FLAT-HEAD SCREW
76. [6] 131240-0100 PINION
77. [6] 131241-0100 CONTROL SLEEVE
78. [6] 131242-0100 FLAT-HEAD SCREW
90. [1] 131370-0200 CAMSHAFT
91. [1] 028001-7010 BEARING PLATE
91A. [1] 028001-7010 BEARING PLATE
92. [1] 131302-0600 SPACER RING
92A. [1] 131302-0600 SPACER RING
93/1. [0] 029311-7010 SHIM D22&17T0.1
93/1. [0] 029311-7020 SHIM D22&17T0.12
93/1. [0] 029311-7030 SHIM D22&17T0.14
93/1. [0] 029311-7040 SHIM D22&17T0.16
93/1. [0] 029311-7050 SHIM D22&17T0.18
93/1. [0] 029311-7060 SHIM D22&17T0.5
93/1. [0] 029311-7070 SHIM D22&17T1.0
93/1. [0] 029311-7090 SHIM D22&17T0.3
93/1. [0] 029311-7210 SHIM D22&17T0.7
93/1. [0] 029311-7220 SHIM D22&17T1.4
93/1. [0] 139417-0000 SHIM D22&17T2.4
93A/1. [0] 029311-7010 SHIM D22&17T0.1
93A/1. [0] 029311-7020 SHIM D22&17T0.12
93A/1. [0] 029311-7030 SHIM D22&17T0.14
93A/1. [0] 029311-7040 SHIM D22&17T0.16
93A/1. [0] 029311-7050 SHIM D22&17T0.18
93A/1. [0] 029311-7060 SHIM D22&17T0.5
93A/1. [0] 029311-7070 SHIM D22&17T1.0
93A/1. [0] 029311-7090 SHIM D22&17T0.3
93A/1. [0] 029311-7210 SHIM D22&17T0.7
93A/1. [0] 029311-7220 SHIM D22&17T1.4
93A/1. [0] 139417-0000 SHIM D22&17T2.4
95. [1] 131306-0800 BEARING SHELL
96. [2] 029050-5010 FLAT-HEAD SCREW M5P0.8L32
97. [2] 026505-0940 GASKET
100. [1] 029621-7020 PACKING RING
101. [1] 131330-2200 COVER
104. [4] 020006-1440 BLEEDER SCREW M6P1L14
106. [1] 131321-1300 GASKET
112. [1] 025803-1640 WOODRUFF KEY
121. [1] 029111-0010 CAPSULE
122. [1] 029341-0020 GASKET
131A. [1] 131424-1520 OVER FLOW VALVE
133A. [2] 026514-1840 GASKET D17.9&14.2T1
334. [1] 029731-0120 EYE BOLT
336. [2] 026510-1340 GASKET D13.4&10.2T1

Include in #1:

101601-5794 as _
101692-9240 as FUEL INJECTION PUMP

Cross reference number

Zexel num
Bosch num
Firm num
Name
101069-8020
9 410 613 077

FUEL-INJECTION PUMP
* Q
