101069-5000 ZEXEL 9 410 611 723 BOSCH FUEL-INJECTION PUMP 9410611723 1010695000 1670195106

Information fuel-injection pump

BOSCH 9 410 611 723 9410611723

ZEXEL 101069-5000 1010695000

NISSAN-DIESEL 1670195106 1670195106

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 101069-5000 zexel genuine, new aftermarket engine parts with delivery

Scheme ###:

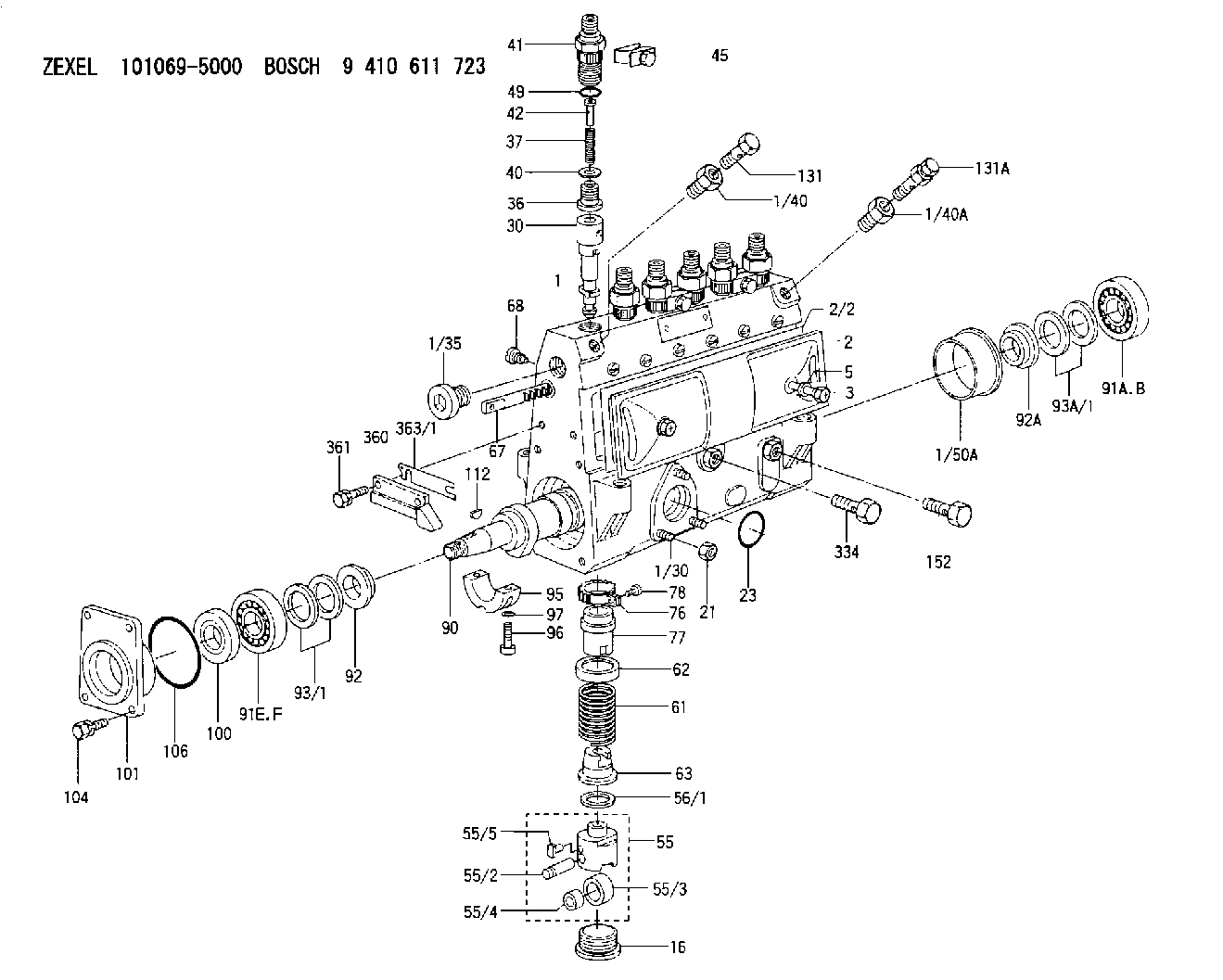

1.	[1]	131075-8320	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/35.	[1]	134026-0000	CAPSULE
1/40.	[1]	131002-4700	ADAPTOR
1/40A.	[1]	131002-4700	ADAPTOR
1/50A.	[1]	131311-0100	SPACER RING
2.	[1]	131028-6020	COVER
2/2.	[1]	131011-0800	GASKET
3.	[2]	131017-1000	FLAT-HEAD SCREW
5.	[2]	029340-6020	GASKET
16.	[6]	131034-1501	CAPSULE
21.	[3]	139206-0400	UNION NUT
23.	[1]	029633-1010	O-RING
30.	[6]	131153-1220	PLUNGER-AND-BARREL ASSY A196
36.	[6]	131160-3120	DELIVERY-VALVE ASSEMBLY 15A
37.	[6]	131112-2900	COILED SPRING
40.	[6]	131115-1200	GASKET
41.	[6]	131116-8300	FITTING
42.	[6]	131117-2100	FILLER PIECE
45.	[3]	131122-0520	PLATE
49.	[6]	029632-0070	O-RING
55.	[6]	131200-2720	TAPPET
55/2.	[6]	131203-0500	BEARING PIN
55/3.	[6]	131204-1100	ROLLER
55/4.	[6]	131205-0600	BUSHING
55/5.	[6]	131206-0700	SLIDER
56/1.	[0]	029311-0020	SHIM D19&10T0.30
56/1.	[0]	029311-0030	SHIM D19&10T0.40
56/1.	[0]	029311-0040	SHIM D19&10T0.50
56/1.	[0]	029311-0050	SHIM D19&10T0.6
56/1.	[0]	029311-0060	SHIM D19&10T0.7
56/1.	[0]	029311-0070	SHIM D19&10T0.8
56/1.	[0]	029311-0080	SHIM D19&10T0.9
56/1.	[0]	029311-0090	SHIM D19&10T1
56/1.	[0]	029311-0110	SHIM D19&10T1.1
56/1.	[0]	029311-0120	SHIM D19&10T1.2
56/1.	[0]	029311-0130	SHIM D19&10T1.3
56/1.	[0]	029311-0140	SHIM D19&10T1.4
56/1.	[0]	029311-0270	SHIM D19&10T0.55
56/1.	[0]	029311-0280	SHIM D19&10T0.65
56/1.	[0]	029311-0290	SHIM D19&10T0.75
56/1.	[0]	029311-0310	SHIM D19&10T0.85
56/1.	[0]	029311-0320	SHIM D19&10T0.95
56/1.	[0]	029311-0330	SHIM D19&10T1.05
56/1.	[0]	029311-0340	SHIM D19&10T1.15
56/1.	[0]	029311-0350	SHIM D19&10T1.25
56/1.	[0]	029311-0490	SHIM D19&10T1.5
56/1.	[0]	029311-0500	SHIM D19&10T1.6
56/1.	[0]	029311-0580	SHIM D19&10T0.2
56/1.	[0]	029311-0590	SHIM D19&10T0.25
56/1.	[0]	029311-0600	SHIM D19&10T0.35
56/1.	[0]	029311-0610	SHIM D19&10T0.45
56/1.	[0]	029311-0620	SHIM D19&10T1.35
56/1.	[0]	029311-0630	SHIM D19&10T1.45
56/1.	[0]	029311-0710	SHIM D19&10T1.55
61.	[6]	131215-2100	COMPRESSION SPRING
62.	[6]	131216-0400	SLOTTED WASHER
63.	[6]	131217-0600	SLOTTED WASHER
67.	[1]	131256-0000	CONTROL RACK
68.	[1]	131226-0300	FLAT-HEAD SCREW
76.	[6]	131240-0100	PINION
77.	[6]	131241-0500	CONTROL SLEEVE
78.	[6]	131242-0100	FLAT-HEAD SCREW
90.	[1]	131375-0500	CAMSHAFT
91A.	[1]	016630-2030	BEARING PLATE HR30203J(NSK)
91B.	[1]	028201-7020	BEARING PLATE 4T-30203E1(TOYO)
91E.	[1]	016640-2030	BEARING PLATE HR30204J(NSK)
91F.	[1]	028202-0020	BEARING PLATE 4T-30204E1(TOYO)
92.	[1]	131302-1301	SPACER RING
92A.	[1]	131302-0400	SPACER RING
93/1.	[0]	029312-0310	SHIM D24&20T0.10
93/1.	[0]	029312-0320	SHIM D24&20T0.12
93/1.	[0]	029312-0330	SHIM D24&20T0.14
93/1.	[0]	029312-0340	SHIM D24&20T0.16
93/1.	[0]	029312-0350	SHIM D24&20T0.18
93/1.	[0]	029312-0360	SHIM D24&20T0.3
93/1.	[0]	029312-0370	SHIM D24&20T0.5
93/1.	[0]	029312-0380	SHIM D24&20T1.0
93A/1.	[0]	029311-7010	SHIM D22&17T0.1
93A/1.	[0]	029311-7020	SHIM D22&17T0.12
93A/1.	[0]	029311-7030	SHIM D22&17T0.14
93A/1.	[0]	029311-7040	SHIM D22&17T0.16
93A/1.	[0]	029311-7050	SHIM D22&17T0.18
93A/1.	[0]	029311-7060	SHIM D22&17T0.5
93A/1.	[0]	029311-7070	SHIM D22&17T1.0
93A/1.	[0]	029311-7090	SHIM D22&17T0.3
93A/1.	[0]	029311-7210	SHIM D22&17T0.7
93A/1.	[0]	029311-7220	SHIM D22&17T1.4
93A/1.	[0]	139417-0000	SHIM D22&17T2.4
95.	[1]	131305-0600	BEARING SHELL
96.	[2]	139105-0200	FLAT-HEAD SCREW
97.	[2]	026505-0940	GASKET
100.	[1]	029622-0190	PACKING RING
101.	[1]	131316-2000	COVER
104.	[4]	020006-1440	BLEEDER SCREW
106.	[1]	029635-0050	O-RING
112.	[1]	029470-4030	WOODRUFF KEY
131.	[1]	029731-4680	EYE BOLT
131A.	[1]	131424-1520	OVER FLOW VALVE
152.	[1]	029731-4680	EYE BOLT
334.	[1]	029730-8290	EYE BOLT
360.	[1]	131496-0700	POINTER
361.	[2]	029010-6700	BLEEDER SCREW
363/1.	[0]	139400-0500	SHIM T0.20
363/1.	[0]	139400-0600	SHIM T0.30
363/1.	[0]	139400-0700	SHIM T0.50
363/1.	[0]	139400-0800	SHIM T1.00

Include in #1:

101601-5781 as _

101696-9090 as FUEL INJECTION PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

101069-5000

9 410 611 723
NP-PE6AD90B321R

1670195106 NISSAN-DIESEL

FUEL-INJECTION PUMP
