101069-3790 ZEXEL F 01G 29M 03K BOSCH FUEL-INJECTION PUMP f01g29m03k 1010693790 16703z5713

Information fuel-injection pump

BOSCH F 01G 29M 03K f01g29m03k

ZEXEL 101069-3790 1010693790

NISSAN-DIESEL 16703Z5713 16703z5713

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 101069-3790 zexel genuine, new aftermarket engine parts with delivery

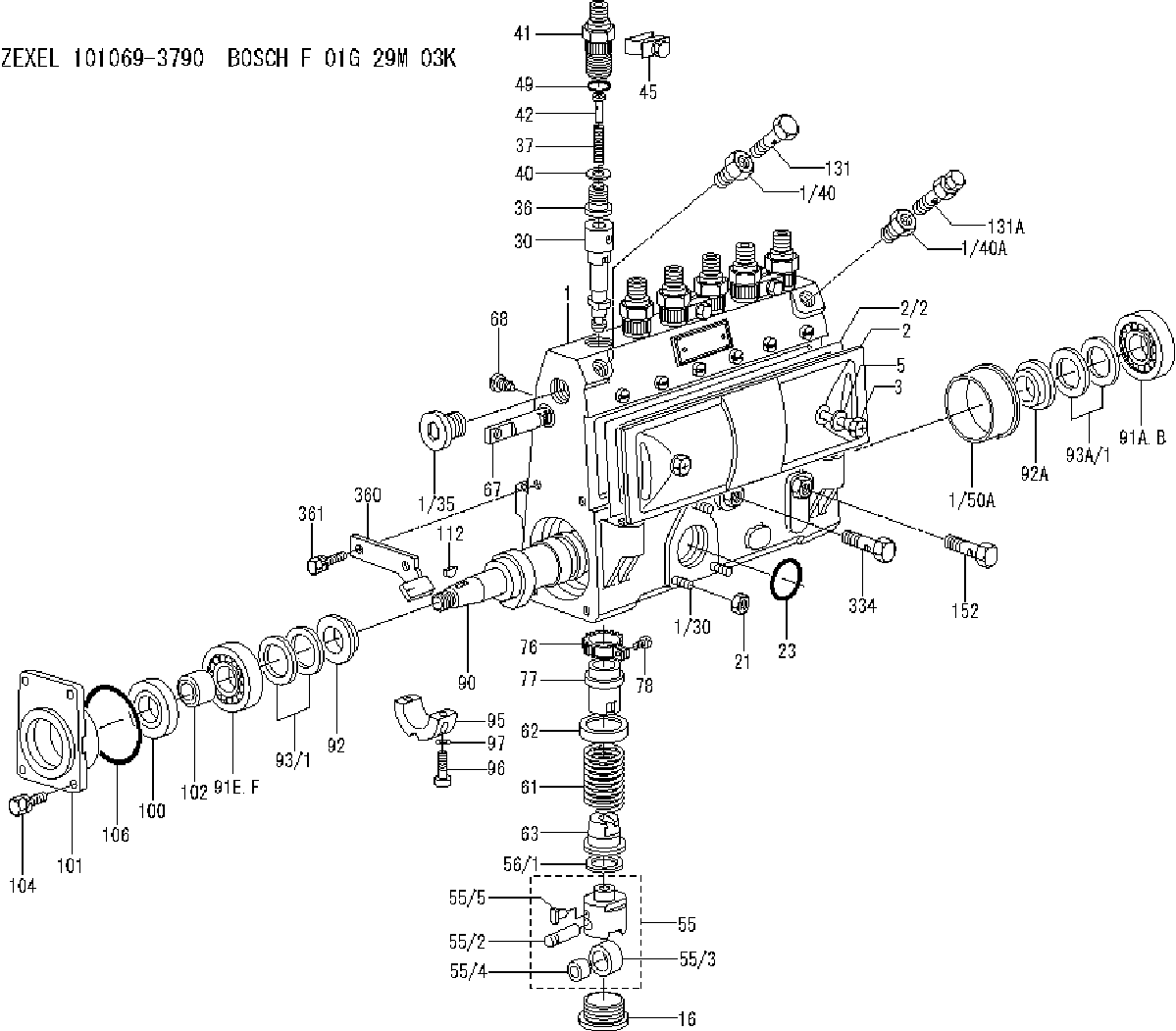

Scheme ###:

1.	[1]	131077-0320	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/35.	[1]	134026-0000	CAPSULE
1/40.	[1]	131002-4700	ADAPTOR
1/40A.	[1]	131002-6700	ADAPTOR
1/50A.	[1]	131311-0100	SPACER RING
2.	[1]	131028-6020	COVER
2/2.	[1]	131011-0800	GASKET
3.	[2]	131017-1000	FLAT-HEAD SCREW
5.	[2]	029340-6020	GASKET
16.	[6]	131034-1501	CAPSULE
21.	[3]	139206-0400	UNION NUT
23.	[1]	029633-1010	O-RING
30.	[6]	131153-1220	PLUNGER-AND-BARREL ASSY A196
36.	[6]	131160-5520	DELIVERY-VALVE ASSEMBLY 41A
37.	[6]	131112-2900	COILED SPRING
40.	[6]	131115-1200	GASKET
41.	[6]	131116-8300	FITTING
42.	[6]	131117-2100	FILLER PIECE
45.	[3]	131122-0520	PLATE
49.	[6]	029632-0070	O-RING
55.	[6]	131200-2720	TAPPET
55/2.	[6]	131203-0500	BEARING PIN
55/3.	[6]	131204-1100	ROLLER
55/4.	[6]	131205-0600	BUSHING
55/5.	[6]	131206-0700	SLIDER
56/1.	[0]	029311-0020	SHIM D19&10T0.30
56/1.	[0]	029311-0030	SHIM D19&10T0.40
56/1.	[0]	029311-0040	SHIM D19&10T0.50
56/1.	[0]	029311-0050	SHIM D19&10T0.6
56/1.	[0]	029311-0060	SHIM D19&10T0.7
56/1.	[0]	029311-0070	SHIM D19&10T0.8
56/1.	[0]	029311-0080	SHIM D19&10T0.9
56/1.	[0]	029311-0090	SHIM D19&10T1
56/1.	[0]	029311-0110	SHIM D19&10T1.1
56/1.	[0]	029311-0120	SHIM D19&10T1.2
56/1.	[0]	029311-0130	SHIM D19&10T1.3
56/1.	[0]	029311-0140	SHIM D19&10T1.4
56/1.	[0]	029311-0270	SHIM D19&10T0.55
56/1.	[0]	029311-0280	SHIM D19&10T0.65
56/1.	[0]	029311-0290	SHIM D19&10T0.75
56/1.	[0]	029311-0310	SHIM D19&10T0.85
56/1.	[0]	029311-0320	SHIM D19&10T0.95
56/1.	[0]	029311-0330	SHIM D19&10T1.05
56/1.	[0]	029311-0340	SHIM D19&10T1.15
56/1.	[0]	029311-0350	SHIM D19&10T1.25
56/1.	[0]	029311-0490	SHIM D19&10T1.5
56/1.	[0]	029311-0500	SHIM D19&10T1.6
56/1.	[0]	029311-0580	SHIM D19&10T0.2
56/1.	[0]	029311-0590	SHIM D19&10T0.25
56/1.	[0]	029311-0600	SHIM D19&10T0.35
56/1.	[0]	029311-0610	SHIM D19&10T0.45
56/1.	[0]	029311-0620	SHIM D19&10T1.35
56/1.	[0]	029311-0630	SHIM D19&10T1.45
56/1.	[0]	029311-0710	SHIM D19&10T1.55
61.	[6]	131215-2100	COMPRESSION SPRING
62.	[6]	131216-0400	SLOTTED WASHER
63.	[6]	131217-0600	SLOTTED WASHER
67.	[1]	131256-0000	CONTROL RACK
68.	[1]	131226-0300	FLAT-HEAD SCREW
76.	[6]	131240-0100	PINION
77.	[6]	131241-0500	CONTROL SLEEVE
78.	[6]	131242-0100	FLAT-HEAD SCREW
90.	[1]	131375-1800	CAMSHAFT
91A.	[1]	016630-2030	BEARING PLATE HR30203J(NSK)
91B.	[1]	028201-7020	BEARING PLATE 4T-30203E1(TOYO)
91E.	[1]	016640-2030	BEARING PLATE HR30204J(NSK)
91F.	[1]	028202-0020	BEARING PLATE 4T-30204E1(TOYO)
92.	[1]	131302-1301	SPACER RING
92A.	[1]	131302-0400	SPACER RING
93/1.	[0]	029312-0310	SHIM D24&20T0.10
93/1.	[0]	029312-0320	SHIM D24&20T0.12
93/1.	[0]	029312-0330	SHIM D24&20T0.14
93/1.	[0]	029312-0340	SHIM D24&20T0.16
93/1.	[0]	029312-0350	SHIM D24&20T0.18
93/1.	[0]	029312-0360	SHIM D24&20T0.3
93/1.	[0]	029312-0370	SHIM D24&20T0.5
93/1.	[0]	029312-0380	SHIM D24&20T1.0
93A/1.	[0]	029311-7010	SHIM D22&17T0.1
93A/1.	[0]	029311-7020	SHIM D22&17T0.12
93A/1.	[0]	029311-7030	SHIM D22&17T0.14
93A/1.	[0]	029311-7040	SHIM D22&17T0.16
93A/1.	[0]	029311-7050	SHIM D22&17T0.18
93A/1.	[0]	029311-7060	SHIM D22&17T0.5
93A/1.	[0]	029311-7070	SHIM D22&17T1.0
93A/1.	[0]	029311-7090	SHIM D22&17T0.3
93A/1.	[0]	029311-7210	SHIM D22&17T0.7
93A/1.	[0]	029311-7220	SHIM D22&17T1.4
93A/1.	[0]	139417-0000	SHIM D22&17T2.4
95.	[1]	131305-0600	BEARING SHELL
96.	[2]	139105-0200	FLAT-HEAD SCREW
97.	[2]	026505-0940	GASKET
100.	[1]	139620-0000	PACKING RING
101.	[1]	131330-3200	COVER
102.	[1]	131563-1000	SLIDING PIECE
104.	[4]	020006-1440	BLEEDER SCREW
106.	[1]	029635-0050	O-RING
112.	[1]	029470-4030	WOODRUFF KEY
131.	[1]	029731-4680	EYE BOLT
131A.	[1]	134424-1520	OVER FLOW VALVE
152.	[1]	029731-4680	EYE BOLT
334.	[1]	029731-0120	EYE BOLT
360.	[1]	131496-2000	POINTER
361.	[2]	029010-6680	BLEEDER SCREW

Include in #1:

101693-9261 as FUEL INJECTION PUMP

106672-3562 as _

Cross reference number

Zexel num

Bosch num

Firm num

Name

101069-3790

F 01G 29M 03K
NP-PE6AD90B321R

16703Z5713 NISSAN-DIESEL

FUEL-INJECTION PUMP
* Q

Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
It has been difficult to detect a faulty injector harness or a faulty injector on the engines that are listed above.Solution
Until further notice, this procedure should be used when you are troubleshooting failures of the injector on the engines that are listed above. If a truck is in the shop for symptoms of failure of the injector and a cylinder cutout test shows a cylinder with a lower number than the rest, follow the procedure that is listed below.
Determine the cylinder that is receiving insufficient fuel.
Switch the low number cylinder injector with a normal number cylinder injector.
If the low number cylinder injector follows to the new position, replace the injector. If the low number cylinder injector does not follow to the new position, replace the harness.Refer to the example in Table 1. Switch the injectors for cylinders 3 and 4 in order to reduce the time for removal of the "VVA" housings.
Table 1
Cylinder Reading
1 23.55
2 24.02
3 23.30
4 20.02
5 22.5
6 23.2
