101069-3171 ZEXEL 9 410 611 235 BOSCH FUEL-INJECTION PUMP 9410611235 1010693171

Information fuel-injection pump

BOSCH 9 410 611 235 9410611235

ZEXEL 101069-3171 1010693171

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 101069-3171 zexel genuine, new aftermarket engine parts with delivery

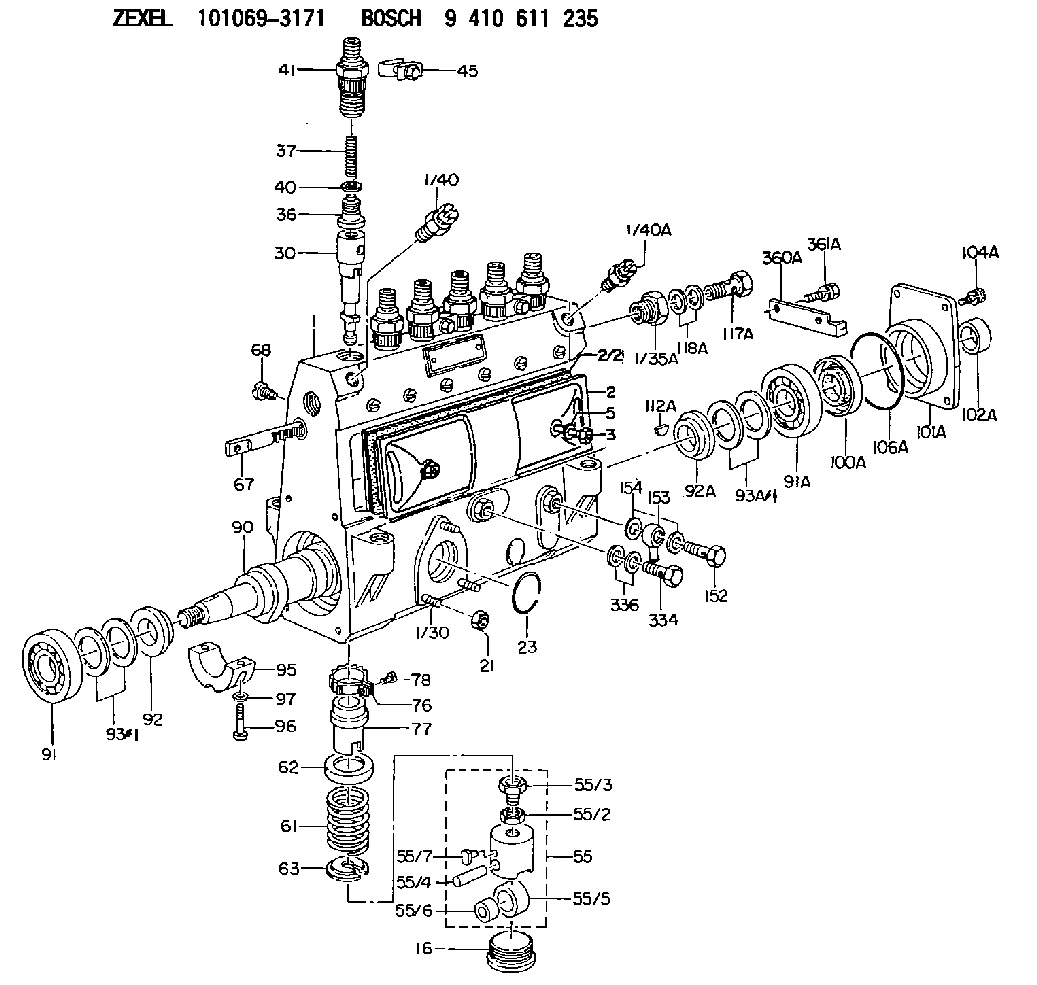

Scheme ###:

1.	[1]	131071-3720	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/35A.	[1]	131400-0100	ADAPTOR
1/40.	[1]	131420-0420	BLEEDER SCREW
1/40A.	[1]	131420-0420	BLEEDER SCREW
2.	[1]	131028-4520	COVER
2/2.	[1]	131011-0800	GASKET
3.	[2]	131017-1000	FLAT-HEAD SCREW
5.	[2]	026506-1040	GASKET D9.9&6.2T1
16.	[6]	131034-1401	CAPSULE
21.	[3]	139206-0400	UNION NUT
23.	[1]	029633-1010	O-RING
30.	[6]	131101-7620	PLUNGER-AND-BARREL ASSY
36.	[6]	131110-0620	DELIVERY-VALVE ASSEMBLY
37.	[6]	131112-0100	COILED SPRING
40.	[6]	131115-0200	GASKET
41.	[6]	131116-0500	FITTING
45.	[3]	131122-0520	PLATE
55.	[6]	131200-1820	TAPPET
55/2.	[1]	131201-0100	UNION NUT
55/3.	[1]	131202-0100	HEXAGON SCREW
55/4.	[1]	131203-0200	BEARING PIN
55/5.	[1]	131204-1000	ROLLER
55/6.	[1]	131205-0500	BUSHING
55/7.	[1]	131206-0500	SLIDER
61.	[6]	131215-2400	COMPRESSION SPRING
62.	[6]	131216-0100	SLOTTED WASHER
63.	[6]	131217-0100	SLOTTED WASHER
67.	[1]	131256-0000	CONTROL RACK
68.	[1]	131226-0300	FLAT-HEAD SCREW
76.	[6]	131240-0100	PINION
77.	[6]	131241-0100	CONTROL SLEEVE
78.	[6]	131242-0100	FLAT-HEAD SCREW
90.	[1]	131370-1000	CAMSHAFT
91.	[1]	016630-2030	BEARING PLATE
91A.	[1]	016630-2030	BEARING PLATE
92.	[1]	131302-0300	SPACER RING
92A.	[1]	131302-0300	SPACER RING
93/1.	[0]	029311-7010	SHIM D22&17T0.1
93/1.	[0]	029311-7020	SHIM D22&17T0.12
93/1.	[0]	029311-7030	SHIM D22&17T0.14
93/1.	[0]	029311-7040	SHIM D22&17T0.16
93/1.	[0]	029311-7050	SHIM D22&17T0.18
93/1.	[0]	029311-7060	SHIM D22&17T0.5
93/1.	[0]	029311-7070	SHIM D22&17T1.0
93/1.	[0]	029311-7090	SHIM D22&17T0.3
93/1.	[0]	029311-7210	SHIM D22&17T0.7
93/1.	[0]	029311-7220	SHIM D22&17T1.4
93/1.	[0]	139417-0000	SHIM D22&17T2.4
93A/1.	[0]	029311-7010	SHIM D22&17T0.1
93A/1.	[0]	029311-7020	SHIM D22&17T0.12
93A/1.	[0]	029311-7030	SHIM D22&17T0.14
93A/1.	[0]	029311-7040	SHIM D22&17T0.16
93A/1.	[0]	029311-7050	SHIM D22&17T0.18
93A/1.	[0]	029311-7060	SHIM D22&17T0.5
93A/1.	[0]	029311-7070	SHIM D22&17T1.0
93A/1.	[0]	029311-7090	SHIM D22&17T0.3
93A/1.	[0]	029311-7210	SHIM D22&17T0.7
93A/1.	[0]	029311-7220	SHIM D22&17T1.4
93A/1.	[0]	139417-0000	SHIM D22&17T2.4
95.	[1]	131306-0800	BEARING SHELL
96.	[2]	029050-5010	FLAT-HEAD SCREW M5P0.8L32
97.	[2]	026505-0940	GASKET
100A.	[1]	139617-0010	PACKING RING
101A.	[1]	131330-3100	COVER
102A.	[1]	131563-0900	SLIDING PIECE
104A.	[4]	020006-1440	BLEEDER SCREW M6P1L14
106A.	[1]	029634-4020	O-RING
112A.	[1]	025803-1610	WOODRUFF KEY
117A.	[1]	029731-4570	EYE BOLT
118A.	[2]	026514-1840	GASKET D17.9&14.2T1
152.	[1]	131456-4300	EYE BOLT
153.	[1]	029711-2180	INLET UNION
154.	[2]	026512-1540	GASKET D15.4&12.2T1.50
334.	[1]	029731-0120	EYE BOLT
336.	[2]	026510-1340	GASKET D13.4&10.2T1
360A.	[1]	131496-0300	POINTER
361A.	[2]	029010-6680	BLEEDER SCREW

Include in #1:

101691-1750 as FUEL INJECTION PUMP

106672-3603 as _

Cross reference number

Zexel num

Bosch num

Firm num

Name

101069-3171

9 410 611 235
NP-PE6A90C312RS2000NP468

FUEL-INJECTION PUMP
Q
