101069-1910 ZEXEL 9 410 610 148 BOSCH FUEL-INJECTION PUMP 9410610148 1010691910 9812102280




Information fuel-injection pump

BOSCH 9 410 610 148 9410610148
ZEXEL 101069-1910 1010691910
ISUZU 9812102280 9812102280
101069-1910 FUEL-INJECTION PUMP
Rating:
65
Buy FUEL-INJECTION PUMP 101069-1910 zexel genuine, new aftermarket engine parts with delivery

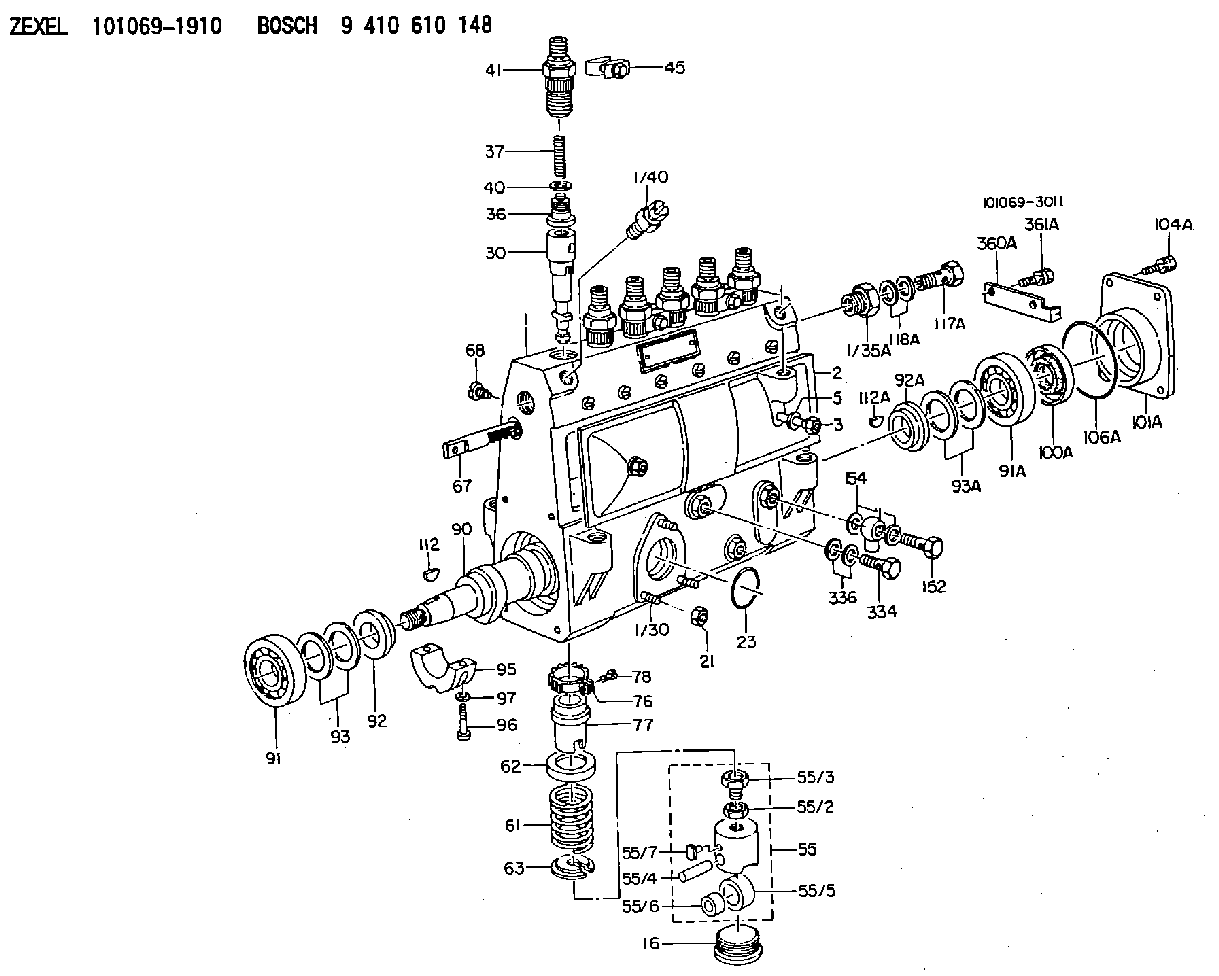

Scheme ###:

PUMP HOUSING
1. [1] 131071-8720 PUMP HOUSING
1/30. [3] 029040-6020 STUD
1/35A. [1] 131400-0100 ADAPTOR
1/40. [1] 131420-0420 BLEEDER SCREW
2. [1] 131028-6020 COVER
2/2. [1] 131011-0800 GASKET
3. [2] 131017-1000 FLAT-HEAD SCREW
5. [2] 029340-6020 GASKET
16. [6] 131034-1401 CAPSULE
21. [3] 139206-0400 UNION NUT
23. [1] 029633-1010 O-RING
30. [6] 131101-7620 PLUNGER-AND-BARREL ASSY 0-10
36. [6] 131110-0620 DELIVERY-VALVE ASSEMBLY 161S2
37. [6] 131112-0600 COILED SPRING
40. [6] 131115-0200 GASKET
41. [6] 131116-0400 FITTING
45. [3] 131122-0520 PLATE
55. [6] 131200-0620 TAPPET
55/2. [6] 131201-0100 UNION NUT
55/3. [6] 131202-0100 HEXAGON SCREW
55/4. [6] 131203-0200 BEARING PIN
55/5. [6] 131204-1000 ROLLER
55/6. [6] 131205-0500 BUSHING
55/7. [6] 131206-0200 SLIDER
61. [6] 131215-2400 COMPRESSION SPRING
62. [6] 131216-0100 SLOTTED WASHER
63. [6] 131217-0100 SLOTTED WASHER
67. [1] 131256-0000 CONTROL RACK
68. [1] 131226-0300 FLAT-HEAD SCREW
76. [6] 131240-0100 PINION
77. [6] 131241-0100 CONTROL SLEEVE
78. [6] 131242-0100 FLAT-HEAD SCREW
90. [1] 131370-0000 CAMSHAFT
91. [1] 028001-7010 BEARING PLATE
91A. [1] 016630-2640 BEARING PLATE
92. [1] 131302-0600 SPACER RING
92A. [1] 131302-0400 SPACER RING
93/1. [0] 029311-7010 SHIM D22&17T0.1
93/1. [0] 029311-7020 SHIM D22&17T0.12
93/1. [0] 029311-7030 SHIM D22&17T0.14
93/1. [0] 029311-7040 SHIM D22&17T0.16
93/1. [0] 029311-7050 SHIM D22&17T0.18
93/1. [0] 029311-7060 SHIM D22&17T0.5
93/1. [0] 029311-7070 SHIM D22&17T1.0
93/1. [0] 029311-7090 SHIM D22&17T0.3
93/1. [0] 029311-7210 SHIM D22&17T0.7
93/1. [0] 029311-7220 SHIM D22&17T1.4
93/1. [0] 139417-0000 SHIM D22&17T2.4
93A/1. [0] 029311-7010 SHIM D22&17T0.1
93A/1. [0] 029311-7020 SHIM D22&17T0.12
93A/1. [0] 029311-7030 SHIM D22&17T0.14
93A/1. [0] 029311-7040 SHIM D22&17T0.16
93A/1. [0] 029311-7050 SHIM D22&17T0.18
93A/1. [0] 029311-7060 SHIM D22&17T0.5
93A/1. [0] 029311-7070 SHIM D22&17T1.0
93A/1. [0] 029311-7090 SHIM D22&17T0.3
93A/1. [0] 029311-7210 SHIM D22&17T0.7
93A/1. [0] 029311-7220 SHIM D22&17T1.4
93A/1. [0] 139417-0000 SHIM D22&17T2.4
95. [1] 131306-0800 BEARING SHELL
96. [2] 029050-5010 FLAT-HEAD SCREW
97. [2] 026505-0940 GASKET
100A. [1] 029621-7050 PACKING RING
101A. [1] 131330-2300 COVER
104A. [4] 020006-1440 BLEEDER SCREW
106A. [1] 029634-4020 O-RING
112A. [1] 025803-1610 WOODRUFF KEY 16 MM
117A. [1] 139814-0000 EYE BOLT
118A. [2] 139514-0000 GASKET
152. [1] 139812-0100 EYE BOLT
154. [2] 139512-0000 GASKET
334. [1] 139810-0000 EYE BOLT
336. [2] 139510-0000 GASKET
360A. [1] 131496-0300 POINTER
361A. [2] 029010-6680 BLEEDER SCREW

Include in #1:

101690-0440 as FUEL INJECTION PUMP
101691-0990
101691-4130
106671-8352 as _

Cross reference number

Zexel num
Bosch num
Firm num
Name
101069-1910
9 410 610 148
9812102280  ISUZU
FUEL-INJECTION PUMP
* Q




Information:

CompactorCB68B (S/N: 496100-100)Asphalt PaverAP1055F (S/N: RLM1-105)AP555F (S/N: 5F51-101)AP600F (S/N: LR61-108)AP655F (S/N: 4801-103; P651-124; ML61-113; 4791-122,125-125)Excavator320D2 (S/N: BW21-235; CY21-192; ZBH1-975,10001-10185)323D2 (S/N: FLC1-219,10001-10004; KCE1-428; JEG1-257; PJP1-1331; YCR1-288; TDT1-560,10001-10135; KBX1-191,10001-10006)326D2 (S/N: REC1-197,199-199,202-203,205-206,208-212; MZH1-282,10001-10006; JFL1-174; XAM1-510,10001-10060; MGW1-313; NBX1-156; KGY1-323)329D2 (S/N: RGA1-309; KJB1-180; SHJ1-190; TMJ1-376; WDT145-145; THW1-506,509-554)330D2 (S/N: PTE1-211; ZBF1-514,10001-10073,10076-10088; RCK1-357; SZK1-561,10001-10143)Generator SetXQP150 (S/N: PJ71-105,107-107,109-112)Motor Grader120L (S/N: E93100-100)120N (S/N: E94100-100; E951-101)Soil Compactor815K (S/N: WCS100-100,201-201)TelehandlerTL1055D (S/N: MNT63-63,150-181,183-186,188-188,192-192)TL1255D (S/N: MYW1-157,160-161,15700-15700)Track-Type TractorD3K2 (S/N: FT31-103,2100-2115,2119-2119; LT31-113,2110-2111)D4K2 (S/N: RT3130-130,2130-2130)D5K2 (S/N: WT31-157,2140-2174; YT31-157,2150-2163,2167-2167)D5R2 (S/N: R5A150-150,152-158,161-162)D6K2 (S/N: MXK1-273; RPR1-307)D6N (S/N: P5T1-166)Vibratory Soil CompactorCS79B (S/N: CM71-101)Wheel Loader924K (S/N: KW41-395; ENC1-1566; HJF1-101,250-818; SNZ100-100,250-430)930K (S/N: DYB1-486; EYE1-127,250-789; FRK1-131,350-433; P3K1-195; TNY1-69)938K (S/N: W8K1-306; REP150-150,450-625; XXT1-137,350-962; HFW1-932)950 GC (S/N: M5K1-1212,1214-1233)950L (S/N: LXX1-228)950M (S/N: ENE1-212,215-234; LCR201-201)962L (S/N: MTN1-163; SXS1-203)962M (S/N: LSE1-208)Wheel Skidder525D (S/N: 2L51-153)535D (S/N: 3L51-136)545D (S/N: 4L51-159)555D (S/N: 5L51-111)Wheeled ExcavatorM315D2 (S/N: CA41-103,189-266)M317D2 (S/N: CA61-284)M320D2 (S/N: EN81-330; CH91-149)M322D 2 MH (S/N: EN9215-215)M322D2 (S/N: EN21-207)M324D 2 MH (S/N: EN31-179)Description Of Change: A new injector sleeve has been introduced. The new injector sleeve has improved sealing bead geometry.Adaptable To: New 517-8243 Injector Sleeve replaces 277-5067 Injector Sleeve.To remove the existing injector sleeve, refer to Disassembly and Assembly, Fuel Injection Lines - Remove for the correct procedure.To install the new injector sleeve, refer to Disassembly and Assembly, Fuel Injection Lines - Install for the correct procedure.

Have questions with 101069-1910?





Group cross 101069-1910 ZEXEL

Isuzu

101069-1910
9 410 610 148
9812102280
FUEL-INJECTION PUMP

Hino

101069-1960

6072120540
FUEL-INJECTION PUMP

Mitsubishi

101069-1970

3006134121

101069-1990

3116100106
